- Page 2 Remove any object that could fall into ventilation holes or prevent proper cooling of the display’s electronics. • Do not block the ventilation holes on the Vibe. • When positioning the display, make sure the power plug and outlet are easily accessible.
- Page 3 • The forward tilt of the product will affect the touch effect. The suggested installation 0 ~5 angle is 0 IMPORTANT: Always activate a moving screen saver program when you leave your display unattended. Always activate a periodic screen refresh application if the unit will display unchanging static content. Uninterrupted display of still or static images over an extended period may cause “burn in”, also known as “after-imaging”...
- Page 4 ESD Warnings When user close to the monitor, it may cause the equipment discharge and reboot to the display of main menu. Warning: This equipment is compliant with Class A of EN55032/CISPR 32. Operation of this equipment in a residential environment could cause radio interference. Federal Communications Commission (FCC) Notice (U.S.
- Page 5 End of Life Directives--Recycling Your new Public Information Display contains several materials that can be recycled for new users. Please dispose of according to all Local, State, and Federal laws. Disposal of Waste Equipment by Users in Private Househould in the European Union.
- Page 6 When using the display, fasten the LCD to a wall using a cord or chain that can support the weight of the monitor in order to prevent the monitor from falling. Installing must be done by a qualified technician. Please contact your supplier for more information. Clamp Release the screws then Cord or chain...
-
Page 7: Table Of Contents
Parts and Functions......................... 7 3.1. Input/Output ..............................7 3.2. Stylus ................................7 Touch Control ............................ 8 4.1. Draw & Erase with Vibe Stylus ......................8 4.2. Canvas Operation by Fingertips ......................8 4.3. Other Operations ............................8 Pixel Defect Policy ........................... 9 5.1. Pixels and Subpixels ..........................9 5.2. -
Page 8: Unpacking And Installation

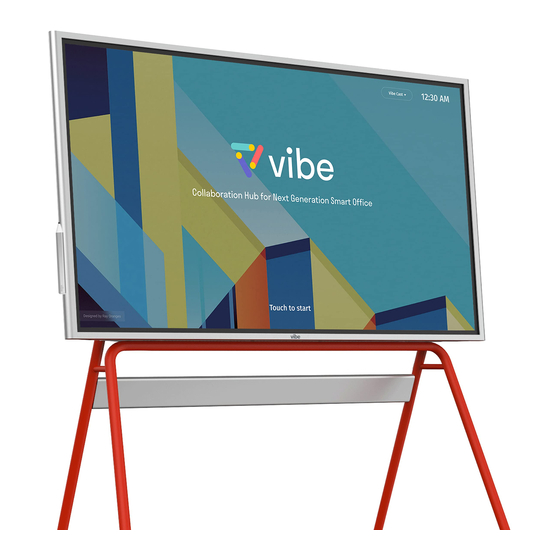

This User Manual applies to the Mode Numbers as below: V55N203W , V55N203EU, V55N203EW, V55N203* The user interface is subject to change. Please refer to the actual machine for user interactions. Unpacking and Installation 1.1. Unpacking • This product is packed with the standard accessories. •... -
Page 9: Stand Installation (Optional)
Stand Installation (Optional) 2.1. Vibe Assembly notes 1. Caution: The Vibe board and stand are heavy and require a minimum of two people to install. Use caution when lifting them. 2. If screws are found missing or loose, please contact professional repair services or contact Vibe customer service. -
Page 10: Installing The Stand
2.2. Installing the Stand Step 1 1. Open the stand package. 2. Spread the protective sheet from the package on flat ground for a clean assembly space. 3. Install the three middle bars as shown. 4. Install the other side of the stand. Note: Pay attention to the direction of the logo Note: Pay attention to the installation order. - Page 11 Step 2 1. Lift the stand to an upright position. 2. Ensure the direction and position of logo are consistent with figure above. Rotate the tube to Note: Hold both sides to ensure the pieces stay expose the screw holes then install the screws together.
- Page 12 Step 3 1. Remove the 4 rubber plugs from the back. 2. Align the holes on the display with the pegs on the stand to attach the display to the stand. Note: Refer to the triangle symbol on the back of the display for the position of the hole.
- Page 13 Step 4 Complete installation.
-
Page 14: Parts And Functions
Parts and Functions 3.1. Input/Output 1 USB-C High Speed USB 3.0 2 USB-C High Speed USB 3.0 / DisplayPort Out 3 USB-C Debug 4 USB-C Touch / DisplayPort In 5 HDMI In HDMI 2.0 3.2. Stylus... -
Page 15: Touch Control
Touch Control Vibe is equipped with an infrared touch display and can be operated by fingertips or a Vibe stylus. The following descriptions illustrate typical operations. More Vibe software manuals and guides can be found at https://knowledge.vibe.us. 4.1. Draw & Erase with Vibe Stylus... -
Page 16: Pixel Defect Policy
Pixel Defect Policy We strive to deliver the highest quality products and use some of the industry’s most advanced manufacturing processes whilst practicing stringent quality control. However, pixel or sub-pixel defects on the PDP / TFT panels used in Plasma & LCD displays are sometimes unavoidable. No manufacturer can guarantee that all panels will be free from pixel defects, but can guarantee that any Plasma &... -
Page 17: Pixel Defect Tolerances
5.4. Pixel Defect Tolerances In order to qualify for repair due to pixel defects during the warranty period, a PDP / TFT panel in a Plasma / LCD display must have pixel or sub-pixel defects exceeding the tolerances listed in the following table. -
Page 18: Cleaning And Troubleshooting
Cleaning and Troubleshooting 6.1. Cleaning Caution When Using the Display • Do not bring your hands, face or objects close to the ventilation holes of the display. The top of the display is usually very hot due to the high temperature of exhaust air being released through the ventilation holes. -
Page 19: Troubleshooting
6.2. Troubleshooting Symptom Possible Cause Remedy No picture is displayed. 1. The power cord is 1. Plug in the power cord disconnected 2. Make sure the power switch 2. The power switch is not is on switched on 3. Touch the display to exit 3. -
Page 20: Technical Specifications
Technical Specifications Panel Diagonal Screen Size 55“ Optimum Resolution 3840 (H) x 2160 (V) @ 60 Hz Brightness Typ 350cd/m ; min 300cd/m Contrast Ratio (Typical) 4500 : 1 Analog 72% NTSC Response Time (Typical) 6.5ms Pixel Pitch 0.315 mm x 0.315 mm Anti-Glare Coating Yes (with Anti-Fingure Coating) Aspect Ratio... - Page 21 Connections 1. USB-C High Speed USB 3.0 2. USB-C High Speed USB 3.0 / DisplayPort Out 3. USB-C Debug 4. USB-C Touch / DisplayPort In 5. HDMI In HDMI 2.0 Board Product Size 50.7 (W) x 29.3 (H) x 3.0 (D) in Package Size 55.9 (W) x 34.5 (H) x 7.5 (D) in Product Weight...
