Costco Iris 2127023 Assembly Manual

Costco Iris 2127023 Assembly Manual

10 ft x 20 ft / 3.05 m x 6.1m curved pergola
Hide thumbs

Advertisement

Quick Links

Download this manual
Assembly Manual

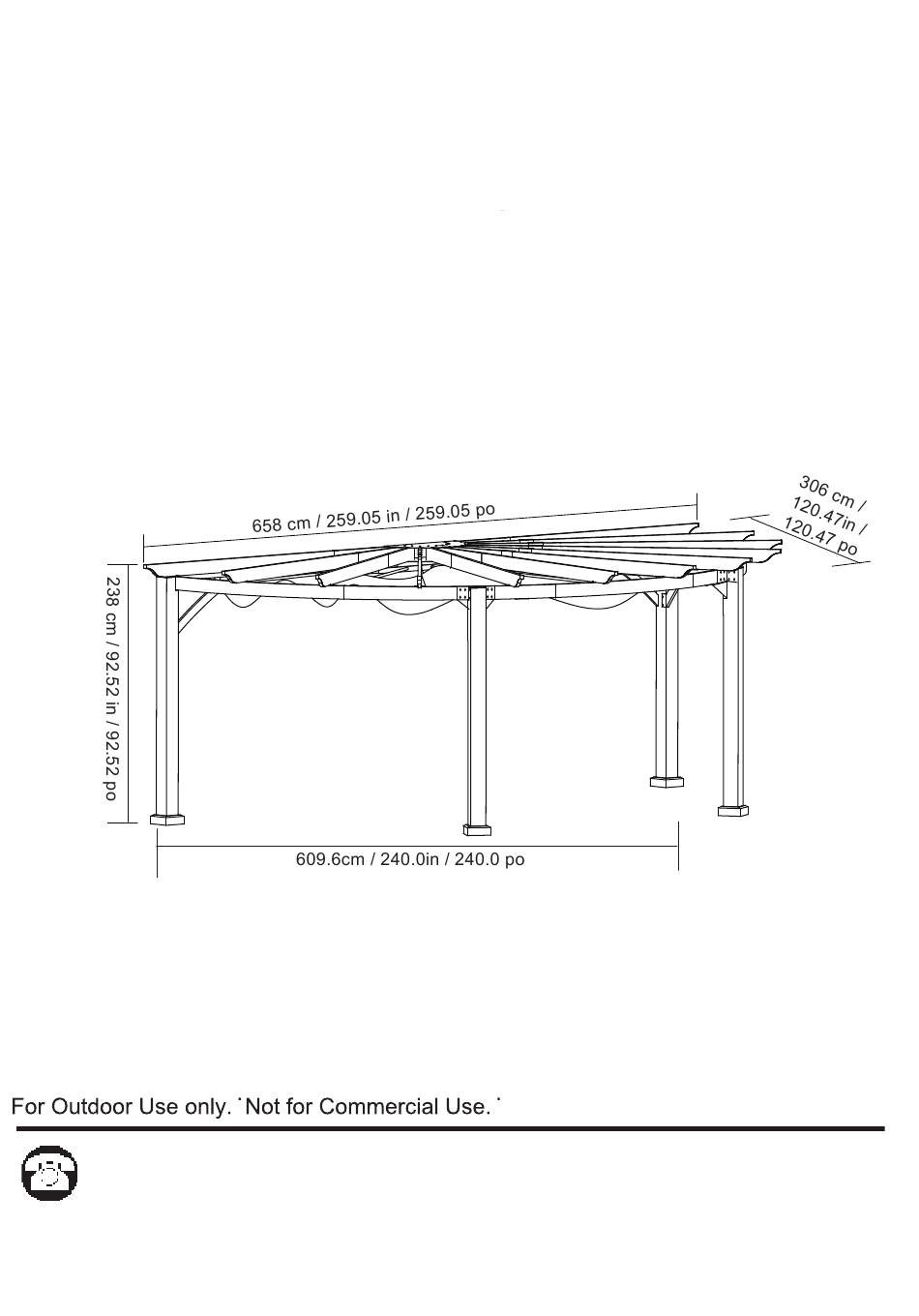

10 ft x 20 ft / 3.05 m x 6.1m
Iris Curved Pergola
ITM./ART. 2127023
IMPORTANT. PLEASE READ CAREFULLY AND RETAIN FOR FUTURE REFERENCE
If you experience any product malfunction, defect or are missing any parts,
please contact our customer service department at 1-855-586-8118 or
servicec @ taipengchina.com. Our hours of operation are Monday - Friday,
8:30 AM to 5:30PM EST.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Iris 2127023 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Costco Iris 2127023

Summary of Contents for Costco Iris 2127023

  • Page 1 Assembly Manual 10 ft x 20 ft / 3.05 m x 6.1m Iris Curved Pergola ITM./ART. 2127023 IMPORTANT. PLEASE READ CAREFULLY AND RETAIN FOR FUTURE REFERENCE If you experience any product malfunction, defect or are missing any parts, please contact our customer service department at 1-855-586-8118 or servicec @ taipengchina.com.

  • Page 2: Safety Information

    SAFETY INFORMATION For the best assembly and usage experience, please read through all steps before attempting to assemble, operate or install the product • WARNING: It is the consumer’s responsibility to comply with any building codes, ordinances, zoning limitations, or local homeowner’s restrictions and obtain any required permit, before purchase and installation of the products.
  • Page 3 Components Post Post Post Upper Beam Upper Beam Upper Beam Back Beam Back Beam Back Beam Center Connector...
  • Page 4 Center Connector Connector Connector Connector Connector Arched Beam Arched Beam Arched Beam Arched Beam Base Plate...
  • Page 5 Base Cover Track Track Track Sliding Tube Sliding Tube Sliding Tube Sliding Tube Sliding Tube Inclined Strut Inclined Strut Inclined Strut Arched Beam...
  • Page 6 Connector Connector Connector Protective Cover Protective Cover Guide Pin Roof Roof Connector Connector...
  • Page 7 Hardware Bolt / Flat Washer (m6*15) Bolt (m6*15) Screw / Flat Washer Bolt (m6*40) Bolt / Flat Washer (m6*35) Bolt / Flat Washer (m6*95) Pipe Plug Bolt / Flat Washer (m6*15) Wrench Expansion bolt Plastic Plug Nut / Flat Washer Nut / Flat Washer Allen Wrench Sleeve...
  • Page 8 Step1 A1/A2/A3 A1/A2/A3 Fig1 1.Slide the Base Cover (L) over the Post (A1/A2/A3), then attach the Base Plate (K) to the Post (A1/A2/A3) with bolts (AA), See Fig1. A3x2 AAx8 A2x1 A1x1...
  • Page 9 Step2 Fig2.1 Fig2.2 Fig2.3 Fig2.4 Fig2.6 Fig2.5 Fig2.8 Fig2.7 2.1.Insert one end of the Connector (F) into the Back Beam (C3) and fix it with bolts (AA), insert the other end of the Connector (F) into the Back Beam (C1) and fix it with bolts (AA), and cover the Protective Cover (U), securing it with bolts (AA), See Fig2.1-2.3.
  • Page 10 Step3 Fig3.2 Fig3.1 Fig3.3 Fig3.4 Fig3.6 Fig3.5 Fig3.7 Fig3.8 3.1.Connect the Connector (E) to the Upper Beam (B1) with bolts (AA), See Fig3.1 3.2. Insert one end of the Connector (T) into the Upper Beam (B1) and fix it with bolts (AA),cover the ProtectiveCover (V), insert the other end of (T) into the Upper Beam (B3) and fix it and the Protective Cover (V) with bolts (AA), See Fig3.2-3.3.
  • Page 11 Step4 Fig4.1 Fig4.2 Fig4.3 Fig4.4 4.1.Connect the Connector (E) to the Upper Beam (B1) with bolts (AA), See Fig4.1 4.2.Insert one end of the Connector (T) into the Upper Beam (B1) and fix it with bolts (AA), cover the Protective Cover (V), insert the other end of (T) into the Upper Beam (B2) and fix it and the Protective Cover (V) with bolts (AA).
  • Page 12 Step5 Fig 5.2 Fig 5.1 Fig 5.3 Fig 5.4 Fig 5.5 Fig 5.6 Fig5.7 Fig5.8...
  • Page 13 Fig5.9 Fig5.10 Fig5.11 Fig5.12 5.1. Insert one end of the Connector (G/H) into the Arched Beam (I1) and fix it with bolts (AA), insert the other end of the the Connector (G/H) into the Arched Beam (J1) and fix it with bolts (AA), and cover the Protective Cover (U), See Fig5.1-5.3.
  • Page 14 Step6 I1/I2 J1/J2 A1/A2 Fig6.1 Fig6.2 6. Connect the Arched Beam （I1/I2/J1/J2 ）to the Post (A1/A2/A3) with bolts (BB). See Fig 6.1- 6.2 BBx16...
  • Page 15 Step7 C2/C3 A1/A2 C2/C3 Fig 7.1 Fig 7.2 I1/I2 J1/J2 A1/A2 Fig 7.3 Fig 7.4 7.1. Connect the Back Beam (C2/C3) and the Post (A1/A2) with bolts (AA), connect the Upper Beam (B1) and Arched Beam (I1/I2) with bolts (AA), See Fig7.1-7.2. 7.2 Cover the Plastic Plug (LL), See Fig7.3-7.4.
  • Page 16 Step8 I1/I2 I1/I2 A1/A2 A1/A2 Fig 8.1 Fig 8.2...
  • Page 17 A1/A2 Fig 8.3 J1/J2 Fig 8.5 Fig 8.4 8.1 Connect the Inclined Struct (P1) to the Post (A1) and Back Beam (C3), use Bolt (BB/LL) to connect the top part, use Bolt (AA) to connect the lower part，connect the Inclined Struct (P2) to the Post (A2) and Back Beam (C2) by the same way, See Fig 8.1-8.2.
  • Page 18 Step9 Fig9.1 I1/I2/J1/J2/R Fig9.2 Fig9.3 9.1. Insert the bolt (DD) into the hole of the Center Connector (D1) with Nut (NN), See Fig 9.1, 9.2.Connect the Upper Beam (B2) and the Center Connector (D1) with bolts (AA), and connect the Upper Beam (B1) and the Arched Beam (I1/I2/J1/J2/R) with bolts (AA).
  • Page 19 Step10 Fig10.1 M1/M2/M3 M1/M2/M3 M1/M2/M3 I1/I2/J1/J2/R Fig10.2 10.1 Connect the Connector (Y1) and the two adjacent tracks (M1/M2/M3)to the Arched beam at the same time, and fix it with bolts (HH). Fix the other end of the track (M1/M3) to the beam with bolts (HH).
  • Page 20 Step11 Fig11.1 X1/X2 X1/X2 Fig11.3 Fig11.2 C1/C2/C3 O1/O2 X1/X2 Fig11.4 Fig11.5...
  • Page 21 X1/X2 M1/M3 Fig11.7 Fig11.6 M1/M3 Fig11.8 Fig11.9 11.1.Insert the Sliding Tube (O2) into the Sliding Tube (O1), See Fig11.1. 11.2 Sliding the Roof (X1/X2) over the Sliding Tube (O1/O2), fix the sliding tubes onto the Back Beam (C1/C2/C3) with bolts (EE). See Fig11.2-11.4. 11.3.
  • Page 22 Step12 Fig12.1 Fig12.2 12. Connect the Center Connector (D2) and the Center Connector (D1) with bolts (AA), connect the Center Connector (D2) and the Center Connector (D1) with bolts (FF) and Guide Pin (W). See Fig 12.1-12.2. AAx2 FFx1 D2x1...
  • Page 23 Step13 Fig13 A1/A2/A3 Fig13 13.Using an electric concrete drill, drill holes into the concrete floor, corresponding to the holes in Base Plates(K). Insert Expansion bolt (KK) into the holes and hammer into place, using a hammer. Fasten Expansion bolts (KK), make sure the Base plates (K) are totally grounded. See Fig 13. KKx16...

  • Page 24: Care And Maintenance

    Inorder to use Iris Curved Pergola more smoothly and conveniently for you, please add lubricating oil to the track at irregular intervals. This warranty does not affect your statutory rights. In case of any malfunction of your COSTCO product (failure, missing part, etc.), please contact one of our service technicians at our toll-free service line at 1-855-586-8118 from EST 9 AM to 5 PM, Monday to Friday.
