Costco Salome 1403230 Assembly Manual

Costco Salome 1403230 Assembly Manual

Hardtop gazebo, galvanized steel roof
Hide thumbs

Advertisement

Quick Links

Download this manual
Assembly Manual

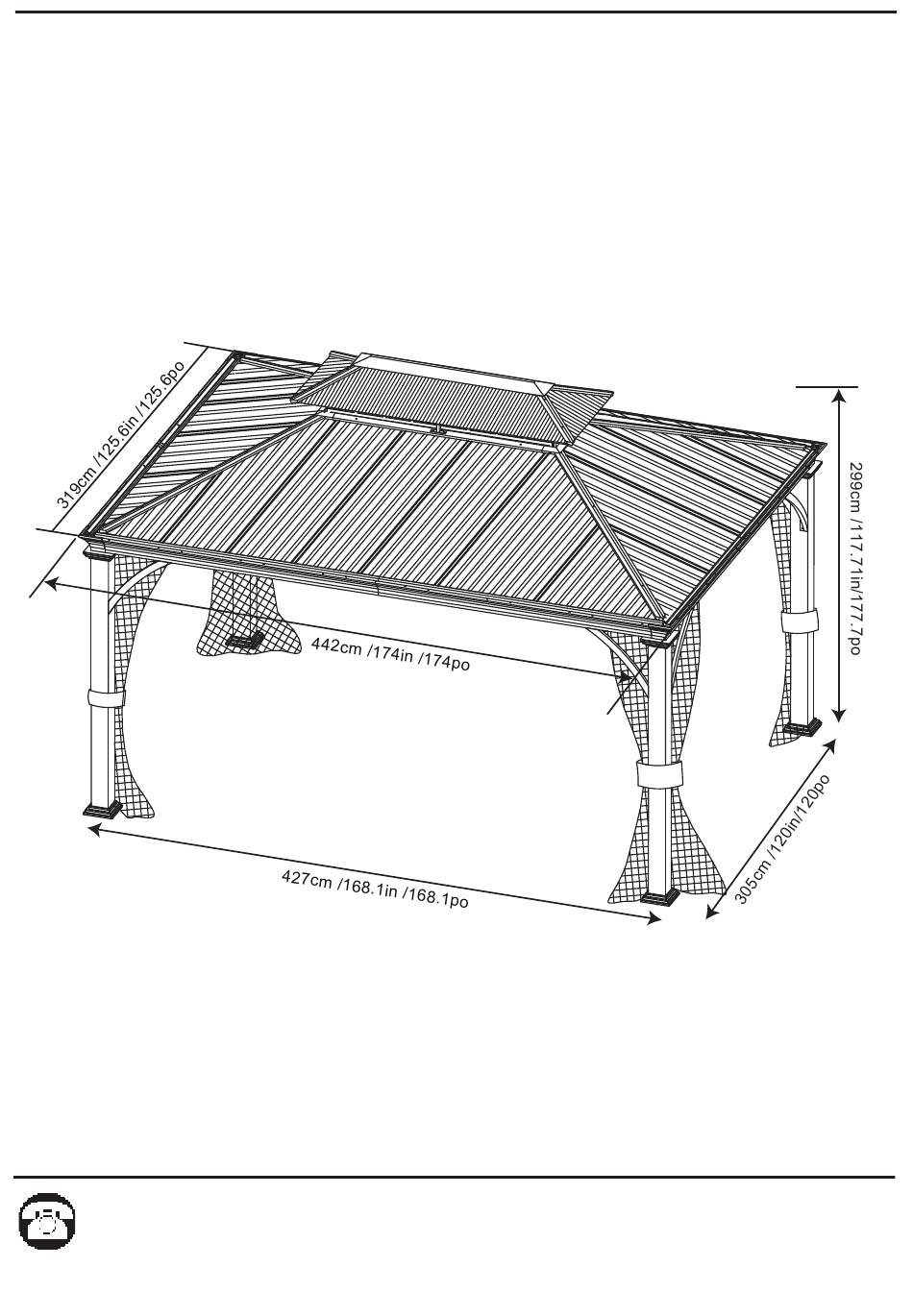

Salome Hardtop Gazebo 3m x 4.2m /10ft x 14ft
Galvanized Steel Roof
ITM. / ART. 1403230
IMPORTANT. PLEASE READ CAREFULLY AND RETAIN FOR FUTURE REFERENCE
For Outdoor Use only. Not for Commercial Use.
If you experience any product malfunction, defect or are missing any parts,
please contact our customer service department at 1-855-586-8118. Our hours
of operation are Monday - Friday, 8:30 AM to 5:30PM EST.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Salome 1403230 and is the answer not in the manual?

Questions and answers

Thomas Winterhalt
May 26, 2025

are replacement mosquito netting available ,and cost if so ?

0

Related Manuals for Costco Salome 1403230

Summary of Contents for Costco Salome 1403230

  • Page 1 Assembly Manual Salome Hardtop Gazebo 3m x 4.2m /10ft x 14ft Galvanized Steel Roof ITM. / ART. 1403230 IMPORTANT. PLEASE READ CAREFULLY AND RETAIN FOR FUTURE REFERENCE For Outdoor Use only. Not for Commercial Use. If you experience any product malfunction, defect or are missing any parts, please contact our customer service department at 1-855-586-8118.

  • Page 2: Safety Information

    SAFETY INFORMATION For the best assembly and usage experience, please read through all steps before attempting to assemble, operate or install the product WARNING • Maximum load for the roof :18kg (40lbs). • WARNING: KEEP ALL FLAME AND HEAT SOURCES AWAY FROM THIS GAZEBO FABRIC. This item meets the CPAI-84 flammability requirements.
  • Page 3 Components Left-Long Lintel Right-Long Lintel Left-Short Lintel Right-Short Lintel Connector Corner cover Lintel Cover Connection Piece Post Base Plate Base Cover Top Cover Cover Corner Piece Long-Top Bar Short-Top Bar...
  • Page 4 Left-Support Bar Right-Support Bar Top Frame Top Connecting Tube Small Top Lintel Small Top Lintel Center Cover Center Connector Hook Small Top Support Bar Small Top Center Bar Short Bar-Small Top Left-Long Bar-Small Top Right-Long Bar-Small Top Left-Long Bar-Big Top Right-Long Bar-Big Top Left-Short Bar-Big Top Right-Short Bar-Big Top...
  • Page 5 Short Edge Sealing -Small Top Long Edge Sealing -Small Top L Plate L Plate L Plate L Plate Long Trim Strip Short Trim Strip Small Top Cover Big Top Cover Air Vent Air Vent Mosquito Netting Big Top Panel...
  • Page 6 Big Top Panel Big Top Panel Big Top Panel Big Top Panel Big Top Panel Big Top Panel Big Top Panel...
  • Page 7 Small Top Panel Small Top Panel Small Top Panel Small Top Panel Hardware Bolt\Flat Bolt\Flat Washer Washer\ Nut (m6*15) (m6*55) Bolt\ Flat Washer Screw (m8*15) Bolt\Flat Washer Wrench (m6*20) Bolt\Flat Allen Wrench Washer\ Nut (m6*32) Bolt\Plastic Washer Stake (m6*35) Bolt\Flat Washer rench Allen W (m6*40)
  • Page 8 Step1 Fig 2 Fig 1 Fig 2 Fig 1 1. Slide the Base Cover (F2) over the Post (E), then connect the Base Plate (F1) to the Post (E) with Bolts (AA), as per Fig 1. Connect the post (E) to the Top Cover (G) with Bolts (AA), as per Fig 2. AAx20 F1x4 F2x4...
  • Page 9 Step2 Fig 3 Fig 3 A1/A3 A1/A3 A2/A4 A2/A4 A2/A4 A1/A2 A1/A3 2. Insert the Connector (B) into the Left-Long Lintel/Left-Short Lintel (A1/A3), fix them with the three bolts but don't tighten them. Insert the Right-Long Lintel/Right-Short Lintel (A2/A4) into the Connector (B), fix the Connection Piece (D) to the lintel with Bolts (BB), connect the Lintel Cover (C2) to the lintel with bolts (AA), connect the Long Lintel (A1/A2) and the Connection Piece (D) with bolts (AA), as per Fig 3.
  • Page 10 Step3 Fig 6 Fig 5 Fig 5 Fig 6 3. Connect the Top Cover (G) to the Left-Long Lintel (A1) with Bolts (AA), as per Fig 5. Connect the Top Cover (G) to the Right-Long Lintel (A2) with Bolts (AA), as per Fig 6. AAx16...
  • Page 11 Step4 Fig 8 Fig 7 Fig 7 Fig 8 4. Fix the Support Bar (J1/J2) on the Post (E) and the Left-Long Lintel/Right-Long Lintel (A1/A2) with Bolts (AA), as per Fig 7 & Fig 8. AAx16 J1x2 J2x2 -10-...
  • Page 12 Step5 Fig 13 Fig 9/Fig 11 J1 A1 Fig 10/Fig 12 Fig 9 Fig 10 -11-...
  • Page 13 Fig 11 Fig 12 Fig 13 5. Connect the Post (E) to Left-Short Lintel/Right-Short Lintel (A3/A4) with Bolts (AA), fix the Support Bar (J1/J2) on the Post (E) and lintel with Bolts (AA). Connect the Corner Piece (H) to the Top Cover (G) with Bolts (CC). Connect the Cover (G1) to the Top Cover (G) with Bolts (AA), as per Fig 9-Fig 13.
  • Page 14 Step6 Fig 14 Fig 14 6. Insert the Top Connecting Tube (K2) into the Small Top Frame (K1), then connect them with Bolts (AA), as per Fig 14. AAx4 K2x2 K1x2 -13-...
  • Page 15 Step7 Fig 16 ±5mm Fig 15 Fig 15 Fig 16 7. Connect the Long-Top Bar (I1) to the Corner Piece (H) with Bolts (HH), connect the Long-Top Bar (I1) to the Small Top Frame (K1) with Bolts (AA), as per Fig 15-Fig 16. Note: Be sure measurements diagonally across the overall frame are within 5mm of the same distance after completing this step.
  • Page 16 Step8 Fig 17 Fig 18 A1/A2/A3/A4 A1/A2 Fig 17 Fig 18 8. Connect the Short-Top Bar (I2) to the Top Connecting Tube (K2) with Bolts (AA), connect the Connection Piece (D) to the Short-Top Bar (I2) with Bolts (AA), as per Fig 17-Fig 18.
  • Page 17 Step9 Fig 19 9. Connect the Small Top Lintel (L1) to the Small Top Lintel (L2) with Bolts (DD), connect the Small Top Support Bar (N) to the Center Connector (M2) with Bolts (HH), then insert the Small Top Support Bar (N) into the Small Top Lintel (L2). Connect the Hook (M3) to the Center Connector (M2), as per Fig 19.
  • Page 18 Step10 Fig 20 10. Connect the Small Top Lintel (L2) to the Small Top Frame (K1) with Bolts (AA). Connect the Top Connecting Tube (K2) to the Small Top Lintel (L1) with Bolts (AA), connect the Small Top Center Bar (N1) to the Top Connecting Tube (K2) with Bolts (AA), connect the Small Top Center Bar (N1) to the Center Connector (M2) with Bolts (HH), as per Fig 20.
  • Page 19 Step11 Fig 22 Fig 21 Fig 21 Fig 22 11. Connect the Bar-Small Top (O/O2) to the Small Top Support Bar (N), connect the Bar-Small Top (O1/O2) to the Small Top Center Bar (N1) with Bolts (AA), as per Fig 21-Fig 22. AAx12 O1x2 O2x2...
  • Page 20 Step12 W1 W2 Fig 23 O1/O2 the connected shape of steel top panel 12. Assemble the Small Top Panels (W1, W2, W3) in sequence, fix them on the Long Bar- Small Top (O1/O2), then install the Small Top Panel (W4),attach on the Small Short Top Bar (O), as per Fig 23.
  • Page 21 Step13 Fig 24 13. Connect the Small Top Panel (T1) to the Small Top Support Bar (N) with Bolts (EE), connect the Center Connector (M2) to the Center Cover (M1) with Bolts (FF), connect the Long Edge Sealing-Small Top (Q2) to the Left-Long Bar-Small Top/Right-Long Bar-Small Top (O1/O2) with Bolts (AA), then connect the Short Edge Sealing-Small Top (Q1) to the Short Bar-Small Top (O), as per Fig 24.
  • Page 22 Step14 Fig 25 P1/P3 P2/P4 14. Connect the Bar-Big Top (P1/P3) to the Long-Top Bar/Short-Top Bar (I1/I2) with Bolts (AA), connect the Bar-Big Top (P2/P4) to the Long-Top Bar/Short-Top Bar (I1/I2) with Bolts (AA), connect the Bar-Big Top (P5) to the Short-Top Bar (I2) with Bolts (AA), as per Fig 25. Connect the Bar-Big Top (P1) with the Long-Top Bar/Short-Top Bar (I1/I2) and Bar-Big Top (P2) with Long-Top Bar/Short-Top Bar (I1/I2) at the adjacent side with Bolts (AA).
  • Page 23 the connected shape of steel top panel Fig 26 P1/P2 P1/P2 -22-...
  • Page 24 15. Install the big top panels in sequence as per the sequence in the diagram, fix the big top panel on the lintel through the Short Trim Strip/Long Trim Strip (S1/S2) with Bolts (CC), as per Fig 26. Fix the L Plates (R1/R2/R3/R4) on the Top Connecting Tube (K1/K2) with Bolts (AA), connect the other side in the same way, as per Fig 26.
  • Page 25 Step16 Fig 27 Fig 28 Fig 27 Fig 28 16. Connect the Long-Top Bar (I1) to the Big Top Cover (T2) from inside of the gazebo with Bolts (GG), as per Fig 27. Connect the Corner cover (C1) to the Left-Long Lintel/Right-Short Lintel (A1/A4) with Bolts (JJ), as per Fig 28.
  • Page 26 Fig 29 Fig 30 Fig 29 Fig 31 A1/A2/A3/A4 Fig 31 Fig 30 17. Fix the Air Vent (U/U1) on the Small Top Lintels (L1/L2), as per Fig 29. Hang the Mosquito Netting (U2) on the hook of the lintel, as per Fig 30. Fix the Stake (MM) onto the ground through the Base Plate (F1), as per Fig 31.

  • Page 27: Care And Maintenance

    This warranty does not affect your statutory rights. In case of any malfunction of your COSTCO product (failure, missing part, etc.), please contact one of our service technicians at our toll- free service line at 1-855-586-8118 from EST 9 AM to 5 PM, Monday to Friday.
