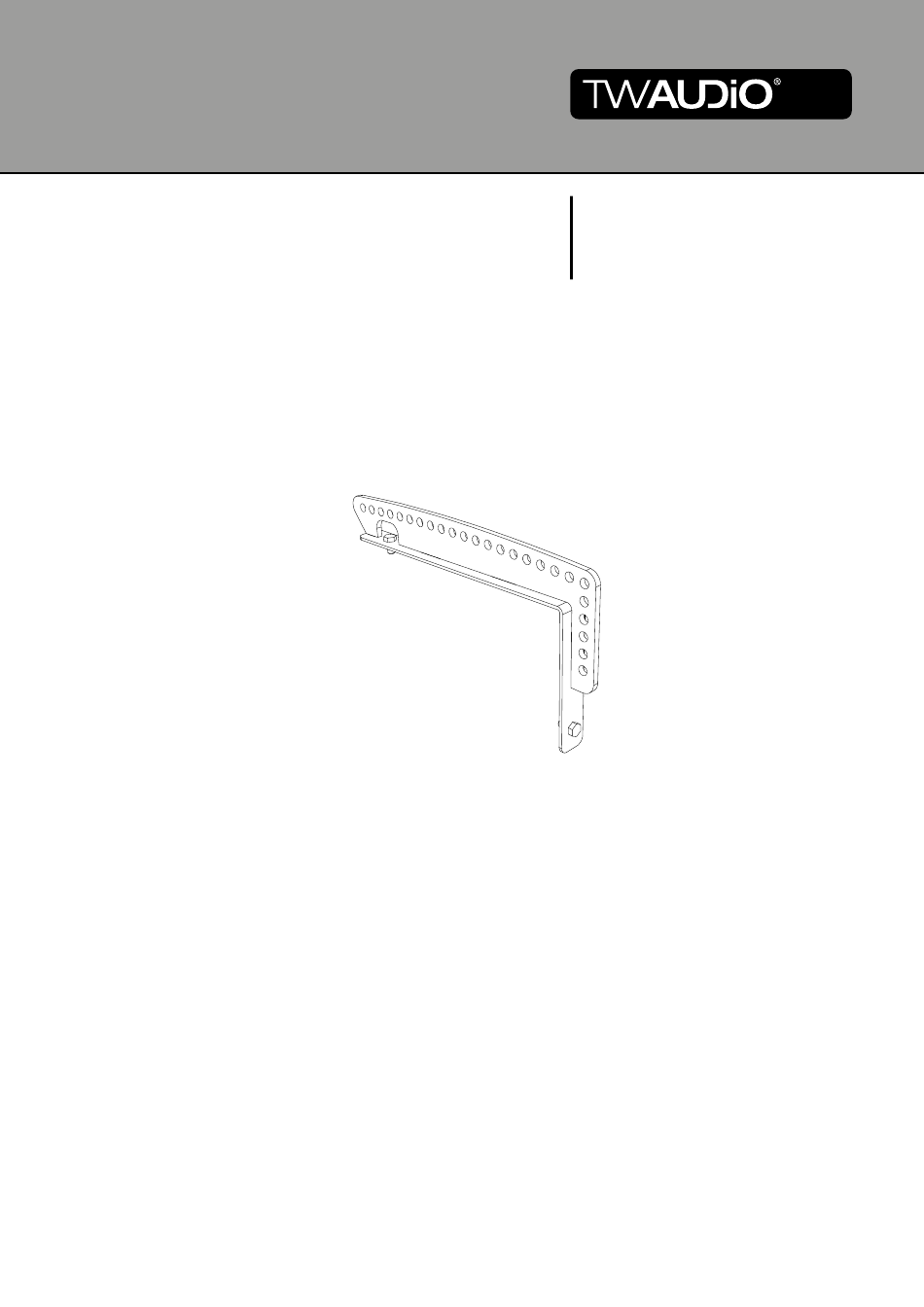

- Page 1 Assembly URA30i Instructions...
- Page 2 If you lend your product to another party, inform that party of the safety-related operating pro- cedures and hand over this assembly guide. If you require additional copies of this manual, you can obtain them free of charge from TW AUDiO or download them from www.twaudio.de Instructions in this user manual...
- Page 3 Assembly Instructions URA30i Notes on the products Before using the device, carefully read the assembly instructions and keep it with the Read manual URA30i universal rigging adaptor . before use! General information Assembly instructions: OM-URA30i Version 2.0 en, 05/2022 © by TWAMBO 2022; all rights reserved.
-
Page 4: Table Of Contents
Setup ........................9 Needed tools for setup .................... 9 Wind load ........................ 9 Assembly URA30i to loudspeaker - upride ............. 10 Assembly URA30i to loudspeaker - cross .............. 11 5. Transport and storage ....................12 6. CE Conformity Declaration .................... 13... -
Page 5: Safety | Intended Use
The URA30i universal rigging adaptor may only be used by trained and qualified personnel. Personnel must check the URA30i universal rigging adaptor for suitability before each use. WARNING The URA30i universal rigging adaptor must be taken out of operation immediately as soon as visible damage to the parts can be seen. WARNING... - Page 6 When working with heavy loads exceeding 20 kg (44 lbs.), use suitable aids (dollies, hoisting slings, etc.). Multiple persons may be required depending on the situation. NOTE The payload of the URA30i universal rigging adaptor is designed of one T30i loudspeaker. Do not exceed this payload. WARNING All screw connections should be checked when the URA30i universal rigging adaptor is installed.
-
Page 7: Overview

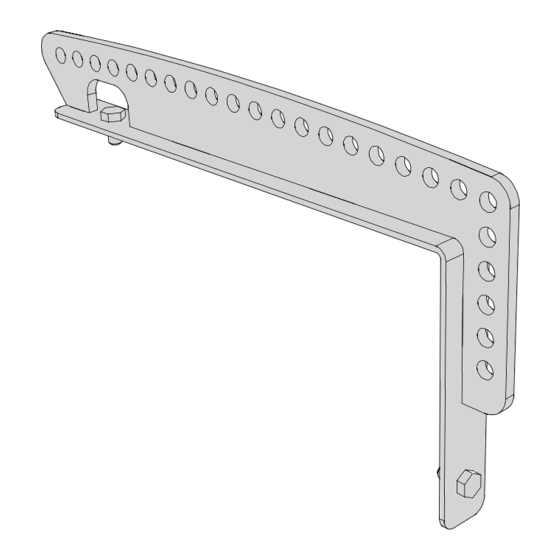

Assembly Instructions URA30i 2. Overview Components Figure 2.1 - Overview Hexagon screw M10 x 20................2 pieces Rigging adaptor URA30i .................. 1 pieces... -
Page 8: Technical Data
Assembly Instructions URA30i 3. Technical data Data sheet Maximum load capacity 1x T30i Dimensions (h x w x d) 259 x 459 x 40 mm [10.20 x 18.07 x 1,57 in] Weight 2,3 kg [5.1 lbs] Surface Powder-coated... -
Page 9: Commissioning
The URA30i universal rigging adaptor is designed for hanging operation. TW AUDiO provides a wide range of accessories to securely attach the swivel bracket. Please note that setting up the URA30i universal rigging adaptor always requires two per- sons! WARNING TW AUDiO recommends using only the accessories specified by TW AUDiO for securing and mounting loudspeakers. -
Page 10: Assembly Ura30I To Loudspeaker - Upride
General safety instructions for setting up this rigging variant: Use a shackle that is designed according to the payload for each system setup. WARNING Fasten the URA30i universal rigging adaptor with a shackle and chain hoist according to the pin points. WARNING For the secondary safety component, the respective national electrotechnical regulations apply. -
Page 11: Assembly Ura30I To Loudspeaker - Cross
General safety instructions for setting up this rigging variant: Use a shackle that is designed according to the payload for each system setup. WARNING Fasten the URA30i universal rigging adaptor with a shackle and chain hoist according to the pin points. WARNING For the secondary safety component, the respective national electrotechnical regulations apply. -
Page 12: Transport And Storage
Assembly Instructions URA30i 5. Transport and storage Ensure that the surface of the universal rigging adaptor is not damaged during transport and storage. Moisture may penetrate where steel surfaces are exposed by scratches and result in corrosion. NOTE This is why the product should be transported in a safe, careful, dry and largely dust-free... -
Page 13: Ce Conformity Declaration
Assembly Instructions URA30i 6. CE Conformity Declaration Copy and translation of the original CE Conformity Declaration: We hereby declare that the below-referenced components by virtue of their design and con- struction, and in the configuration placed on the market by us, satisfy the safety and health requirements of the applicable EC directives. - Page 14 Assembly Instructions URA30i TWAMBO GmbH Karl-Hofer-Str. 42 14163 Berlin Germany Phone: + 49 (0) 71 41-48 89 89 0 Fax: + 49 (0) 71 41-48 89 89 99 E-Mail: info@twaudio.de WWW: www.twaudio.de...
