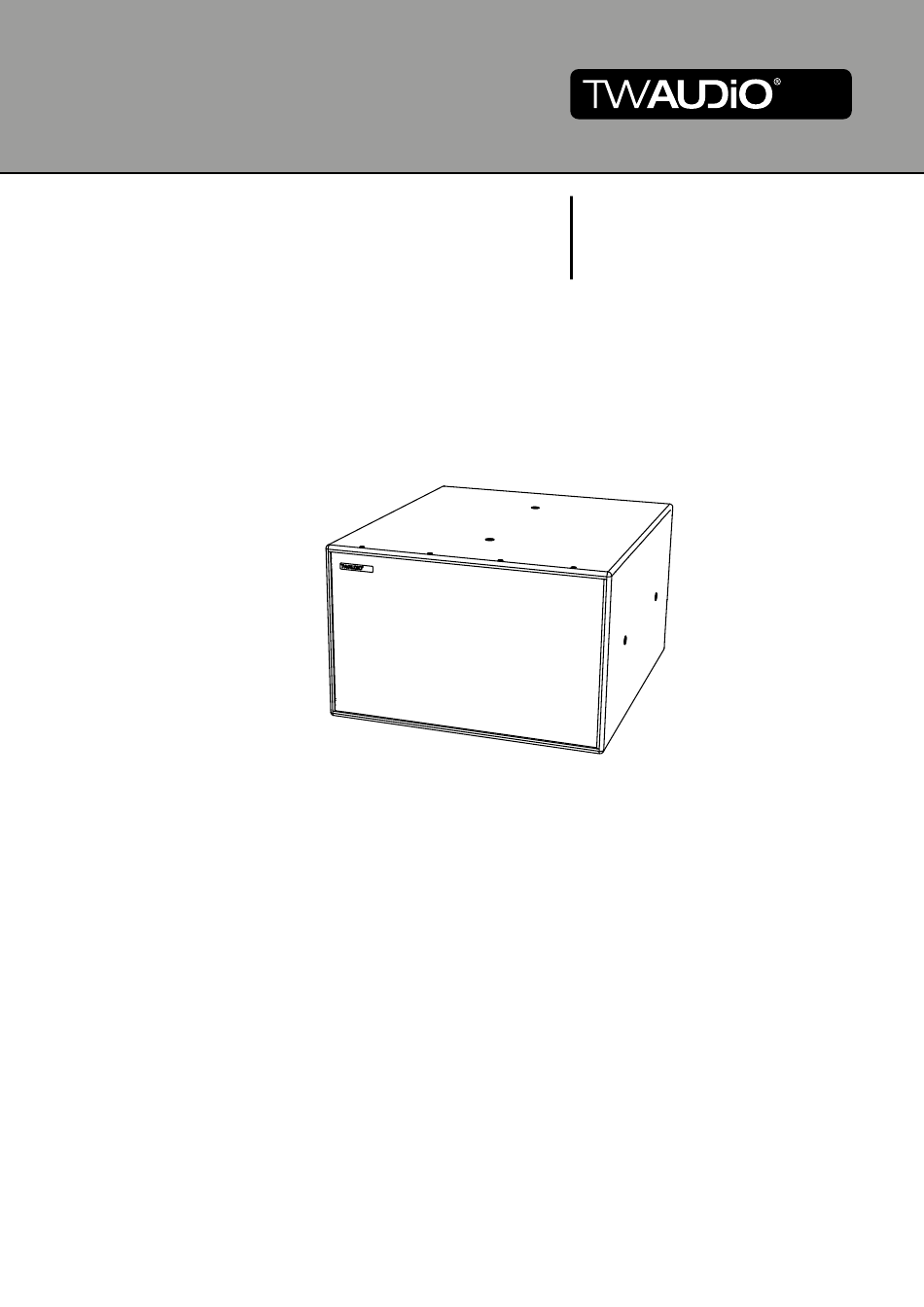

- Page 1 B30i Operation manual...
- Page 2 The result is efficient energy transfer with simultaneous controlled impulse reproduction and excellent dynamics. And at about 36 kg (80 lbs) the B30i is a lightweight. The relation of its size, weight and output turns this TW AUDiO classic into something special.
- Page 3 This symbol in combination with the signal word “Tip” identifies additional information or notes that will simplify working with TW AUDiO products on the basis of practical experience. Notes on the products Before using the device, carefully read the operating manual and keep it with the B30i loudspe- Read manual aker.
-
Page 4: Table Of Contents
Operation manual B30i Content 1. Safety | Intended use ...................... 5 2. Overview ........................7 Components ......................7 3. Technical specifications ....................8 Data sheet ....................... 8 Connection diagram ....................8 4. Commissioning ....................... 9 Setup ........................9 M10 threaded inserts ....................9 Connection options .................... -
Page 5: Safety | Intended Use
1. Safety | Intended use Please adhere to the following safety instructions to avoid risks when operating loudspeakers. The B30i loudspeaker was developed for use in professional sound systems. The loudspea- ker may only be used by trained and qualified personnel. - Page 6 Operation manual B30i Ensure that the loudspeaker is not exposed to permanent thermal overloads. Thermal over- loads may cause a fire and result in serious personal injury and property damage. WARNING Note that TW AUDiO does not provide a warranty for damage that can be attributed to this type of overload and therefore cannot be held liable for any secondary damage.
-
Page 7: Overview
Operation manual B30i 2. Overview Components Figure 2.1 - Overview Front grill 15 mm Multiplex enclosure - Warnex textured paint surface M10 threaded insert for attaching accessories (8 pieces) 15“ cone driver Type label Standard i-series screw terminal... -
Page 8: Technical Specifications
Operation manual B30i 3. Technical specifications Data sheet Drivers 2x 15“ LF Frequency response 35 - 200 Hz Power handling (program/Peak) 2000 / 4000 W Impedance 8 Ω Max. SPL / 1m 133 dB Dimensions (h x w x d) -
Page 9: Commissioning
3. Please note that once the countersunk screws are removed, water and moisture may enter into the enclosure. NOTE 4. For the B30i loudspeaker M10 threaded insert, various TW AUDiO accessories can be mounted. For each product refer to the instructions. 5. Note that the load capacity is limited to a single speaker. -
Page 10: Connection Options
Operation manual B30i Connection options The B30i loudspeaker is equipped as standard with the i-series screw terminal. As options there can be mounted a panel with cable gland (CG-option) or a panel with two built-in speakON® jacks (SO-option). NOTE Furthermore, a blind cover option is available. -
Page 11: Operation
Operation manual B30i Operation Operation of the B30i loudspeaker requires a DSP-Controller. For this purpose, only presets developed by TW AUDiO are recommended. The TW AUDiO system racks are ideally suited for this purpose. Before connecting the loudspeaker to the amplifier, ensure that the right preset has been loaded. -
Page 12: Connecting The Cable
(1/2) are correct. Incorrect connection can lead to a significant change in the loudspeaker’s sound characteristics and may damage the driver. The pin connections of the B30i loudspeaker can be found in section 3.2 (“Connection dia- gram”) on page 8. -
Page 13: Transport And Storage
Operation manual B30i 5. Transport and Storage Due to the B30i loudspeaker weighing over 20 kg [44 lbs.], two persons are required to handle and transport the unit. Ensure that the front grill of the loudspeaker is not damaged during transport and storage. -
Page 14: Ce Conformity Declaration
Operation manual B30i 6. CE Conformity Declaration Copy and translation of the original CE Conformity Declaration: We hereby declare that the below-referenced components by virtue of their design and con- struction, and in the configuration placed on the market by us, satisfy the safety and health requirements of the applicable EC directives. -
Page 15: Disposal
Operation manual B30i 7. Disposal It is prohibited to dispose of used electrical equipment with household refuse. All TW AUDiO GmbH products are so-called B2B-products. This means that they are sold by a commercial business to a commercial business. TW AUDiO products that bear the trash can symbol shown here may only be disposed of by TW AUDiO. - Page 16 Operation manual B30i TW AUDiO GmbH Osterholzallee 140 71636 Ludwigsburg Germany Phone : + 49 (0) 71 41-48 89 89 0 Fax: + 49 (0) 71 41-48 89 89 99 E-Mail: info@twaudio.de WWW: www.twaudio.de...
