- Page 1 B10i Operation manual...

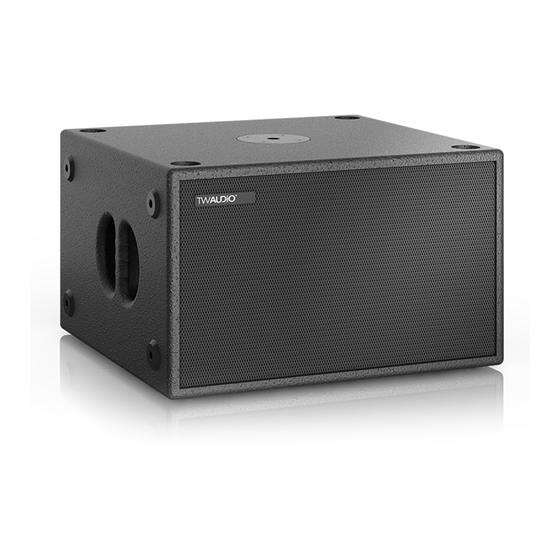

- Page 2 3“ dual voice coil delivers usable frequency response down to 40 Hz. This makes the B10i a perfect match for restaurants, clubs and many other applica- tions as main sub or discretely distributed as part of a larger system.
- Page 3 Operation manual B10i Notes on the products Before using the device, carefully read the operating manual and keep it with the B10i loudspe- Read manual aker. before use! General information Operation manual: OM-B10i Version 2.0 en, 01/2022 © by TWAMBO 2022; all rights reserved.
-
Page 4: Table Of Contents
Operation manual B10i Content 1. Safety | Intended use ...................... 5 2. Overview ........................7 Components ......................7 3. Technical specifications ....................8 Data sheet ....................... 8 Connection diagram ....................8 4. Commissioning ....................... 9 Setup ........................9 M10 threaded inserts ....................9 Connection options .................... -
Page 5: Safety | Intended Use
1. Safety | Intended use Please adhere to the following safety instructions to avoid risks when operating loudspeakers. The B10i loudspeaker was developed for use in professional sound systems. The loudspea- ker may only be used by trained and qualified personnel. - Page 6 Operation manual B10i Ensure that the loudspeaker is not exposed to permanent thermal overloads. Thermal over- loads may cause a fire and result in serious personal injury and property damage. WARNING Note that TWAMBO does not provide a warranty for damage that can be attributed to this type of overload and therefore cannot be held liable for any secondary damage.
-
Page 7: Overview
Operation manual B10i 2. Overview Components Figure 2.1 - Overview Front grill 15 mm Multiplex enclosure - Warnex textured paint surface M10 threaded insert for attaching accessories (4 pieces) 10“ cone driver Type label Standard i-series screw terminal... -
Page 8: Technical Specifications
Operation manual B10i 3. Technical specifications Data sheet Drivers 1x 10“ LF Frequency response 40 - 400 Hz Power handling (program/Peak) 700 / 1400 W Impedance 8 Ω Max. SPL / 1m 123 dB Dimensions (h x w x d) -
Page 9: Commissioning
4. Commissioning Setup The B10i loudspeaker is designed for standing or hanging operation. TW AUDiO provides a wide range of accessories to securely attach the loudspeaker. Make sure that all system structures are located on a firm, level surface and that the surface... -
Page 10: Connection Options
Operation manual B10i Connection options The B10i loudspeaker is equipped as standard with the i-series screw-terminal. As options there can be mounted a panel with cable gland (CG-option) or a panel with two built-in speakON® jacks (SO-option). NOTE Furthermore, a blind cover option is available. -
Page 11: Operation
Operation manual B10i Operation Operation of the B10i loudspeaker requires a DSP-Controller. For this purpose, only presets developed by TW AUDiO are recommended. The TW AUDiO system racks are ideally suited for this purpose. Before connecting the loudspeaker to the amplifier, ensure that the right preset has been loaded. -
Page 12: Connecting The Cable
(1/2) are correct. Incorrect connection can lead to a significant change in the loudspeaker’s sound characteristics and may damage the driver. The pin connections of the B10i loudspeaker can be found in section 3.2 (“Connection dia- gram”) on page 8. -
Page 13: Transport And Storage
Operation manual B10i 5. Transport and Storage Ensure that the front grill of the loudspeaker is not damaged during transport and storage. Moisture can penetrate exposed wood surfaces and cause the wood to swell. A bent or bro- ken front grill will no longer adequately protect the sensitive driver membranes. -
Page 14: Ce Conformity Declaration
Operation manual B10i 6. CE Conformity Declaration Copy and translation of the original CE Conformity Declaration: We hereby declare that the below-referenced components by virtue of their design and construction, and in the configuration placed on the market by us, satisfy the safety and health requirements of the applicable EC directives. -
Page 15: Disposal
Operation manual B10i 7. Disposal It is prohibited to dispose of used electrical equipment with household refuse. All TWAMBO GmbH products are so-called B2B-products. This means that they are sold by a commercial business to a commercial business. TWAMBO products that bear the trash can symbol shown here may only be disposed of by TWAMBO. - Page 16 Operation manual B10i TWAMBO GmbH Karl-Hofer-Str. 42 14163 Berlin Germany Phone: + 49 (0) 71 41-48 89 89 0 Fax: + 49 (0) 71 41-48 89 89 99 E-Mail: info@twaudio.de WWW: www.twaudio.de...
