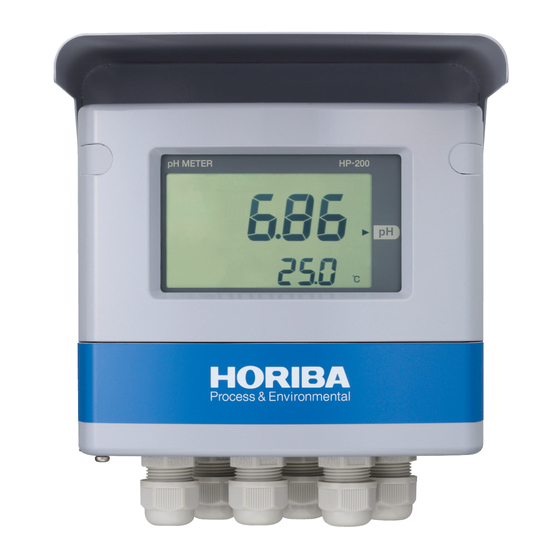

horiba HP-200 Manual

Industrial ph converter
Hide thumbs Also See for HP-200:

Advertisement

Quick Links

Download this manual
The contents of this Eｎｇｉｎｅｅｒｉｎｇ Sheet are subject
to change without prior notice, and without any
subsequent liability to this company.

Advertisement

loading
Need help?

Need help?

Do you have a question about the HP-200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for horiba HP-200

Summary of Contents for horiba HP-200

  • Page 1 The contents of this Eｎｇｉｎｅｅｒｉｎｇ Sheet are subject to change without prior notice, and without any subsequent liability to this company.
  • Page 2 Version 1.0 as of October, 2011 H-1 Series Industrial pH Meter HP-200 Overview ●The HP-200 allows you to make a pH measurement when the pH electrode is connected. The measured value and various parameters are displayed on the LCD part. When used with our cleaner, the HP-200 allows you to control the cleaner.
  • Page 3 Version 1.0 as of October, 2011 HP-200 Readout Converter External Dimensions Features ●Outdoor installation type (equivalent to IP65; splash-proof construction) ●Selectable simultaneous display of temperature All settings available with front keys ●Applicable for 5 kinds of standard solutions (pH 7 plus one to three among pH 2, 4, 9, and 10) ●Improved maintenance feature (self-diagnostic capability)
  • Page 4 Version 1.0 as of October, 2011 Configurations ●Front ●With the front cover opened Cover This cover is used for outdoor installation. Screw cap Front case When the two screw Front case screw caps are removed, the front case screws Display part appear. The measured value and other information are displayed here.
  • Page 5 Power supply The HP-200 has a power switch. For the HP-200, use a free Provide the power switch in a place near the HP-200 so that the power source for rated voltage of 100 to 240 VAC. power can be turned ON/OFF. If lightning might strike, install an Operation outside the rated range can cause a fault.
  • Page 6 •The terminal screw for the contact output is of M4. relay exceeding the load rating. •The applicable electric wire is of 0.75 to 5.5 mm2 (AWG18 to •When the HP-200 is OFF, the C-NC contact for R1 to R4 is 10). short-circuited. Therefore, be careful about the connection of R3 (control output) R4 (control output) CLN (cleaning output) * load.
  • Page 7 600 seconds) is also possible. FAIL: FAIL output This output is turned ON when over full-scale or system error occurs. It is also turned ON when the HP-200 malfunctions. CLn: Cleaning output The contact signal is output (ON) while the cleaner is operating, or for 5 seconds after the cleaner has stopped.
  • Page 8 (Contact input) ■ Transmission output For the transmission output cable, use a shielded cable. The HP-200 is provided with two transmission outputs (4 to 20 mA When lightning might strike, install an arrestor on the output side DC). of the HP-200 and on the side of receiving instruments.
  • Page 9 Version 1.0 as of October, 2011 RS-485 RS-485 The HP-200 has an RS-485 communication terminal. To use (communication output) this terminal, connect wiring. •The applicable electric wire is of 0.14 to 2.5 mm (AWG26 to 14). •For the communication output cable, use a twisted shielded...
  • Page 10 Version 1.0 as of October, 2011 For pH electrodes without S and SE terminals, such as 6110 Relay box (CT-25pH) Relay cable (C-5A-YT2-PS) pH electrode pH electrode For pH electrodes with S and SE terminals, such as 6171, 6172, 6173, and 6174 Relay box (CT-25pH) Relay cable (C-5A-YT2-PSE) pH electrode: 6171,6172...
  • Page 11 The following diagram shows the possible combinations of converters, electrodes, holders, and others. For the detailed specifications, see the items of each product. When the immersion type holder is used: pH converter HP-200 pH electrode 6108 6110 6152 6171 6173...
  • Page 12 Version 1.0 as of October, 2011 When the distribution type holder is used: pH converter HP-200 pH electrode 6108 6109 6110 6151 6152 6171 6172 6173 6174 Distribution type Distribution type Distribution type Distribution type holder holder holder holder CF-251 CF-251 CF-251 CF-501 CF-251-T CF-251-T...
  • Page 13 Version 1.0 as of October, 2011 When the immersion type cleaner is used: pH converter HP-200 pH electrode 6108 6109 6110 6151 Immersion type holder (1m min.) Immersion type holder (1m min.) Immersion type holder (1m min.) Immersion type holder (1m min.) CH-101 CH-101 CH-101...
  • Page 14 Version 1.0 as of October, 2011 Specification 1 Product name Industrial pH converter Model HP-200 Combination electrode Glass electrode Measurable range pH 0 to 14 (display range: pH1 to pH15) Temperature 0 to 100°C When the automatic detection capability of temperature sensor types is used: Display range:-10 to 110°C...
  • Page 15 Version 1.0 as of October, 2011 Specifications 2 Contact input Number of input points Contact type Open collector, no-voltage a-contact Conditions ON resistance: 100Ω max. Open voltage: 24 VDC Short-circuit current: 12 mA DC Contact function External input for washing Communication function Method RS-485 Signal type Two-wire, input/output insulated type (not insulated from transmission output) Temperature compensation Applicable temperature element...
  • Page 16 Version 1.0 as of October, 2011 External dimensions (HP-200 Industrial pH Meter) (Pole mounting) LCD readout Air purge inlet Rc1/4 Operation panel View with front cover opened (Wall mounting) PARTS NOTES Mounting plate SUS304 Case ADC12 Wiring hole O.Df7 to f12cable Plug SUS304 Earth SUS304 M4...
  • Page 17 ・The negative terminals OUT1(-) and OUT2(-) are internally connected and have the same electric potential. ・ Set "R-SE Connection Setting" in the setup menu "SENSOR" of the HP-200 to CLOSE. (when any of the pH electrodes 6108, 6109, 6110, 6151, and 6152 is used) ・...
  • Page 18 Version 1.0 as of October, 2011 External connection diagram 2 (HP-200) R3 (alarm output) No-voltage contact output Part A Contact capacity (resistance load) R4 (alarm output) No-voltage contact output Contact capacity (resistance load) CLM (washing output) Part B Voltage contact output Contact capacity (resistance load)
  • Page 19 Version 1.0 as of October, 2011 Model 6108-50B pH electrode (6108) Measuring method Glass electrode method Measurable range pH 0 to 14 Sample water Temperature -10 to 100°C Cable length: 5m conditions range (without freeze) Pressure 0 to 0.6MPa Comparison Liquid junction Porous ceramics electrode Internal fluid 3.3 mol KCl (filling type)
  • Page 20 Version 1.0 as of October, 2011 pH electrode (6110) Cable length: 5 m Model 6110-50B Measuring method Glass electrode method Measurable range pH 0 to 14 Sample water Temperature 0 to 60°C conditions range (without freeze) Pressure 0 to 0.03MPa Comparison Liquid junction Porous ceramics electrode Internal fluid 3.3 mol KCl...
  • Page 21 Version 1.0 as of October, 2011 pH electrode (6152) Cable length: 5m Model 6152-50B Measuring method Glass electrode method Measurable range pH 0 to 14 Sample water Temperature -10 to 60°C conditions range (without freeze) Pressure 0 to 0.2MPa Comparison Liquid junction Porous ceramics electrode Internal fluid 3.3 mol KCl (filling type)
  • Page 22 Version 1.0 as of October, 2011 pH electrode (6172) ø4/ø6 Tube connection Cable length: 5mn Model 6172-50B Measuring method Glass electrode method Measurable range ｐH 0 to 14 Sample water Temperature -10 to 60°C conditions range (without freeze) Pressure 0 to 0.03 MPa Comparison Liquid junction Porous ceramics electrode 3.3 mol KCl Internal fluid...
  • Page 23 Version 1.0 as of October, 2011  pH electrode (6174) ø4/ø6 Model 6174-50B Tube connection Cable length: 5m Measuring method Glass electrode method Measurable range ｐH 0 to 14 Sample water Temperature -10 to 100°C conditions range (without freeze) Pressure 0 to 0.03MPa Comparison Liquid junction Porous ceramics electrode 3.3mol KCl Internal fluid (filling type)
  • Page 24 Version 1.0 as of October, 2011 Immersion type holder (CH-101 series): specifications and external dimensions Electrode cable Holder cap (which comes with electrode) PARTS NOTES Internal fluid inlet Holder PP(CH-101) PVC(CH-101P) (ø34) PVDF(CH-101PF) Electrode gasket The CH-101PF series has Washer PP(CH-101、CH-101P) a diameter of 32 mm. PVDF(CH-101PF) Protective tube PP(CH-101、CH-101P)
  • Page 25 Version 1.0 as of October, 2011 Immersion type holder (HIBP series): specifications and external dimensions Model HIBP Electrode cable Holder material Temperature -5 to 80°C For the actual operating temperature range, check the specifications of the electrodes to be combined. Pressure Atmospheric pressure Flow rate 2 m/sec.
  • Page 26 Version 1.0 as of October, 2011  Mounting bracket (BA-1A): specifications and external dimensions Model BA-1A Material ABS resin Mounting Anchoring Applicable for immersion type resin-made holders of 1.5 m max. Immersion type holder Mounting bracket (BA-1S): specifications and external dimensions Model BA-1S SUS304 Material Mounting Anchoring Applicable for immersion type resin-made holders of 1.5 m max.
  • Page 27 Version 1.0 as of October, 2011  Mounting holder (MB-10): specifications and external dimensions PARTS NOTES Holder Base 1 SUS304 Holder (50A) Mounting plate SCS13 Base 2 SUS304 U-bolt SUS304 Mounting pipe: 50 A *1: If any wobble or vibration occurs, the immersion type holder may drop off. Fasten four points with M5 screws.
  • Page 28 Version 1.0 as of October, 2011 Mounting bracket (RF-S1): specifications and external dimensions Model RF-S1 Material SUS316 Flange standard JIS 10K 50A FF, etc. Applicable immersion HIBS series type holders Supporting bracket (SP-60): specifications and external dimensions Model SP-60 Material SUS316 Applicable holder length 1,1.5,2,2.5,3 Applicable holder CH-101 series The support pipe may be required when the flow rate is...
  • Page 29 Version 1.0 as of October, 2011 Mounting bracket (MH-60): specifications and external dimensions Model MH-60 Material SUS304 U-bolt SUS304 Mounting pipe Used to secure the support pipe (SP-60 series) to the pole stand. PARTS NOTES SUS304 Support pipe U-bolt SUS304 stainless 50A pole or cleaner steel (for 50A) U-bolt SUS304 stainless...
  • Page 30 If any problem with weatherability occurs under direct sunshine, SUS316(CF-251S) use a holder made of PVC or a holder made of SUS316+PVDF. For the sample properties that affect FKM (fluorine rubber) (strong alkali, etc.), please consult with HORIBA Advanced Techno. Mass Approx. 0.6 kg Approx. 0.9 kg Approx.
  • Page 31 If any problem with weatherability occurs under direct sunshine, PVC(CF-251P-T) use a holder made of PVC or a holder made of SUS316+PVDF. SUS316(CF-251S-T) For the sample properties that affect FKM (fluorine rubber) KCl tank (strong alkali, etc.), please consult with HORIBA Advanced Hose band SUS304 Techno. Mass Approx.1.3kg Approx.1.6kg...
  • Page 32 If any problem with weatherability occurs under direct sunshine, use a holder made of PVC or a holder made of SUS316+PVDF. For the sample properties that affect FKM (fluorine rubber) (strong alkali, etc.), please consult with HORIBA Advanced Techno. Bore Size of Measured Liquid...
  • Page 33 Materials of Liquid Junction SUS316, FKM Section For the sample properties that affect FKM (fluorine rubber) (strong alkali, etc.), please consult with HORIBA Advanced Techno. Bore Size of Measured Liquid JIS 10K 25A FF flange Connection(*) Pressurizing Inlet for Holder’s...
  • Page 34 • If any problem with weatherability occurs under direct sunshine, use a holder made of PVC or a holder made of SUS316+PVDF. For the sample properties that affect FKM (fluorine rubber) (strong alkali, etc.), please consult with HORIBA Advanced Techno. Subject to change without prior notice 33 / 88 page...
  • Page 35 Version 1.0 as of October, 2011 Relay box (CT-25pH): specifications and external dimensions PARTS NOTES Cover Bracket Wiring hole Spring SUS304 Terminal board O-ring Bolt (provided) SUS304 M8 20A to 50A pole Relay box • If the distance between the electrode and the converter is longer than the electrode cable length, be sure to use the relay box.
  • Page 36 HP-200 is of the standard specification. For the HP-200, the optionally available cleaner may be installed. The installation of the HP-200 with the cleaner will be described in the section for the cleaner. Carry out the installation of execution of work while paying attention to...
  • Page 37 • Use a shielded cable. Applicable power cable 0.75 to 5.5 mm （AWG18 to 10) • When lightning might strike, install an arrestor on the output side of the HP-200 and on the side of receiving instruments. (Contact input) 900Ω...
  • Page 38 Version 1.0 as of October, 2011 Electrode cable pH electrode S: pH electrode shield drive The electrode cable is highly insulated. In handling this cable, G: Glass electrode terminal pay attention to the following points: R: Reference electrode • Do not wet any cable terminal or the terminal block with water SE: Solution gound or the like;...
  • Page 39 • Relay cable (C-5A) • Relay box (CT-25pH) • The cable is extendable up to 50 meters between the HP-200 and the pH electrode. • It is recommended that the dedicated relay cable be housed in a conduit pipe to prevent static electricity from being generated due to induction, vibration, or any other reason.
  • Page 40 For the HP-200, the optionally available cleaner may be installed. The installation of the HP-200 with the cleaner will be described in the section for the Body (for pole mounting) • The body may be mounted on the pole or the wall.
  • Page 41 Version 1.0 as of October, 2011 Immersion type holder + Immersion type holder + mounting bracket (MB-10) loose flange (FK-1 series) • For the FK-1 series, JIS 10K 50A FF is the basic • The mounting bracket MB-10 should be secured to size. To use any special type of loose flange, check its the 50A pole.
  • Page 42 Version 1.0 as of October, 2011 Immersion type holder + support pipe (SP-60 series) + mounting bracket (MH-60) • When the immersion type holder of 1.5 m minimum is used, it is recommended that the support pipe be used to secure the immersion type holder. •...
  • Page 43 Version 1.0 as of October, 2011 Distribution type holder • Provide a bypass line from the main line so that the • The CF-301 and CF-401S series of distribution type measured liquid flows into the bottom side of the holders are designed to be internally pressurized when Distribution Holder and flows out of the lateral side of sample water has pressure.
  • Page 44 Version 1.0 as of October, 2011 Immersion type ultrasonic cleaner for H-1 series Overview UCH-series The ultrasonic cleaner removes dirt adhering to the electrode or prevents dirt from adhering to the electrode. The electrode is irradiated with ultrasonic waves and this cavitation effect removes dirt adhering to the electrode. In order to improve the cleaning effect, ultrasonic waves are intermittently oscillated (burst oscillation).
  • Page 45 Version 1.0 as of October, 2011 Combinations pH converter HP-200 pH electrode 6108 6109 6110 6151 Immersion type holder (1.5 m max.) Immersion type holder (1.5 m max.) Immersion type holder (1.5 m max.) Immersion type holder (1.5 m max.) CH-101 CH-101 CH-101 CH-101 CH-101P...
  • Page 46 Version 1.0 as of October, 2011 Specifications (UCH-101 • UCH- Product Name Immersion Type Ultrasonic Cleaner (ultrasonic oscillator- integrated) Model UCH-101 AC 100 to 240V 50/60Hz Supply Voltage Permissible Voltage Variation Range 90% to 110% of supply voltage 10VA Power Consumption Ultrasonic wave continuous irradiation system Cleaning Method Burst system by oscillation time control Control System...
  • Page 47 Version 1.0 as of October, 2011 ■External dimensions (UCH-101) Maintenance space 650mm min. Immersion type holder Measured fluid level Protective tube The L-dimension and tolerance of UCH-101 immersion type ultrasonic cleaner are shown in the following table. Nominal L-dimension Maintenance space PARTS NOTES length (m) (mm) (mm) 588±10...
  • Page 48 Version 1.0 as of October, 2011 External dimensions (UCH-111) Maintenance space 650mm min. Immersion type holder External dimensions (US-2) Maintenance space Measured 650mm min. fluid level Protective tube 50A pole PARTS NOTES PARTS NOTES Immersion holder Oscillator cover AC4C fixinging bracket Hook SUS316 Oscillator case AC4C Spacer Wiring hole...
  • Page 49 Version 1.0 as of October, 2011 Installation (UCH-101) (connections) Carry out installation and execution of work while paying attention to the following points: Electric power Voltage: 100 to 240 VAC Power source supplied Frequency: 50/60 Hz • This ultrasonic cleaner has a power switch. Ensure that the power Applicable 7 to 12 mm dia.
  • Page 50 Version 1.0 as of October, 2011 Installation (UCH-111) (connections) Carry out installation and execution of work while paying attention to the following points: Electric power Voltage: 100 to 240 VAC Power source supplied Frequency: 50/60 Hz • This ultrasonic cleaner has a power switch. Ensure that the Applicable electric 7 to 12 mm dia.
  • Page 51 Version 1.0 as of October, 2011 Installation (ultrasonic cleaner and holder) Carry out installation and execution of work as illustrated below: Installation • Attach the hook to the immersion type holder. • Slowly move down the hook along the vibrator holder. • Once the hook is caught by the stopper of the vibrator holder, secure the bracket for the immersion type holder.
  • Page 52 Version 1.0 as of October, 2011 Installation Installation environment • Install the Cleaner at a location where maintenance work can be easily performed. • Install the Cleaner at a height where an electrode is always immersed in measured liquid even if a measured liquid level changes.
  • Page 53 Version 1.0 as of October, 2011 H-1 series Immersion Jet Cleaner Overview JCH-121A This Cleaner can intermittently clean any dirt off the pH electrode with a jet flow of cleaning water or air. This Cleaner does not have the timer functions. So the timer functions of a converter is used to make settings for cleaning interval and cleaning time.

  • Page 54: Table Of Contents

    Version 1.0 as of October, 2011 Combinations (Immersion jet cleaner) pH converter HP-200 pH electrode 6108 6109 6110 6151 Immersion type holder (1.5 m max.) Immersion type holder (1.5 m max.) Immersion type holder (1.5m max.) Immersion type holder (1.5 m max.) CH-101 CH-101 CH-101...
  • Page 55 This product is not supplied with an electrode and a holder. Special Note *1 A supply voltage of 200 V AC is optional. For any other voltages, please consult with HORIBA Advanced Techno. *2 A working temperature range varies with a combinational electrode and an Immersion Holder. Check a working temperature for each product.
  • Page 56 Version 1.0 as of October, 2011 External dimensions (JCH-121A) Maintenance space 100 mm min. Cleaning water/ cleaning air Immersion type holder Measured fluid level Protective tube L1-dimension Maintenance space L2-dimension PARTS NOTES Nominal length (m) 977±10 1000 or more 1085 Immersion holder mounting bracket 1477±10 1500 or more 1585 Hook...
  • Page 57 Version 1.0 as of October, 2011 Installation (JCH-121A) (connections) Carry out installation and execution of work while paying attention to the following points: Applicable electric 7 to 12 mm dia., 0.75 mm min. Connections wire • Be sure to ground the earth terminal for safety (class D grounding). •...
  • Page 58 Version 1.0 as of October, 2011 Installation (jet cleaner and holder) Carry out installation and execution of work as illustrated below: Installation • Attach the hook to the immersion type holder. • Slowly move down the hook along the nozzle holder. • Once the hook is caught by the stopper of the nozzle holder, secure the bracket for the immersion type holder.
  • Page 59 Version 1.0 as of October, 2011 Installation Installation environment • Install the Cleaner at a location where maintenance work can be easily performed. • Install the Cleaner at a height where an electrode is always immersed in measured liquid even if a measured liquid level changes.
  • Page 60 × clay, calcareous × Scale coagulated deposit and neutralized effluent treatment × CaCO3, etc. :Good :Acceptable ×:Not Acceptable System configuration Electrode cable R4 contact (CLN setting) Industrial pH converter HP-200 AC power source Brush cleaner BCH-121 Subject to change without prior notice 59 / 88 page for further improvement.

  • Page 61: Ultrasonic Cleaner Uch-101 Uch-111

    Version 1.0 as of October, 2011 Combinations (Immersion jet cleaner) pH converter HP-200 pH electrode 6108 6109 6110 6151 Immersion type holder (1.5 m max.) Immersion type holder (1.5 m max.) Immersion type holder (1.5 m max.) Immersion type holder (1.5 m max.) CH-101 CH-101...
  • Page 62 *1 A supply voltage of 200 V AC is optional. For any other voltages, please consult with HORIBA Advanced Techno. *2 Terminals have been short-circuited at the time of shipment of products. For a purpose of inputting a cleaning stop signal, remove a short-circuit line.
  • Page 63 Version 1.0 as of October, 2011 External dimensions (BCH-121) Maintenance space 650mm max. Maintenance space Maintenance space 100mm min. 100mm min. Immersion type holder Measured fluid level Electrode Nominal L1-dimension Maintenance space L2-dimension PARTS NOTES length (m) Terminal box AC4C 993±10 995max. 1125±10 Terminal box cover AC4C 1493±10 1495max.
  • Page 64 Version 1.0 as of October, 2011 Installation (BCH-121) (connections) Carry out installation and execution of work while being careful about the following points: Applicable electric 7 to 12 mm; 0.75 mm min. Connections wire • For the safety reason, do not turn ON the power until the operation is started.
  • Page 65 • Produce an input of "Closed" signal of 100 ms or more No-voltage contact pulse input of 100 to the “START” Terminal in the Terminal Block. ms or more • For the above setting, set R4 of HP-200 to “Cleaning Close •••••• Cleaning “ON” Output”/ Open •••••• Cleaning “OFF”...
  • Page 66 Version 1.0 as of October, 2011 Installation (brush jet cleaner and holder) Carry out installation and execution of work as illustrated below: Installation • Attach the hook and support hook to the brush holder. • Slowly move down the hook along the brush holder. • Once the hook is caught by the stopper, secure the bracket for the immersion type holder.
  • Page 67 Version 1.0 as of October, 2011 Installation Installation environment • Install the Cleaner at a location where maintenance work can be easily performed. • Install the Cleaner at a height where an electrode is always immersed in measured liquid even if a measured liquid level changes.

  • Page 68: Bch-121J

    Version 1.0 as of October, 2011 H-1 series Immersion Brush Jet Cleaner Overview BCH-121J ● This Cleaner can intermittently clean any dirt off the glass film and liquid junction section of an electrode by brushing and by running a jet flow of cleaning water at the same time. This Cleaner does not have the timer functions.

  • Page 69: Mounting Bracket

    Version 1.0 as of October, 2011 Combinations (Immersion jet cleaner) pH converter HP-200 pH electrode 6108 6109 6110 6151 Immersion type holder (1.5 m max.) Immersion type holder (1.5 m max.) Immersion type holder (1.5 m max.) Immersion type holder (1.5 m max.) CH-101 CH-101...
  • Page 70 Special Note This product is not supplied with an electrode and a holder. *1 A supply voltage of 200 V AC is optional. For any other voltages, please consult with HORIBA Advanced Techno. *2 Terminals have been short-circuited at the time of shipment of products. For a purpose of inputting a cleaning stop signal, remove a short-circuit line.
  • Page 71 Version 1.0 as of October, 2011 External dimensions (BCH-121J) B view Maintenance space 650mm max. Maintenance space Maintenance space 100 mm min. 100 mm min. Cleaning water Immersion type holder Measured fluid level Electrode Nominal length (m) L1-dimension Maintenance space(*1) L2-dimension PARTS NOTES 993±10 995 or more 1153±10 Timer unit AC4C...
  • Page 72 Version 1.0 as of October, 2011 Installation (BCH-121J) (connections) Carry out installation and execution of work while being careful about the following points: Connections Applicable electric wire 7 to 12 mm; 0.75 mm min. • For the safety reason, do not turn ON the power until the operation is started.
  • Page 73 • Produce an input of "Closed" signal of 100 ms or more ms or more to the “START” Terminal in the Terminal Block. Close •••••• Cleaning “ON” • For the above setting, set R4 of HP-200 to “Cleaning Open •••••• Cleaning “OFF” Output”/ Load relay: Max.
  • Page 74 Version 1.0 as of October, 2011 Installation (brush jet cleaner and holder) Carry out installation and execution of work as illustrated Installation • Attach the hook and support hook to the brush holder. • Slowly move down the hook along the brush holder. • Once the hook is caught by the stopper, secure the bracket for the immersion type holder.
  • Page 75 Version 1.0 as of October, 2011 Installation (BCH-121J) (piping) Carry out installation and execution of work while being careful about the following points: Pressure sensor Piping • Since the Cleaner may be detached for a maintenance purpose, use a flexible pipe that can allow enough room Tap water for its length.
  • Page 76 Scale coagulated deposit and neutralized ○ effluent treatment :Good ○:Acceptable  :Not Acceptable System configuration Electrode cable Electrode cable Ultrasonic cleaner (US-2) Converter Converter HP-200 HP-200 Exclusive-use cable (10m: attached) Ultrasonic cleaner Ultrasonic cleaner (UCF-301) (UCF-311) AC power AC power source source Subject to change without prior notice...
  • Page 77 Moreover, a measured liquid in a frozen state cannot be measured. *2:For the sample properties that affect FKM (fluorine rubber) (strong alkali, etc.), please consult with HORIBA Advanced Techno. *3:Maintain a pressure in the Pressurizing Holder at the level of 0.03 MPa to 0.05 MPa higher than a measured liquid pressure at all times.
  • Page 78 Version 1.0 as of October, 2011 External dimensions (UCF-301) Maintenance space 150 mm min. Maintenance space 650 mm min. Manual pressurization Instrumental air specifications (Pressurization specifications (Tube joint: unit: optional) optional) pH electrode cable JIS 10K 25A flange JIS 10K 20A flange Relation between temperature and pressure PARTS NOTES Pressure gauge...
  • Page 79 Version 1.0 as of October, 2011 External dimensions (UCF-311) Maintenance space Maintenance space 650 mm min. 150 mm min. Manual pressurization Instrumental air specifications specifications (Pressurization unit: (Tube joint: optional) optional) Electrode cable JIS 10K 25A flange JIS 10K 25A flange PARTS NOTES Relation between temperature and pressure Pressure gauge 0 to 0.5 MPa SUS304...
  • Page 80 Version 1.0 as of October, 2011 Installation (UCF-301) (connections) Carry out installation and execution of work while paying attention to the following points: Electric power Voltage: 100 to 240 VAC Power source supplied Frequency: 50/60 Hz • This ultrasonic cleaner has a power switch. Ensure that Applicable electric wire 7 to 12 mm dia.
  • Page 81 Version 1.0 as of October, 2011 Installation (UCF-311) (connections) Carry out installation and execution of work while paying attention to the following points: Electric power Voltage: 100 to 240 VAC Power source supplied Frequency: 50/60 Hz • This ultrasonic cleaner has a power switch. Ensure that the Applicable electric power switch is OFF during work.
  • Page 82 Version 1.0 as of October, 2011 Installation (UCF-301) Be sure to following the following instructions for setup. Installation environment • Install the Distribution Holder at a location where • Avoid installing the Distribution Holder. at a location where a maintenance work can be easily performed. surface temperature and an ambient temperature are 50 °C or •...
  • Page 83 Version 1.0 as of October, 2011 Distribution type jet cleaner for H-1 series Overview JCF-series The jet cleaner removes dirt adhering to the electrode or prevents dirt from adhering to the electrode by combining the pH electrode. This Jet Cleaner can intermittently clean any dirt off the glass film and liquid junction section of an electrode with a jet flow of cleaning water or air The Timer in the Timer Unit is used to make settings for cleaning...
  • Page 84 Moreover, a measured liquid in a frozen state cannot be measured. *2 For the sample properties that affect FKM (fluorine rubber) (strong alkali, etc.), please consult with HORIBA Advanced Techno. *3 If tap water is used as cleaning water, it is prohibited under the Water Supply Law to supply cleaning water directly from a tap water pipe.
  • Page 85 Version 1.0 as of October, 2011 External dimensions (JCF-311) Maintenance space Maintenance space 150 mm min. 150 mm min. Manual pressurization Instrumental air specifications specifications (Pressurization unit: (Tube joint: optional) optional) Electrode cable JIS 10K 20A flange Cleaning liquid/cleaning JIS 10K 25A flange Relation between temperature and pressure PARTS NOTES...
  • Page 86 Version 1.0 as of October, 2011 Installation (JCF-311) (connections) Carry out installation and execution of work while paying attention to the following points: Applicable electric wire 7 to 12 mm dia., 0.75 mm min. Connections • Be sure to ground the earth terminal for safety (class D grounding).
  • Page 87 Version 1.0 as of October, 2011 Installation (JCF-311) (piping) Carry out installation and execution of work while paying attention to the following points: Installation environment • Avoid installing the Distribution Holder. at a location where a surface • Install the Distribution Holder at a location where maintenance work can be easily performed.
  • Page 88 Version 1.0 as of October, 2011 Installation (JCF-311) (piping) Carry out installation while being careful about the following points: Piping • Since the Cleaner may be detached for a maintenance purpose, use a flexible pipe that can allow enough room for its length. • Before connecting a pipe to the Cleaner, be sure to pour water into the pipe to flush garbage inside the pipe.
  • Page 89 Version 1.0 as of October, 2011 Pressurized piping • For pressurization with an inflator, use the pressure inlet. • Maintain the pressure in the pressurized holder in 0.03 to 0.05 MPa higher than sample water pressure. • To use instrument air, use a flexible hose considering maintenance easiness.
