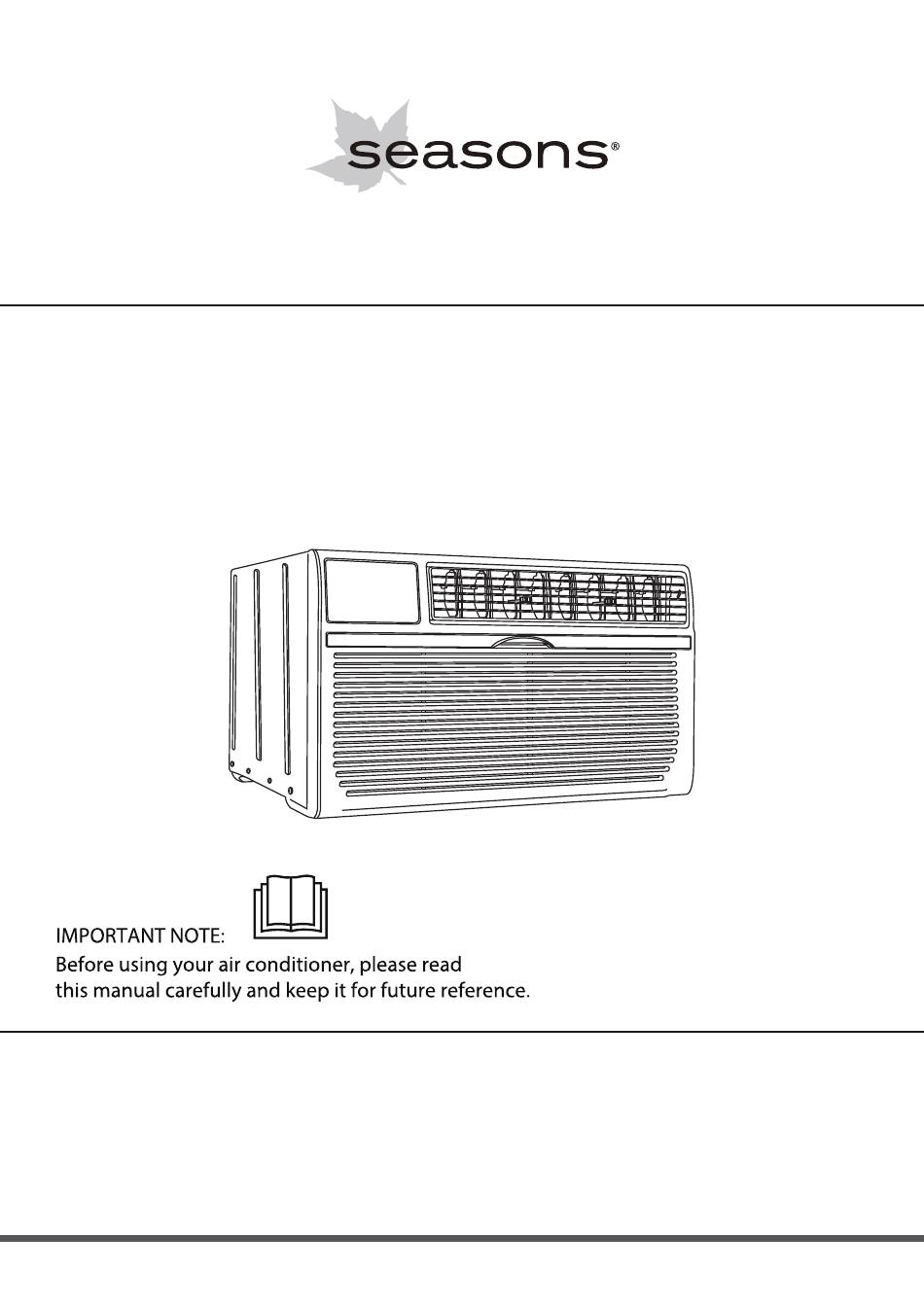

- Page 1 INSTALLATION INSTRUCTIONS ST08R1 ST10R1 ST12R1 ST08R1-H ST10R2 ST12R2 ST14R2 ST10R2-H ST12R2-H ST14R2-H • Exclusively Distributed By: To Reorder: HD Supply Facilities Maintenance, Ltd. Atlanta, GA 30339 1-800-431-3000 hdsupplysolutions.com © 2022 Made in China...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS READ THIS MANUAL Inside you will find many helpful hints on how to use and maintain your air conditioner properly. Just a little preventive care on your part can save you a great deal of time and money over the life of your air conditioner. You'll find many answers to common problems in the chart of troubleshooting tips. - Page 3 IMPORTANT SAFETY INSTRUCTIONS CAUTION Do not put a pet or house plant Ventilate the room well when When the air filter is to be removed, do not touch the metal where it will be exposed to direct used together with a stove, etc. parts of the unit.
-
Page 4: Operation Of Current Device
IMPORTANT SAFETY INSTRUCTIONS WARNING NOTE: The power supply cord with this air For Your Safety Do not store or use gasoline or other flammable vapors and liquids in the vicinity conditioner contains a current detection of this or any other appliance. device designed to reduce the risk of fire. - Page 5 INSTALLATION INSTRUCTIONS Do This First (for existing sleeve) BEFORE YOU BEGIN Note that the air conditioner dimensions are: 24 inches wide, 14 inches high, and 18 inches deep(without front). Read these instructions completely Install Air Conditioner according to these installation and carefully.
-
Page 6: How To Install
INSTALLATION INSTRUCTIONS How to Install 1. Identify the wall-sleeve brand for your installation, from the chart below. Brand Wall Sleeve Dimensions (inches) Width Height Depth White-Westinghouse 16,17 or 22 Frigidaire Carrier(52F Series) General Electric/Hotpoint Whirlpool or 23 Fedders/Emerson or 19 Sears/Kenmore Carrier(51S Series) Emerson/Fedders... - Page 7 INSTALLATION INSTRUCTIONS IMPORTANT This units increased performance characteristics result from having two rear air intakes. It is very important that these installation instructions are followed so your unit can operate at maximum efficiency. If this is an existing sleeve, and there is an existing rear grille, it needs to be replaced by one that has been shipped with the unit in the accessory kit.
- Page 8 INSTALLATION INSTRUCTIONS Wall Sleeve Brands: #1 Emerson 15 Deep 1. Remove existing rear grille as shown on Page 6 of this manual and replace with provided louvered rear panel. Install as shown here. NOTE: You may need to drill holes in flange of existing sleeve to match new rear grille.
- Page 9 INSTALLATION INSTRUCTIONS Wall Sleeve Brands: 3 4 / #2 Fedders Deep Remove existing rear grille as shown on Page 6 of this manual and replace with provided louvered rear panel. Install as shown here. NOTE: You may need to drill holes in flange of existing sleeve to match new rear grille.
- Page 10 INSTALLATION INSTRUCTIONS Wall Sleeve Brands: 3 4 / #3 Fedders or Friedrich Deep 1.Remove existing rear grille as shown on Page 6 of this manual and replace with provided louvered rear panel. Install as shown here. NOTE: You may need to drill holes in flange of existing sleeve to match new rear grille.
- Page 11 INSTALLATION INSTRUCTIONS Wall Sleeve Brands: 7 8 / #4 General Electra/Hotpoint 16 Deep 1. Remove existing rear grille as shown on Page 6 of this manual and replace with provided louvered rear panel. Install as shown here. NOTE: You may need to drill holes in flange of existing sleeve to match new rear grille.
- Page 12 INSTALLATION INSTRUCTIONS Wall Sleeve Brands: #5 Sears or Carrier 51S Series 5 8 / ( 18 Deep) 1. Remove existing rear grille as shown on Page 6 of this manual and replace with provided louvered rear panel. Install as shown here. NOTE: You may need to drill holes in flange of existing sleeve to match new rear grille.
- Page 13 INSTALLATION INSTRUCTIONS Wall Sleeve Brands: 1 8 / #6 Whirlpool Deep 1. Remove existing rear grille as shown on Page 6 of this manual and replace with provided louvered rear panel. Install as shown here. NOTE: You may need to drill holes in flange of existing sleeve to match new rear grille.
- Page 14 INSTALLATION INSTRUCTIONS Wall Sleeve Brands: #7 Whirlpool ( 23 Deep) 1. Remove existing rear grille as shown on Page 6 of this manual and replace with provided louvered rear panel. Install as shown here. NOTE: You may need to drill holes in flange of existing sleeve to match new rear grille.
- Page 15 INSTALLATION INSTRUCTIONS Wall Sleeve Brands: #8 White Westinghouse/Frigidaire/ Carrier 52F Series ( 16 +17 Deep) 1.Remove existing rear grille as shown on Page 6 of this manual and replace with provided louvered rear panel. Install as shown here. NOTE: You may need to drill holes in flange of existing sleeve to match new rear grille.
- Page 16 INSTALLATION INSTRUCTIONS Wall Sleeve Brands: #9 White Westinghouse or Frigidaire ( 22 Deep) Remove existing rear grille as shown on Page 6 of this manual and replace with provided louvered rear panel. Install as shown here. NOTE: You may need to drill holes in flange of existing sleeve to match new rear grille.
-
Page 17: Direct Unit Mounting
INSTALLATION INSTRUCTIONS Direct Unit Mounting: The previous directions are the preferable way to mount the new rear grill. The units performance is slightly better and the possibility of draughts is reduced. As a last resort, direct mounting of the grille to the unit can be considered. -
Page 18: Finishing Installation
INSTALLATION INSTRUCTIONS FINISHING INSTALLATION: 1. Install the 1 x1 x84 long stuffer-seal between the wall-sleeve and the unit. A flat-bladed screwdriver or putty knife is recommended. 2. Assemble the trim frame by inserting top and bottom pieces into side pieces and snapping into place. -
Page 19: Normal Sounds
NORMAL SOUNDS Vibration High Pitched Chatter Unit may vibrate and make noise High efficiency compressors because of poor wall or window may have a high pitched chatter construction or incorrect installation. during the cooling cycle. Sound of Rushing Air At the front of the unit, you may Pinging or Switching hear the sound of rushing air being moved by the fan... - Page 20 I SENSE I SENSE I SENSE I SENSE I SENSE the I SENSE mode will stop.
-
Page 22: Care And Cleaning
CARE AND CLEANING Energy Saving Note: Air Filter Cleaning In order to reach the maximum energy saving and comfort, Take the filter by the center and pull up and out. it is recommended to use a cover to insulate the unit when Wash the filter using liquid dishwashing detergent and warm the unit is not in use. - Page 23 TROUBLESHOOTING TIPS Problem Solution Dirty air filter- air restricted. Clean air filter. Refer to Care and Cleaning section. Air conditioner cooling, but room Temperature is set too High, set temperature to a Lower setting. is too warm- NO Air directional louvers positioned improperly. Position louvers for better air distribution. ice forming on cooling coil behind Front of units is blocked by drapes, blinds, furniture, etc.
-
Page 24: Limited Warranty
LIMITED WARRANTY YOUR PRODUCT IS PROTECTED BY THIS WARRANTY: THE CONSUMER WILL BE RESPONSIBLE WARRANTY PERIOD COVERAGE: FOR: FULL TWO-YEAR Pay all costs for repairing or replacing Costs of service calls that are listed WARRANTY parts of this appliance which prove to be under NORMAL RESPONSIBILITIES Two years from original purchase date.
