Vanguard Managed Solutions

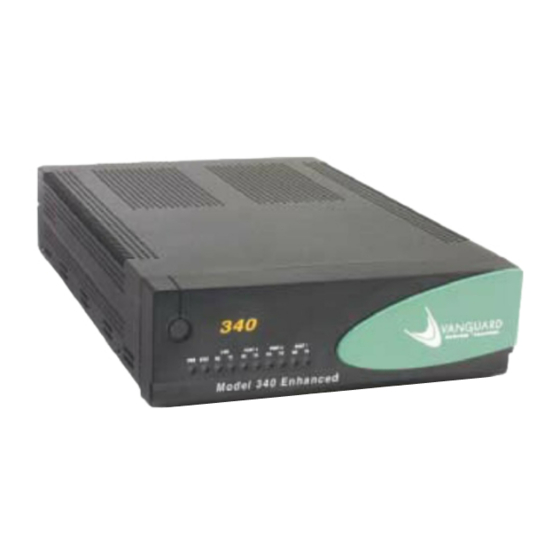

Vanguard 340 and 340 Enhanced
Installation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 340 and is the answer not in the manual?

Questions and answers

Related Manuals for Vanguard 340

Summary of Contents for Vanguard 340

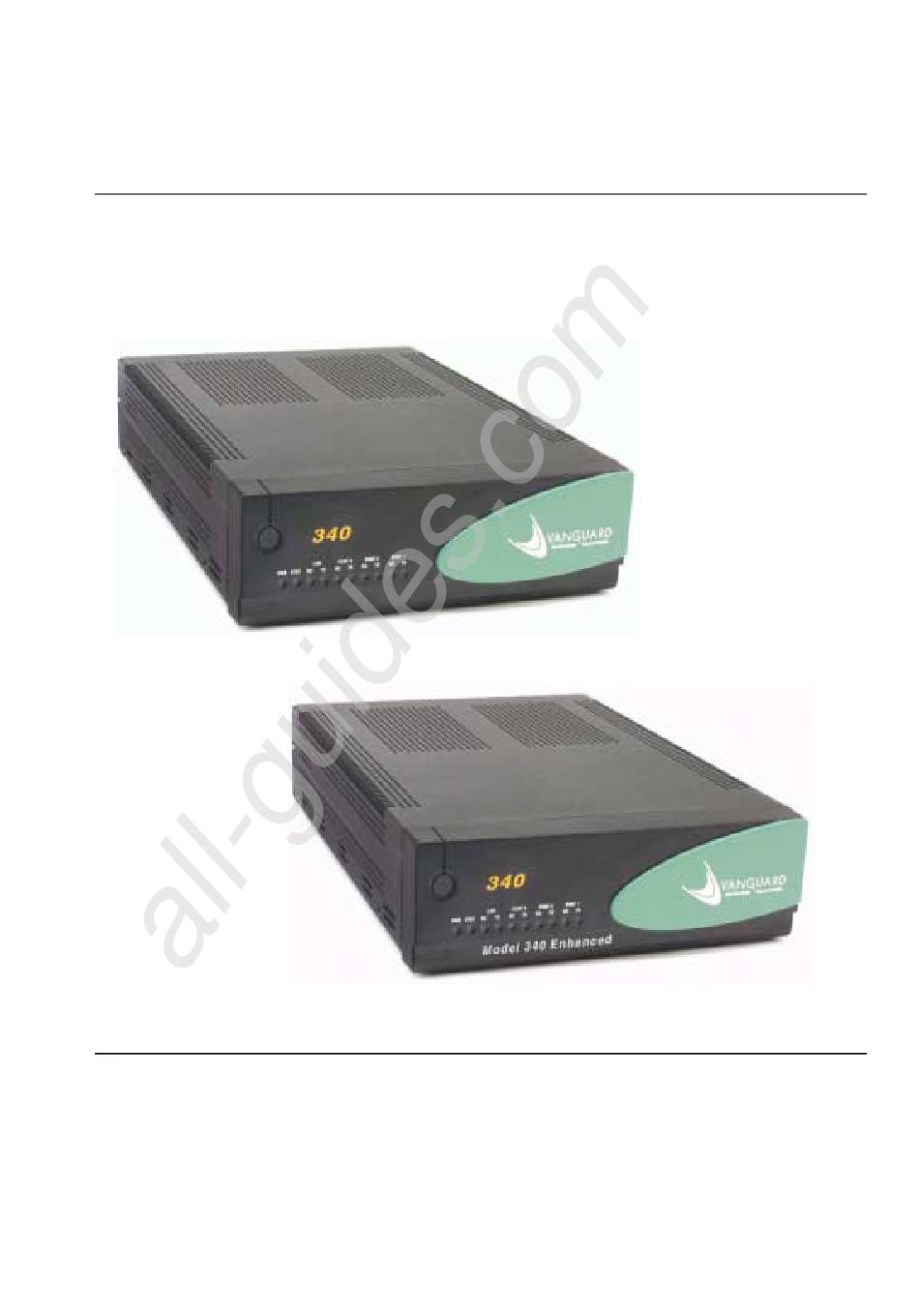

  • Page 1 All manuals and user guides at all-guides.com Vanguard Managed Solutions Vanguard 340 and 340 Enhanced Installation Manual...
  • Page 2 All manuals and user guides at all-guides.com Notice ©2004 Vanguard Managed Solutions, LLC 575 West Street Mansfield, Massachusetts 02048 (508) 261-4000 All rights reserved Printed in U.S.A. Restricted Rights Notification for U.S. Government Users The software (including firmware) addressed in this manual is provided to the U.S.
  • Page 3 TV reception. You can obtain the proper cables from Vanguard Managed Solutions. Telecommunications Regulations Equipment that complies with Part 68 of the FCC rules includes a label or permanent...
  • Page 4 Part No. T0178, Revision G Technical Writer: Jackie Cabral Production: Denise Skinner Illustrator: Dennis Alves First Printing: February 2001 This manual is current for Release 6.4 of Vanguard Applications Ware To comment on this manual, please send e-mail to LGEN031@vanguardms.com...

  • Page 5: Table Of Contents

    All manuals and user guides at all-guides.com Contents Special Notices and Translations Customer Information Customer Response Card Chapter 1. About the Vanguard 340 and 340 Enhanced Vanguard 340 and 340 Enhanced Descriptions ..........Features and Functionality ................Target Applications ..................Virtual Private Network ................
  • Page 6 Installing/Removing the Lithium Battery ..........3-33 Chapter 4. Powering Up and Loading Software Powering Up Your Vanguard 340 and 340 Enhanced ........Powering Off The Vanguard 340 and 340 Enhanced ........Powerup Diagnostics ..................Accessing the Control Terminal Port ............
  • Page 7 For information on operating system software and configuration, see the Vanguard Basic Configuration Manual (Part Number T0113). Audience This manual is intended for people who install and operate the Vanguard 340 and 340 Enhanced. How to Use This The following table describes the contents of this manual:...
  • Page 8 All documentation is provided on the Vanguide CD-ROM and the VanguardMS web Documentation site. http://www.vanguardms.com/support/documentation Documentation Kit Includes: Vanguard Applications • Vanguard Applications Ware Basic Protocols Ware Documentation Set (Part Number T0106) • IP and LAN Feature Protocols (Part Number T0100) • SNA Feature Protocols (Part Number T0101) •...
  • Page 9 All manuals and user guides at all-guides.com About This Manual (continued) Vanguide CD-ROM The Vanguide CD-ROM contains all Vanguard documentation available at the time of release. The Vanguide CD-ROM is shipped with each Vanguard product. To order an additional copy of the Vanguide CD-ROM, please contact a VanguardMS Representative.
  • Page 10 All manuals and user guides at all-guides.com...
  • Page 11 All manuals and user guides at all-guides.com Special Notices and Translations Special Notices The following notices emphasize certain information in the guide. Each serves a special purpose and is displayed in the format shown: Nota Note is used to emphasize any significant information. Advertencia Caution provides you with information that, if not followed, can result in damage to software, hardware, or data.
  • Page 12 All manuals and user guides at all-guides.com Dutch Bijzondere De volgende vermeldingen besteden extra aandacht aan bepaalde informatie in vermeldingen de handleiding. Elke vermelding heeft een eigen nut en wordt in de volgende opmaak weergegeven: Opmerking Een opmerking wordt gebruikt om belangrijke informatie te benadrukken. Let op Dit kopje geeft aan dat u de beschreven instructies moet volgen om schade aan de software, hardware of gegevens te vermijden.
  • Page 13 All manuals and user guides at all-guides.com Avertissement Un avertissement constitue le message le plus sérieux, indiquant que vous pouvez subir des blessures corporelles. German Besondere Durch die folgenden Hinweise werden bestimmte Informationen in diesem Hinweise Handbuch hervorgehoben. Jeder Hinweis dient einem bestimmten Zweck und wird im dargestellten Format angezeigt: Wichtig WICHTIG wird zur Betonung signifikanter Angaben zu Vorgehensweisen...
  • Page 14 All manuals and user guides at all-guides.com Japanese Korean Norwegian Spesielle Merknadstypene nedenfor representerer en bestemt type informasjon i håndboken. merknader Hver merknadstype har en spesiell hensikt og vises på følgende format: Merk Merk brukes for å fremheve viktig informasjon. Forsiktig Forsiktig gir deg informasjon om situasjoner som kan føre til skade på...
  • Page 15 All manuals and user guides at all-guides.com Portuguese/ Portugal Avisos Especiais Os avisos que se seguem realçam certas informações neste guia. Cada um deles serve um objectivo especial e é visualizado no formato apresentado: Nota Nota é utilizado para realçar qualquer informação importante. Atenção Atenção faculta-lhe informações que, se não forem cumpridas, poderão provocar danos no software, hardware ou nos dados.
  • Page 16 All manuals and user guides at all-guides.com Varning Varning är den mest allvarliga beteckningen och den indikerar att du kan skadas fysiskt.
  • Page 17 All manuals and user guides at all-guides.com Customer Information Customer Customers who have questions about Vanguard Managed Solutions products or Questions services should contact your VanguardMS representative or visit this website for product, sales, support, documentation, or training information: http://www.vanguardms.com/...
  • Page 18 All manuals and user guides at all-guides.com...
  • Page 19 All manuals and user guides at all-guides.com Customer Response Card Vanguard Managed Solutions would like your help in improving its product documentation. Please complete and return this card by fax to (508) 339-9592; Attention: Product Documentation, to provide your feedback.
  • Page 20 All manuals and user guides at all-guides.com...

  • Page 21: Chapter 1. About The Vanguard 340 And 340 Enhanced

    All manuals and user guides at all-guides.com Chapter 1 About the Vanguard 340 and 340 Enhanced Overview Introduction This chapter describes the hardware and software functions, and the target applications for Vanguard 340 products. These topics are discussed: • Vanguard 340 and 340 Enhanced Descriptions •...

  • Page 22: Vanguard 340 And 340 Enhanced Descriptions

    • External Power supply 62945-01 (APS Model APS61ES-30) 340 G.SHDSL There is a limitation on available memory in the 340 that does not allow you to run Limitation G.SHDSL and Voice at the same time. This is caused by the 4M flash limit in 340.
  • Page 23 • External Power Supply 62749-03 (APS Model AD-748U-3125A) The Vanguard 340 and 340 Enhanced are SNMP-manageable and are available with a variety of LAN, SNA, and IP networking features. The Vanguard 340 and 340 Enhanced support two Vanguard Daughtercard slots for video, voice, fax and mixed protocol data traffic such as, IP, Frame Relay, X.25, ISDN, or NX64 T1/E1 services.

  • Page 24: Features And Functionality

    Features and Functionality Introduction This section describes the features available with your Vanguard 340 and 340 Enhanced device. For descriptions of the software running on your Vanguard, refer to the appropriate protocol document. These documents can be found on the VanguardMS Web site: http://www.vanguardms/support/documentation/...

  • Page 25: Control Terminal Port (Ctp)

    The Vanguard 340 and 340 Enhanced use a different external power supply. The Supply external power supply for 340 Enhanced (62749-03) cannot be used on the Vanguard 340 or 342. The Vanguard 340 External Power Supply (62945-01) can be used on the 340 Enhanced. 10/100BaseT...
  • Page 26 All manuals and user guides at all-guides.com Features and Functionality 340 Daughtercard The Vanguard 340 is available with the optional components listed below as Functionality factory-installed or as separate add-in daughtercards: • FXS/FXO Voice • Voice FXS • 4-Port FXS •...
  • Page 27 All manuals and user guides at all-guides.com Features and Functionality Operating Software The Vanguard Applications Ware software is compressed in FLASH memory and loaded into the SDRAM DIMM for operation. The Vanguard 340 and 340 Enhanced support the following Applications Ware packages: • IP Applications Ware Package (includes IP, and IPX) •...

  • Page 28: Target Applications

    All manuals and user guides at all-guides.com Target Applications Target Applications Introduction This section describes the various target applications for the Vanguard 340 and 340 Enhanced. These examples are shown are for the 340 and 340 Enhanced: • Virtual Private Network •...

  • Page 29: Virtual Private Network

    - Data exchanged between the various corporate sites is confidential. When data is sent over a public network it is usually encrypted. The encryption algorithm must be robust enough to withstand any type of snooping. About the Vanguard 340 and 340 Enhanced...

  • Page 30: Cost-Effective Vpn Solutions

    Cost-effective VPN Solutions Small to Medium The Vanguard VPN solution is ideal for SMEs that are looking to take advantage of Enterprise (SME) the flexibility, global reach, security, and cost savings of Internet-based VPNs. The current Vanguard installed-base can be easily upgraded to support VPN site-to-site applications at a very competitive price point.
  • Page 31 All manuals and user guides at all-guides.com Target Applications Central Site Remote Site Internet or IP Network Remote Site Figure 1-1. Hardware-based VPN Solution for Site-to-Site Applications. About the Vanguard 340 and 340 Enhanced 1-11...

  • Page 32: Standard-Based Tunneling And Encryption For Ip Traffic

    IPSec is the predominant tunneling and security standard for IP Networks. It defines protocols required for site-to-site as well as remote access VPN implementations at layer 3 of the OSI model. Vanguard Applications Ware release 5.5 and greater supports these IPSec features: •...

  • Page 33: Frame Relay And X.25 Encryption

    Figure 1-2. Encryption over IP, Frame Relay, and X.25 Networks Security Features The security features in Vanguard Applications Ware release 5.5 and greater also include Firewall functionality based on IP Packet Filtering. Access Control Lists can be configured based on a combination of source and destination addresses. IP Protocol, TCP/UDP source and destination port numbers/ranges, and interface numbers.

  • Page 34: Ip And Serial Protocols Over Frame Relay

    RFC 1490. As shown in Figure 1-3, a SNA cluster controller connects to a serial port on the Vanguard 340 and the Ethernet LAN connects to the 10/100BaseT Ethernet port. The Vanguard is fully interoperable with third party routers via RFC 1490.

  • Page 35: Video And Serial Protocols Over Public Or Private Networks

    Video and Serial Protocols over Public or Private Networks Introduction As shown in Figure 1-4, the Vanguard 340 and 340 Enhanced can support encapsulation of video and serial protocols over public or private networks. This use of Vanguard 34x suits banking applications such as Automated Bank Machines (ABMs).

  • Page 36: Branch Office To Central Office Over Public Or Private Networks

    Branch Office to Central Office over Public or Private Networks Introduction The Vanguard 340 and 340 Enhanced offer an ideal solution for branch office to central office connectivity over a public or private network as shown in Figure 1-5. The Vanguard 34x is equipped with a T1 daughtercard supports connectivity to the network at fractional T1 speeds.
  • Page 37 Daughtercard Application Description Type Used Branch access to DSU DIM, FXS/FXO The Vanguard 34x supports voice, video and data traffic Central Office and ISDN between the branch and central office over private or Daughtercards public network. The FXS/FXO Daughtercard supports telephones, PBX, and faxes.

  • Page 38: Soho And Branch Office To Central Office Over Isdn

    SOHO and Branch Office to Central Office over ISDN Introduction The Vanguard 34x equipped with optional daughtercards provide a wide range of network solutions for companies with small branch offices or telecommuting employees working from a home office. A dial in or dedicated ISDN link provides network connection for the home and branch as shown in Figure 1-6.
  • Page 39 Note With release 6.0 and greater, the Vanguard 340 can support the 4-Port Voice FXS and 4-Port Voice FXO Daughtercards. The Vanguard 340 Enhanced requires 6.4 and greater and can support the 4-Port Voice FXS and 4-Port Voice FXO Daughtercards.

  • Page 40: Vanguard 340 And 340 Enhanced Dsl And G.shdsl

    Target Applications Vanguard 340 and 340 Enhanced DSL and G.SHDSL DSL/Cable Modem The Vanguard 340, and 340 Enhanced support connectivity to high-speed broadband services such as DSL and Cable by connecting the 10/100BaseT port on the Vanguard 340 Enhanced to the Ethernet port on the DSL or Cable modem.

  • Page 41: G.shdsl Daughtercard

    Daughtercard Installation Guide (Part Number T0020). 340 G.SHDSL There is a limitation on available memory in the 340 that does not allow you to run Limitation G.SHDSL and Voice at the same time. This is caused by the 4M flash limit in 340.

  • Page 42: Clocking Limitations

    When a Vanguard 34x Port 3 is configured as internally clocked and is connected to a SDB2 card on a Vanguard 6560 which is configured as EXT clocked, the link will not come up. Workaround: Configure the Vanguard 6560 SDB2 port as INT clocked and the Vanguard 34x as EXT clocked.

  • Page 43: Chapter 2. Hardware Description

    All manuals and user guides at all-guides.com Chapter 2 Hardware Description Overview Introduction This chapter describes the Vanguard 340 and 340 Enhanced: • Enclosuress • Motherboards • Vanguard Daughtercards Hardware Description...

  • Page 44: Enclosures

    • bracketed to the underside of a desktop or vertical surface The enclosure contains a motherboard and (two optional) daughtercards. Front Panel The front panel of the Vanguard 340 and 340 Enhanced (see Figure 2-1) includes: • 10 LEDs that provide node status • Reset button For a full description of all Front panel LEDs and reset button, refer to the “Powerup...
  • Page 45 All manuals and user guides at all-guides.com Enclosures Rear Panel Figure 2-2 shows a Vanguard 340 and 340 Enhanced rear panel containing the following: • One Sync/Async Universal Serial Interface port (DB-25 connector) • One Async port (RJ-45 connector) as the CTP •...

  • Page 46: Motherboards

    The Vanguard 340 and 340 Enhanced motherboards contain different components. Description Figure 2-3 and Figure 2-4 show the two motherboards. Vanguard 340 The Vanguard 340 motherboard contains 4 Megabytes of Non-Volatile FLASH on Motherboard board and has 16 Megabytes of SDRAM (synchronous DRAM) on an attached DIMM.
  • Page 47 All manuals and user guides at all-guides.com Motherboards Figure 2-3 shows the location of the motherboard components of the Vanguard 340. Battery Data Compression/ SDRAM Encryption SIMM Slot DIMM Slot Flash SIMM Slot 2 Daughtercard Slots Fan Connector Power Supply...
  • Page 48 • A battery that provides power for the unit’s real time clock • 10/100BaseT Ethernet (RJ-45connector) • Control Terminal Port (RJ-45connector) • DB-25 Connector Figure 2-4 shows the location of the 340 Enhanced motherboard components. AES Encryption ECC DIMM Slot SDRAM...
  • Page 49 Five of the Daughtercard Installation Guide (Part Number T0020). Serial Interface The Vanguard 340 and 340 Enhanced support a serial interface that is installed on the motherboard. The serial interface can be configured to function as a Digital Interface Module allowing the support of these interfaces on Port 3 only: •...
  • Page 50 SIMMs. It is IMPORTANT that you install only the devices that are certified for use with your Vanguard product. Installation of an incorrect FLASH SIMM module could result in damage to the SIMM device or your Vanguard Product. Please see the list below for the memory device that is compatible with your hardware platform.

  • Page 51: Vanguard Daughtercards

    For instructions for installing these cards, refer to the Vanguard Daughtercard Installation Guide (Part Number T0020). Daughtercard Older Vanguard Daughtercards do not fit into the Vanguard 340 or 340 Enhanced. Compatibility You can only use the newer daughtercards which are identified by a dimple as shown in Figure 2-5.
  • Page 52 If you attempt to force an older Vanguard Daughtercard into a Vanguard 34x, the equipment will be damaged. If you have an older Vanguard Daughtercard and would like to use it in a Vanguard 34x, contact your VanguardMS representative about having the card reworked.
  • Page 53 • 1 Quad FXO or FXS plus 1 Dual FXO or FXS or 1 Single FXO or FXS FT1/FE1 The FT1/FE1 Daughtercards allow the Vanguard 34x to transfer data over a T1 or E1 network. The daughtercards support these full and fractional T1 or E1 speeds: •...
  • Page 54 Note The FE1 Daughtercard comes with a label “!” which means that the user should refer to the Vanguard Daughtercard Installation Guide. The purpose is to point out that the E1 interface complies with the Australian requirements ACA TS-016-1997 for connection to E1 SELV services. The E1 interface meets the IEC 60950 specifications for TNV1.
  • Page 55 Termination options for the Release 6.3 and greater enhanced ISDN BRI ST data Daughtercards are set in the Configure menu, and are not controlled by switches. For more information, refer to the Vanguard Integrated Services Digital Network: ISDN Manual (Part Number T0103-06).
  • Page 56 All manuals and user guides at all-guides.com Vanguard Daughtercards ISDN BRI Voice This card provides 2B+D Channel through a BRI S/T interface. It conforms to ITU I.430, is LAPD:ITU Q.921 compliant, and supports: • Integral X.31 • ITU-T Q.931 (EURO IDSN) - ETSI switch type to connect to PBXs and public networks.
  • Page 57 The V.34 modem daughtercard is essentially a 3460 modem that can be installed in the Vanguard 340. Once the card is in your unit, it performs as if it were an external modem. For information about configuring and using the V.34 modem, refer to the 3460 Fast’R User’s Guide (Part Number T0022-01).
  • Page 58 Figure 2-20. G.SHDSL Daughtercard Connector Note There is a limitation on available memory available in the 340 that does not allow you to run G.SHDSL and Voice at the same time. This is caused by the 4M flash limit in the 340. The Vanguard 340 Enhanced does not have this limitation.

  • Page 59: Chapter 3. Installation And Replacement

    Chapter 3 Installation and Replacement Overview Introduction This chapter describes how to install, cable, and modify your Vanguard 340 and 340 Enhanced device. Instructions are provided for the following tasks: • Checking Your Shipment Contents • Installing the Vanguard 340 and 340 Enhanced •...

  • Page 60: Checking Your Shipment Contents

    The Vanguard 340 and 340 Enhanced use a different external power supply. The external power supply for 340 Enhanced (62749-03) cannot be used on the Vanguard 340. The Vanguard 340 External Power Supply (62945-01) can be used on the 340 Enhanced.

  • Page 61: Installing The Vanguard 340 And 340 Enhanced

    • Daughtercard Cable Information • Modifying Your Vanguard 340 and 340 Enhanced After your Vanguard 34x is installed and cabled, go to the “Powering Up Your Vanguard 340 and 340 Enhanced” section in Chapter 4 for instructions on powering- up the unit.

  • Page 62: Selecting And Preparing The Installation Site

    Selecting and Preparing the Installation Site How to Choose a Before installing your Vanguard 34x, select a site for the device. Choose a site within Site an appropriate distance of a power source. The selected site should be free of accumulated dust and environmental extremes.
  • Page 63 Figure 3-2. Proper Cable and Air Clearance Caution Do not place items weighing more than 20 pounds (9 kg) on top of a Vanguard 34x enclosure. Do not block the top vents of the unit. Installation and Replacement...

  • Page 64: Installing Your Vanguard 340 And 340 Enhanced

    Note The Vanguard 340 Enhanced does not contain a fan. Ensure that the ambient temperature at the fan inlet for the Vanguard 340 is within the temperature range specified in Appendix A. Installation and Replacement...

  • Page 65: Thermal Considerations

    This section explains some of the heat and temperature factors that can affect your Vanguard 34x. After the Vanguard 340 is installed, power it up and check that the fan is working properly. The feet must be installed and air should be blowing out of the unit.

  • Page 66: Configuring The Serial Interface

    • Setting the Interface Type • Setting the Interface Options The Serial Interface The Vanguard 34x supports a software-programmable serial interface that is integral to the motherboard. Port 3 supports the serial interface and can be configured to function as a fixed Data Interface Module, providing communication using these interface types: •...

  • Page 67: Setting The Interface Type

    All manuals and user guides at all-guides.com Configuring the Serial Interface Setting the Interface Type Introduction This section provides instructions for setting the Interface Type parameter. Interface Type Use this procedure to set the Interface Type parameter: Parameter Step Action Result/Description From the Control Terminal The Port record appears.

  • Page 68: Setting The Interface Options

    All manuals and user guides at all-guides.com Configuring the Serial Interface Setting the Interface Options Introduction This section provides instruction for setting the Interface Options parameter. V.24 Interface Type Use this procedure to set the Interface Options parameter for V.24 interface type: Step Action Result/Description...
  • Page 69 All manuals and user guides at all-guides.com Configuring the Serial Interface V.35/V.36, and X.21/ Use this procedure to set the Interface Options parameter for V.35, V.36, and V.11 Interface X.21/V.11 interface types: Types Step Action Result/Description From the Control Terminal The Port record appears.

  • Page 70: Cabling The Vanguard 340 And 340 Enhanced

    Vanguard 340 and Figure 3-3 illustrates the rear panel of the Vanguard 340 and 340 Enhanced, optional 340 Enhanced Rear daughtercards, and the locations of cables that must be connected.

  • Page 71: Port Characteristics And Cabling

    All manuals and user guides at all-guides.com Cabling the Vanguard 340 and 340 Enhanced Port Characteristics and Cabling Introduction This section describes the port characteristics and cables required to connect to the Vanguard 340 and 340 Enhanced. Port This table lists the port characteristics, connector and cable requirements:...
  • Page 72 All manuals and user guides at all-guides.com Cabling the Vanguard 340 and 340 Enhanced Port Connector Interface Cable Required Speed DCE/DTE (conti (Application Specific) (continued) BNC Pair 2 BNC-to-BNC 75ohm Full or fractional E1 Coax Cable speeds (cont.) Daughtercard RJ45 Dual E&M...

  • Page 73: 10/100Baset Adapter Cable

    Cables for optional daughtercards are shipped with the daughtercards. If your Cable Information Vanguard 34x is shipped with pre-installed daughtercards you will receive the cables. For daughtercard installation and more cable information, please refer to the Vanguard Daughtercard Installation Guide (Part Number T0020).
  • Page 74 Clear To Send (CTS) Note If you plan to use a personal computer to configure the Vanguard 34x, you may need to purchase a DB25 (male) to DB9 (female) adapter for the serial port of your personal computer. The serial ports on most personal computers require DB9 connectors.
  • Page 75 All manuals and user guides at all-guides.com Cabling the Vanguard 340 and 340 Enhanced 10/100BaseT Adapter Cable Specifications The 10/100BaseT cable has the following specifications: • Cable Type: Category 5 or better • Connectors: RJ45 to RJ45 • Color: Gray •...

  • Page 76: Db25 V.24 Pinouts

    All manuals and user guides at all-guides.com Cabling the Vanguard 340 and 340 Enhanced DB25 V.24 Pinouts Connector Pinouts This table shows the DB25 V.24 connector pinouts for DCE/DTE mode. To use DTE to DTE or DCE to DCE mode, a crossover adapter cable is required. Refer to Figure 3-5 on page 3-21 for crossover cable connections.

  • Page 77: Db25 V.35/V.36 Pinouts

    All manuals and user guides at all-guides.com Cabling the Vanguard 340 and 340 Enhanced DB25 V.35/V.36 Pinouts Connector Pinout This table shows the DB25 V.35/V.36 connector pinouts for DCE/DTE mode. To use DTE to DTE or DCE to DCE mode, a crossover adapter cable is required. Refer to...

  • Page 78: Db25 X.21/V.11 Pinouts

    All manuals and user guides at all-guides.com Cabling the Vanguard 340 and 340 Enhanced DB25 X.21/V.11 Pinouts Connector Pinout This table shows the DB25 X.21/V.11 connector pinouts for DCE/DTE mode. To use DTE to DTE or DCE to DCE mode, a crossover adapter cable is required. Refer to...
  • Page 79 Figure 3-5. Crossover Cable Connections Ordering Cables To order cables please contact a Vanguard Managed Solutions representative. In addition to the crossover adapter cables these cables can also be ordered: • DB25 Male to M34 Female cable • DB25 Male to M34 Male cable...

  • Page 80: Modifying Your Vanguard 340 And 340 Enhanced

    Modifying Your Vanguard 340 and 340 Enhanced Modifying Your Vanguard 340 and 340 Enhanced Introduction You can modify your Vanguard 34x by adding or replacing components on the motherboard. This section explains how to make these modifications and includes the following topics: •...

  • Page 81: Installing Vanguard Daughtercards

    Installing Vanguard Daughtercards Vanguard You can install two Daughtercards in the Vanguard 34x. Vanguard daughtercards can Daughtercards be installed either in the factory or on-site. Refer to the Vanguard Daughtercard Installation Guide (Part Number T0020) for complete daughtercard installation instructions. Caution On-site installation of these daughtercards should be undertaken by trained service technicians.

  • Page 82: Accessing The Motherboard

    Accessing the Motherboard Introduction This section explains how to access the motherboard for the Vanguard 340 and 340 Enhanced. It also identifies the location of the key motherboard components. Before replacing SIMMs, DIMM, batteries, or daughtercards you must access the Vanguard 340 or 340 Enhanced motherboard.
  • Page 83 All manuals and user guides at all-guides.com Modifying Your Vanguard 340 and 340 Enhanced Vorsicht Einige im 340 verwendeten Komponenten sollten keinen elektrostatischen Entladungen ausgesetzt werden, durch die interne Bauteile beschädigt werden können. Wenden Sie die entsprechenden Maßnahmen zur Erdung und zum Schutz vor statischen Ladungen bei der Handhabung von Karten und Komponenten an.
  • Page 84 All manuals and user guides at all-guides.com Modifying Your Vanguard 340 and 340 Enhanced Procedure for Use the steps to remove the Vanguard 340 and 340 Enhanced motherboard: Removing the Motherboard Step Action Remove the power cord and cables from the back of the unit.

  • Page 85: Adding And Removing Memory Modules

    All manuals and user guides at all-guides.com Modifying Your Vanguard 340 and 340 Enhanced Adding and Removing Memory Modules Introduction The appropriate memory modules (SIMMs and DIMM) are installed on the motherboard at the factory. If they are not, you can install these components as necessary.
  • Page 86 3) To remove the SIMM, use your fingers to push back the two metal retaining clips and lift out the SIMM. Adding/Removing To add and remove a Data Compression/Encryption SIMM on a Vanguard 340: Data Compression/ 1) At a slight angle, insert the SIMM into the J39 connector, lining up the holes Encryption SIMM with the tab as shown in Figure 3-7.
  • Page 87 All manuals and user guides at all-guides.com Modifying Your Vanguard 340 and 340 Enhanced SDRAM DIMM Data Compression/ Encryption SIMM Locking levers Locking tabs FLASH SIMM Figure 3-7. SIMM and DIMM Installation/Replacement Installation and Replacement 3-29...
  • Page 88 Ethernet Port Port (CTP) Figure 3-8. Location of Vanguard 340 Motherboard Components SIMM and DIMM Figure 3-8 shows the locations of the Vanguard 340 SIMM and DIMM slots: Slots • SDRAM DIMM: Slot U173 • FLASH SIMM: Slot U181 • Data Compression/Encryption SIMM: Slot J39...

  • Page 89: Vanguard 340 Enhanced Ecc Dimm Installation

    All manuals and user guides at all-guides.com Modifying Your Vanguard 340 and 340 Enhanced Vanguard 340 Enhanced ECC DIMM Installation Figure 3-8 shows the locations of the SIMM and DIMM slots: • SDRAM DIMM • FLASH SIMM • ECC DIMM...
  • Page 90 All manuals and user guides at all-guides.com Modifying Your Vanguard 340 and 340 Enhanced AES Encryption ECC DIMM Slot SDRAM Slot Battery FLASH SIMM Slot Vanguard Daughtercard Slots Power Supply DB25 (DCE) Control Terminal 10/100 BaseT Connector Port (CTP) Ethernet Port Figure 3-9.

  • Page 91: Installing/Removing The Lithium Battery

    This section explains how to replace the real time battery. Reference Figure 3-8 and Figure 3-9 for the location of the battery. The Vanguard 340 and 340 Enhanced use a lithium battery on the motherboard to maintain the node’s real-time clock. The battery is not used to store the configuration memory.
  • Page 92 All manuals and user guides at all-guides.com Modifying Your Vanguard 340 and 340 Enhanced Removing/ Figure 3-10 shows how to install and replace the battery. Installing the Battery To remove the battery Using your fingers, push the retaining tabs aside and pry the battery out of the holder.

  • Page 93: Chapter 4. Powering Up And Loading Software

    Powering Up and Loading Software Overview Introduction This chapter describes: • Powering Up Your Vanguard 340 and 340 Enhanced • Powering Off The Vanguard 340 and 340 Enhanced • Powerup Diagnostics • Accessing the Control Terminal Port • Obtaining and Installing Operating Software...

  • Page 94: Powering Up Your Vanguard 340 And 340 Enhanced

    This section describes the sequence of events when you power up and power down the Vanguard 34x. Powering On the The Vanguard 34x does not have a power switch on the unit. Use these steps to Vanguard 34x power on the device: 1) Plug the DC output cable of the power supply into the power socket on the Vanguard 34x back panel.

  • Page 95: Powering Off The Vanguard 340 And 340 Enhanced

    When powering down the unit, always unplug the power cord from the AC power outlet first (Figure 4-1). Never disconnect or reconnect the power connector from the Vanguard back panel if the power supply is still connected to the AC power outlet (Figure 4-2). Doing so can potentially damage the Vanguard unit.
  • Page 96 All manuals and user guides at all-guides.com Powering Off The Vanguard 340 and 340 Enhanced Warning Hazardous voltage from the telecommunications network may be accessible on un-earthed units. Disconnect all telecommunications cables before removing the main lead from the power supply.

  • Page 97: Powerup Diagnostics

    Powerup Diagnostics Powerup Diagnostics Introduction This section describes diagnostics that run automatically when you power up the Vanguard 340 and 340 Enhanced. Detailed Front Figure 4-3 illustrates the detailed front panel LEDs located behind the front cover. Panel LEDs Reset Resets (restarts) the unit.
  • Page 98 All manuals and user guides at all-guides.com Power Up When the Vanguard 340 and 340 Enhanced power cord is plugged into the power Sequence supply outlet, you will see the following power up sequence: Stage when..this indicates Power (PWR) LED turns on Vanguard is receiving power.

  • Page 99: Accessing The Control Terminal Port

    Telnet terminal window. CTP Access Using If the Vanguard 34x is operating in an X.25 network, or if Frame Relay Annex-G is Remote X.25 or used to connect with other VanguardMS Network Access Product nodes, you can...

  • Page 100: Alternative Methods For Accessing The Ctp

    VanguardMS Vanguard devices have a built-in Telnet feature that allows to you Telnet access the CTP of other Vanguard devices. To use this feature, both the local and target devices must be configured using an IP network connection. Use these steps to access the CTP of another Vanguard device from your local node: 1) Access the local Vanguard’s CTP.

  • Page 101: Obtaining And Installing Operating Software

    After the software has been loaded, refer to the appropriate user documentation to configure and use the different software options. Where to Get You can obtain Vanguard Applications Ware Packages that can be tailored to your Operating Software specific needs.
  • Page 102 • identifies the software release number applicable to that image • identifies the Vanguard V340 product equipped with 8MB SDRAM. Units that have 4MB SDRAM are identified by the letter • identifies the number of the image created for any specific software release •...

  • Page 103: Appendix A Specifications

    Specifications Specifications Introduction This section describes the physical and environmental specifications and power requirements for the Vanguard 340 and 340 Enhanced products. 340 Hardware The Vanguard 340 product features the following: • 50 Mhz MPC860T PowerPC processor • 10/100 Base T Ethernet •...
  • Page 104 • SNA Package • Multi-Service Package See the Software Release Notice accompanying your Vanguard unit for more information on the software license upgrades available for the Vanguard 340 and 340 Enhanced. Environmental The following environmental conditions are required: • Operating temperature: 32° to 104°F maximum (0° to 40°C maximum) •...
  • Page 105 The Vanguard 340 and 340 Enhanced use a different external power supply. The Description external power supply for the Vanguard 340 Enhanced cannot be used on a Vanguard 340. • Vanguard 340 is powered by a switch mode power supply with 50 watts maximum output power.
  • Page 106 All manuals and user guides at all-guides.com...

  • Page 107: Appendix B. Software License And Regulatory Information

    All manuals and user guides at all-guides.com Appendix B Software License and Regulatory Information Overview Introduction This appendix provides information about the following: • FCC Part 68 and Telephone Company Procedures and Requirements • Product Declarations and Regulatory Information Software License and Regulatory Information...

  • Page 108: Fcc Part 68 And Telephone Company Procedures And Requirements For Dsu, T1, And Isdn Interfaces

    Introduction The equipment referenced in this section is compliant with FCC Part 68 rules. Before You Begin Before connecting a Vanguard 34x to a network, you should: • Provide the local telephone company with the equipment’s registration number. • Order the proper connections.
  • Page 109 All manuals and user guides at all-guides.com FCC Part 68 and Telephone Company Procedures and Requirements for DSU, T1, and ISDN Interfaces Customer-Provided FCC regulations and telephone company procedures prohibit connection of Telephone customer-provided equipment to telephone company-provided coin service Equipment (central office-implemented systems).

  • Page 110: Product Declarations And Regulatory Information

    Um Konformitat mit EN 60950 zu versichern, sichern Sie es, daß diese Anschlusse nur mit den des selben Type auf anderen Geraten verbindet werden. CE Marking The mark in the following diagram appears on each Vanguard Series product, and the statement that follows explains its significance. Figure B-1. CE Mark...
  • Page 111 Conformity English Declaration of Conformity: Hereby, VanguardMS declares that this Vanguard Router is in compliance with the requirement and other relevant provisions of Directive 1999/5/EC. Danish K o n f o r m i t e t s e r k l æ r i n g : H e r m e d e r k l æ...
  • Page 112 All manuals and user guides at all-guides.com Product Declarations and Regulatory Information Italian Dichiarazione di conformità: Con la presente VanguardMS dichiara che il router Vanguard soddisfa i requisiti essenziali e le altre disposizioni pertinenti della direttiva 1999/5/CE. Portuguese Declaração de Conformidade: Através da presente, a VanguardMS declara que este encaminhador Vanguard se encontra em...
  • Page 113 All manuals and user guides at all-guides.com Product Declarations and Regulatory Information Industry Canada The following information includes the Industry Canada statement regarding ISDN and T1 equipment use. The Industry Canada label identifies certified equipment. This certification means that the equipment meets certain telecommunications network protective, operational, and safety requirements.
  • Page 114 All manuals and user guides at all-guides.com...

  • Page 115: Limited Warranty

    (ONE) 1 YEAR from the date of purchase by the original end user. During the warranty period, Vanguard Managed Solutions will at its option and at no charge either repair a defective Product (using either new or reconditioned parts) or replace it (with a new or reconditioned Product) if you return it freight prepaid to the factory or service center VanguardMS designates.
  • Page 116 All manuals and user guides at all-guides.com...
  • Page 117 If you have additional concerns in case of failure, about missing parts, or to return equipment, contact your nearest VanguardMS representative. For Locations Contact... Inside the United States Vanguard Managed Solutions 575 West Street Mansfield, MA 02048-1193 Phone (800) 544-0062. Outside the United States the nearest VanguardMS distributor. For a...
  • Page 118 All manuals and user guides at all-guides.com Factory Repair To return equipment for factory repair, call the VanguardMS Technical Support Center at (800) 544-0062, for return authorization and instructions. When you call, you will be given a Return Material Authorization (RMA) control number. Mark this number clearly on the shipping container for ease of identification and faster service.
  • Page 119 All manuals and user guides at all-guides.com Index Numerics 1 Port Voice FXS/FXO Daughtercard 2-10 Data Compression SIMM 10/100BaseT Daughtercard Ethernet cable 2 Port Voice FXS 2-10, 2-11 2 Port Voice FXS Daughtercard 2-10, 2-11 4 Port Voice FXO 2-11 4 Port Voice FXO Daughtercard 2-11 4 Port Voice FXS...
  • Page 120 All manuals and user guides at all-guides.com Installation Instructions Rear Panel 2-3, 3-12 Interface Type Regulatory Information V.24 3-10 Canadian requirements V.35/V.36 3-11 Industry Canada X.21/V.11 3-11 RemoteVU Daughtercard 2-12 ISDN BRI-S/T Daughtercard 2-13, 2-14 Remove/Replace ISDN BRI-U Daughtercard 2-13 components 3-22 motherboard...
  • Page 121 All manuals and user guides at all-guides.com Telephone Company Procedures Temperature Thermal Considerations Thermal Shutdown Troubleshooting connections V.34 Modem Daughtercard 2-15 Vanguard 34x cabling rear panel 3-12 configuration 3-12 description enclosure features front panel installation motherboard 2-4, operating software rear panel...

This manual is also suitable for:

340 enhanced342

Table of Contents
