Robolink Zumi Manual page 16

12

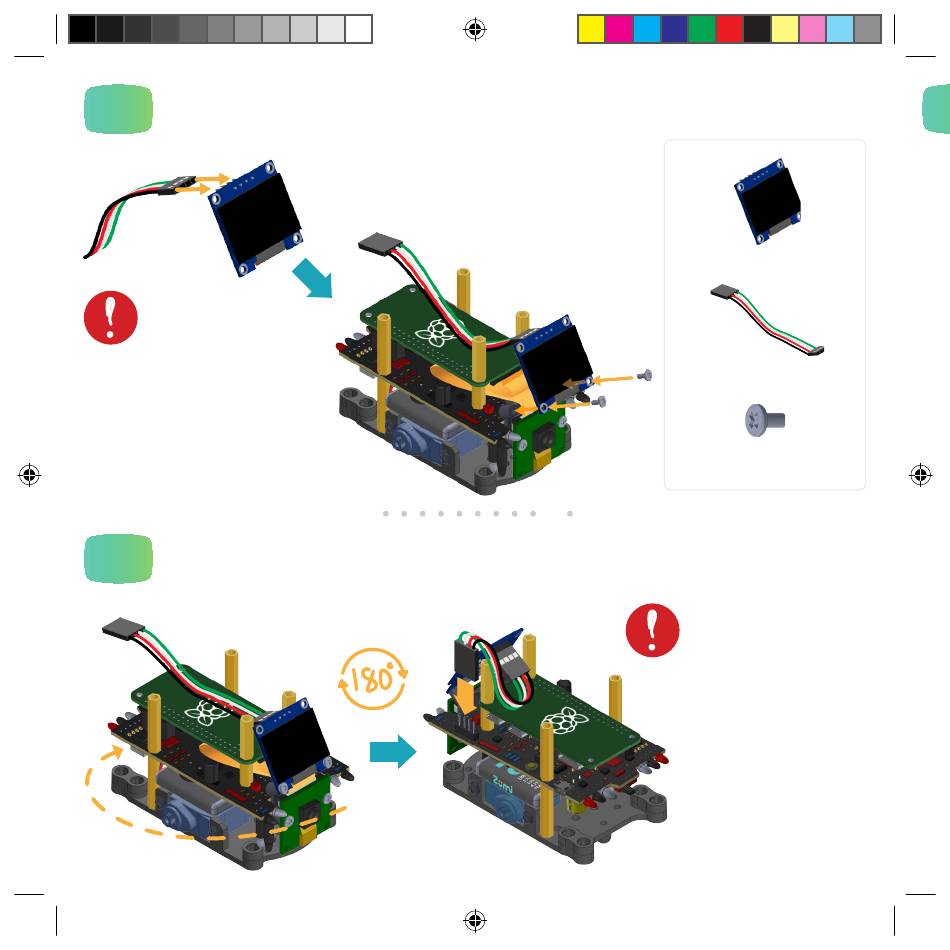

Attach the OLED screen to the mounting bracket
This is the OLED screen. Careful, it's made of glass!
CAUTION!
over-tighten the
bolts! Also check
that the jumper
wire color order
matches the
picture.
13
Connect the OLED into the Zumi board
14
buildmanual_v4_aug2020_150size.indd 14 buildmanual_v4_aug2020_150size.indd 14
Don't
OLED
Jumper wire
2 mounting bolts
CAUTION!
Match the
jumper wire
colors with
the picture!
Otherwise your
screen could
get damaged.
9/1/20 6:45 PM 9/1/20 6:45 PM
