Task Lighting LCDM600 Manual page 3

Match Guide
Use Match key
1. Match: Short press the match key on the receiver, within 5s, press on/off key of the remote
2. Delete: Long press the match key on the receiver for 5s, to delete on matched remote
Use Power-up
1. Match: Switch off the power, then switch on again, short press the on/off key 3 times on the
remote quickly within 5s after the power is on, the link is done once the light blinks 3 times
2. Delete: Switch off the power, then switch on power again, short press on/off key 5 times on
the remote quickly within 5s after the power is on, the unlink is done once the light blinks
5 times
External Push Switch (optional)
1. Short press: Turn on/off light
2. Long press(1-5s): When the light is on, increase or decrease brightness continuously
3. Long press(10s): When multiple controllers share a on/off key, this can achieve
simultaneous adjustment

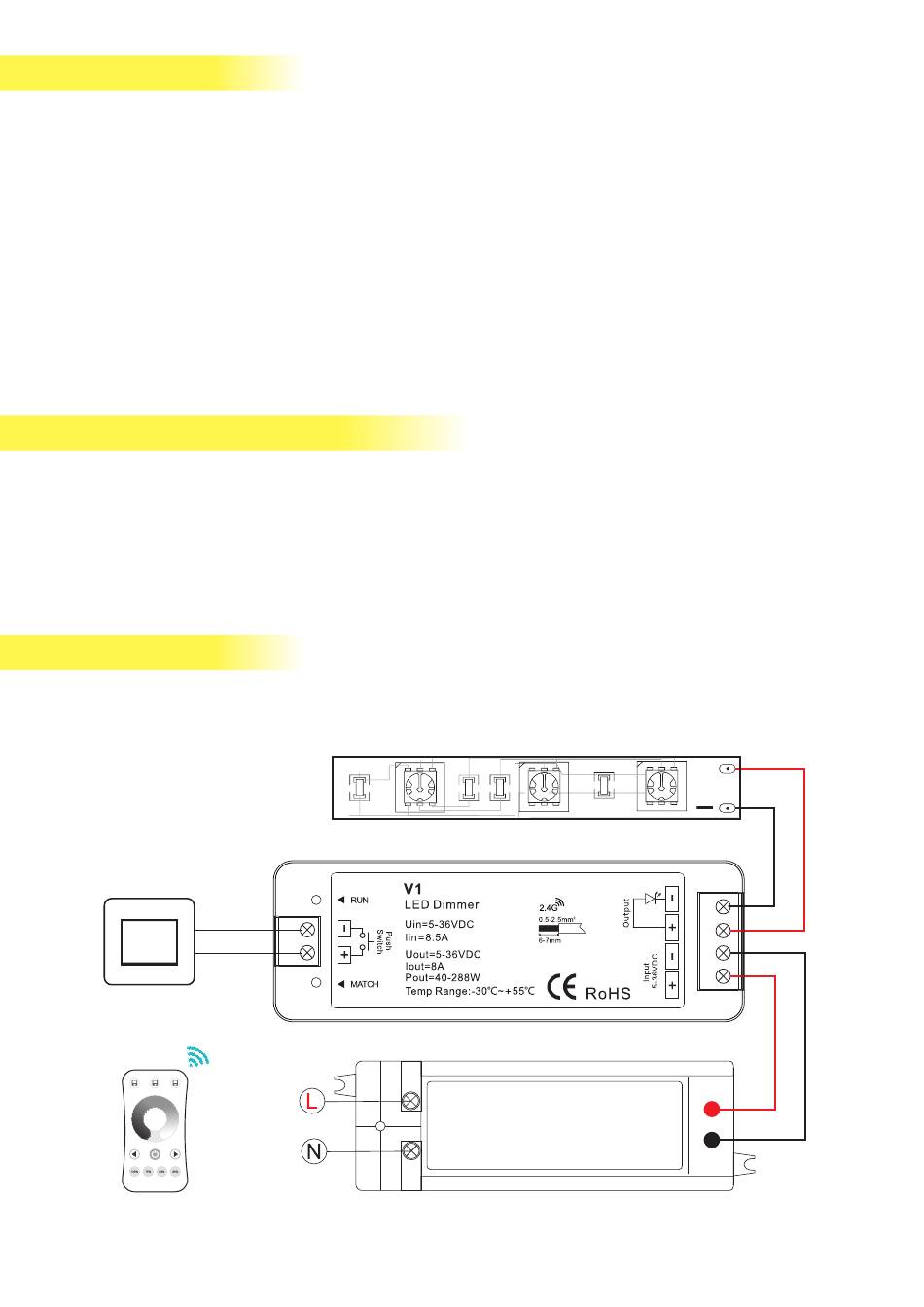

Wiring Diagram
Wiring diagram
Push Switch
(optional)
LED power supply voltage and power select:
● 5V lamp, Input 5V power supply, can load 0~40W,
● 12V lamp, Input 12V power supply, can load 0~96W,
AC110-230V
Single color LED strip
Power Supply
5-36VDC
Constant Voltage
+
