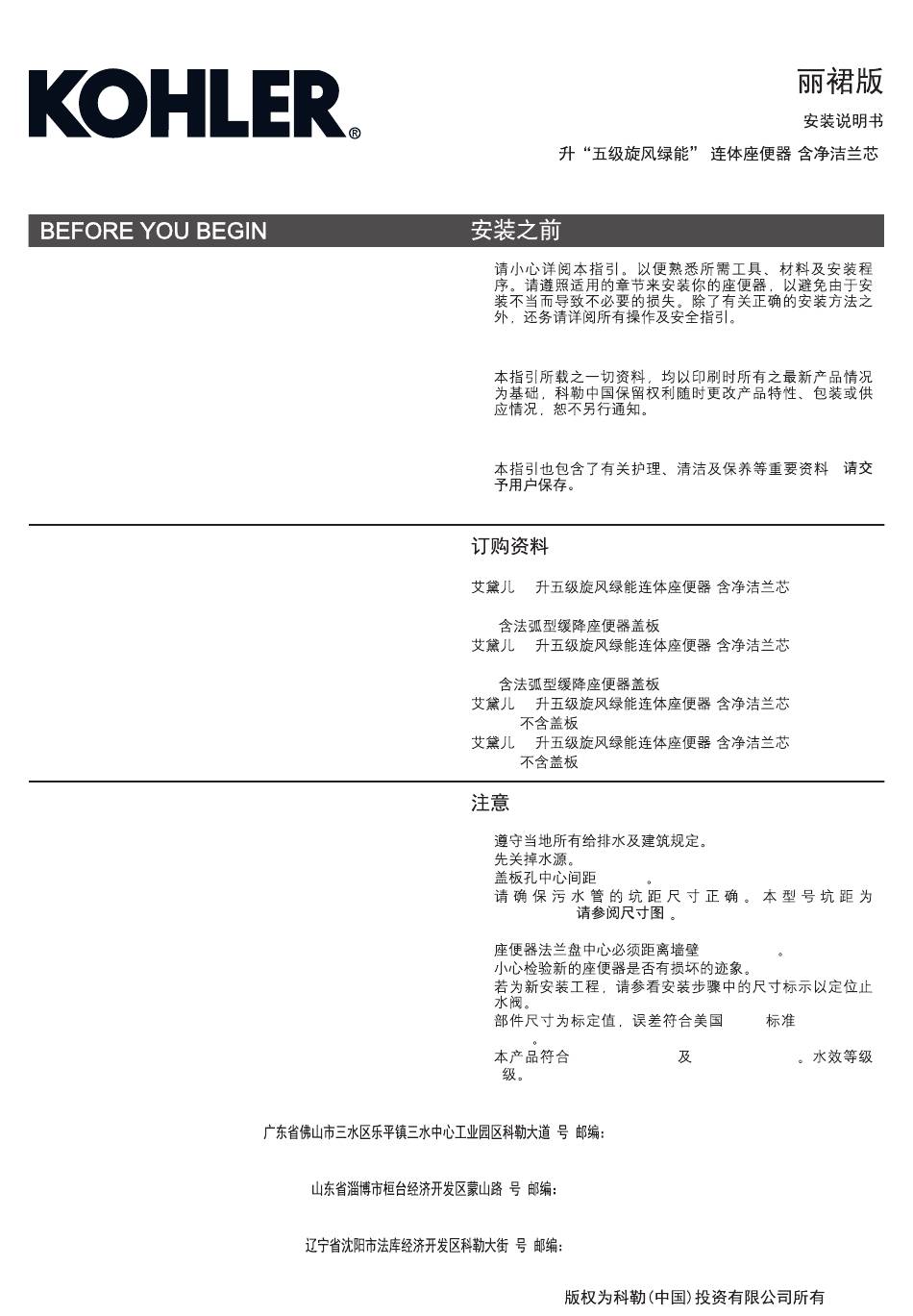

Please read these instructions carefully to familiarize
yourself with the required tools, materials, and installation
sequences. Follow the sections that pertain to your
particular installation. This will help you avoid costly
mistakes. In addition to proper installation, read all
operating and safety instructions.
·
All information in these instructions is based upon the
latest product information available at the time of
publication. Kohler China reserves the right to make
changes in product characteristics, packaging, or
availability at any time without notice.
·
These instructions contain important care, cleaning, and
warranty information -
please leave instructions for the
consumer
.
ORDERING INFORMATION
ADAIR 4.2L Skirted Class Five+ One-Piece Toilet + CL
305mm ...............................................................K-5171T-ITSE
Includes French Curve Quiet-close Toilet Seat ....K-4713T
ADAIR 4.2L Skirted Class Five+ One-Piece Toilet + CL
400mm ...............................................................K-4983T-ITSE
Includes French Curve Quiet-close Toilet Seat ....K-4713T
ADAIR 4.2L Skirted Class Five+ One-Piece Toilet + CL
305mm (W/O Seat) ............................................K-5171T-ITNS
ADAIR 4.2L Skirted Class Five+ One-Piece Toilet + CL
400mm (W/O Seat) ............................................K-4983T-ITNS
NOTES
·
Observe all local plumbing and building codes.
·
Shut off the water supply.
·
Seat post holes are on 140mm centers.
·
Ensure that the new drain has the correct roughing-in
dimension. This toilet has a 305/400mm roughing-in
dimension.
See Roughing-in
·
Closet flange must be 305/400mm on-center from wall.
·
Carefully inspect the new fixture for any sign of damage.
·
For new construction, refer to the dimensions in
installation step
for locating the shut-off valve.
·
Fixture dimensions are nominal and conform to tolerances
established by ASME Standards (A112.19.2-2018).
·
This product complies with Q/KCI-006-2018 and GB
25502-2017. Water Efficiency Grade 2.
No.2 KOHLER ROAD, SANSHUI CENTRAL INDUSTRIAL PARK, LEPING TOWN, SANSHUI DIST., FOSHAN, GUANGDONG, PRC POST CODE 528137
8# MENGSHAN RD, ECONOMIC DEVELOPMENT ZONE OF HUANTAI, ZIBO, SHANDONG, CHINA
NO.1 KOHLER STREET, ECONOMIC DEVELOPMENT ZONE OF FAKU COUNTY, SHENYANG LIAONING PROVINCE, PRC
1423356-T01-B
.
4.2L SKIRTED CLASS FIVE+ ONE-PIECE TOILET+ CL
4.2
S-TRAP 305mm K- 5171T-ITSE/K- 5171T-ITNS
S-TRAP 400mm K- 4983T-ITSE/K- 4983T-ITNS
·
·
·
·
4.2
305mm...............................................................K-5171T-ITSE
4.2
400mm...............................................................K-4983T-ITSE
4.2
305mm
................................................K-5171T-ITNS
4.2
400mm
................................................K-4983T-ITNS
·
·
·
140mm
·
305/400mm(
·
·
·
·
2018
)
·
Q/KCI-006-2018 GB 25502-2017
2
2
528137
8
256410
1
110400
©
Copyright Kohler China Investment Co., Ltd. 2020
-1-
©
ADAIR
INSTALLATION INSTRUCTION
(
(
)
......................................K-4713T
(
)
......................................K-4713T
(
)
(
)
)
305/400mm
ASME
(
A112.19.2-
POST CODE:
256410
POST CODE:
110400
)
-
:
2020
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kohler ADAIR K- 5171T-ITSE
Summary of Contents for Kohler ADAIR K- 5171T-ITSE
- Page 1 This product complies with Q/KCI-006-2018 and GB 25502-2017. Water Efficiency Grade 2. No.2 KOHLER ROAD, SANSHUI CENTRAL INDUSTRIAL PARK, LEPING TOWN, SANSHUI DIST., FOSHAN, GUANGDONG, PRC POST CODE 528137 528137 8# MENGSHAN RD, ECONOMIC DEVELOPMENT ZONE OF HUANTAI, ZIBO, SHANDONG, CHINA...
-
Page 2: Tools And Materials Required
WARNING: Risk of personal injury or product damage : Handle vitreous china products very carefully. Vitreous china can break and chip if you overtighten bolts and nuts. WARNING: Risk of external leakage . The fill valve nut has been factory-tightened to design specifications. If re-tightening is required, wrench tighten one turn past finger tight . -
Page 3: Installation
Finished Wall Supply OF OUTLET Fig.#1 Kohler reserves the right to change marked dimensions without prior notice. INSTALLATION TO REMOVE EXISTING TOILET Turn off the water supply. Flush the toilet, and use a sponge to remove the remaining water from the tank and bowl. - Page 4 TO INSTALL BOWL Drain Hole Position the template and align with drain hole. Mark down the position of foot and 5 holes. Fig.#4 Drill holes on ground with the drill of 10mm 10mm (3/8"), then insert anchor to holes. CAUTION: Please make sure there is no water pipe or spool under the 5 10mm holes to be drilled.
- Page 5 Carefully align and lower the bowl. Apply weight to the bowl rim to let the outlet insert into plastic trap. Outlet Plastic Trap Fig.#9 Carefully thread the screws into the brackets, until toilet is secure. Alternately tighten left and right sides to prevent pulling the toilet off center.
-
Page 6: Water Level
Install the tank lid and the seat. Use the supplied hardware pack for seat. Periodically check for leaks for several days following the installation. Fig.#13 FILL FLOAT WITH BALLAST Test flush the toilet. Periodically check all connections for leaks for several days following installation. - Page 7 Fasten the snap along "CLOSE" CLOSE direction. SCALE Fig.#15d Screw Float adjustment instructions: Make G 2-4mm sure the height of surface E is 2-4mm lower than surface G. Float Water Cup Fig.#15e CONTINUOUS CLEAN 1. Install and connect the CONTINUOUS CLEAN. Place to connect the water refill tube The joint structure and Refer to the illustration on...
- Page 8 4. Caution: · · The toilet bowl cleaner is corrosive and is fatal if swallowed. · · Wear plastic gloves when using the toilet bowl cleaner. · · Store the toilet bowl cleaner out of reach of children. · · Flush eyes, skin or clothes for 15 minutes immediately upon contact with the toilet bowl cleaner.
- Page 9 A. Partially close the water supply shut-off valve if the water pressure to the toilet is too tank is filling. high. Check the toilet performance following any such adjustment. B. Remove dirt or obstructions from the valve head. Flush the lines. IMPORTANT: Use only genuine Kohler parts as shown to avoid property damage. 1423356-T01-B...
-
Page 10: Consumer Responsibilities
CAUTION: Don t use any cement while installing the toilet. Heat expansion of the toilet may damage the feet of the toilet. Kohler will not be responsible for any damage because of using cement. WARNING: Risk of product damage. Do not throw into the toilet what is easy to block it, such as newspaper, paper pilch, sanitary towel.
