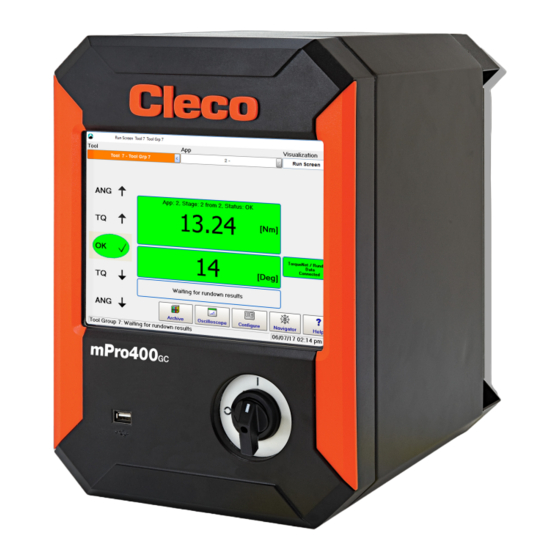

Summary of Contents for Apex Digital Cleco mPro4000GC
Page 1
Installation Instructions P2434JH 2019-08 mPro400GC(D) Integrating mPro400GC and mPro400GCD For additional product information visit our website at www.ClecoTools.com...
Contents About this Document ................4 Distinction of Global Controller types ........... 5 mPro400GC replaced by mPro400GCD ..........6 Primary/Master controller .................... 6 Primary/Master controller with existing Secondary controllers ........7 Primary/Master controller with new Secondary controllers.......... 9 Install Primary/Master controller with Secondary controllers mPro400GC....11 Install Primary/Master controller with Secondary controllers mPro400GCD .....
About this Document About this Document The original language of this document is English. This document is intended for all persons who replaces mPro400GC-P/-M by mPro400GCD-P/-M. This document has the following purposes: • It provides important instructions for safe and effective operation. •...
Distinction of Global Controller types Distinction of Global Controller types There are two types of Global Controller: • mPro400GC: only for analog tools • mPro400GCD: for analog and digital tools Controller Type mPro400GC mPro400GCD Primary mPro400GC-P mPro400GCD-P Master mPro400GC-M mPro400GCD-M Secondary mPro400GC-S mPro400GCD-S(H)
mPro400GC replaced by mPro400GCD mPro400GC replaced by mPro400GCD If mPro400GC-P/-M is replaced by mPro400GCD-P/-M, certain things need to be considered. Below are various scenarios and procedures for exchanging controller types. Primary/Master controller Scenario • mPro400GC-P/-M is replaced by mPro400GCD-P/-M. • No Secondary controllers connected.
mPro400GC replaced by mPro400GCD Adjust Programmable I/O Mapping: Select Navigator > Tool Setup > I/O. Confirm the messages with <Run it> and <Continue>. → The Programmable I/O Mapping dialog opens. Re-parameterize the start switch and the tool light. All signals from PM_DIDO have to be changed to TM_DIDO.
Page 8
mPro400GC replaced by mPro400GCD Procedure Save parameters from mPro400GC-P/-M: Select Navigator >Administration > Save parameters. → The Save parameters dialog opens. Select the storage location and confirm with <OK>. The parameters can be stored on an internal stor- age device (CF card) or an connected USB drive. Press <All>...
mPro400GC replaced by mPro400GCD Primary/Master controller with new Secondary controllers Scenario • mPro400GC-P/-M is maintained. • mPro400GCD-S(H) is added. Old system layout New system layout mPro400GC-P/ mPro400GC-P/ mPro400GC-M mPro400GCD-S(H) mPro400GCD-S(H) mPro400GC-M TSnet S981511 962037-XXX Fig. 3-5: Primary/Master controller mPro400GC Fig. 3-6: Primary/Master controller mPro400GC with Secondary controller mPro400GCD Conditions for new system layout Type...
Page 10
mPro400GC replaced by mPro400GCD Set up mPro400GC-P/-M: Use cable S981511 to connect mPro400GC-P/-M and mPro400GCD-S(H). See documentation P2174HW. Use following inputs and outputs: mPro400GC-P/-M: output X21 mPro400GCD-S(H): input X22 (TSnet in) The TSnet cable may not be connected to the infrastructure network. mPro400GC-P/ mPro400GCD-S(H) mPro400GC-M...
mPro400GC replaced by mPro400GCD Install Primary/Master controller with Secondary controllers mPro400GC Scenario • mPro400GCD-P/-M. • mPro400GC-S is added. Old system layout New system layout mPro400GCD-P/ mPro400GC-S mPro400GC-S mPro400GCD-M 544197PT Arcnet 544196-XXX 544196-XXX Fig. 3-8: Primary/Master controller mPro400GCD with Secondary controller mPro400GC Conditions and Process See chapter 3.2 Primary/Master controller with existing Secondary controllers, page 7.
Page 12
mPro400GC replaced by mPro400GCD Procedure Set up mPro400GCD-P/-M: Use cable 962037-XXX to connect mPro400GCD-P/-M and mPro400GCD-S(H). See documentation P2300HW or P2309HW.Use following inputs and outputs: mPro400GCD-P/-M: output X21 mPro400GCD-S(H): input X22 The TSnet cable may not be connected to the infrastructure network. mPro400GCD-P/ mPro400GCD-S(H) mPro400GCD-M...
mPro400GC replaced by mPro400GCD Primary/Master controller with two types of Secondary controllers Scenario • mPro400GCD-P/-M. • mPro400GC-S and mPro400GCD-S(H) are added. Old system layout New system layout mPro400GCD-P/ mPro400GC-S mPro400GC-S mPro400GCD-S(H) mPro400GCD-M 544197PT TSnet 962037-XXX Arcnet Arcnet 544196-XXX 544196-XXX Fig. 3-10: Primary/Master controller mPro400GCD with Secondary controller mPro400GC and mPro400GCD Conditions for new system layout Type...
Page 14
mPro400GC replaced by mPro400GCD The TSnet cable may not be connected to the infrastructure network. mPro400GCD-P/ mPro400GCD-S(H) mPro400GCD-M Home network Use cable 544196-XXX to connect additional mPro400GC-S to the previous mPro400GC-S if neces- sary. Use following inputs and outputs: Previous mPro400GC-S: output X32 Following mPro400GC-S: input X31 Connect the System Bus Terminator 544197PT to at the last mPro400GC-S.
mPro400GC replaced by mPro400GCD Primary/Master controller with Secondary controllers and Stack Lights In combination with stack lights, mPro400GC and mPro400GCD controllers cannot be mixed. 3.7.1 mPro400GC Scenario • mPro400GC-P/-M and mPro400GC-S are available. • Stack lights are added. mPro400GC-P/ mPro400GC-M mPro400GC-S mPro400GC-S Arcnet...
Page 16
mPro400GC replaced by mPro400GCD Parameterize stack lights Assign each stack light its own Arcnet address: The default Arcnet address is printed on the front of the housing, e.g. 101. If several stack lights are used, screw on the housing and change the Arcnet address at the rotary con- trols internally with a screwdriver.
mPro400GC replaced by mPro400GCD 3.7.2 mPro400GCD Scenario • mPro400GCD-P/-M and mPro400GCD-S(H) are available. • Stack lights are added. mPro400GCD-P/ mPro400GCD-M mPro400GCD-S(H) mPro400GCD-S(H) Arcnet Arcnet Arcnet Arcnet Arcnet Arcnet 544197PT Arcnet Arcnet Arcnet 544196-XXX 544196-XXX 544196-XXX TSnet TSnet 962037-XXX 962037-XXX Fig. 3-13: Primary/Master controller mPro400GCD with Secondary controller mPro400GCD and stack lights Conditions for new system layout Type Indication...
Page 18
mPro400GC replaced by mPro400GCD Parameterize stack lights Assign each stack light its own Arcnet address: The default Arcnet address is printed on the front of the housing, e.g. 101. If several stack lights are used, screw on the housing and change the Arcnet address at the rotary con- trols internally with a screwdriver.
Page 20
