COLOR TELEVISION
LC27K6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LC27K6 and is the answer not in the manual?

Questions and answers

Related Manuals for XOCECO LC27K6

Summary of Contents for XOCECO LC27K6

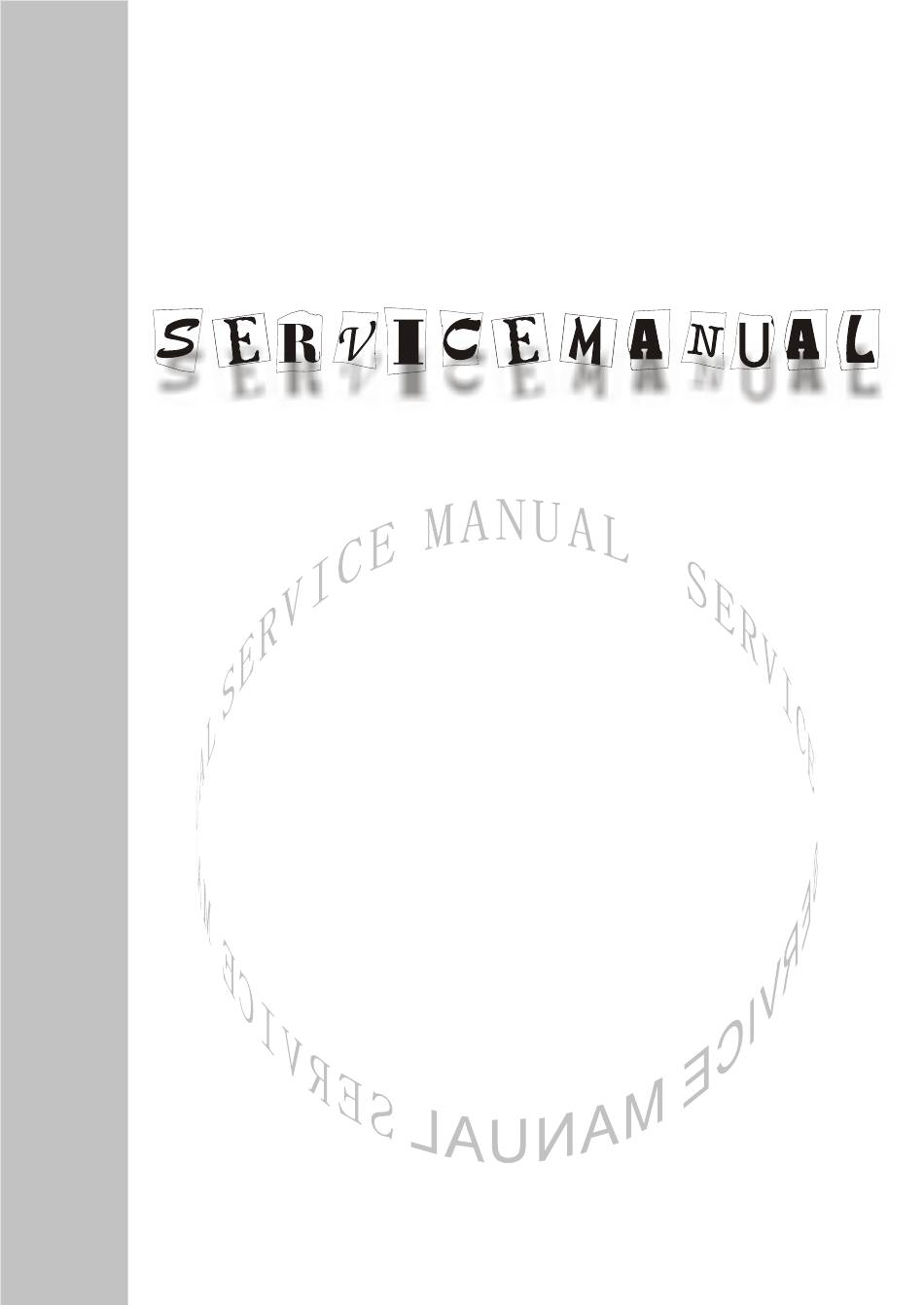

  • Page 1 COLOR TELEVISION LC27K6...

  • Page 2: Table Of Contents

    CONTENTS Safety instructions………………………………………………………………………..… Instructions on adjusting and testing …………………………….…….………………….… Trouble shooting ……………………………………………………….…………………… Principle analysis ………………………………………….…….……………....Block diagram……………………………….………….…………......... IC Block diagram…………………………………..………………………………..………..9 Wiring diagram......................Identification criteria for the bright spot and dark spot of the LCD screen....Exploded view………..…................... Part list ……………………………………………………………..……………....Schematic diagram.………………………………………………………………..……..

  • Page 3: Safety Instructions

    Attention: This service manual is only for service personnel to take reference with. Before servicing please read the following points carefully. Safety instructions 1 Instructions 1.1 Be sure to switch off the power supply before replacing or welding any components or inserting/plugging in connection wire 1.2 Anti static measures to be taken (throughout the entire production process!): 1.2.1 Do not touch here and there by hand at will;...
  • Page 4 2.10 There are lots of connection wires between parts behind the LCD screen. When servicing or moving the set please take care not to touch or scratch them. Once they are damaged the screen would be unable to work and no way to get it repaired. 2.11 Special care must be taken in transporting or handling it.

  • Page 5: Instructions On Adjusting And Testing

    Instructions on adjusting and testing PM5518(Video signal generator),K-7253(VGA signal generator),CA210(White balancer 2.1. Adjustment and calibration flow process For adjustment and calibration flow process diagram, see figure 1 Figure 1 Check CPU and analog board Combined test for general assembly Connect to central signal source, check if various TV functions (station skipping, modulate quantity control etc), check if the output of earphone and speaker are normal Input AV/S, HDTV signal and check various...
  • Page 6 Note: The white balance adjustment should be made in the mode of “Nature” picture. 2.2.1 EPROM Initialization Enter the first page of factory menu, push “ENTER” key after the selecting Clear EEPROM, shut off the power supply after the appearance of “OK”. 2.2.2 VGA and DV1 channels adjustment 2.2.2.1 VGA channel mode preset Input VGA signal of K-7253(PATTERN 5:Final Test),select TIME301 (640*350/70Hz), push ”AUTO”...

  • Page 7: Trouble Shooting

    density are all set to regulated value. 2.2.4 White balance adjustment of YprPb channel Input YPbPr signal of K-7253 to D4-1 terminal,input eight grades of grey density signal of TIME380(480i)PATTERN471, adjust S-bright to be 120,S-contrast to be 140. Enter the adjustment menu of white balance,adjust second grade with balancer.
  • Page 8 2.TV set: Symptoms Possible cause Unable to switch the power on Check to see if the power plug has been inserted properly into the socket. No picture and sound Check to see if the power supply of liquid crystal TV has been switched on.

  • Page 9: Principle Analysis

    No sound Check if the “mute” audio frequency setting is selected. Check if the sound volume is set to minimum. Make sure the earphone is not connected. Check if the cable connection is loose. When playing VHS picture search tape, When being played or in pause VHS picture search tape sometimes there are lines at the top or bottom of can’t provide stable picture, which may lead to incorrect display of the...

  • Page 10: Block Diagram

    LC27K6 BLOCK DIAGRAM U15 DVI receiver 24bit TFP403 LVDS SCALER 24bit TUNER201 DRIVER JAG-ASM DS90C383A 24bit DEINTER AV1-V/S-Y LACER ITU-R656 FLI2310 8bit SVHS-C AV2-V SDRAM SDRAM SDRAM AV-V OUT I C BUS V-CHIP Z86229 FLASHMEMORY MICRO-CONTRLER EEPROM 24bit TSC80251G2D MST9883...

  • Page 11: Ic Block Diagram

    IC BLOCK DIAGRAM 1.MSP3420 Pins description: 2,3 PIN:SCL,SDA applied for control the operation of IC . 27,28 PIN:output left and right sound channel R/L to speaker processor. 36,37 PIN:AV OUT of sound R/L. DVI/YPbPr1/YPbPr2 47,48 PIN: selected input R/L. 50,51 PIN:Input of VGA. R/L 53,54 PIN:Input of AV2 R/L.
  • Page 12 2.VPC3230 Pins description: 31-34, 37-40 PIN:output format signal of.ITU-R656 70 PIN:Video of AV OUT 71 PIN:Input C of SVHS. 72 PIN:input Video (SVHS in priority) of Y or AV1 of SVHS. 74 PIN:input Video of AV2. 75 PIN:input Video of TV.
  • Page 13 3.JAG-ASM...
  • Page 14 4.Z86229 Pin description: 7 PIN:Video input 2 PIN:G output 3 PIN:B output 18 PIN:R output 17 PIN:FB output...
  • Page 16 Serial No. of Parts Part Name Part No. Main components and No. Remark N201 MSP3420G-Q (353-34200-10) Sound conversion N203 M62494FP (353-62494-20) Self 667-L27K6-15 board N213 produced N214 MP7720 (353-77200-10) JAG-ASM (353-0JAG0-00) FLI2310 (353-23100-00) TFP403PZP (353-04030-10) VPC3230D (353-32300-80) Self CPU board assy’ 667-L27K6-56 MST9883B (353-98830-10)

  • Page 17: Identification Criteria For The Bright Spot And Dark Spot Of The Lcd Screen

    Identification criteria for the bright spot and dark spot of the LCD screen Q’ty allowed Distance between two spots Category criteria 15" 20" 22" 30" 40" 15" 20" 22" 30" 40" One single ≤5 ≤2 ≤5 ≤2 ≤3 spot Bright 2 neighboring ≥15mm ≤2...

  • Page 18: Exploded View

    EXPLODED VIEW...
  • Page 19 PART LIST OF EXPLDED VIEW DESCRIPTION PART# AXLETREE COVER BOARD 808-10688-AF0 HOLDER ASSY 615-10429-04 BACK CABINET COVER BOARD (RIGHT) 808-10689-AF0A INFRARED SENSE ASSY 667-L27K6-09 LED COLUMN 700-60265-00 POWER BOARD ASSY 667-L27M6-20 SOUND SWITCH BOARD ASSY 667-L27K6-15 POWER SOCKET BRACKET 870-20955-AF0 VIDEO PROCESSING BOARD ASSY 667-L27K6-40 PANEL...

  • Page 20: Part List

    PART LIST PART# DESCRIPTION LOCA.NO. 203-L27K60-14 LC-27K6, BRAND PRIMA,N-M,UL,FCC 100-L27K60-01 LC-27K6 335-27001-00 DISPLAY SCREEN V270W1-L04 615-10481-00 LCD SCREEN HOLDER ASS'Y 615-10482-00A WALL MOUNT BRACKET ASS'Y 655-B1201-46 (12-PINS) LEAD WITH HOUSING 655-B1201-71 (12-PINS) LEAD WITH HOUSING 655-TE301-06 ( 10-PINS ) LEAD WITH HOUSING 655-41201-280 (4-PINS) LEAD WITH HOUSING 655-8E301-33...
  • Page 21 852-53006-81 SCREW SJ2830 M3X6-D.Zn 852-53006-81 SCREW SJ2830 M3X6-D.Zn 852-53006-81 SCREW SJ2830 M3X6-D.Zn 852-53006-81 SCREW SJ2830 M3X6-D.Zn 852-53012-81 SCREW SJ2830 M3X12-D.Zn 852-54010-84 SCREW SJ2830 M4X10-Y 852-54010-84 SCREW SJ2830 M4X10-Y 855-A0029-00 SCREW ST4X14 857-10002-09 COTTON FLANNEL 857-10004-00 COTTON FLANNEL 857-10004-00 COTTON FLANNEL 859-11302-00 INVERTER PIECE SHIELD COVER 863-81361-00...
  • Page 22 881-80684-00 WALL MOUNT GUIDE LC-27K6 ENGLISH FRENCH SPANISH NEUTRA 886-31492-01 CARTON BOX (LC-27K6,PRIMA) 887-20047-01 ACCESSORY PALSTIC BAG 887-20047-01A ACCESSORY PALSTIC BAG ( ) 301-UL27K6-38RA RC-U38R-0AREMOTE CONTROL UNIT (PRIMA NEW ) 353-34282-30 SMD ICM34282M1-D48GP (M) 535-L27M6-03 WALL MOUNT ASS'Y 615-1A288-00A WALL MOUNT ASS'Y 852-34008-81 SCREW B(+) M4X8-D.Zn 855-B0016-00...
  • Page 23 870-20954-00A SPEAKER BRACKET 667-L27K6-05 KEY BOARD ASS'Y 360-10001-00 TACT SWITCH KFC-A06-4X4.5X5B 360-10001-00 TACT SWITCH KFC-A06-4X4.5X5B 360-10001-00 TACT SWITCH KFC-A06-4X4.5X5B 360-10001-00 TACT SWITCH KFC-A06-4X4.5X5B 360-10001-00 TACT SWITCH KFC-A06-4X4.5X5B 360-10001-00 TACT SWITCH KFC-A06-4X4.5X5B 360-10001-00 TACT SWITCH KFC-A06-4X4.5X5B 364-38186-00 8-PINS CONNECTORS JC10-8AW 655-81201-62 (8-PINS) LEAD WITH HOUSING 782-L27K6-0500 BUTTON PCB...
  • Page 24 462-B0447-H02 POLYESTER CAPACITOR CL21X-50V-0.47uF-J C378 464-DF810-M1 ELECTROLYTIC CAPACITOR CD110H-35V-1000uF-M C379 464-DF810-M1 ELECTROLYTIC CAPACITOR CD110H-35V-1000uF-M C380 464-DF810-M1 ELECTROLYTIC CAPACITOR CD110H-35V-1000uF-M C296 464-DF810-M1 ELECTROLYTIC CAPACITOR CD110H-35V-1000uF-M C385 464-6C722-M02 ELECTROLYTIC CAPACITOR CD110-10V-220uF-M C214 464-6C722-M02 ELECTROLYTIC CAPACITOR CD110-10V-220uF-M C217 464-6C722-M02 ELECTROLYTIC CAPACITOR CD110-10V-220uF-M C241 464-6D522-M02 ELECTROLYTIC CAPACITOR CD110-16V-2.2uF-M C245...
  • Page 25 340-00362-00 SMD DIODE MBRST130LT3 D207 340-00362-00 SMD DIODE MBRST130LT3 D208 340-00362-00 SMD DIODE MBRST130LT3 D209 340-00362-00 SMD DIODE MBRST130LT3 D210 340-50625-00 SMD ZENER DIODE BZV55-C6V2 D203 340-50625-00 SMD ZENER DIODE BZV55-C6V2 D204 342-08470-90 SMD TRANSISTOR BC847AW V206 342-08470-90 SMD TRANSISTOR BC847AW V208 342-08570-90 SMD TRANSISTOR BC857 AW...
  • Page 26 455-12310-H0 SMD RESISTOR FTR0603103JR R272 455-12310-H0 SMD RESISTOR FTR0603103JR R352 455-12310-H0 SMD RESISTOR FTR0603103JR R353 455-12310-H0 SMD RESISTOR FTR0603103JR R338 455-12310-H0 SMD RESISTOR FTR0603103JR R339 455-12310-H0 SMD RESISTOR FTR0603103JR R354 455-12310-H0 SMD RESISTOR FTR0603103JR R355 455-12310-H0 SMD RESISTOR FTR0603103JR R356 455-12310-H0 SMD RESISTOR FTR0603103JR R357...
  • Page 27 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C316 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C267 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C335 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C334 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C340 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C216 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C250 456-2422M-C1 SMD CAPACITOR 06032E224M250BA C258 456-2447R-C1 SMD CAPACITOR 06032E474Z250BA C218...
  • Page 28 666-13208-00 SMD FERRITE BEAD STBH3216-301PT L204 666-13208-00 SMD FERRITE BEAD STBH3216-301PT L208 782-L27K6-150F SOUND SWITCH BOARD PCB 667-L27K6-40 VIDEO PROCESSING CIRCUIT BOARD ASS'Y 352-21420-00 IC TLE2142 CP N212 364-11212-00 EARPHONE JACK ST-112 X210 364-41207-00 ANTENNA SOCKET HR-F 364-91202-00 S-VIDEO TERMINAL CKX5-2K-2 X206 364-93219-00 AV JACK AV3-14WKD...
  • Page 29 455-12000-H0 SMD RESISTOR FTR0603000XR R304 455-12000-H0 SMD RESISTOR FTR0603000XR R305 455-12068-H0 SMD RESISTOR FTR0603680JR R316 455-12310-H0 SMD RESISTOR FTR0603103JR R310 455-12310-H0 SMD RESISTOR FTR0603103JR R311 455-12310-H0 SMD RESISTOR FTR0603103JR R312 455-12310-H0 SMD RESISTOR FTR0603103JR R313 455-12347-H0 SMD RESISTOR FTR0603473JR R222 455-12347-H0 SMD RESISTOR FTR0603473JR R223...
  • Page 30 340-00287-00 DIODE 1N5822 340-00287-00 DIODE 1N5822 352-49002-70 IC AT49F002NT-70PC 352-49002-70 IC AT49F002NT-70PC 364-03205-00 IC SOCKET 32T6 364-11212-00 EARPHONE JACK ST-112 364-11212-00 EARPHONE JACK ST-112 364-3B186-00 12-PINS CONNECTORS TJC10-12AW 364-3B186-00 12-PINS CONNECTORS TJC10-12AW 364-3D101-00 10-PINS CONNECTORS TJC3-10A 364-34101-00 4-PINS CONNECTORS TJC3-04A 364-34101-00 4-PINS CONNECTORS TJC3-04A 364-35186-00...
  • Page 31 464-6D610-M0 ELECTROLYTIC CAPACITOR CD110-16V-10uF-M C261 464-6D610-M0 ELECTROLYTIC CAPACITOR CD110-16V-10uF-M C364 464-6D610-M0 ELECTROLYTIC CAPACITOR CD110-16V-10uF-M C365 464-6D610-M0 ELECTROLYTIC CAPACITOR CD110-16V-10uF-M C384 464-6D610-M0 ELECTROLYTIC CAPACITOR CD110-16V-10uF-M C385 464-6D610-M0 ELECTROLYTIC CAPACITOR CD110-16V-10uF-M C362 464-6D610-M0 ELECTROLYTIC CAPACITOR CD110-16V-10uF-M C363 464-6D610-M0 ELECTROLYTIC CAPACITOR CD110-16V-10uF-M C366 464-6D610-M0 ELECTROLYTIC CAPACITOR CD110-16V-10uF-M C301...
  • Page 32 464-6D722-M0 ELECTROLYTIC CAPACITOR CD110-16V-220uF-M C207 464-6D810-M1 ELECTROLYTIC CAPACITOR CD110-16V-1000uF-M C200 464-6F747-M1 ELECTROLYTIC CAPACITOR CD110-35V-470uF-M C196 464-6F747-M1 ELECTROLYTIC CAPACITOR CD110-35V-470uF-M C194 464-6F747-M1 ELECTROLYTIC CAPACITOR CD110-35V-470uF-M C380 464-6F747-M1 ELECTROLYTIC CAPACITOR CD110-35V-470uF-M C419 464-6F747-M1 ELECTROLYTIC CAPACITOR CD110-35V-470uF-M C382 477-40230-00 FIXED COIL LH470-1 477-40230-00 FIXED COIL LH470-1 477-40230-00 FIXED COIL LH470-1...
  • Page 33 342-01380-00 *SMD TRANSISTOR BSS138LT1 342-01380-00 *SMD TRANSISTOR BSS138LT1 342-01440-10 SMD TRANSISTOR DTC144EKA 342-01440-10 SMD TRANSISTOR DTC144EKA 342-01440-10 SMD TRANSISTOR DTC144EKA 342-08470-90 SMD TRANSISTOR BC847AW 342-08470-90 SMD TRANSISTOR BC847AW Q151 342-08570-90 SMD TRANSISTOR BC857 AW 342-39040-00 SMD TRANSISTOR MMBT3904 342-39040-00 SMD TRANSISTOR MMBT3904 353-0JAG0-00 SMD ICJAG-ASM 353-00120-40...
  • Page 34 364-T3001-00 SMD 30-PINSFF-A1255-WRS 455-10022-H9 SMD RESISTOR NCA4R220JR 455-10022-H9 SMD RESISTOR NCA4R220JR RP11 455-10022-H9 SMD RESISTOR NCA4R220JR RP13 455-10022-H9 SMD RESISTOR NCA4R220JR RP12 455-10022-H9 SMD RESISTOR NCA4R220JR RP10 455-10022-H9 SMD RESISTOR NCA4R220JR RP17 455-10022-H9 SMD RESISTOR NCA4R220JR RP19 455-10022-H9 SMD RESISTOR NCA4R220JR RP21 455-10022-H9 SMD RESISTOR NCA4R220JR...
  • Page 35 455-12012-H0 SMD RESISTOR FTR0603120JR 455-12012-H0 SMD RESISTOR FTR0603120JR 455-12012-H0 SMD RESISTOR FTR0603120JR 455-12012-H0 SMD RESISTOR FTR0603120JR 455-12012-H0 SMD RESISTOR FTR0603120JR 455-12012-H0 SMD RESISTOR FTR0603120JR 455-12022-H0 SMD RESISTOR FTR0603220JR 455-12022-H0 SMD RESISTOR FTR0603220JR 455-12022-H0 SMD RESISTOR FTR0603220JR 455-12022-H0 SMD RESISTOR FTR0603220JR 455-12022-H0 SMD RESISTOR FTR0603220JR 455-12022-H0...
  • Page 36 455-12075-H0 SMD RESISTOR FTR0603750JR R308 455-12075-H0 SMD RESISTOR FTR0603750JR R309 455-12075-H0 SMD RESISTOR FTR0603750JR R302 455-12075-H0 SMD RESISTOR FTR0603750JR R303 455-12075-H0 SMD RESISTOR FTR0603750JR R304 455-12075-H0 SMD RESISTOR FTR0603750JR R305 455-12075-H0 SMD RESISTOR FTR0603750JR R241 455-12075-H0 SMD RESISTOR FTR0603750JR R242 455-12075-H0 SMD RESISTOR FTR0603750JR R243...
  • Page 37 455-12110-H0 SMD RESISTOR FTR0603101JR R177 455-12110-H0 SMD RESISTOR FTR0603101JR R231 455-12110-H0 SMD RESISTOR FTR0603101JR R235 455-12110-H0 SMD RESISTOR FTR0603101JR R236 455-12110-H0 SMD RESISTOR FTR0603101JR R237 455-12110-H0 SMD RESISTOR FTR0603101JR R171 455-12110-H0 SMD RESISTOR FTR0603101JR R198 455-12118-H0 SMD RESISTOR FTR0603181JR 455-12122-H0 SMD RESISTOR FTR0603221JR 455-12143-H0 SMD RESISTOR FTR0603431JR...
  • Page 38 455-12247-H0 SMD RESISTOR FTR0603472JR R155 455-12247-H0 SMD RESISTOR FTR0603472JR R156 455-12247-H0 SMD RESISTOR FTR0603472JR R201 455-12247-H0 SMD RESISTOR FTR0603472JR R202 455-12247-H0 SMD RESISTOR FTR0603472JR R227 455-12247-H0 SMD RESISTOR FTR0603472JR R228 455-12247-H0 SMD RESISTOR FTR0603472JR R229 455-12268-H0 SMD RESISTOR FTR0603682JR R240 455-12275-H0 SMD RESISTOR FTR0603752JR 455-12310-H0...
  • Page 39 455-12347-H0 SMD RESISTOR FTR0603473JR R345 455-12347-H0 SMD RESISTOR FTR0603473JR R346 455-12347-H0 SMD RESISTOR FTR0603473JR R347 455-12347-H0 SMD RESISTOR FTR0603473JR R348 455-12347-H0 SMD RESISTOR FTR0603473JR R349 455-12347-H0 SMD RESISTOR FTR0603473JR R350 455-12347-H0 SMD RESISTOR FTR0603473JR R351 455-12347-H0 SMD RESISTOR FTR0603473JR R352 455-12347-H0 SMD RESISTOR FTR0603473JR R353...
  • Page 40 456-2022H-11 SMD CAPACITOR 0603CG220J250BA C456 456-2022H-11 SMD CAPACITOR 0603CG220J250BA C457 456-2022H-11 SMD CAPACITOR 0603CG220J250BA C458 456-2022H-11 SMD CAPACITOR 0603CG220J250BA C459 456-2022H-11 SMD CAPACITOR 0603CG220J250BA C460 456-2022H-11 SMD CAPACITOR 0603CG220J250BA C461 456-2022H-11 SMD CAPACITOR 0603CG220J250BA C462 456-2022H-11 SMD CAPACITOR 0603CG220J250BA C463 456-2310R-C1 SMD CAPACITOR 06032E103Z250BA C401...
  • Page 41 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C186 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C188 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C381 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C383 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C125 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C208 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C206 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C215 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C216...
  • Page 42 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT 456-2410R-C1...
  • Page 43 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C100 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C101 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C102 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C103 456-2410R-C1...
  • Page 44 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C148 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C147 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C149 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C146 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C152 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C153 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C154 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C151 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C393...
  • Page 45 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C300 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C303 456-2422M-C1 SMD CAPACITOR 06032E224M250BA C320 456-2422M-C1 SMD CAPACITOR 06032E224M250BA C321 456-2422M-C1 SMD CAPACITOR 06032E224M250BA C322 456-2422M-C1 SMD CAPACITOR 06032E224M250BA C228 456-2422M-C1 SMD CAPACITOR 06032E224M250BA C242 456-2422M-C1 SMD CAPACITOR 06032E224M250BA C245 456-2468R-C1 SMD CAPACITOR 06032E684Z250BA C319...
  • Page 46 456-3210H-11 SMD CAPACITOR 0603CG102J500BA C266 456-3215H-11 SMD CAPACITOR 0603CG152J500BA C256 456-3215H-11 SMD CAPACITOR 0603CG152J500BA C237 456-3215H-11 SMD CAPACITOR 0603CG152J500BA C227 456-3215H-11 SMD CAPACITOR 0603CG152J500BA C387 456-3215H-11 SMD CAPACITOR 0603CG152J500BA C388 456-3282K-B1 SMD CAPACITOR 06032R822K500BA C328 456-3282K-B1 SMD CAPACITOR 06032R822K500BA C270 456-3310K-B1 SMD CAPACITOR 06032R103K500BA 456-3310K-B1...
  • Page 47 666-12008-00 SMD FERRITE BEAD STBH2012-501PT FB31 666-12008-00 SMD FERRITE BEAD STBH2012-501PT FB53 666-12008-00 SMD FERRITE BEAD STBH2012-501PT FB52 666-12008-00 SMD FERRITE BEAD STBH2012-501PT FB36 666-12008-00 SMD FERRITE BEAD STBH2012-501PT FB34 666-12008-00 SMD FERRITE BEAD STBH2012-501PT FB56 666-12008-00 SMD FERRITE BEAD STBH2012-501PT FB73 666-12008-00 SMD FERRITE BEAD STBH2012-501PT...
  • Page 48 666-13207-00 SMD FERRITE BEAD STPB3216-380PT 666-13207-00 SMD FERRITE BEAD STPB3216-380PT FB16 666-13207-00 SMD FERRITE BEAD STPB3216-380PT FB75 666-13207-00 SMD FERRITE BEAD STPB3216-380PT FB74 666-13207-00 SMD FERRITE BEAD STPB3216-380PT FB76 666-13207-00 SMD FERRITE BEAD STPB3216-380PT FB24 666-13207-00 SMD FERRITE BEAD STPB3216-380PT FB27 666-13207-00 SMD FERRITE BEAD STPB3216-380PT...
  • Page 49 462-2B433-K0V POLYESTER CAPACITOR MKP62-275V-0.33uF-K ! C902 462-25447-H1 POLYESTER CAPACITOR CL21-400V-474J-P15(II C918 462-25447-H1 POLYESTER CAPACITOR CL21-400V-474J-P15(II C924 464-DE647-M0 ELECTROLYTIC CAPACITOR CD110H-25V-47uF-M C928 464-DE647-M0 ELECTROLYTIC CAPACITOR CD110H-25V-47uF-M C909 464-DE647-M0 ELECTROLYTIC CAPACITOR CD110H-25V-47uF-M C932 464-DF722-M0 ELECTROLYTIC CAPACITOR CD110H-35V-220uF-M C929 464-DF722-M0 ELECTROLYTIC CAPACITOR CD110H-35V-220uF-M C942 464-DF810-M1 ELECTROLYTIC CAPACITOR CD110H-35V-1000uF-M...
  • Page 50 808-80234-00 SILICA PIECE TO-2535 808-80234-00 SILICA PIECE TO-2535 808-80258-00 HEAT CONDUCTIVE GASKET 35X40X2 INSULATING CAP 　 TO-220A 822-10197-00 838-10400-00 SPRING 852-43006-81 SCREW F(+) M3*6-DZn 852-53006-81 SCREW SJ2830 M3X6-D.Zn 340-00001-0S SMD DIODE LL4148 D902 340-00001-0S SMD DIODE LL4148 D911 340-00001-0S SMD DIODE LL4148 D909 340-00001-0S SMD DIODE LL4148...
  • Page 51 455-22247-H0 SMD RESISTOR RC11-1/8W-4.7K-J R939 455-22247-H0 SMD RESISTOR RC11-1/8W-4.7K-J R909 455-22247-H0 SMD RESISTOR RC11-1/8W-4.7K-J R916 455-22291-H0 SMD RESISTOR RC11-1/8W-9.1K-J R903 455-22310-H0 SMD RESISTOR RC11-1/8W-10K-J R952 455-22310-H0 SMD RESISTOR RC11-1/8W-10K-J R937 455-22310-H0 SMD RESISTOR RC11-1/8W-10K-J R936 455-22315-H0 SMD RESISTOR RC11-1/8W-15K-J R910 455-22315-H0 SMD RESISTOR RC11-1/8W-15K-J R906...
  • Page 52 JUMPER WIRE J904 JUMPER WIRE J905 JUMPER WIRE J906 JUMPER WIRE J907 JUMPER WIRE J909 JUMPER WIRE J910 JUMPER WIRE J911 JUMPER WIRE J912...
