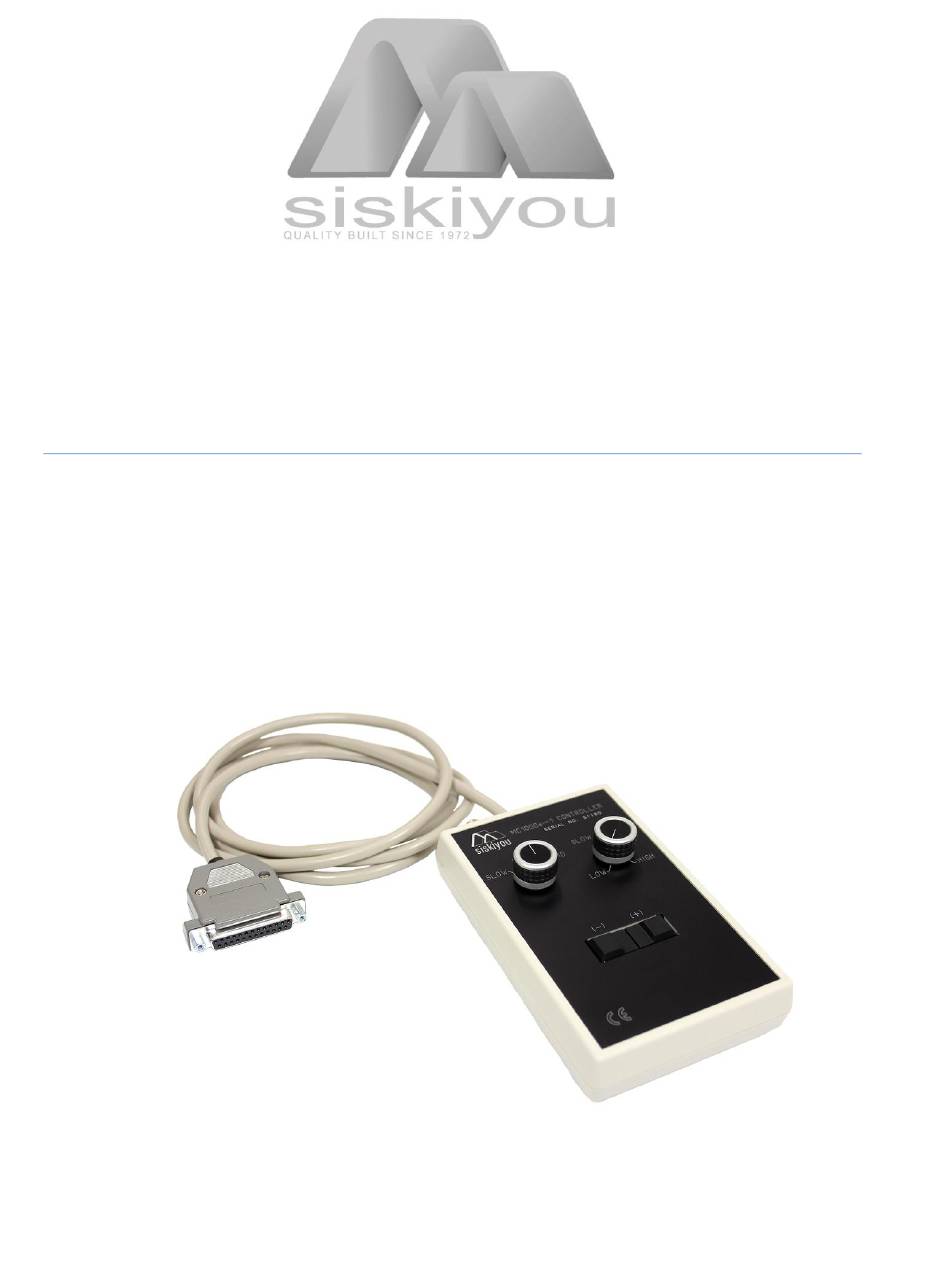

- Page 1 User's Manual For MC1000e-1 Motion Controller...
- Page 2 There are no user serviceable parts inside the controller. In the event of the need for service, call Siskiyou Corporation and ask to speak with technical support. If the problem cannot be solved through telephone or email communication, an RA number will be provided to return the unit to Siskiyou Corporation.
- Page 3 Switching Box ..........................6 Digital Readout ..........................6 EU Declaration of Conformity ......................7 Contact Information ........................8 Introduction: This manual describes the operation of Siskiyou’s Model MC1000e-1 single axis motion controller. Specifications: Input Power Requirements: 90-264VAC, 47-63Hz via included power supply adapter Output: 18VDC / 2.5A...
- Page 4 This encoder coupling enables the use of the DR1000 digital readout for repeated positioning requirements. The MC1000e-1 uses a universal switching power supply adapter as its source for clean DC power. All cables are shielded and a central ground lug is located on the junction box to ensure noise-free operation during sensitive electrophysiology experiments.
- Page 5 0.2 µm moves are made by a bump of the axis button. Operation: When the MC1000e-1 has been correctly installed, the user can begin use of the system. The operation may be bench tested prior to installing the unit to an experiment.
- Page 6 Siskiyou Corporation MC1000e-1 User's Manual Related Products: Switching Box ABCD switching box allows control of one to four 4-axis micromanipulators by one controller. The basis of the design is simple and requires only an extra controller junction box for each added micromanipulator or motor drive group (up to four per group).
- Page 7 Siskiyou Corporation MC1000e-1 User's Manual EU Declaration of Conformity In accordance with EN 45014: 1998 Manufacturer: Siskiyou Corporation Address: 110 SW Booth Street Grants Pass, OR 97526-2410 Declare that: Equipment Motion Controller Model Name/Number MC1000e Series Serial Number In accordance with the following directives:...
- Page 8 Siskiyou Corporation MC1000e-1 User's Manual Contact Information Mailing Address Siskiyou Corporation 110 S.W. Booth Street Grants Pass, OR 97526-2410 Sales and Service sales@siskiyou.com service@siskiyou.com phone (toll free): 1-877-313-6418 Technical Assistance tech@siskiyou.com phone: 1-541-479-8697 facsimile: 1-541-479-3314 Website www.siskiyou.com webmaster@siskiyou.com International please call or visit our website for...
