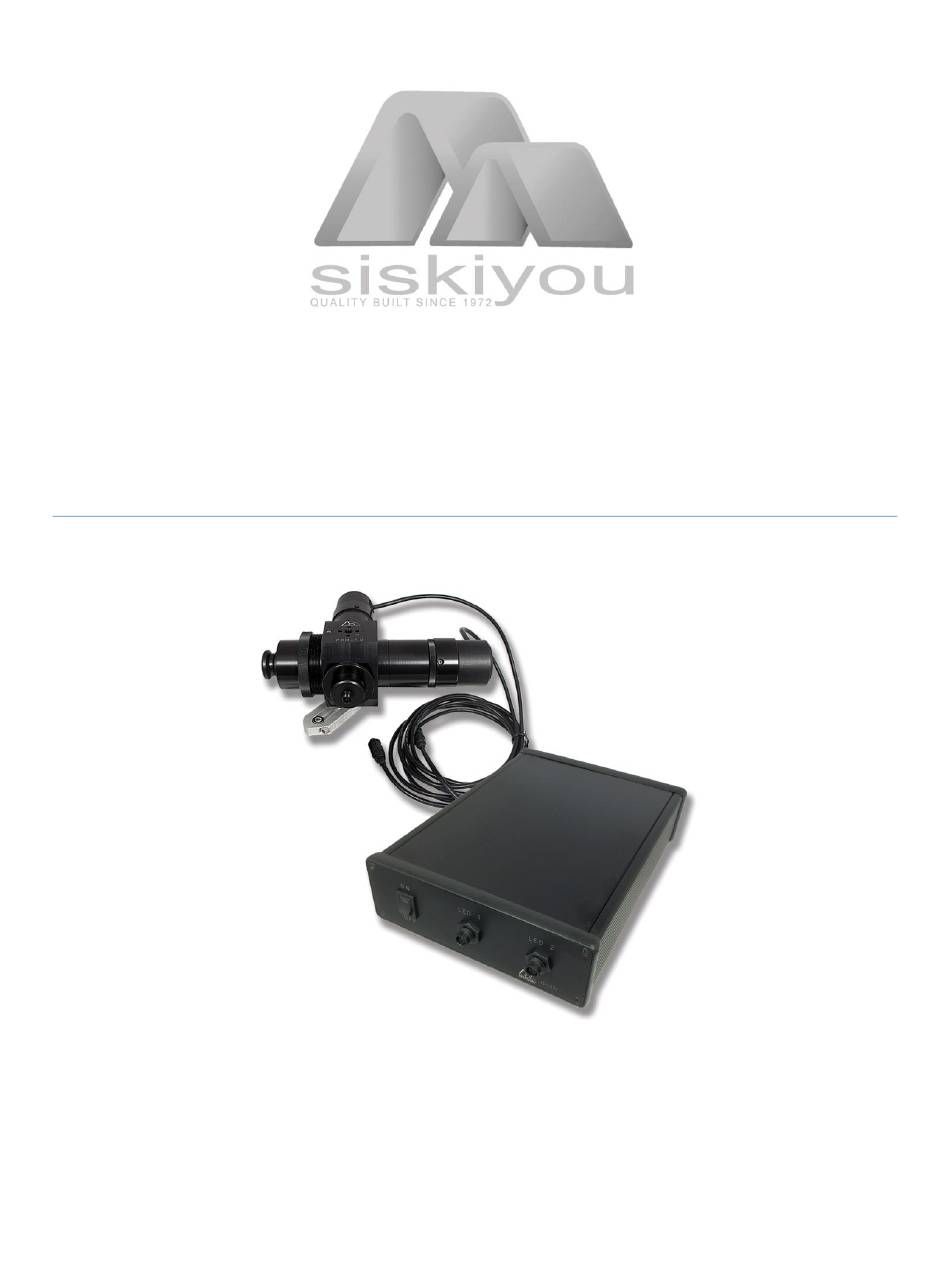

SISKIYOU CORPORATION
Setup Instructions For
IS-LEDc
2-channel LED controller
This instruction manual is intended to assist in setup and installation of Siskiyou Corporation's IS-LEDc 2-
channel LED controller. Not every installation is the same and may vary due to hardware or software installed
on your computer. Please contact Siskiyou Corporation directly if additional assistance is required.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IS-LEDc and is the answer not in the manual?

Questions and answers

Related Manuals for Siskiyou IS-LEDc

Summary of Contents for Siskiyou IS-LEDc

  • Page 1 IS-LEDc 2-channel LED controller This instruction manual is intended to assist in setup and installation of Siskiyou Corporation’s IS-LEDc 2- channel LED controller. Not every installation is the same and may vary due to hardware or software installed on your computer. Please contact Siskiyou Corporation directly if additional assistance is required.

  • Page 2: Table Of Contents

    Table of Contents Introduction: ............................... 3 Specifications: ............................. 3 Hardware setup: ............................3 Install Optical Beam Combiner:......................4 Connect IS-LEDc Controller: ........................ 4 Software setup:............................5 Controller software: ..........................5 COM port drivers: ..........................5 Programming: ............................. 6 General: .............................. 6 COM Port Setup: ..........................

  • Page 3: Introduction

    LED light sources using a single IS-LEDc controller. This controller allows control of intensity, duration-on and duration-off for each channel via software installed on a PC/Laptop with a USB port.

  • Page 4: Install Optical Beam Combiner

    Siskiyou Corporation IS-LEDc SETUP INSTRUCTIONS Install Optical Beam Combiner: Install LED light sources to Optical Beam Combiner by screwing light sources onto the threaded ports as required (Note: Light sources are pre-installed from factory but can be replaced by alternate sources as desired).

  • Page 5: Software Setup

    IS-LEDc SETUP INSTRUCTIONS Software setup: Controller software: 1. Install the SISKIYOU LED CONTROLLER CD into the computer CD/DVD drive. a. If the computer automatically opens the CD/DVD drive window proceed to step 4, otherwise proceed to step 2. 2. Browse to “Computer/My Computer/This PC” window on computer from the Start ⊞...

  • Page 6: Programming

    SISKIYOU LED Controller software, load to the controller and execute. 1. Turn on the power to the IS-LEDc controller by flipping the switch upward, the red LED light on the switch should illuminate. If the red LED does not illuminate, ensure that the input power cord is connected to AC power (85-264VAC, 47-63Hz).

  • Page 7: Led Drive Current Setup

    Siskiyou Corporation IS-LEDc SETUP INSTRUCTIONS Notes:  Until the port has been setup and connected, the following controls are inactive: i. Enable 1 ii. Enable 2 iii. CW on iv. CW off v. Start  All other controls are active and can be used to setup the waveform parameters.

  • Page 8: Cw Mode: (Continuous Wave)

    Siskiyou Corporation IS-LEDc SETUP INSTRUCTIONS CW Mode: (Continuous Wave) During a waveform sequence, if the “CW ON” button is pressed, the LED drive will switch to full on. The waveform will continue in the background until complete but will not influence the LED output.
  • Page 9 Siskiyou Corporation IS-LEDc SETUP INSTRUCTIONS The numeric parameters for the waveform/train/group can be modified using the up/down arrows immediately to the right of the displayed value. These parameters can be scrolled to the value required for your setup. See next spage for a description of each parameter and it’s min/max. limits.
  • Page 10 Siskiyou Corporation IS-LEDc SETUP INSTRUCTIONS  No of Groups: The number of groups that can appear in this sequence are set by this controland can be between 10 and 100. Note: There are two “groups” and two “group intervals” displayed in the aveform window, therefore the time will be double the time shown in the Group Duration window.
