IP PAGING GATEWAY
Thank you for purchasing TOA's IP Paging Gateway.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

TABLE OF CONTENTS

4.1. SIP to Multicast Conversion ................................................................................................. 5
4.2. VMS to Multicast Conversion .............................................................................................. 5
4.3. LINE/MIC IN to Multicast Transmission ............................................................................... 5
9.1. Network Connection ............................................................................................................. 9
9.2. Connections to Line/Mic Input and Line Output Terminals ............................................... 10
9.3. Connections to Control Input and Output Terminals ......................................................... 11
9.4. Removable Terminal Plug Connections ............................................................................ 12
.............................................................................................................................. 13
10.1. System Settings Summary ............................................................................................... 13
10.2. System Requirements ...................................................................................................... 14
10.3. Connection with Browser ................................................................................................. 14
......................................................................................................... 2
.................................................................................................. 4
............................................................................................ 4
.................................................................................................................. 5
................................................................................................... 6
.................................................................................................... 8
...................................................................................................................... 9
......................................................................................................................... 9
......................................................................................... 15
.............................................................................................. 16
..................................................................................................................... 16
INSTRUCTION MANUAL
................................................................................... 7
IP-A1PG
..................................... 16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IP-A1PG and is the answer not in the manual?

Questions and answers

Related Manuals for Toa IP-A1PG

Summary of Contents for Toa IP-A1PG

  • Page 1: Table Of Contents

    INSTRUCTION MANUAL IP PAGING GATEWAY IP-A1PG Thank you for purchasing TOA’s IP Paging Gateway. Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment. TABLE OF CONTENTS 1. SAFETY PRECAUTIONS ......................2 2. SUMMARY AND FEATURES ....................

  • Page 2: Safety Precautions

    PoE switching hub and When Installing the Unit contact your nearest TOA dealer. Make • Avoid installing the unit in humid or dusty no further attempt to operate the speaker...
  • Page 3 Modifications Any modifications made to this device that are not approved by TOA Corporation may void the authority granted to the user by the FCC to operate this equipment.

  • Page 4: Summary And Features

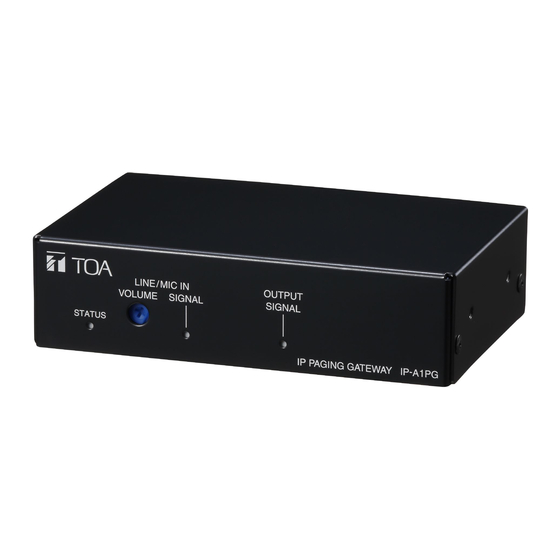

    2. SUMMARY AND FEATURES The IP-A1PG is a PoE-powered Gateway Unit that integrates multiple IP Audio device by transmitting multicast audio stream. • Power is supplied by way of PoE (IEEE 802.3af) switching hubs. • The IP Paging Gateway supports the following broadcasting functions:...
