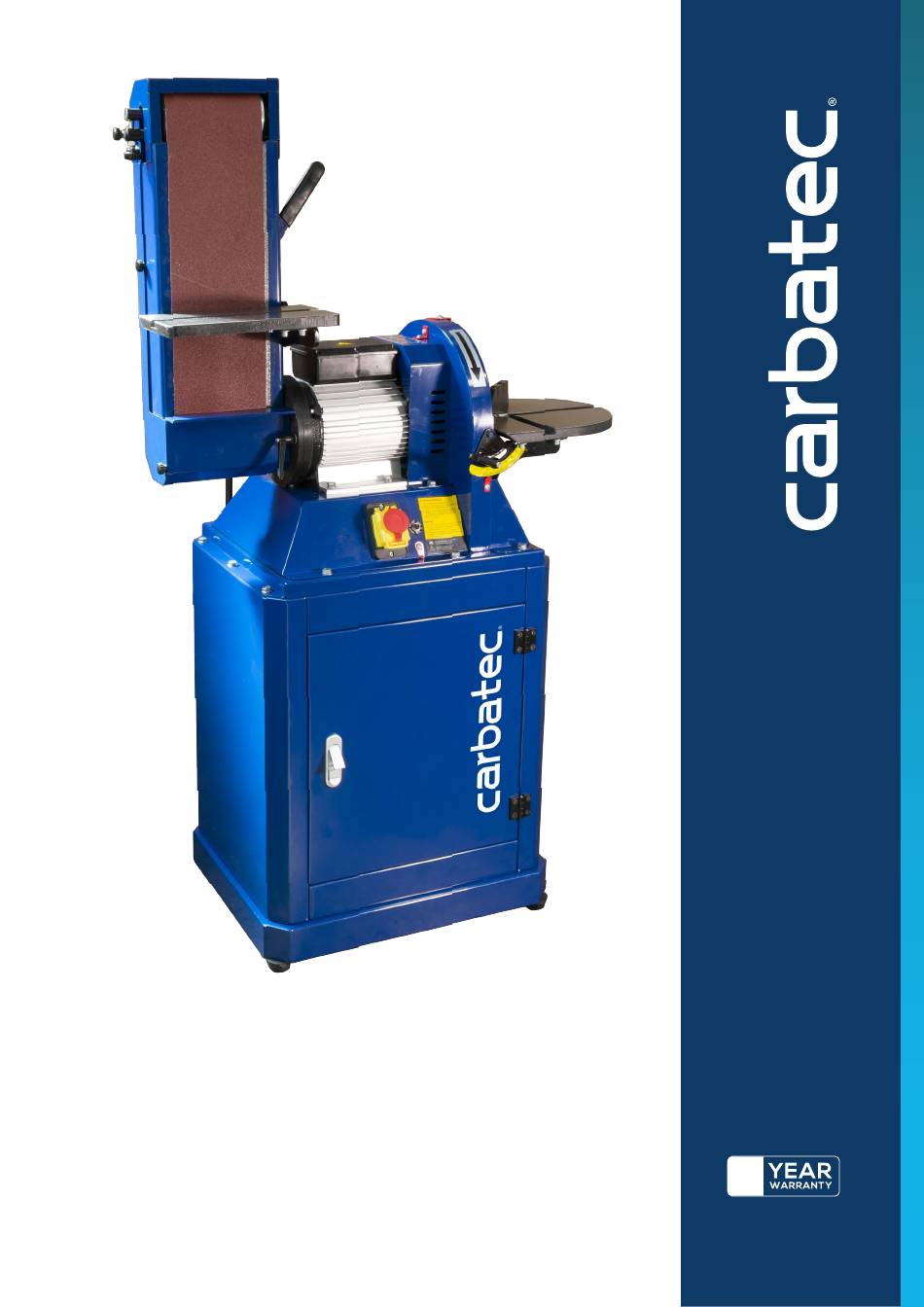

- Page 1 6"× 12" Belt and Disc Sander with Stand BDS-1530P MANUAL C A R BAT E C .C O M . AU...
-
Page 2: Introduction
Aussie woodworkers. Backed by our no-fuss after-sales care and warranty support, you can trust Carbatec to keep you woodworking, as promised. We look forward to sharing in your woodworking journey! If you have any questions about our products or service,... -
Page 3: What's In The Box
BDS-1530P WELCOME WHAT’S IN THE BOX The following items are provided in the shipping box: • Sander • Closed stand components • Bolts and rubber feet • Mitre gauge • Assembly tools • Instruction manual This belt and disc sander will require a minimal amount of assembly. -
Page 4: Key Information
DATE OF PURCHASE: Made in for: CARBATEC PT Y LTD Brisbane - Australia F O R T E C H N I C A L S U P P O RT C A L L 1 8 00 658 11 1... -
Page 5: Table Of Contents
Changes and improvements may be made at any time, with no obligation on the part of Carbatec to modify previously delivered units. Reasonable care has been taken to ensure that the information in this manual is correct, to provide you with the guidelines for the proper safety, assembly and operation of this machine. -
Page 6: Safety Instructions - General
Australian/New Zealand Standards to ensure their compliance with all mandatory standards and regulations (applicable at time of original sale). Carbatec Pty Ltd are registered as a responsible supplier with relevant Australian government departments and our products are registered on the EESS & ACMA database. - Page 7 BDS-1530P SAFETY INSTRUCTIONS GENERAL SAFETY Operating a power tool can be dangerous READ this entire manual. LEARN how to if safety and common sense are ignored. use the tool for its intended applications. The operator must be familiar with the operation of this machine.
- Page 8 BDS-1530P GENERAL SAFETY WEAR PROPER CLOTHING. NEVER LEAVE A RUNNING TOOL Do not wear loose clothing, gloves, UNATTENDED. Turn the power switch to neckties, or jewellery. These items the “OFF” position. Do not leave the tool can get caught in the machine during until it has come to a complete stop.
- Page 9 BDS-1530P SAFETY INSTRUCTIONS SECURE ALL WORK. Use clamps or jigs USE A PROPER EXTENSION CORD IN to secure the work piece. This is safer GOOD CONDITION. Use of extension than attempting to hold the work piece cords should be avoided where possible.
-
Page 10: Safety Instructions - Electrical
BDS-1530P ELECTRICAL SAFETY CHECK WITH A QUALIFIED ELECTRICIAN service personnel if you do not THIS TOOL MUST BE GROUNDED while completely understand the grounding in use to protect the operator from electric instructions, or if you are not sure the shock. -
Page 11: Overview

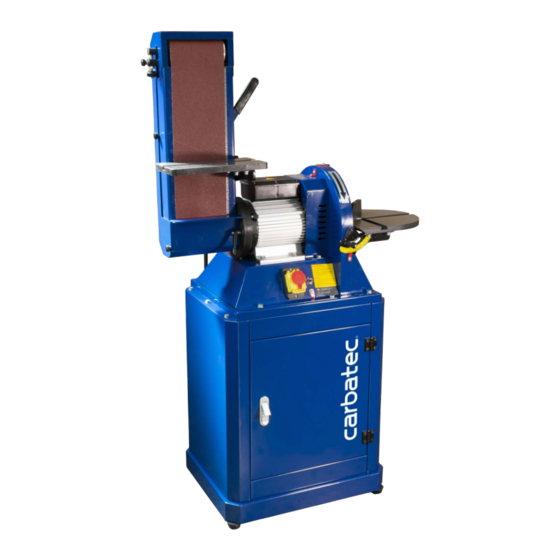

BDS-1530P OVERVIEW OVERVIEW 6" × 12" BELT AND DISC SANDER WITH STAND OVERVIEW Stand Belt table angle adjustment handle NVR switch Motor Belt housing angle adjustment handle × 2 Disc table Belt cover knobs Disc table angle adjustment handle × 2... -
Page 12: Specifications
BDS-1530P SPECIFICATIONS BRAND Carbatec WARRANTY 2 years POWER 230 V / 50 Hz - 10 A Plug MOTOR 1.1 kW (1.5 HP) BELT SIZE 150 mm × 1220 mm (6" × 48") DISC SIZE 305 mm (12") DUST PORT 2 × 38 mm BELT TABLE SIZE 260 mm ×... - Page 13 BDS-1530P BDS-1530P C A RBATE C.C OM.AU CA R BATEC .C O M.AU...
-
Page 14: Assembly
BDS-1530P ASSEMBLY To keep freight costs to a minimum and reduce damage in transport, this Belt and Disc Sander will require a significant amount of assembly and will require some heavy lifting. Ensure you have additional people to assist with lifting etc. - Page 15 BDS-1530P ASSEMBLY RIGHT SIDE REAR PANEL DOOR FLOOR DOOR SILL LEFT SIDE DOOR PANEL FEET × 4 STAND ASSEMBLY Leaving all the nuts finger tight until the stand is fully assembled will ease the assembly. Assemble the rubber feet to the floor.
- Page 16 BDS-1530P ASSEMBLY SETTING UP Fig. D1 THE DISC SANDER DISC GUARD The disc table comes pre-assembled and needs to be removed before the hook and loop backing pad and sanding paper can be installed. Remove the disc guard. DISC WORKPIECE Fig.
-
Page 17: Operation
BDS-1530P ASSEMBLY - OPERATION OPERATION TEST RUN Once the assembly is complete, and you have confirmed that all the fasteners are tight, you can test your sander. Make sure the power cord is properly routed and connected to an appropriate outlet. - Page 18 BDS-1530P OPERATION ADJUSTING THE BELT Fig. G1 HOUSING ANGLE Loosen the two handles. Fig. G1 & G2 The belt housing should rotate easily between vertical and HANDLE 1 (FRONT) horizontal position. Fig. G3 & G4 Tighten the two handles. Fig. G2...
- Page 19 BDS-1530P OPERATION ADJUSTING THE BELT Fig. H1 TABLE ANGLE Loosen the handle. Fig. H1 TABLE Rotate the table to the desired HANDLE position. The table tilts up to 45°. Fig. H2 Tighten the handle. ANGLE INDICATOR Fig. H2 TILTS C A RBATE C.C OM.AU...
- Page 20 BDS-1530P OPERATION ADJUSTING THE DISC Fig. I1 TABLE ANGLE Loosen the two handles. Fig. I1 & I2 Rotate the table to the desired position. The table tilts up to 45°. Fig. I3 Tighten the two handles. HANDLE 1 Fig. I2 HANDLE 2 Fig.
-
Page 21: Maintenance
• Apply a small amount of rust inhibitor to the table frequently to avoid excessive corrosion. • Carbatec cleaning sticks “Belt- Cleaner-L” or “Belt-Cleaner-M” can be BELT used to clear embedded dust from your COVER KNOBS sanding discs and belts. - Page 22 BDS-1530P MAINTENANCE CHANGING THE Fig. K1 SANDING DISC DISC GUARD Remove the disc guard. Fig. K1 DISC WORKPIECE TABLE Remove the disc workpiece table. Fig. K1 Remove the lower disc cover. Fig. K2 Fig. K2 Remove the used sandpaper. Fig. K3 Apply new sandpaper to the disc.
-
Page 23: Troubleshooting
BDS-1530P MAINTENANCE - TROUBLESHOOTING TROUBLESHOOTING TO PREVENT INJURY TO YOURSELF or damage to the machine, turn the switch to the “OFF” position and unplug the power cord from the electrical receptacle before making any adjustments. PROBLEM LIKELY CAUSE(S) SOLUTION(S) Belt does not run Belt not correctly adjusted. -
Page 24: Parts Diagram & Parts Lists
BDS-1530P PARTS DIAGRAM Belt Housing Assembly 6" × 12" Belt and Disc Sander with Stand BDS-1530P F O R T E C H N I C A L S U P P O RT C A L L 1 8 00 658 11 1... - Page 25 BDS-1530P PARTS DIAGRAM & LIST PARTS LIST Belt Housing Assembly PART PART DESCRIPTION QTY. DESCRIPTION QTY. REF. REF. BELT HOUSING BEARING RING FLANGE A SPRING WASHER M8X20 HEXAGON COUNTERSUNK HEAD SCREW SHAFT BELT ADJUSTMENT HANDLE GUARD DIVIDED CIRCLE A IDLER WHEEL...
- Page 26 BDS-1530P PARTS DIAGRAM Motor and Disc Assembly 6" × 12" Belt and Disc Sander with Stand BDS-1530P F O R T E C H N I C A L S U P P O RT C A L L 1 8 00 658 11 1...
- Page 27 BDS-1530P PARTS DIAGRAM & LIST PARTS LIST Motor and Disc Assembly PART REF. DESCRIPTION QTY. BASE PLATE BASE CAP NUT M8X16 FLAT GASKET SPRING WASHER M8X25 HEXAGON BOLT M8X20 HEXAGON COUNTERSUNK HEAD SCREW RING FLANGE B LOCK NUT MOTOR M8X20 HEXAGON COUNTERSUNK HEAD SCREW...
- Page 28 BDS-1530P PARTS DIAGRAM Stand 6" × 12" Belt and Disc Sander with Stand BDS-1530P F O R T E C H N I C A L S U P P O RT C A L L 1 8 00 658 11 1...
- Page 29 BDS-1530P PARTS DIAGRAM & LIST PARTS LIST Stand PART REF. DESCRIPTION QTY. RUBBER FEET SOCKET HEAD SCREW FLAT GASKET BASE PLATE FIXING PLATE BACK BOARD SIDE BOARD 1 SIDE BOARD 2 FIXING PLATE DOOR HINGE COUNTERSUNK HEAD SCREW LOCK LOCK FRAME...
-
Page 30: Wiring Diagram
BDS-1530P WIRING DIAGRAM 6" × 12" Belt and Disc Sander with Stand BDS-1530P F O R T E C H N I C A L S U P P O RT C A L L 1 8 00 658 11 1... -
Page 31: Warranty
WARRANTY you must include in the email the following information: A. We warrant that this Carbatec product will be free from defects caused by faulty workmanship or faulty 1. a copy of the order or receipt for the goods; materials for a period of 2 years from date of sale. - Page 32 6" × 12" Belt and Disc Sander with Stand BDS-1530P C a r b at e c P t y Ltd E info@carbatec.com.au AU 1800 658 111 NZ 0800 444 329 128 Ingleston Road, Wakerley, Queensland Australia 4154 ABN 84 010 706 242...
