SPARX SINGLE AIR INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sparx Single Air and is the answer not in the manual?

Questions and answers

Related Manuals for SHINE Sparx Single Air

Summary of Contents for SHINE Sparx Single Air

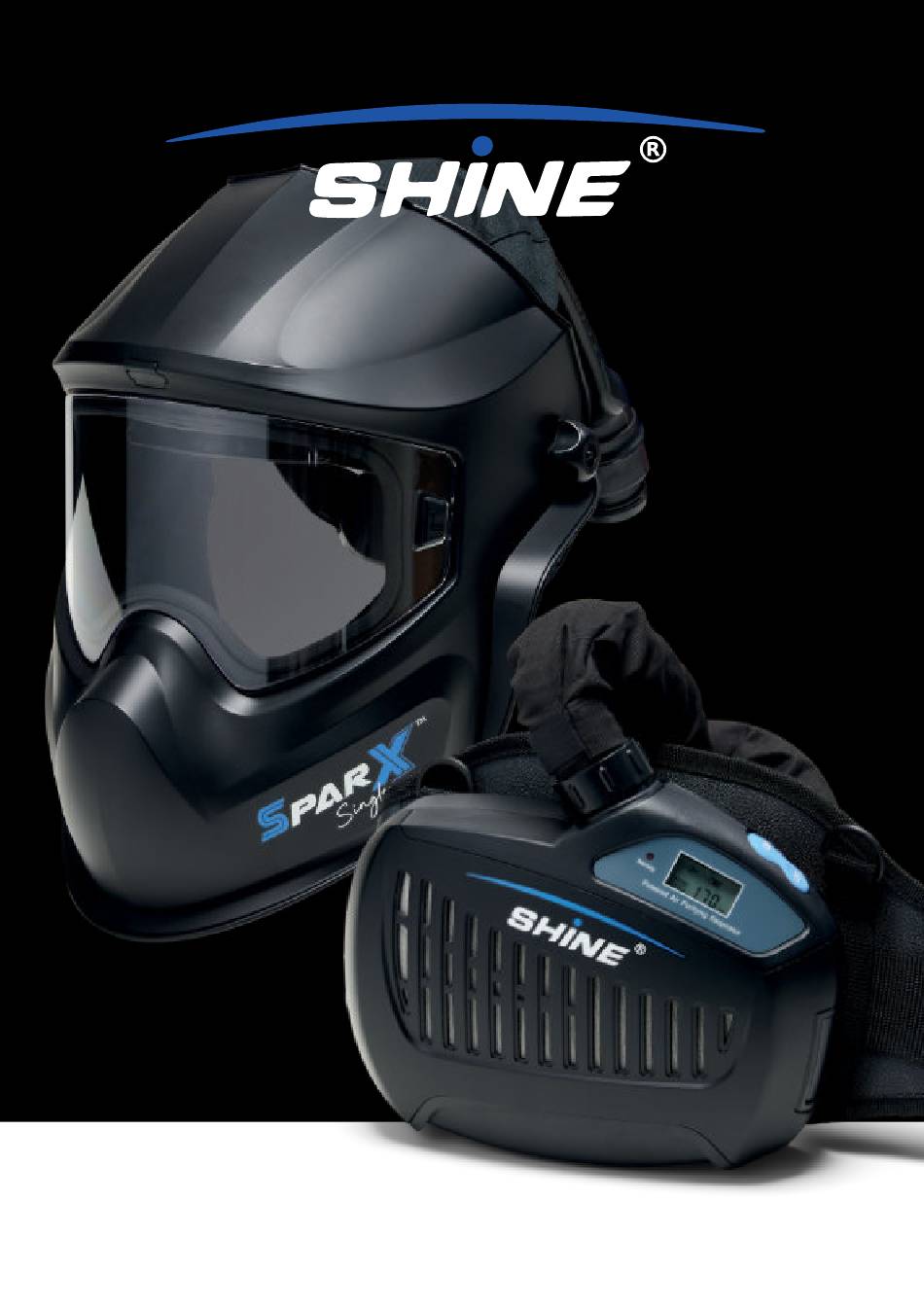

  • Page 1 SPARX SINGLE AIR INSTRUCTION MANUAL...

  • Page 2: Table Of Contents

    • Only the particle filter and pre-filter can be used together with • DO NOT use the SparX Single Air with the blower unit switched off this system. Filters from other manufactures should under no • DO NOT use the SparX Single Air in an atmosphere that is circumstances be used.

  • Page 3: Unpacking And Assembly

    Check that the apparatus is complete, undamaged and correctly assembled Any damaged or defective parts must be replaced before use. The package must include: The SparX Single Air helmet The respirator protection system (turbo unit + filter + waist belt) Lithium-ion battery...

  • Page 4: Connecting The Tube

    - English - 3. INSTALLING BATTERY & CHARGING Battery indication: • The battery is partially charged when delivered. It must be charged to 100% (4 bars) before the first use. • It is recommended to charge the batteries to 100% before each use 4.

  • Page 5: Fitting

    • The SparX Single Air blower unit is guaranteed for a period There is a LCD display screen on the SparX Single Air unit to of 12 months from date of purchase against mechanical or show the SparX Single Air working condition.
  • Page 6 - English - 9. INSTALLING ON THE BELT Make sure the belt is securely fastened. English...

  • Page 7: Air Flow And Alarm Test

    - English - 10. AIR FLOW AND ALARM TEST AIR FLOW TEST MUST TEST The airflow must be tested before using. If the marble can’t reach the minimum flow level, do not use the system. Change the filter or the battery and retest the air flow. AIR FLOW ALARM TEST If the alarm does not work, please repair or change respirator system.

  • Page 8: Operation

    - English - 11. OPERATION • The respirator system will turn off the turbo unit if the OFF button is pressed for more than 3 seconds. • The respirator system will cut off the entire circuit and switch to sleep mode if the turbo unit has turned off for more than 30 minutes.

  • Page 9: Specification

    • The SparX Single Air PAPR has sound and vibration alarm function. Each grid stands for a period of 100ms. Grey is the beep sound and blank grid is a quiet period. If several continued grids are in grey hen there’s a continuous beep sound. For example, when the current is overloaded, the system sounds like beep~beep~beep~~~~~.

  • Page 10: Parts List

    - English - 15. PARTS LIST Drawing Part No. Description 13.02.410 SparX Single prepared for air helmet 13.02.412 SparX Single Air Face Seal 13.02.111 Airduct with headgear 13.02.411 Inner visor clear lens 13.01.043 Lock sliders 13.03.101 Filter cover 13.03.104 Spark Arrestor 13.03.103...
