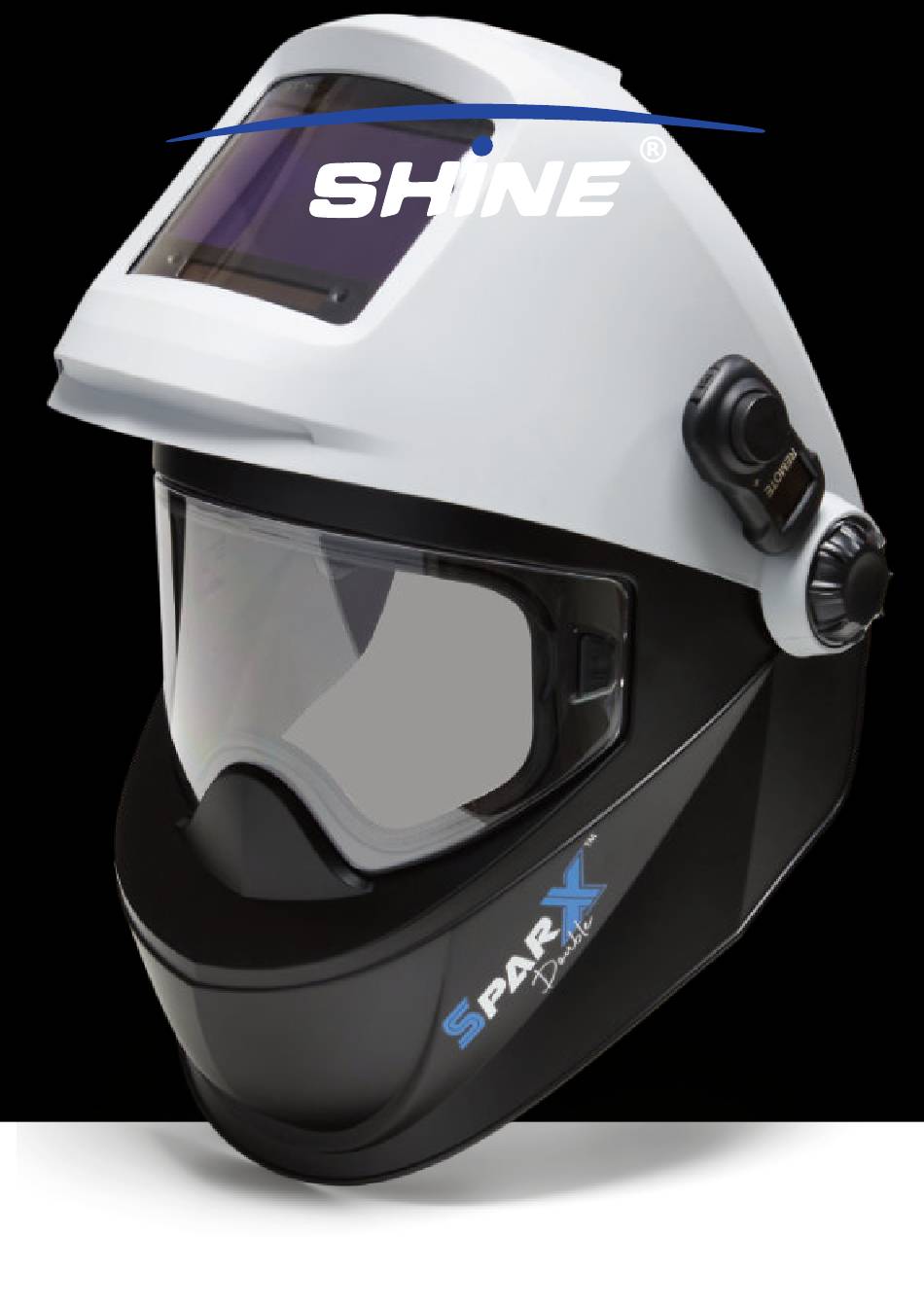

- Page 1 SPARX DOUBLE INSTRUCTION MANUAL...
- Page 2 - English - SparX Double Professional Quality Auto-Darkening Helmet WARNING Read and Understand All Instructions Before Using the Equipment. SAFETY WARNINGS The auto-darkening helmet with improved High Definition Filter • Avoid work positions that could expose unprotected Optics, delivers a new generation of face and eye protection.
- Page 3 - English - Low power/Charging (Red/Green) 2. STANDARDS a. LED will become red when ADF is out of power b. LED will be green and will flash while charging c. LED will be green and normally on when charging is finished Specifications of ADF (SparX) 1.
- Page 4 - English - • Short press the button (8) on the remote control and • At welding mode 3 functions can be adjusted select DELAY and clockwise rotate the button on the 1. Sensitivity remote control, delay time will be increased; or 2.
- Page 5 - English - Adjust head size perimeter by pushing and turning the headband tightness adjusting knob (3) Select eyes distance from ADF by adjusting headgear screws to 1 of te 5 slots on the headgear slider (4). Make sure both sides are equally positioned for proper vision.
- Page 6 - English - 18. TROUBLE SHOOTING 15. REPLACE OUTER PROTECTION LENS • The outer protection lens is a protection lens and must Trouble Remedy be replaced if broken, damaged or covered with welding spatter to the extent that vision is impaired. The ADF does •...
- Page 7 - English - Number Description Article number Outer protection lens 13.01.013 SparX ADF 13.06.100 Inner protection lens 13.01.104 Large inner visor 13.02.411 Lock sliders 13.01.043 Sweatband (deluxe) 13.02.212 Headgear 13.01.011 Remote control 13.06.105 21. RECOMMENDED SHADE NUMBERS ATTENTION if any of these conditions is not kept or followed, the warranty is automatically invalid.
