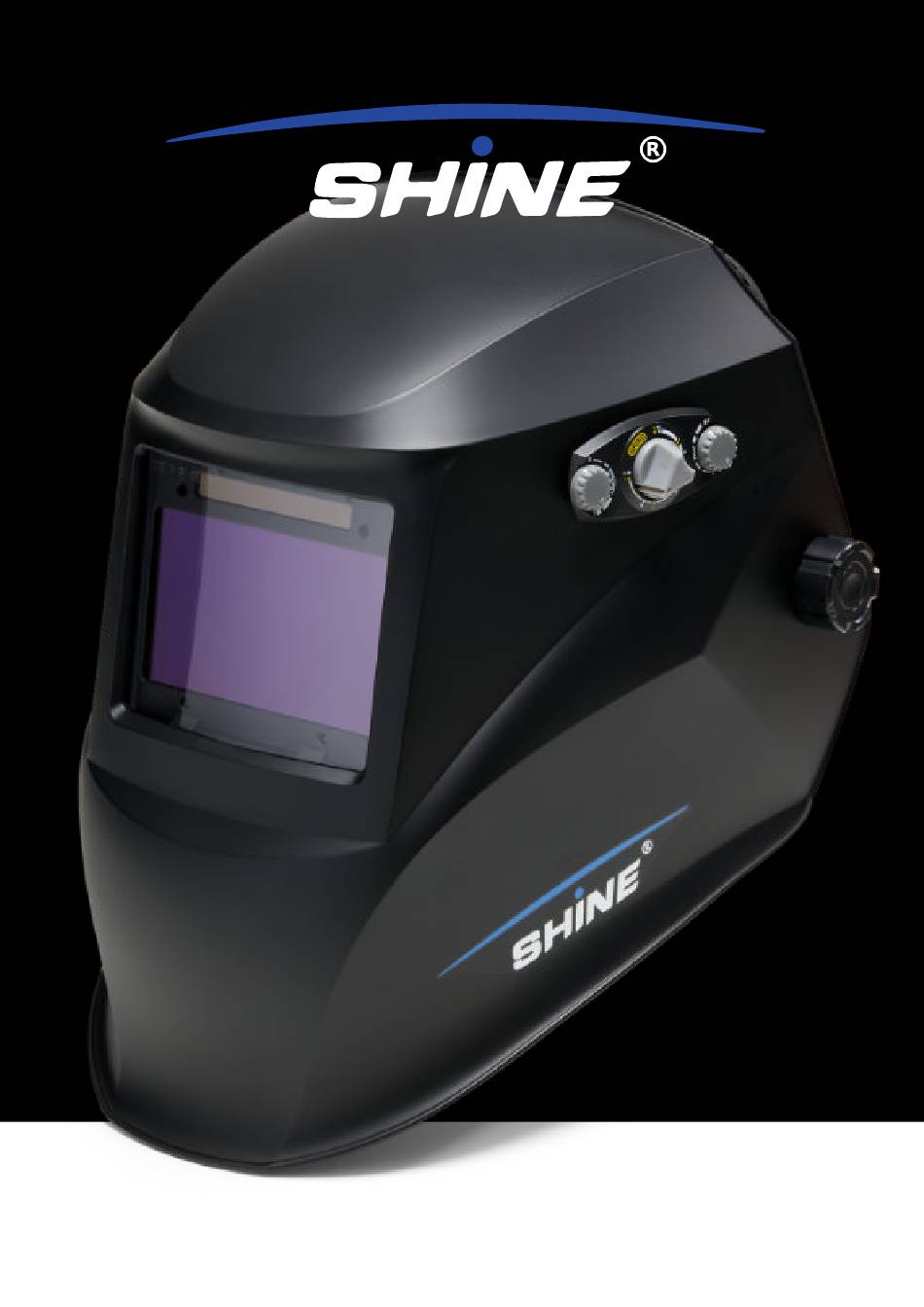

5000X-HD WELDING HELMET

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5000X-HD and is the answer not in the manual?

Questions and answers

Related Manuals for SHINE 5000X-HD

Summary of Contents for SHINE 5000X-HD

  • Page 1 5000X-HD WELDING HELMET...

  • Page 2: Table Of Contents

    - English - 5000X-HD Auto-darkening Welding Helmet WARNING Read and Understand All Instructions Before Using the Equipment. SAFETY WARNINGS • Avoid work positions that could expose unprotected areas of the body to spark, spatter, direct and/or reflected radiation. Use adequate protection if exposure cannot be avoided.

  • Page 3: Technical Data

    - English - DELAY CONTROL 3. TECHNICAL DATA By turning the DELAY knob (4) between range MIN-MAX to adjust the time delay (0.1~0.9s) for the ADF returns to light state after welding. The time delay is for protection of welder’s eyes from strong residual rays after welding.

  • Page 4: Recommended Shade Settings

    - English - 8. RECOMMENDED SHADE SETTINGS 9. TROUBLESHOOTING PROBLEM RESOLUTION • Stop welding or cutting immediately. • Make sure the sensors are facing the arc and no obstructions. The ADF does not darken when welding. • Check the mode that is on WELD not GRIND. •...

  • Page 5: Parts Breakdown

    - English - 10. PARTS BREAKDOWN NUMBER PART NAME NUMBER PART NAME Helmet shell Block washer (on left) Sensitivity knob Headgear slider (with 5 slots) Grind/Shade number Headband tightness adjusting knob Delay knob Block washer adjustment(up and down) Block nut Headband screw(long, on right) Outer protection plate Block washer (on right)
