- Page 1 Model 691C41T Vibration Switch Box Installation and Operating Manual For assistance with the operation of this product, contact the PCB Piezotronics, Inc. Toll-free: 800-959-4464 24-hour SensorLine: 716-684-0001 Fax: 716-684-3823 E-mail: imi@pcb.com Web: www.imi-sensors.com...
- Page 2 Assistance is needed to safely operate equipment PCB Piezotronics is an ISO-9001 certified company whose Damage is visible or suspected calibration services are accredited by A2LA to ISO/IEC Equipment fails or malfunctions 17025, with full traceability to SI through N.I.S.T.
- Page 3 CAUTION Refers to hazards that could damage the instrument. NOTE Indicates tips, recommendations and important information. The notes simplify processes and contain additional information on particular operating steps. The following symbols may be found on the equipment described in this manual: This symbol on the unit indicates that high voltage may be present.
- Page 4 PCB工业监视和测量设备 - 中国RoHS2公布表 PCB Industrial Monitoring and Measuring Equipment - China RoHS 2 Disclosure Table 有害物质 镉 汞 铅 (Pb) 六价铬 (Cr(VI)) 多溴联苯 (PBB) 多溴二苯醚 (PBDE) 部件名称 (Hg) (Cd) 住房 PCB板 电气连接器 压电晶体 环氧 铁氟龙 电子 厚膜基板 电线 电缆 塑料 焊接...
- Page 5 Component Name Hazardous Substances Lead (Pb) Mercury (Hg) Cadmium (Cd) Chromium VI Polybrominated Polybrominated Compounds Biphenyls (PBB) Diphenyl Ethers (Cr(VI)) (PBDE) Housing PCB Board Electrical Connectors Piezoelectric Crystals Epoxy Teflon Electronics Thick Film Substrate Wires Cables Plastic Solder Copper Alloy/Brass This table is prepared in accordance with the provisions of SJ/T 11364.
- Page 6 INDUSTRIAL MONITORING INSTRUMENTATION DIVISION Models (PS)(SS)691C41(T) & (PS)(SS)691C42(T) Rotary Switch Boxes Operating Guide with Enclosed Warranty Information 3425 Walden Avenue, Depew, New York 14043-2495 Phone (716) 684-0003 Fax (716) 684-3823 Toll Free Line 1-800-959-4IMI MANUAL NUMBER: 65521 MANUAL REVISION: NR ECO 47778...
-
Page 7: Table Of Contents
INDUSTRIAL MONITORING INSTRUMENTATION DIVISION Table of Contents Introduction ........................Page 3 Installation ........................Page 4 Grounding the Enclosure ....................Page 4 Input Wiring ........................Page 5 Output Wiring ........................Page 6 Using the Enclosure ......................Page 6 Calibrating the Enclosure ....................Page 6 ESD Warning Information .................... -
Page 8: Introduction

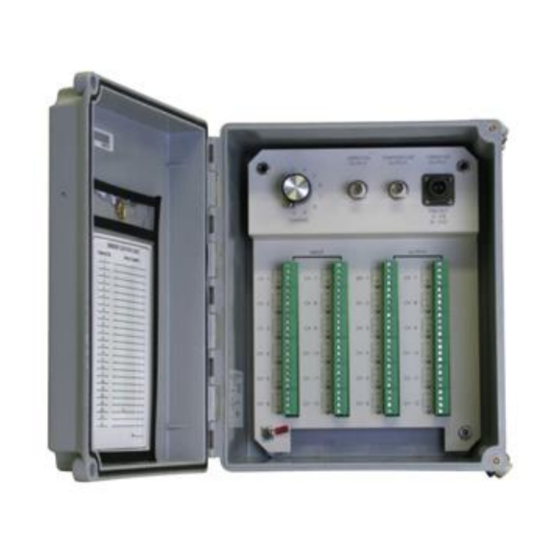

INDUSTRIAL MONITORING INSTRUMENTATION DIVISION Introduction Models 691C41 and 691C42 are rotary switch boxes that provide terminal strip inputs for sensor cable termination with the convenience of BNC & military connectors for switched outputs and terminal strips for continuous outputs. They are typically used in conjunction with third-party data collectors and analyzers. The boxes provide simultaneous vibration and temperature inputs on every channel so that they can be used in conjunction to temperature output (TO) sensors (accelerometers with a built-in temperature sensor that provide simultaneous vibration and temperature signals). -
Page 9: Installation
INDUSTRIAL MONITORING INSTRUMENTATION DIVISION Installation Establish an easily accessible location for installation. Fiberglass rotary switch boxes include four polyester mounting brackets and four stainless steel attachment screws that are shipped loose to facilitate enclosure mounting. There are positioning indents on the back of the box in each corner. -
Page 10: Grounding The Enclosure
INDUSTRIAL MONITORING INSTRUMENTATION DIVISION If the box did not ship from factory with factory-installed connections ports, drill/punch the necessary holes in the bottom of box for the input and output cabling. Be very careful when drilling/punching holes in the box as to not damage the internal metal, terminal strips and printed circuit boards. -
Page 11: Output Wiring
INDUSTRIAL MONITORING INSTRUMENTATION DIVISION Output Wiring Using the Enclosure When collecting data from the enclosure using the BNC and/or MIL connectors and a data collector, connect the data’s collector connector to its appropriate connector mate in the box and modulate the switch to the appropriate channel. -
Page 12: Esd Warning Information
Warning 2 – ESD Sensitivity This equipment is designed with user safety in mind; however, the protection provided by the equipment may be impaired if the equipment is used in a manner not specified by PCB Piezotronics, Inc. Caution 1 – ESD Sensitivity Cables can kill your equipment. -
Page 13: Warranty, Service & Return Procedure
INDUSTRIAL MONITORING INSTRUMENTATION DIVISION Warranty IMI instrumentation is warranted against defective material and workmanship for 1 year unless otherwise expressly specified. Damage to instruments caused by incorrect power or misapplication, is not covered by warranty. If there are any questions regarding power, intended application, or general usage, please consult with your local sales contact or distributor. -
Page 14: Customer Service
Customer Service IMI, a division of PCB Piezotronics, guarantees Total Customer Satisfaction. If, at any time, for any reason, you are not completely satisfied with any IMI product, IMI will repair, replace, or exchange it at no charge. You may also choose, within the warranty period, to have your purchase price refunded. - Page 15 Model Number Revision: A VIBRATION SWITCH BOX 691C41T ECN #: 48403 Performance ENGLISH OPTIONAL VERSIONS Channels Optional versions have identical specifications and accessories as listed for the standard model Environmental except where noted below. More than one option may be used. Enclosure Rating IP66 Nema 4X...
- Page 16 PCB Piezotronics Inc. claims proprietary rights in REVISIONS the information disclosed hereon. Neither it nor any reproduction thereof will be disclosed to others DESCRIPTION 8.50 [215.9] without the written consent of PCB Piezotronics Inc. UPDATE SCREEN PRINTING 47778 6 CHANNEL SWITCH 3 PIN MIL BNC JACKS 10.50 [266.7]...
