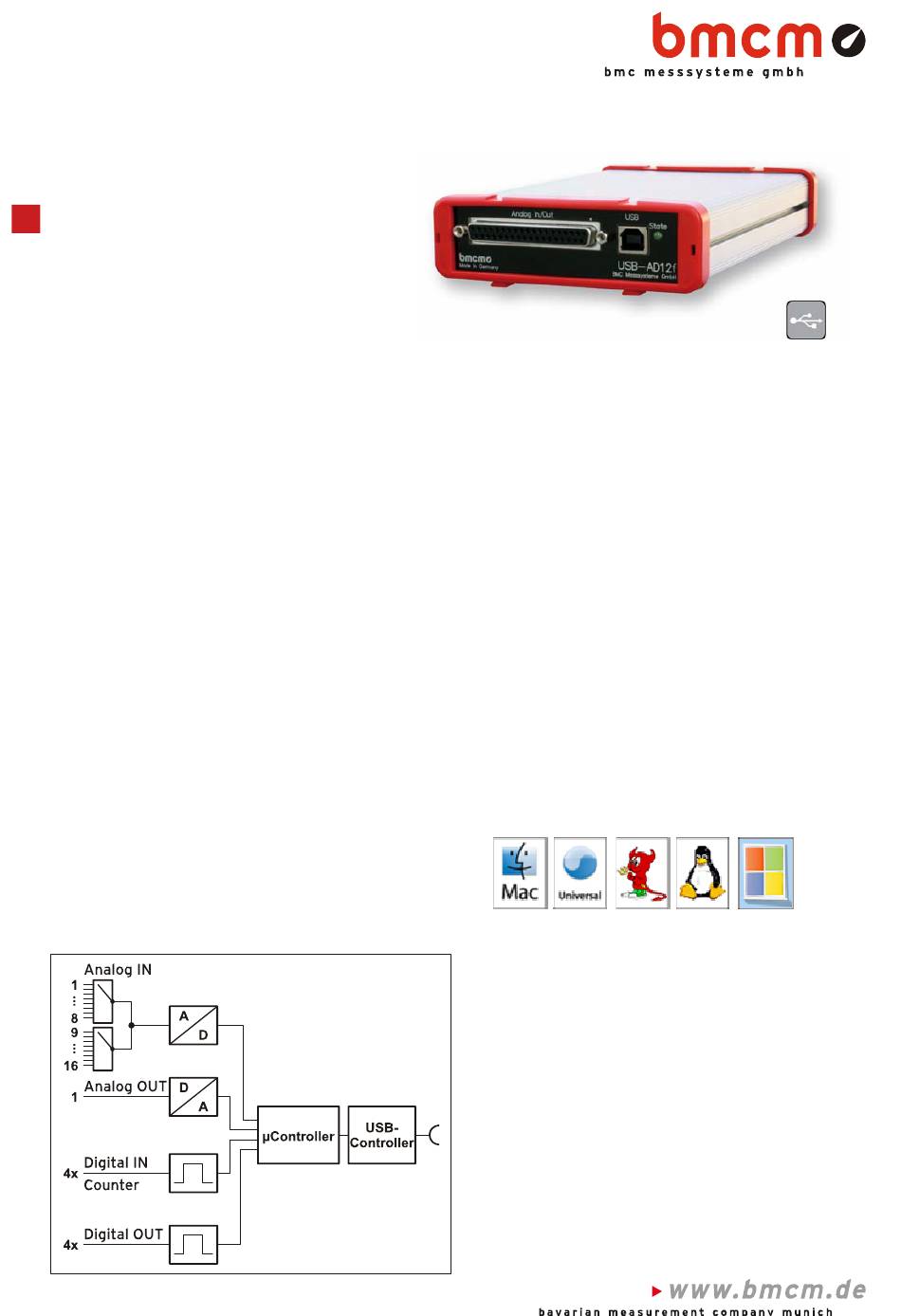

USB-AD12f
Data acquisition system (USB)
Measurement & Control.
Super-low priced.
Record and output signals with the USB-AD12f.
The USB data acquisition system accomodated in
a stable aluminum housing is ideal for medium-
class applications impressing by universal appli-
cability and an excellent price-performance-ratio.
16 analog inputs.
20kHz. 12 bit. ±10V.
Voltage signals in the ±10V range are connected
at 16 analog inputs. Sampling is done with 12 bit
resolution and 20kHz total sampling rate.
1 analog output. 12 bit. ±5V.
The 5V output can be used for analog control
with 12 bit accuracy.
4 digital inputs/outputs each.
1 counter.
Digital states are recorded or set at four digital in-
puts and outputs each. Digital inputs are sampled
time-synchronously with the analog inputs. The
first digital input can be used as a 16-bit counter
for the acquisition of counting pulses.
Functional diagram
Plug & Play.
The connection to the PC is realized via USB.
The USB-AD12f provides all typical USB
features (e.g. Plug&Play, Hot-Plug). Up to 127
devices can be connected and installed during
operation.
Powered by USB.
The device is supplied with power via the USB
interface. This reduces cabling efforts to a
minimum and makes mobile measurements a lot
easier.
Open for everyone.
Widely supported: The data acquisition system
can be used under Windows
under MAC OS X, Free BSD and Linux. The
complete software for installation and program-
ming of the USB-AD12f is included for free.
NextView 4. Try for free.
®
The DAQ system is supported by NextView
the software for data acquisition and analysis. A
fully functional 30-day trial is included with
delivery to directly test the functionality of the
USB-AD12f.
Accessory.
Makes everything so easy.
Use the demo board ZU-DBD featuring various
operating controls and sensors to generate 16
analog signals and record them with the USB data
aquisition system.
®
7/XP as well as
4,
®
