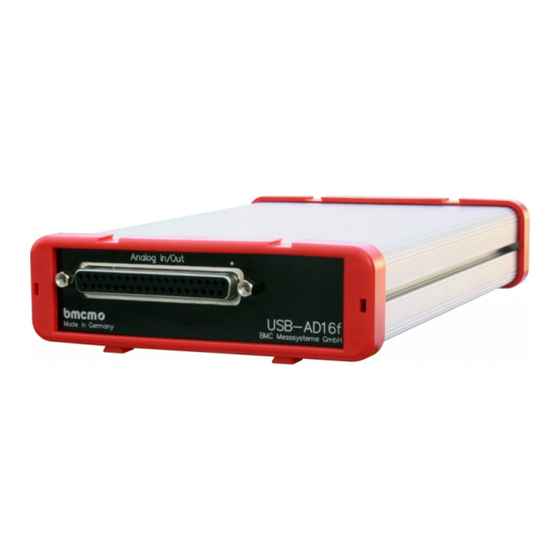

USB-AD16f
Data acquisition system (USB)
Measurement & Control.
Extremely powerful.
Precisely record and output signals with the
USB-AD16f: The high-performance USB data
acquisition system accomodated in a stable
aluminum housing impresses by high technical
standard and excellent price-performance ratio. It
is especially suitable for dynamic applications.
Clearly safe.
Due to the galvanic isolation of the analog
channels the DAQ system and the PC are
perfectly protected.
16 analog inputs. 250kHz
16 bit. ±10V, ±5V, ±2V, ±1V.
16 analog inputs can be sampled with 16 bit
resolution and 250kHz total sampling rate so that
even slightest peaks of high-frequent signals do
not remain undetected. The measuring range is
selected via software for each channel separately.
2 analog outputs. 16 bit. ±10V.
The two 10V outputs can be used for analog
controls with 16 bit accuracy.

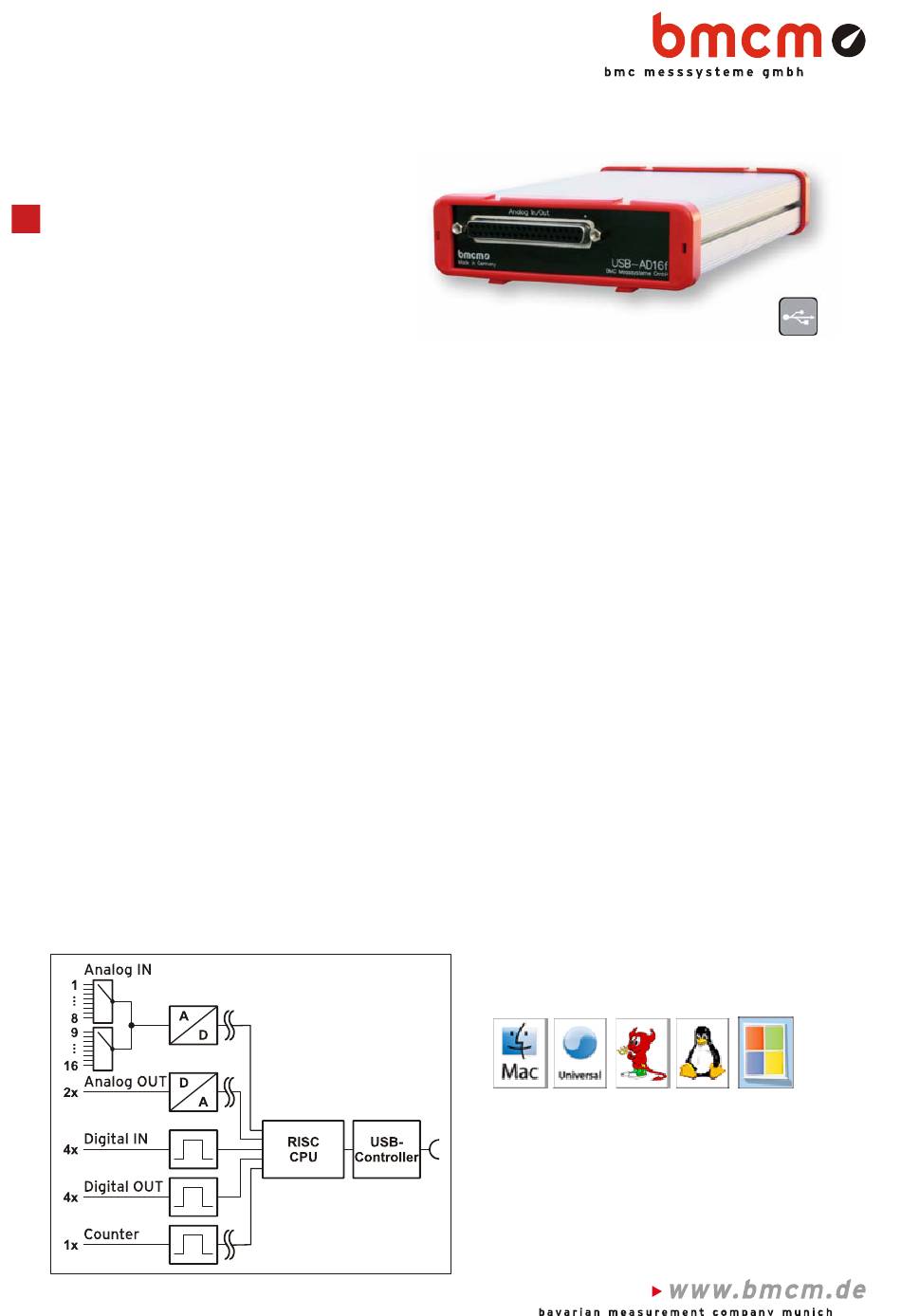

Functional diagram
4 digital inputs/outputs each.
1 counter.
Digital states are recorded or set at four digital in-
puts and outputs each. Digital inputs are sampled
time-synchronously with the analog inputs. The
additional counter input is galvanically isolated.
Plug & Play.
The connection to the PC is realized via USB.
The USB-AD16f provides all typical USB
features (e.g. Plug&Play, Hot-Plug). Up to 127
devices can be connected and installed during
operation.
Powered by USB.
The device is supplied with power via the USB
interface. This reduces cabling efforts to a
minimum and makes mobile measurements a lot
easier.
Open for everyone.
Widely supported: The data acquisition system
can be used under Windows
under MAC OS X, Free BSD and Linux. The
complete software for installation and program-
ming of the USB-AD16f is included for free.
NextView 4. Try for free.
®
The DAQ system is supported by NextView
the software for data acquisition and analysis. A
fully functional 30-day trial is included with
delivery to directly test the functionality of the
USB-AD16f.
®
7/XP as well as
4,
®
