LAN-AD16f
LAN data acquisition system (TCP/IP)
Data acquisition via network.
Remote. Ingenious.
The LAN technology of the LAN-AD16f allows
for measurement applications across great dis-
tances. The number of measuring points, where
the devices are installed, is basically not limited.
Data transmission to a server PC is fast and reli-
able.
TCP/IP. Guaranteed reliable.
The LAN-AD16f uses the TCP/IP protocol pro-
viding for safe and complete data transmission.
Besides that, transmission via internet is possible
- data acquisition with absolutely new possibili-
ties.
16 analog inputs. 250kHz.
16 Bit. ±10V, ±5V, ±2V, ±1V.
16 analog inputs can be sampled precisely with
16 bit resolution and 250kHz total sampling rate.
The measuring range is selected via software for
each channel separately.
2 analog outputs. 16 bit. ±10V.
The two 10V outputs can be used for analog con-
trols with 16 bit accuracy.
Functional diagram
4 digital inputs/outputs each.
1 counter.
Digital states are recorded or set at 16 digital in-
puts and outputs each. Digital inputs are sampled
time-synchronously with the analog inputs. One
19-bit counter accessible via the first digital input
pins allows the acquisition of counting pulses or
the connection of an incremental encoder.
Cascadable. Synchronizable.
The number of DAQ systems and with it the
number of available channels is only limited by
the bandwidth of the network. Several LAN-
AD16f devices can be synchronized with each
other. If so, all measured data in distributed op-
eration always keep time even with long-term
measurements.
Open for everyone.
Widely supported: The data acquisition system
can be used under Windows
der Mac OS X, Free BSD and Linux. The com-
plete software for installation and programming
of the LAN-AD16f is included for free.
NextView
4. Try for free.
®
The DAQ system is supported by NextView
the software for data acquisition and analysis. A
fully functional 30-day trial is included with de-
livery to directly test the functionality of the
LAN-AD16f.
®
7/XP as well as un-
4,
®
Advertisement
Table of Contents
Related Manuals for bmcm LAN-AD16f
Summary of Contents for bmcm LAN-AD16f

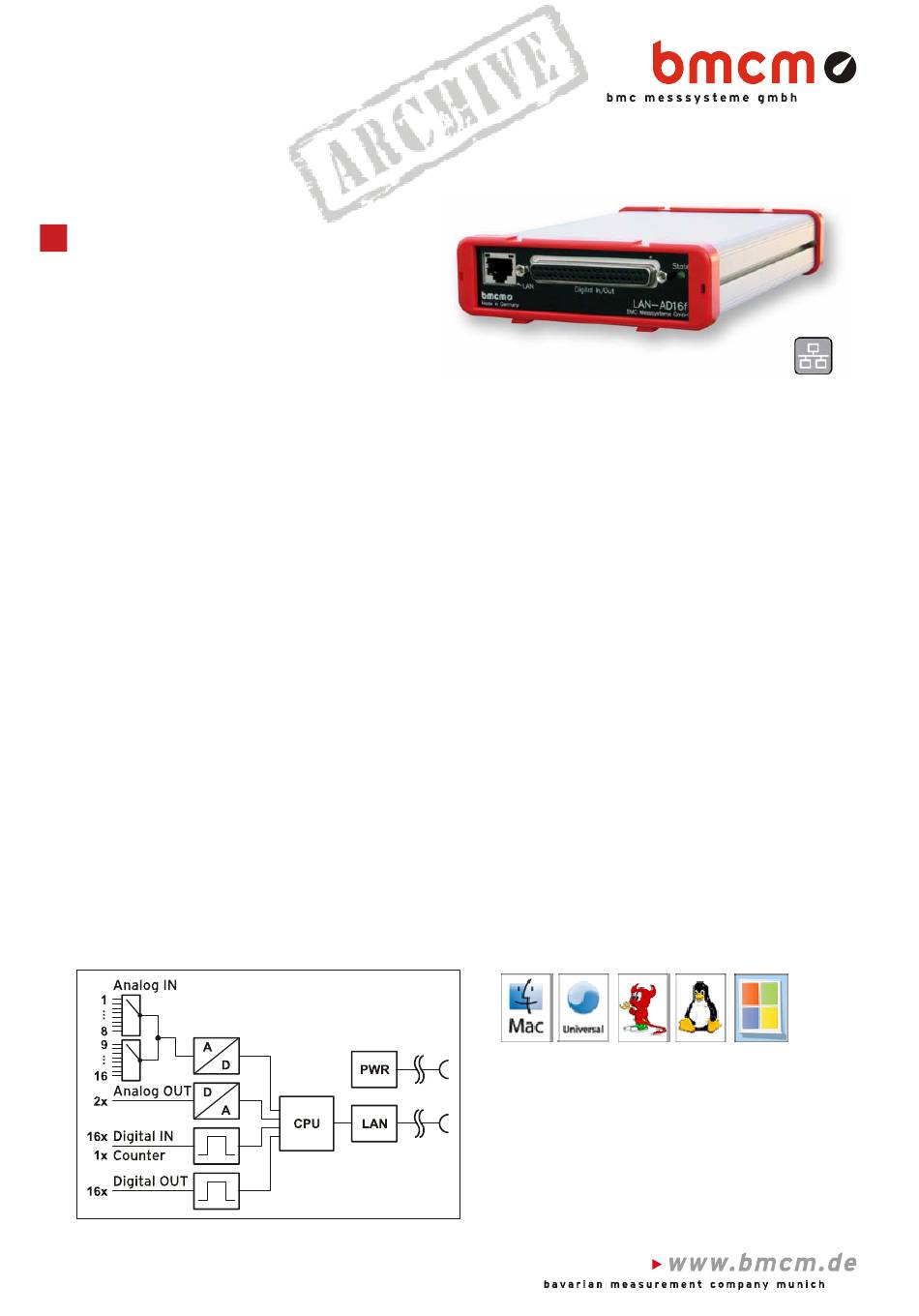

- Page 1 LAN-AD16f LAN data acquisition system (TCP/IP) Data acquisition via network. Remote. Ingenious. The LAN technology of the LAN-AD16f allows for measurement applications across great dis- 4 digital inputs/outputs each. tances. The number of measuring points, where 1 counter. the devices are installed, is basically not limited.
-
Page 2: Start-Up Procedure
LAN-AD16f Start-up procedure Plug the red frames onto the short sides of the device with the feet looking downward. The LAN-AD16f is suitable for DIN rail mounting. The optional DIN rail set ZU-SCHI can be ordered at bmcm. The device is supplied via a power supply unit (12V, 10W) available under ZU-PW10W (see chapter 2.1). -
Page 3: Analog Channels
The internal connection of the 16 analog inputs is provided via a 40-way pin connector (see figure on the right) on the LAN-AD16f board, which, for example, can be used to con- nect current shunts (ZU-CS250R available as accessory). The pin assignment of the 40-way pin connector is listed in the... - Page 4 In comparison to a counter, the quadrature de- coder considers the counting direction by decoding a second phase-shifted signal. To activate the counting function, the respective digital lines of the LAN-AD16f must be programmed to counter operation via software. Function Description Max.
- Page 5 3 Interfacing examples for digital channels The following basic connection examples demonstrate the use of the digital inputs and outputs and the con- nection of a counter to the LAN-AD16f. The pin assignment of the 37-pin D-Sub female connector is de- scribed in chapter 2.4.
-
Page 6: Software Installation And Configuration
Collection" CD included with delivery. When inserting the CD, a CD starter opens automatically (otherwise: start openhtml.exe). Change to the product page of the LAN-AD16f by selecting the entry "Products" in the CD starter and then the hardware ("LAN-AD16f") listed under the interface "LAN". - Page 7 Each IP address contains the network number identifying the net your PC belongs to. Please make sure the PC and the LAN-AD16f are in the same net, i.e. they have the same network number, to be able to commu- nicate with each other.
- Page 8 , Visual C++ under Windows 7/XP is possible with the hardware independent STR-LIBADX. It is available on the LAN-AD16f product page of the "Soft- ware Collection" CD. After installation, the ActiveX control must be loaded into the respective programming environment.
- Page 9 LAN-AD16f 6 LAN-AD16f and NextView ® The device perfectly goes together with the modern data acquisition and analysis program NextView 4 (see ® chapter 4.3): different versions (Trial, Lite, Professional, Analysis) available (German or English) unlimited number of devices (even of different type) can be installed (except for: NextView 4 Lite) ®...
-
Page 10: Technical Data
Do not dispose of the product in the domestic waste or at any waste collection places. It has to be either duly dis- posed according to the WEEE directive or can be returned to bmcm at your own expense. 8 Technical data (typical at 20°C, after 5min., +12V supply)
