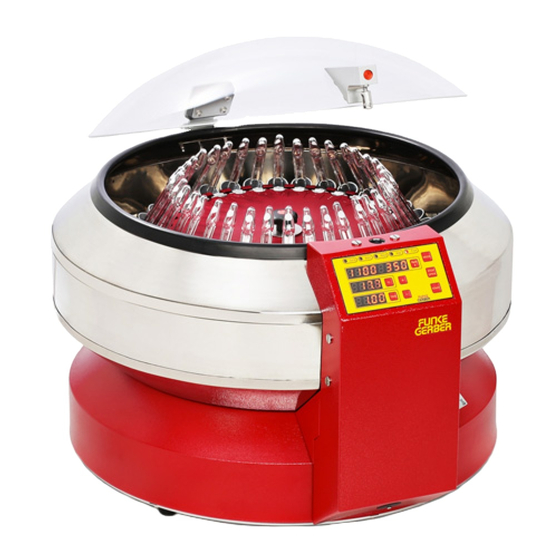

Multi purpose centrifuge

Advertisement

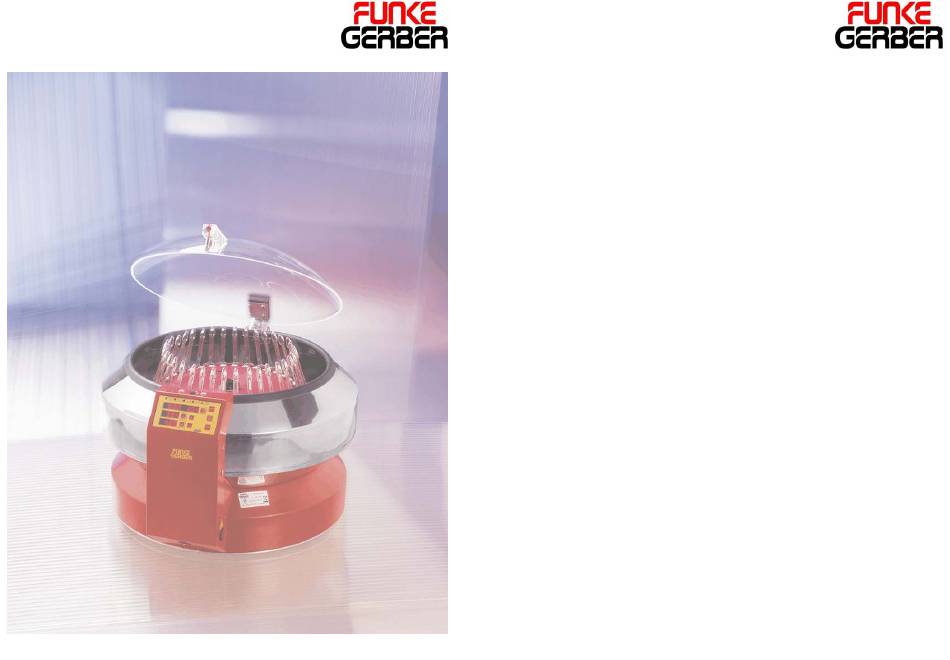

User Manual SuperVarioN
Multi Purpose Centrifuge
SuperVario - N
SuperVarioN
Funke- Dr. N. Gerber Labortechnik GmbH
D - 12105 Berlin, Ringstraße 42
Tel.: +49 - 30 - 702 006 - 0
Page 1 of 15
Fax: +49 - 30 - 702 006 - 66
Issue dd. 28.07.2004
User Manual SuperVarioN
Contents
1
2
2.1
Function of keys
2.2
2.2.1
2.2.2
2.2.3
3
3.1
3.2
3.3
4
5
Centrifugal Acceleration
6
7
8
Annex 1: Wiring diagram main control
Annex 2: Wiring diagram motor control
Annex 3: Assembling plan
Page 2 of 15
3
3
3
4
4
5
5
6
6
6
6
7
10
11
11
12
13
14
15
Issue dd. 28.07.2004

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SuperVario - N and is the answer not in the manual?

Questions and answers

Summary of Contents for Funke Gerber SuperVario - N

  • Page 1: Table Of Contents

    User Manual SuperVarioN User Manual SuperVarioN Contents Multi Purpose Centrifuge Assembling and starting SuperVario - N Using the centrifuge Function of keys Operation 2.2.1 Display/Button board 2.2.2 Setting to operation 2.2.3 Start of centrifuge Settings Setting of speed Setting of temperature...
  • Page 2: Assembling And Starting

    User Manual SuperVarioN User Manual SuperVarioN Setting of desired speed 1. Assembling and starting Put the centrifuge on a plain and horizontal place. Then plug the main Setting of desired temperature cable into a wall socket capable to supply the centrifuge with about 6 amperes.
  • Page 3: Setting To Operation

    User Manual SuperVarioN User Manual SuperVarioN the centrifuge. In order to stop the centrifuge by hand press the key The temperature can be adjusted in steps of 0,5 °C and the centrifuging START a second time. time in minutes. All settings are non-volatile. They remain stored even Hint: The centrifuge can only be started with lid locked and in case it is in case the centrifuge is switched off or the mains cable is disconnected.
  • Page 4: Informations About Using

    User Manual SuperVarioN User Manual SuperVarioN with cord lying open is forbidden. 4. Informations about using - Why is the last decimal point of temperature lighting Following some questions and answers that may occur.: sometimes? This lighting point indicates that heating is actually activated. - How to charge head A? Head A has 36 places.
  • Page 5: Tabular Summary On Relative

    User Manual SuperVarioN User Manual SuperVarioN "RpM/g", "oC" or "TIME" are pressed the displays show 5.Tabular summary on Relative Centrifugal Acceleration to indicate the start of setting modus. Quitting the setting modus will not activate the points. - Immediately after switching on the centrifuge displays "br.." and startes to brake.
  • Page 6: Technical Data 11

    User Manual SuperVarioN User Manual SuperVarioN 6. Technical data 3632 Bucket for Babcock bottles 3633 Bucket for solubility index tube Current 230 V A/C 50..60 Hz Power input 1200 W 8. Spare parts Weight (empty) 26 kg Total height with lid 460 mm Art.No.
  • Page 7 User Manual SuperVarioN User Manual SuperVarioN Page 13 of 15 Issue dd. 28.07.2004 Page 14 of 15 Issue dd. 28.07.2004...
  • Page 8 User Manual SuperVarioN Funke-Dr.N.Gerber Labortechnik GmbH Ringstraße 42 12105 Berlin Certificate EC-Conformity Declaration We hereby declare that in view of its design and construction the instrument "SuperVario-N" meets the requirements of the EC rules "machines" with regard to the request of safety and health. We declare further that all Instruments are strictly tested by our internal quality test procedure: Each Instrument has passed the end production control.
