Inovonics EN7017 Instructions

Inovonics EN7017 Instructions

Survey kit

Advertisement

Quick Links

Install the Survey Kit and App
•Survey kit carrying case.

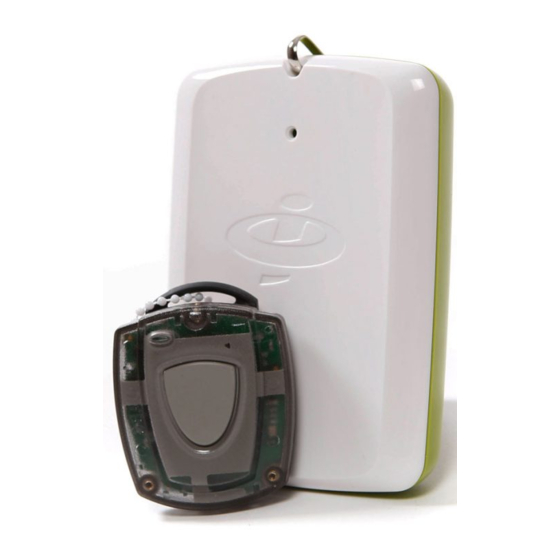

•EN4017SK survey receiver.
•EN1223SK pendant survey
transmitter.
•Mini USB charging cable.

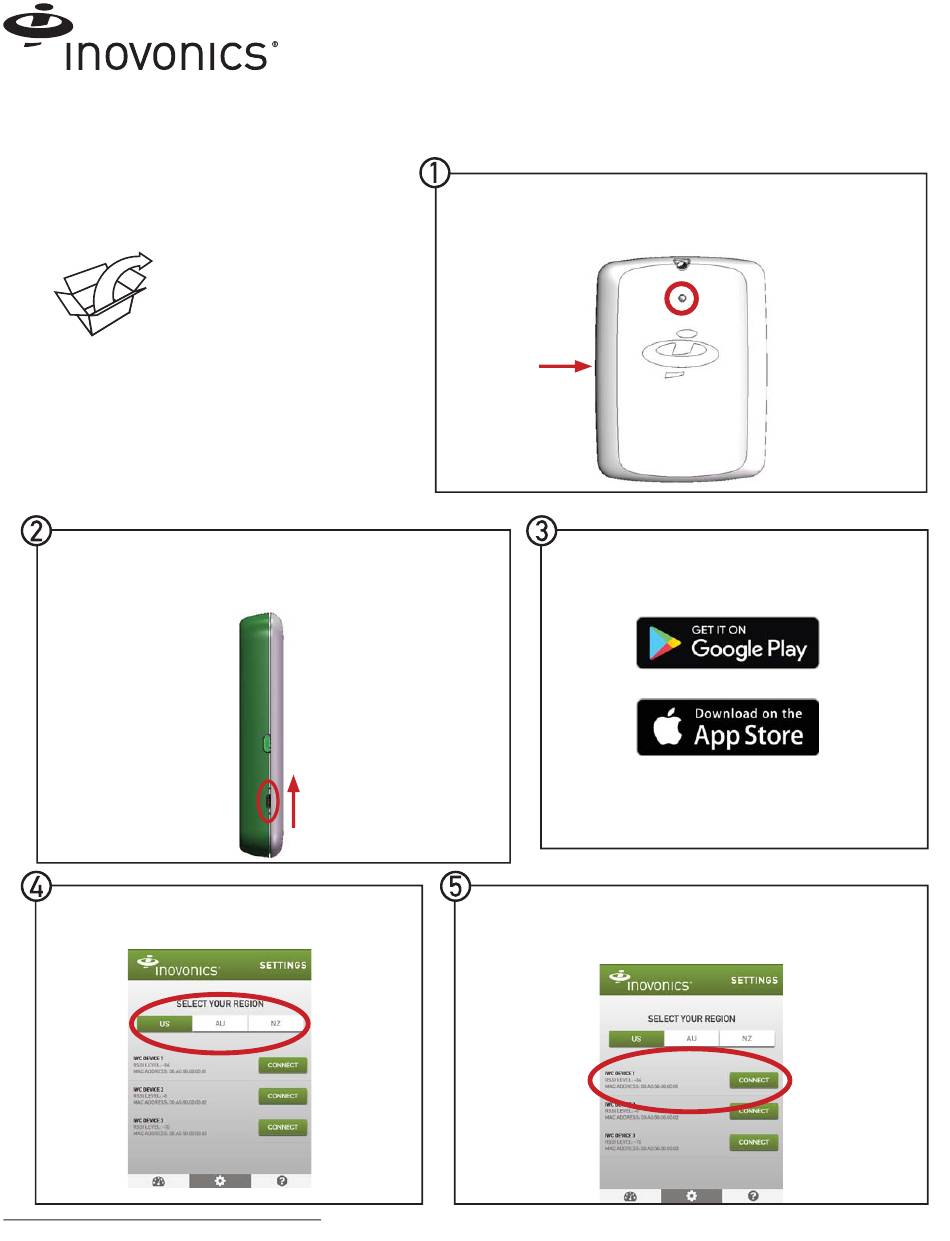

Use a pen or a paper clip to move the switch up to activate the
survey receiver battery. The survey receiver battery can remain
activated indefi nitely, and once activated, the survey receiver LED
will blink green until paired.
If located somewhere other than North America, select
your frequency band.
02.02.17 06818B © Inovonics, 2017 - www.inovonics.com
EN7017 Survey Kit and App Installation
and Site Survey Instructions
Use a mini USB charging cable and any standard USB charger to fully
charge the survey receiver. The LED will light red while charging, and
turn off when fully charged.
3. Download and open the Site Survey App by Inovonics.
Select the Inovonics device that matches the MAC address on the
back of your survey receiver to pair it with the app. Once paired,
the receiver LED will light green.

Advertisement

loading
Need help?

Need help?

Do you have a question about the EN7017 and is the answer not in the manual?

Questions and answers

Summary of Contents for Inovonics EN7017

  • Page 1 If located somewhere other than North America, select Select the Inovonics device that matches the MAC address on the your frequency band. back of your survey receiver to pair it with the app. Once paired, the receiver LED will light green.
  • Page 2 Enter the TXID found on the back of the pendant survey transmitter to pair it with the app. Once paired, the signal strength needles will begin to move, indicating you have successfully completed setup. 02.02.17 06818B © Inovonics, 2017 - www.inovonics.com...
  • Page 3: Perform A Site Survey

    EN1223SK pendant EN1223SK pendant survey transmitter survey transmitter Mobile device with Mobile device with survey app survey app 02.02.17 06818B © Inovonics, 2017 - www.inovonics.com...
  • Page 4 •You can use the carabiner on the receiver to keep it attached to your person while performing the survey. • You can use any Inovonics transmitter with the app however we recommend the EN1223SK pendant survey transmitter or the EN1210SK universal survey transmitter, sold separately.
  • Page 5 • Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc., registered in the U.S. and other countries. • The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by Inovonics is under license. Other trademarks and trade names are those of their respective owners.
