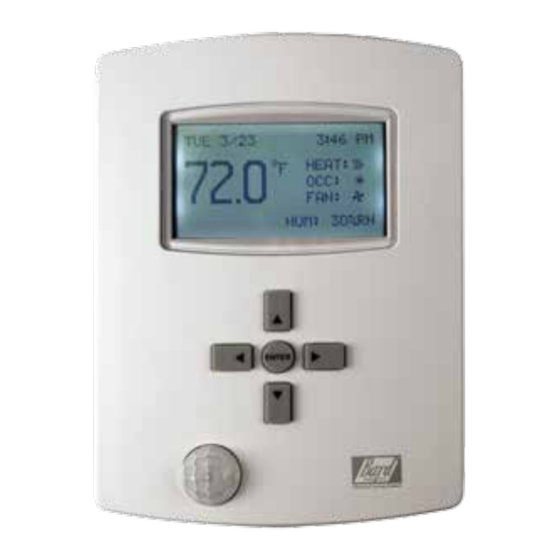

- Page 1 ADVANCED PROGRAMMING & FEATURES Bard CompleteStat™ CS9B-THO, CS9B-THOC CS9BE-THO, CS9BE-THOC Bard Manufacturing Company, Inc. Manual: 2100-567B Bryan, Ohio 43506 Supersedes: 2100-567A Date: 12-3-14 www.bardhvac.com Page 1 of 16...
- Page 2 TABLE OF CONTENTS Installation Note ........................ Page 3 Home Screen Features ................. Page 3 Display Options ....................Page 3 Motion/Occupancy Sensor Detection Range ..........Page 4 Basic Operation Operational Overviews ..................Page 5 Setting Date/Time ................... Page 5 Scheduling ...................... Page 6 Adjusting Standby Conditions .................
- Page 3 4. Down button through entries to highlight User Interface 5. Enter button to select User Interface and enter User Interface Screen. 6. Controller will ask for Admin Level Password Factory Default Admin Level Password: BARD Press Enter 7. Down button to highlight entry of choice (Backlight/Rotation Values/Temp Tenths/"Mode") 8.
- Page 4 Motion/Occupancy Sensor Detection Range Manual 2100-567B Page 4 of 16...
- Page 5 Operational Overviews: The factory-default settings will provide an intelligent, “learning” temperature control. CS9B(E)-THO (Non- CO2 Sensing Capability) Models come standard with scheduling features; however, from the factory, all the controllers are configured to have no “occupied” periods. In this default configuration, the CompleteStat is typically in an Unoccupied (moon icon) mode enabling “setback”...
- Page 6 12. Enter button to select Advanced and enter Advanced Screen 13. Enter button again to select/enter Applications Screen 14. Controller will ask for Admin Level Password Factory Default Admin Level Password: BARD Press Enter 15. Down button to highlight Additional Setup 16.
- Page 7 3. Enter button to select Advanced and enter Advanced Screen 4. Enter button again to select/enter Applications Screen 5. Controller will ask for Admin Level Password Factory Default Admin Level Password: BARD Press Enter 6. Down button to highlight Additional Setup 7.
- Page 8 3. Enter button to select Advanced and enter Advanced Screen 4. Enter button again to select/enter Applications Screen 5. Controller will ask for Admin Level Password Factory Default Admin Level Password: BARD Press Enter 6. Down button through entries to highlight Additional Setup 7.
- Page 9 14. Enter button to save new IN 4 entry 15. Left button (5x) to home screen Remote Occupancy Sensor can be used to remote or enhance occupancy coverage. While Bard does not currently offer a branded sensor as a part number, the Sensorswitch WV-16-R or CM-9-R Series Sensor –...
- Page 10 25. Up/Down button to toggle Enable 26. Enter button to select/save Enable choice 27. Down button through new Dehumidification Screen entries: • Allow Htg Dehum – allows dehumidification in heating as well as in cooling • Dehum Setpt – the Relative Humidity (RH) % setpoint •...
- Page 11 Heating/Cooling Loop Configuration – Heating/Cooling proportional bands and Integers can be adjusted To access/change the PID Loop configurations from the home screen, press… 1. Right button to Main Menu 2. Down button to highlight Advanced 3. Enter button to select and enter Advanced Screen 4.
- Page 12 3. Down button through entries to highlight User Interface 4. Enter button to select User Interface and enter User Interface Screen 5. Controller will ask for Admin Level Password Factory Default Admin Level Password: BARD Press Enter 6. Down button to highlight Mode 7.
- Page 13 15. Left button to navigate back to Advanced Screen 16. Left button to navigate back to Main Menu 17. Left button to navigate back to Home Screen NOTE: After any password is given, the only delay to enabling security programming will be the Inactivity (Secs) setting of controller (60 seconds is factory default).
- Page 14 4. Down button through entries to highlight Restart/Restore 5. Select button to select/enter Restart/Restore Screen 6. Controller will ask for Admin Level Password Factory Default Admin Level Password: BARD 7. Enter button to select Restart 8. Up/Down button and choose from the following options: •...
- Page 15 6. Controller will ask for Mfg Level Password Factory Default Mfg Level Password: 1914 7. Enter button select Active 8. Up/Down button through entries to edit Active communication selection and select appropriate method… • MS/TP – Factory Default • – Requires restart of controller (see Restart) •...
- Page 16 WARNING: All other levels of programming within this control are specific to performance parameters of this unit, and changes or alterations may result in damage to the unit and/or component failure. Before making any changes to specific programming details not present in this manual, please consult with the Technical Service Department of Bard Manufacturing Co.
