Longse LPRCHTC200ESL Manual

Specification
Model
LPRCHTC200ESL
Image Sensor
1/2.8" SONY 2.1MP Starvis Back-illuminated CMOS Sensor
Resolution 1080P
Signal System PAL / NTSC
Minimum Illumination 0.001Lux/F1.2
S/N Ratio More than 52 dB
Synchronous System Internal
IR Distance
IR Power On Photodiode AUTO Control
CVBS / CVI / TVI / AHD
Video Output
Power DC12V(+/-10%) <12W
Lens 3.7mm Taper Pinhole Lens
Weather Proof
Dimension (mm) 70(W) x 40(H) x 119(D)
Weight (g) 350
Operating Conditions
-10~+50
Accessories list
Name
Camera
User Guide
/
/
RH95% MAX
Notes:
Number
Do not attempt to disassemble the camera. If the camera
1
can not work, please contact local franchiser or our company.
1

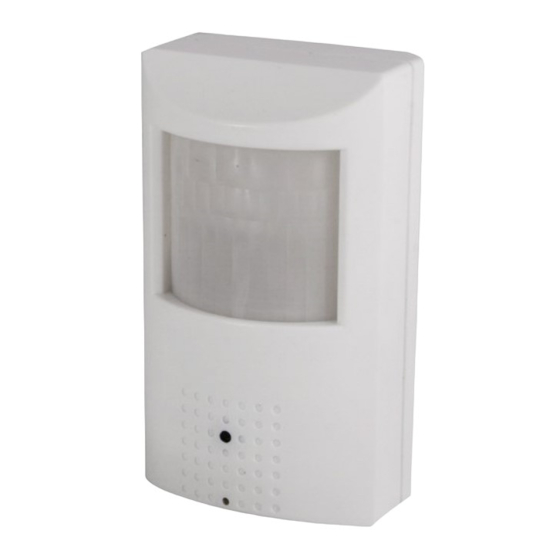

Spy Camera
Thank you for using our product.
Before providing power for the camera, please read
this manual carefully before use.
We adopt the latest technical of sensor and driver.
It owns the characters of high definition and stability,
strong anti-jamming, rich and real color. Fixing and
using this model are convenient too. It is very good
for you to apply to your CCTV system.
