BOERPLAY Roundabout 2 SOLE030.161 Manual

130cm with 3 seats
Hide thumbs

Advertisement

Quick Links

Download this manual
Roundabout 2 • 130cm with 3 seats
SOLE030.161

Advertisement

loading
Need help?

Need help?

Do you have a question about the Roundabout 2 SOLE030.161 and is the answer not in the manual?

Questions and answers

Related Manuals for BOERPLAY Roundabout 2 SOLE030.161

Summary of Contents for BOERPLAY Roundabout 2 SOLE030.161

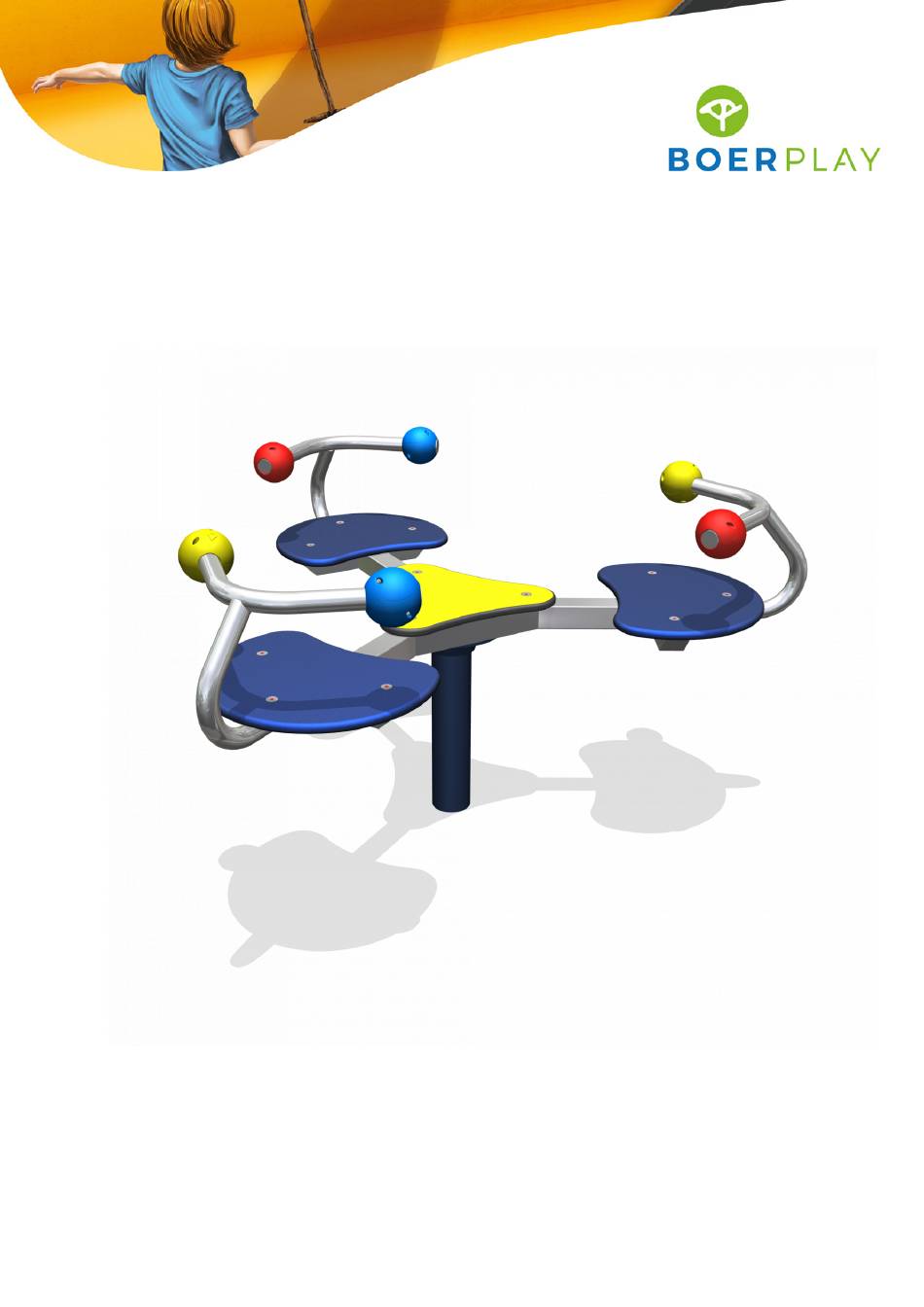

  • Page 1 Roundabout 2 • 130cm with 3 seats SOLE030.161...
  • Page 2 1,42 m 0,72 m 0,42 m 0,00 m Benaming TOE SOL 030 161 A Kwebbelduizel Title Tekening Opmerking Drawing Comment BOER Datum Afmetingen Dimensions 22-4-2016 Date SPEELTOESTELLEN...
  • Page 3 Opvangzone Impact area Obstakelvrije zone Obstacle free zone Benaming TOE SOL 030 161 A Kwebbelduizel Title Tekening Opmerking Drawing Comment BOER Datum Obstakelvrije zone Obstacle free zone 22-4-2016 Date SPEELTOESTELLEN...
  • Page 4 0,64 m 2,70 m 2,70 m Grondmarkering Ground level marker 0,41 m 0,71 m Benaming TOE SOL 030 161 A Kwebbelduizel Title Tekening Opmerking Drawing Comment BOER Datum Bodemplan Groundplan 22-4-2016 Date SPEELTOESTELLEN...
  • Page 5 Geleverde modules: Supplied modules: Zie tabel See table Montageinstructie: Assembly instruction: - De hoofdmaten geven de maten van de staanders en vloeren aan - The main dimensions indicate the dimensions of the posts and floors - De detailtekeningen geven specifiek de maten van de verbindingen aan - The detailed dimensions show the specific dimensions of the connections - De modules met buizen zijn op de tekeningen bemaat op bovenkant kopplaat - The modules which contain tubes are dimensioned at the top of the flanges...
  • Page 6 Certificate 09100301688 inspection authority Liftinstituut B.V. Buikslotermeerplein 381, A'dam - 1025 XE Amsterdam Name manufacturer BOERplay Hyacintstraat 2 - 4255 HX Nieuwendijk Phone: +31 (0)183 40 23 66 Fax: +31 (0)183 40 35 64 name installer Description of equipment Roundabout 2 • 130cm with 3 seats...

  • Page 7: Maintenance

    LOGBOOK Inspection and maintenance intervals months Inspection Maintenance between inspections Verify equipment's stability, junctions and missing parts. Add missing parts, secure joints, apply missing fixing Inspect bolts, screws and nuts for absence, jams, corrosion agent and replace corroded parts. and wear. Replace worn parts and/or remove non-functioning Check suspension for wear.
  • Page 9 Type Progr. Volgnr Bew. Rev. Benaming Opmerking Zeskantmoer M16 - VZ 8.8 Carrosseriering M16 x 50 - VZ 8.8 Poermodel 7 245 kg Benaming MOD OBT 007 002 Poermodel 7 Title Tekening Opmerking 245 kilo Drawing Comment BOER Datum Samenstelling module Assembly module 13-2-2014 Date SPEELTOESTELLEN...
  • Page 10 Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Zelfb. schroef 3,5 x 19 - RVS A2-70 Verzonken bout M10 x 35 - RVS A2-70 Verzonken bout M10 x 16 - RVS A2-70 Telbol helft Rood Telbol helft Blauw Telbol helft Geel OPVULDOPJE 6 MM ROOD Middenplaatje...
  • Page 11 Type Progr. Volgnr Bew. Rev. Benaming Opmerking Bolkopbout ISO 7380 M10 x 16 - RVS A2-70 55 x 2,00 - VZ 8.8 Circlip DIN 471 Ø75 x Ø55 x 10 Oliekeerring Afstandbus Duizelanker Stop Duizel Kogellager 6009 6009 2RSR - 75x45 Duizel Anker 400 Duizel...
