BOERPLAY Playchain 204 Manual

Hide thumbs Also See for Playchain 204:

Advertisement

Quick Links

Download this manual
Playchain 204
PNRE000.204

Advertisement

loading
Need help?

Need help?

Do you have a question about the Playchain 204 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BOERPLAY Playchain 204

Summary of Contents for BOERPLAY Playchain 204

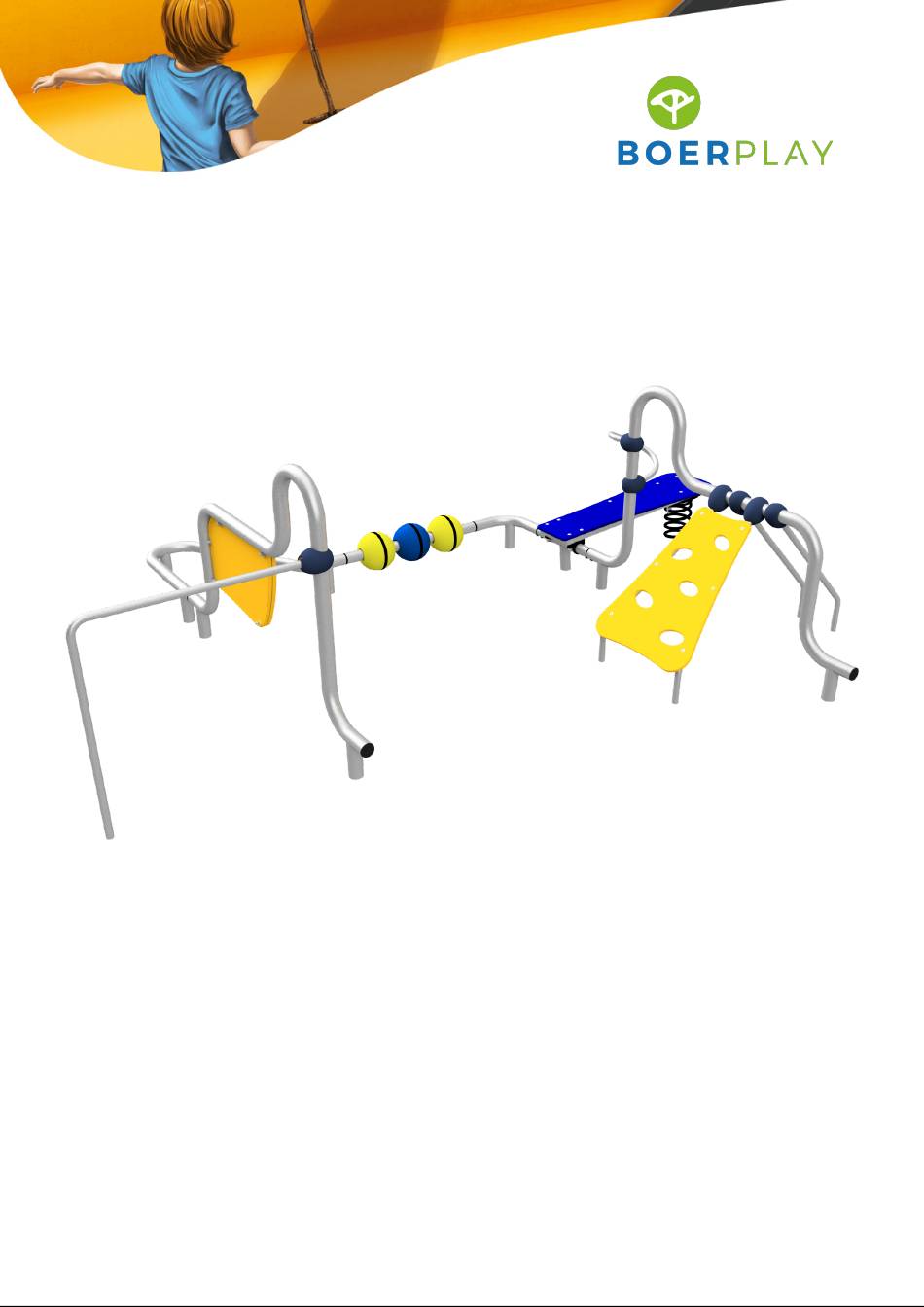

  • Page 1 Playchain 204 PNRE000.204...
  • Page 2 3704 1,37 m 0,91 m 0,41 m 0,24 m 0,00 m Benaming TOE PNR 000 204 A Playchain 204 Title Tekening Opmerking Pionier Drawing Comment Datum Afmetingen Dimensions 22-2-2022 Date...
  • Page 3 6,13 m 7,65 m Obstakelvrij EN-1176 Obstacle free EN-1176 Opvangzone Impact area Obstakelvrij WAS Obstacle free WAS Benaming TOE PNR 000 204 A Playchain 204 Title Tekening Opmerking Pionier Drawing Comment Datum Obstakelvrije zone Obstacle free zone 22-2-2022 Date...
  • Page 4 4,91 m 4,86 m 4,23 m 3,44 m 2,69 m 2,56 m 1,51 m 0,00 m Grondmarkering Ground level marker 0,63 m Benaming TOE PNR 000 204 A Playchain 204 Title Tekening Opmerking Pionier Drawing Comment Datum Bodemplan Groundplan 22-2-2022 Date...
  • Page 5 Speelbuis balanshoek Speelbuis Einddop buis 70 Springplank Speelbuis Klimwandje Speelbuis Speelbollen x3 Speelbuis Duikel 90 cm Speelbuis Schoolbord Speelbuis Glijstangen Speelbuis Benaming TOE PNR 000 204 A Playchain 204 Title Tekening Opmerking Pionier Drawing Comment Datum Modules Modules 22-2-2022 Date...
  • Page 6 3 - Zorg dat de uiteinden van de wip op de demper komen 4 - The maximum height of the end of the bar (<100 cm) 4 - De uiterste hoogte van het uiteinde van de balk (<100 cm) Benaming TOE PNR 000 204 A Playchain 204 Title Tekening Opmerking Pionier...
  • Page 7 LOGBOOK Type indication Pionier Article number PNRE000.204 Product Name Playchain 204 Maximum fall height 1,0 m Construction year 2023 Certificate 11100319321 Inspection body Liftinstituut B.V. Buikslotermeerplein 381, A'dam 1025 XE Amsterdam Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk...
  • Page 8 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...

  • Page 9: Inspection And Maintenance Intervals

    Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear.
  • Page 10 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
  • Page 12 Wokkelbuis Wokkel Submodule EI 05 TYPE PROJ. BEH. BENAMING OPMERKING B B B B e e e e n n n n a a a a m m m m i i i i n n n n g g g g MOD PNR 325 000 Wokkel Title...
  • Page 13 Type Progr. Volgnr. Bew. Rev. Benaming Opmerking BOLKOP SCHROEF ISO 7380 - M10 x 25 SLUITRING Koppeling Speelbuis Zadelring Buis 60, 15x30 Benaming MOD PNR 530 000 Koppelstuk Title Tekening Opmerking Speelbuis Drawing Comment Datum Samenstelling module Assembly module 12-3-2019 Date...
  • Page 14 basisstuk Speelbuis TYPE PROJ. BEH. BENAMING OPMERKING B B B B e e e e n n n n a a a a m m m m i i i i n n n n g g g g MOD PNR 531 000 Basisstuk Title T T T T e e e e k k k k e e e e n n n n i i i i n n n n g g g g...
  • Page 15 Basisstuk + lippen Speelbuis TYPE PROJ. BEH. BENAMING OPMERKING B B B B e e e e n n n n a a a a m m m m i i i i n n n n g g g g MOD PNR 532 000 Basisstuk + lippen Title...
  • Page 16 Bochtstuk Speelbuis TYPE PROJ. BEH. BENAMING OPMERKING B B B B e e e e n n n n a a a a m m m m i i i i n n n n g g g g MOD PNR 533 000 Hoekstuk Title T T T T e e e e k k k k e e e e n n n n i i i i n n n n g g g g...
  • Page 17 Halve Balansbalk Speelbuis TYPE PROJ. BEH. BENAMING OPMERKING B B B B e e e e n n n n a a a a m m m m i i i i n n n n g g g g MOD PNR 536 000 balanshoek Title...
  • Page 18 TYPE PROJ. BEH. BENAMING OPMERKING Lamellenstop buis 70 x 2-4.5 Klinknagel bolkop 4,8 x 12 - RVS A2-70 B B B B e e e e n n n n a a a a m m m m i i i i n n n n g g g g MOD PNR 537 000 A Einddop Title...
  • Page 19 Type Progr. Bew. Rev. Benaming Volgnr. Opmerking DOPMOER BORG RVS M10 M10 x 80 - RVS A2-70 Slotbout Slotbout M10 x 70 - RVS A2-70 Slotbout M10 x 120 - RVS A2-70 SLUITRING Spiraalbus 5 x 30 - RVS A2-70 Borgmoer M10 - VZ 8.8 SLOTBOUT...
  • Page 20 Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Verzonken bout M10 x 35 - RVS A2-70 Klimplaat Speelbuis Submodule EI 05 Klimwand frame Speelbuis Benaming MOD PNR 542 000 A Klimwandje Title Tekening Opmerking Speelbuis Drawing Comment Datum Samenstelling module Assembly module 2-9-2019 Date...
  • Page 21 Bol blauw Speelbuis Bol geel Speelbuis lang recht stuk Speelbuis SPIRAALBUS 5 x 30 TYPE PROJ. BEH. BENAMING OPMERKING B B B B e e e e n n n n a a a a m m m m i i i i n n n n g g g g MOD PNR 543 003 Speelbollen x3 Title...
  • Page 22 Type Progr. Volgnr Bew. Rev. Benaming Opmerking Submodule EI 05 Duikel 90cm Speelbuis B B B B e e e e n n n n a a a a m m m m i i i i n n n n g g g g MOD PNR 544 000 Duikel 90 cm Title...
  • Page 23 Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Borgdopmoer M10 - RVS A2-70 M10 x 55 - RVS A2-70 Bolkopbout ISO 7380 OPVULDOPJE 6 MM ROOD Schoolbordplaat voor PE rand RING NYLON M10 x 2.5 MM Achterkant schoolbord Speelbuis Rand schoolbord Speelbuis Benaming MOD PNR 545 000 B...
  • Page 24 Type Progr. Volgnr Bew. Rev. Benaming Opmerking Submodule EI 05 Glijstangen Speelbuis B B B B e e e e n n n n a a a a m m m m i i i i n n n n g g g g MOD PNR 552 000 Glijstangen Title...
