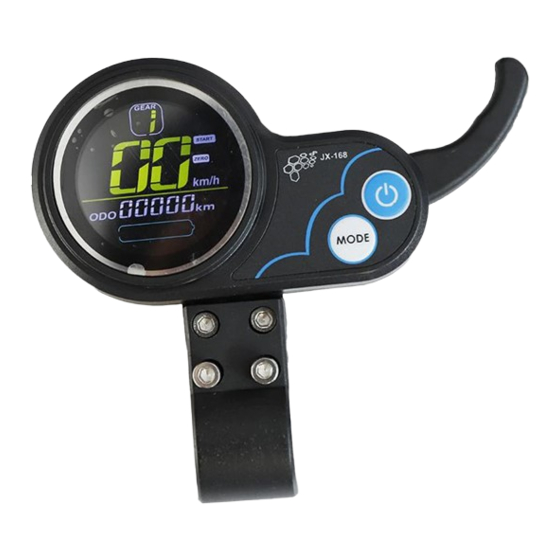

Electric Scooter Meter (JX-168) User Manual

Model Number: JX-168

Working Volt: 8-80V

CABLES CONNECT:

1. Red Cable (D+): Positive Electrode Input

2. Black Cable (GND): Negative Electrode Input

3. Blue Cable (DS): Power Switch and Power Lock

4. Green Cable (RX): Signal Reception

5. White Cable (TX): Signal Express

1.Display Function:

Speed Display, Battery Capacity Display, Fault Directive, Front Light

Point, Cruise Point, Gears Point, Total Range, Single Range, Battery

Volt in Time, Working Current in Time, Operation Hours, Startup Mode

Point

2.Protocol: UART

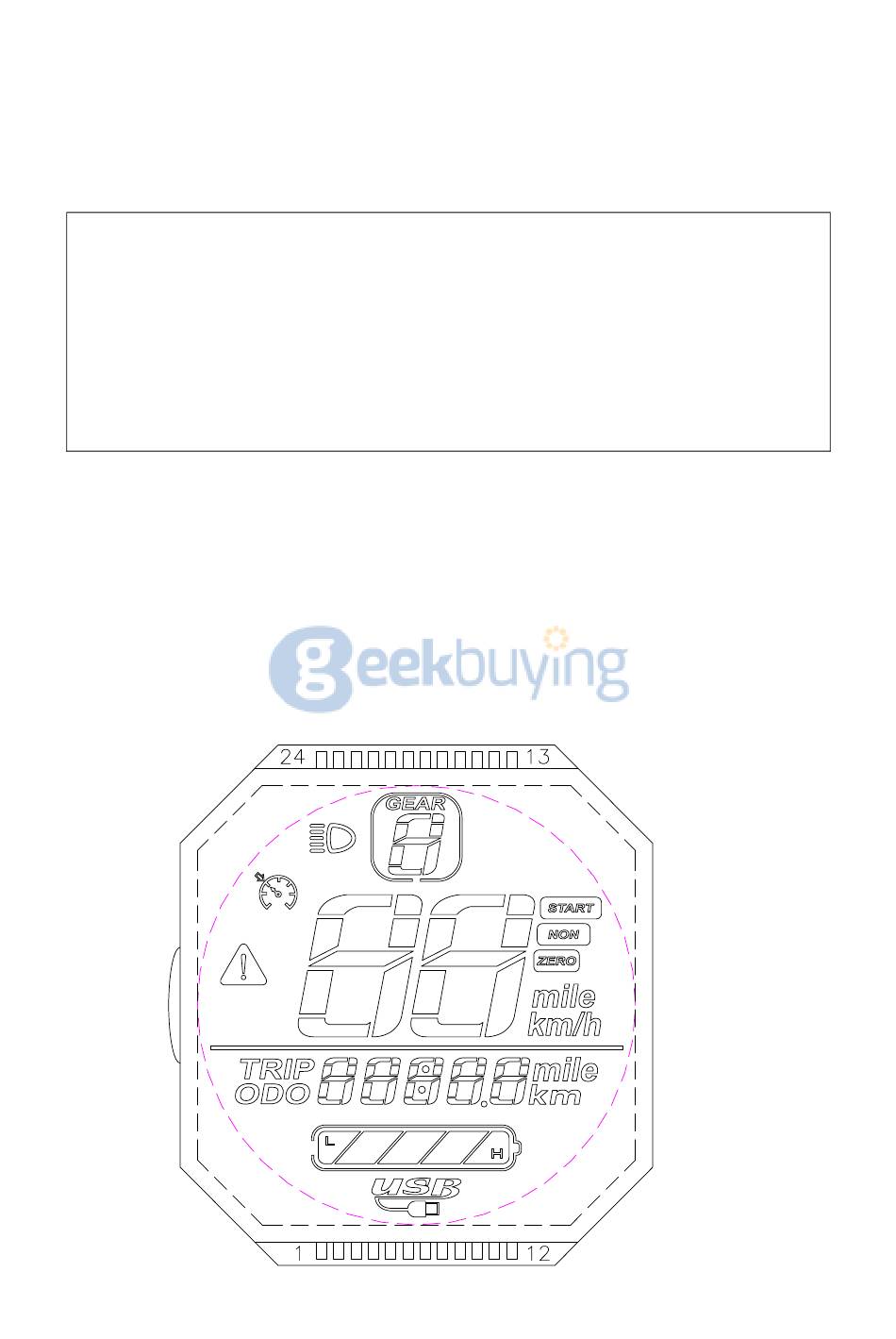

3.All the Details in the Meter (Display all of it in 1 second after Power On)

Version Number: 20190613

Table of Contents

Do you have a question about the JX-168 and is the answer not in the manual?

Page 1 Electric Scooter Meter (JX-168) User Manual Version Number: 20190613 Model Number: JX-168 Working Volt: 8-80V CABLES CONNECT: 1. Red Cable (D+): Positive Electrode Input 2. Black Cable (GND): Negative Electrode Input 3. Blue Cable (DS): Power Switch and Power Lock 4.
Page 2 3. Display Icon Power Capacity Display Multi-function Display Area ODO (Total Range), TRIP (Single Range), V (Volt in Time), A (Working Current in Time), TIME (Operations Hours), E-000 (Fault Directive) Fault Directive ( display on the meter): E-001: Motor Fault E-002: Accelerator Fault E-003: Controller Fault E-004: Brake with Power Off...
Page 3 7. Cruise Display Icon After Motor Working, Take the accelerator in 5 seconds motionless, the cruise icon appears, and then release the accelerator, the motor will keep the same speed working. Take the brake or take the accelerator, exit the cruise. 8.
Page 4 and then press “MODE” button in longer time 5-6 seconds until the number turn to 0. Button function introduction The Scooter in Power Off, press in longer time to power on. In Power On, press one time to change the ODO, TRIP, V, A, E, TM. In power on, press in longer time to power off.
