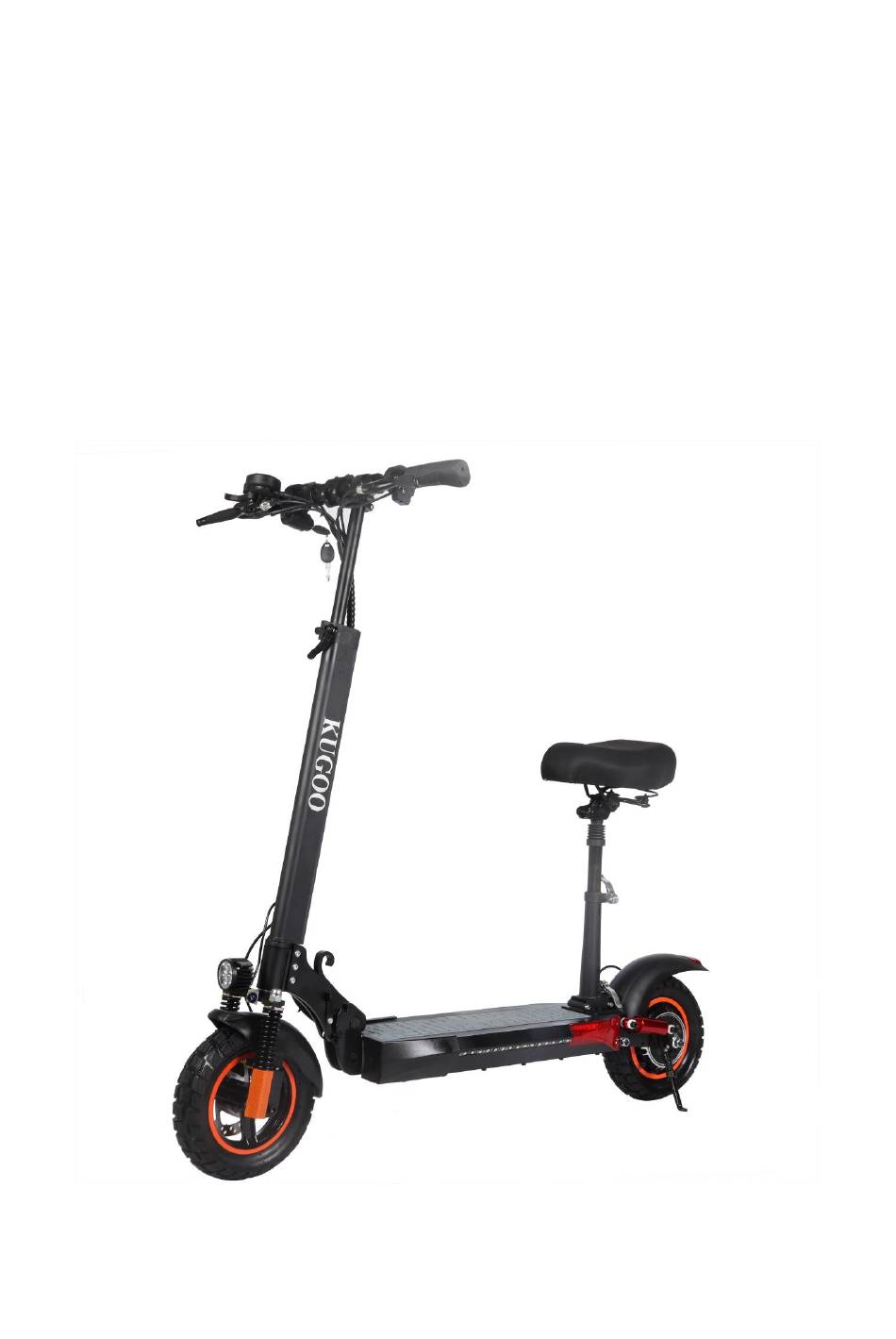

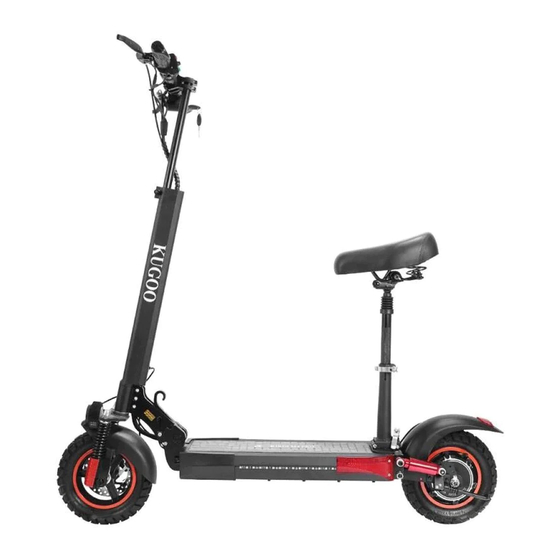

- Page 1 KUGOO M4 PRO ELECTRIC SCOOTER User’s Manual...
- Page 2 We are glad introduce to you our new product. When we developing this product, we were inspired by the world outlook that the vehicle shall be easy to use in everywhere and accessible to everyone. During three-year work, we paid special attention to details, in order to make driving more comfortable, and the folding and unfolding process simpler.
-
Page 3: Main Parts
Main Parts 01: Accelerator 12: Front Disc Plate 02: Meter 13: Front Tire 03: Rear Brake Control Bar 14: Seat Bag 04: Key of Electric Lock 15: Seat Bag Folding Plug 05: Height Adjust Lock 16: Seat Height Adjust Lock 06: Folding Plug 17: Taillight 07: Headlight with Horn... - Page 4 Assembly the Electric Scooter Products' List 1/ Electric Scooter 5/ EU Charging Plug 2/ Seat Bag 6/ 110-240V Adopter 3/ Valve Extension Cable 7/ Seat Support Rod 4/ UK Charging Plug 8/ Simple Tools...
- Page 5 Expend the Electric Scooter...
- Page 6 Checking the Function of the Scooter 01: Driving Light Switch 07: Model Button 02: Turning Light Switch 08: Front Brake Controler Bar 03: Horn Switch 09: Volt Display 04: Rear Brake Controler Bar 10: Power Lock 05: Accelerator 11: Power Lock Key 06: Meter Power Button Control before Operating 1.
- Page 7 Safety Follow our operating tips to avoid unwanted damage and consequences. Recommendations Make sure that driving an electric scooter does not contradict local traffic rules. Avoid driving in poor visibility. Do not perform various tricks on an electric scooter. ...
-
Page 8: Battery And Charger
Battery and Charger Battery DO NOT turn on the engine while recharging. The charge indicator shows only two stages (discharged / charged). Do not leave a fully charged battery for a long time (more than two months). The battery can be discharged while driving, braking, the headlight on. DO NOT use the battery: ... - Page 9 Display Charging Level Basic Signs: ODO: total mileage TRIP: Riding mileage V：Pressure signal TIME: Riding Time Error1: Engine error Error2: Speed lever error Error3: Control panel error Error4: Brake Mistake Error5: High Pressure Error6: No data on counter Error7: NO data on control panel NON: Start to move by feet Speed ZERO: Start to move only by speed...
- Page 10 Recommendations Recommended tire pressure: Make sure the tire pressure is at the recommended level: 20-25 kg per SQCM. Recommended equipment: helmet Highly recommend you wear a safety helmet when driving an electric scooter, as in most driving incidents, major injuries occur on the head. Read the instructions on how to wear a helmet properly before use.
-
Page 11: Maintenance
Control Safe driving For safe driving, you should first be very familiar with the product, select a suitable open place for riding. Drive carefully, reduce speed before cornering, and brake slowly when speed decreases. Start of movement Put one foot next to the electric scooter; the other foot on the deck closer to the helm. - Page 12 Characteristics Model: KUGOO M4 PRO (KIRIN M4 PRO) Body: Aluminium alloy Motor: 48V 500W single stage Battery: 48V 13Amp Lithium Adapter: Incoming 100-240 V, Outgoing 54.6 V 2A Brakes: Mechanical disc brake Tires: 80/65-6 Pneumatic dirt tires Lights: Front LED headlight, turn signals and taillight Max.
