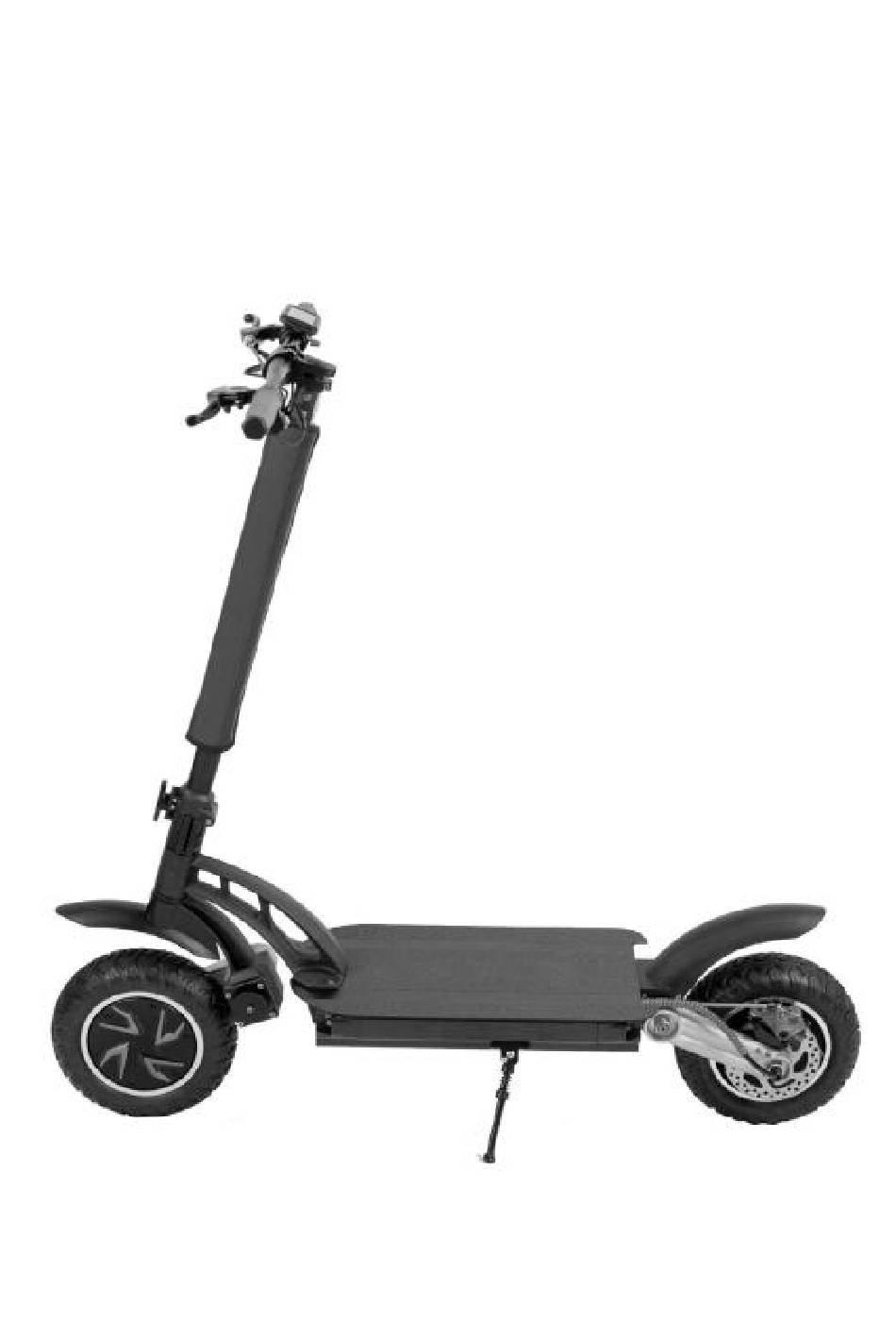

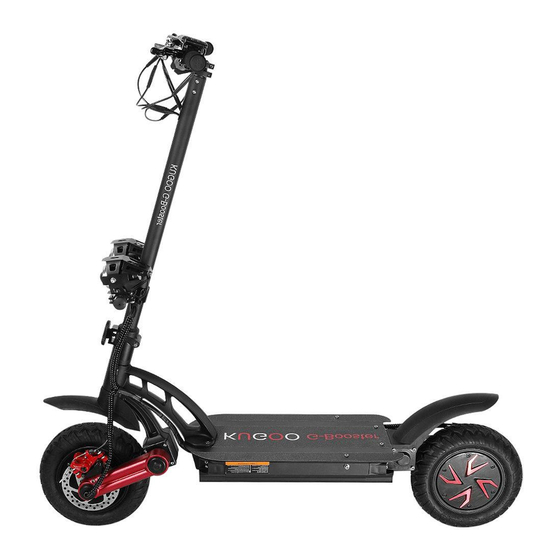

- Page 1 User Manual for Electric Scooter...
-
Page 2: Read Me First
Read Me First Dear user, Thanks purchasing this electric scooter. This electric scooter environmentally-friendly high-tech product as well as an ideal means of transport that features excellent shock absorption, streamlined appearance, portability and flexibility, good riding comfortability, high safety and reliability. For better understanding of the characteristics, technical parameters, correct use and maintenance, precautions and safe-sale services of this scooter, see to it that you read this user manual carefully before using it. -
Page 3: Table Of Contents
Content 1.Read Me First 2.Content ---------------------------------------------------------------------------------------01 3.Check the Items -----------------------------------------------------------------------------02 4.Structural Diagram --------------------------------------------------------------------------03 5.Improper Use Cases --------------------------------------------------------------------04~05 6.Legal Statement -------------------------------------------------------------------------06~08 7.Dashboard Instructions ---------------------------------------------------------------------09 8.Parameters ------------------------------------------------------------------------------------10 9.How to Use and Pre cautions ---------------------------------------------------------10~12 10.Troubleshooting ----------------------------------------------------------------------------13 11.Overall Diagram ---------------------------------------------------------------------------14 12.After-sale Services ------------------------------------------------------------------------15 13.Warranty Card ------------------------------------------------------------------------------16... -
Page 4: Check The Items
Check the Items User Manual for Electric Scooter Electric scooter User manual & warranty card Charger... -
Page 5: Structural Diagram
Structural Diagram ③Main tube ⑤Front fender ①Handle ②Brake ④Folding handle mechanism ⑧Disc brake ⑨Rear damper ⑥Rear ⑦Rear fender drive motor... -
Page 6: Improper Use Cases
Improper Use Cases Watch out for overhead obstacles, such DO NOT pass irregular surfaces at a as the door frame or the elevator. high speed. DO NOT ride on slopes larger than DO NOT accelerate while riding 20for extended periods of time. downhill. - Page 7 DO NOT ride in the rain Avoid obstacles while riding DO NOT ride with a single hand or foot DO NOT ride on motor way DO NOT rotate the handle violently DO NOT ride in water deeper than 2cm while riding at a high speed DO NOT ride with both hands leaving DO NOT carry passenger(s) the handle...
-
Page 8: Legal Statement
Legal Statement As you have been acquainted with this scooter with more riding skills, please: 1. Read this user manual carefully before using it for practice. 2. Those who haven't read this user manual carefully in advance are not allowed to use this scooter. - Page 9 18. Scooter's braking performance (including other vehicles on the same road) can significantly degrade along with tire friction in rainy days, which makes it more difficult to control and thus lead to control failure. To ensure safe riding during rainy days, please ride at a lower speed than usual and brake in advance.
- Page 10 38. This scooter cannot be used as a medical equipment or an auxiliary medical means. As a result, it is required that you are physically qualified to operate this scooter alone without the assistance from anybody else. 39. DO NOT use your scooter to go upstairs/downstairs, ride it into the elevator or cross the revolving door.
-
Page 11: Dashboard Instructions
Dashboard Instructions Batter level indication There is a five-bar batter level indicator in the dashboard. Battery level will be indicated by the five bars that are on/off from left to right, respectively. Five bars means battery level lies between 100%-85%, four bars means battery level lies between 85%-70%,and so forth. -
Page 12: Parameters
Parameters Specifications Content Note Dead-weight 24.5kg Standard configuration single-motor/29.3kg without package and double-motor accessories. Max speed 55km/h Trip distance ~40km single-motor, 80km Measured when the double-motor scooter that is fully charged runs on a flat road at an average speed of 20km/h with a load of 75kg. -
Page 13: How To Use And Precautions
How to Use and Precautions (1) Safe use 1. In the benefit of you and the others, please read this user manual carefully before using the scooter. DO NOT use it until you have adequate knowledge about its performance. DO NOT lend it to whomever is unfamiliar with the operation of this scooter. - Page 14 (5) Use of Charger and Precautions 1. Plug the charger's output terminal into charging hole on the battery unit, then connect the charger to AC 220V/50HZ power supply and make sure the charging indicator is on. To avoid damages to the controller, power the scooter off during charging time that can last 5-10 hours.
-
Page 15: Troubleshooting
Troubleshooting Symptom Reason Solution 1. Low battery voltage； 1. Have the battery fully 2. Loose connection in the charged； Speed regulating handle speed regulating handle； 2. Re-plug and clamp the fault malfunctions or speed 3. The spring in the speed part;... -
Page 16: Overall Diagram
2. Battery cable disconnection; for a new one. 3. Charger failure Notes 1. Faults listed above have been provided with corresponding solutions. In case the faults cannot be solved following those solutions, please contact our sales department or have it repaired in our after-sale service department. -
Page 17: After-Sale Services
After-sale Services Thanks for purchasing this electric scooter. To protect your lawful rights and identify mutual rights and obligations between you and us during after-sale services and maintenance, please read this warranty statement and keep your warranty card properly. You will enjoy the after-sale services provided by our designated after-sale service department by the warranty card and purchase invoice. -
Page 18: Warranty Card
2. Any scooter beyond the warranty period shall go through periodical maintenance once every three months in our local after-sale service center; we assume no responsibility for any problem in the event that you fail to maintain, register or record your scooter periodically.
