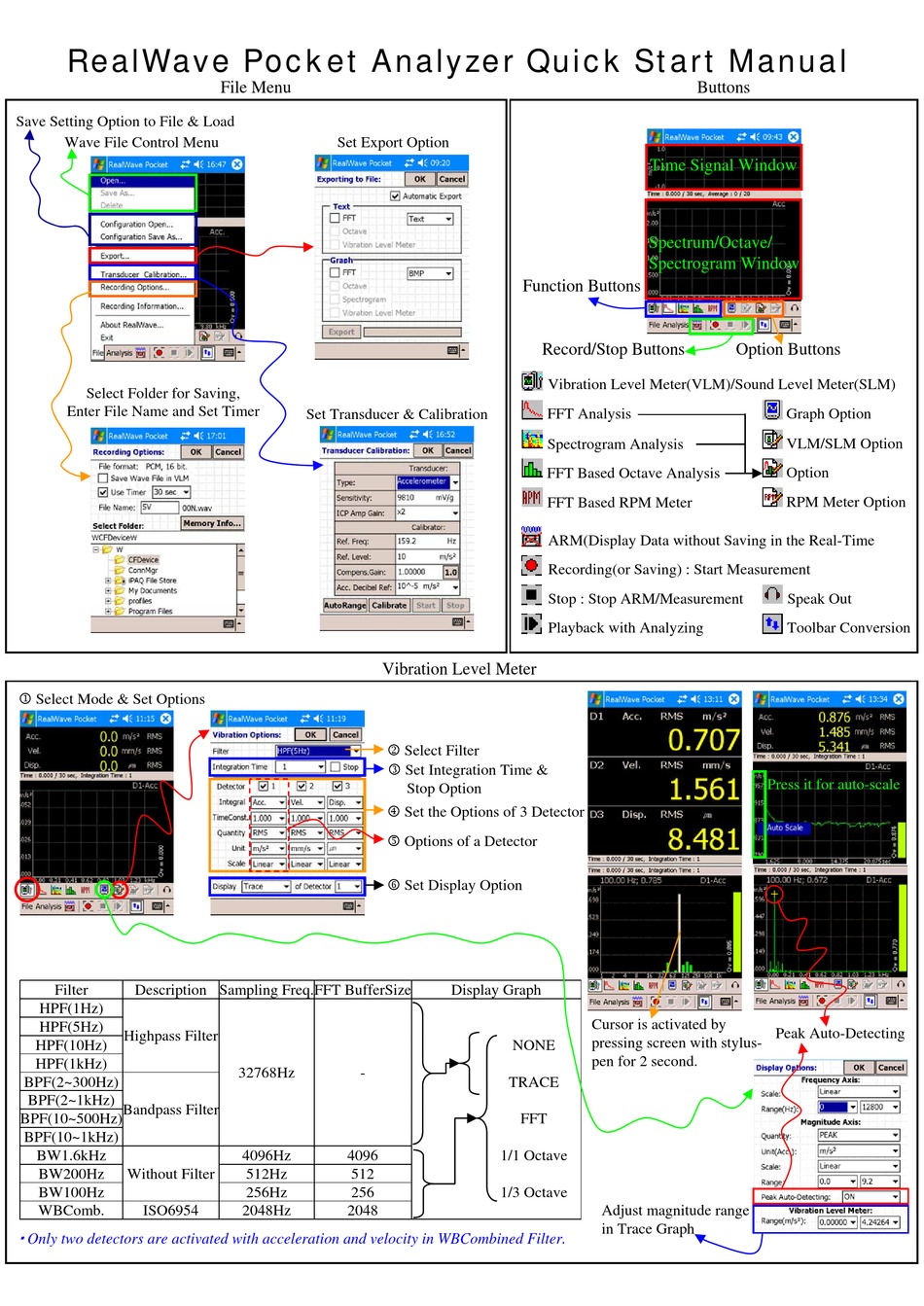

Roga PA201 Quick Start Manual

RealWave Pocket Analyzer Quick Start Manual
Save Setting Option to File & Load

Wave File Control Menu

Select Folder for Saving,
Enter File Name and Set Timer
1 Select Mode & Set Options
Filter Description
HPF(1Hz)
HPF(5Hz)
Highpass Filter
HPF(10Hz)
HPF(1kHz)
BPF(2~300Hz)
BPF(2~1kHz)
Bandpass Filter
BPF(10~500Hz)
BPF(10~1kHz)
BW1.6kHz
BW200Hz Without Filter
BW100Hz
WBComb. ISO6954
Only two detectors are activated with acceleration and velocity in WBCombined Filter.

File Menu

Set Export Option
Set Transducer & Calibration

Vibration Level Meter

2 Select Filter
3 Set Integration Time &
4 Set the Options of 3 Detector
5 Options of a Detector
6 Set Display Option
Sampling Freq. FFT BufferSize
32768Hz -
4096Hz 4096
512Hz 512
256Hz 256
2048Hz 2048

Function Buttons

Record/Stop Buttons

Vibration Level Meter(VLM)/Sound Level Meter(SLM)
Fft Analysis
Spectrogram Analysis

FFT Based Octave Analysis

Fft Based Rpm Meter
ARM(Display Data without Saving in the Real-Time
Recording(or Saving) : Start Measurement

Stop : Stop ARM/Measurement

Playback with Analyzing
Stop Option
Display Graph
NONE
TRACE
FFT
1/1 Octave
1/3 Octave

Buttons

Time Signal Window
Spectrum/Octave/
Spectrogram Window
Option Buttons
Cursor is activated by
pressing screen with stylus-
pen for 2 second.
Adjust magnitude range
in Trace Graph
Graph Option
VLM/SLM Option
Option
RPM Meter Option
Speak Out
Toolbar Conversion
Press it for auto-scale
Peak Auto-Detecting
