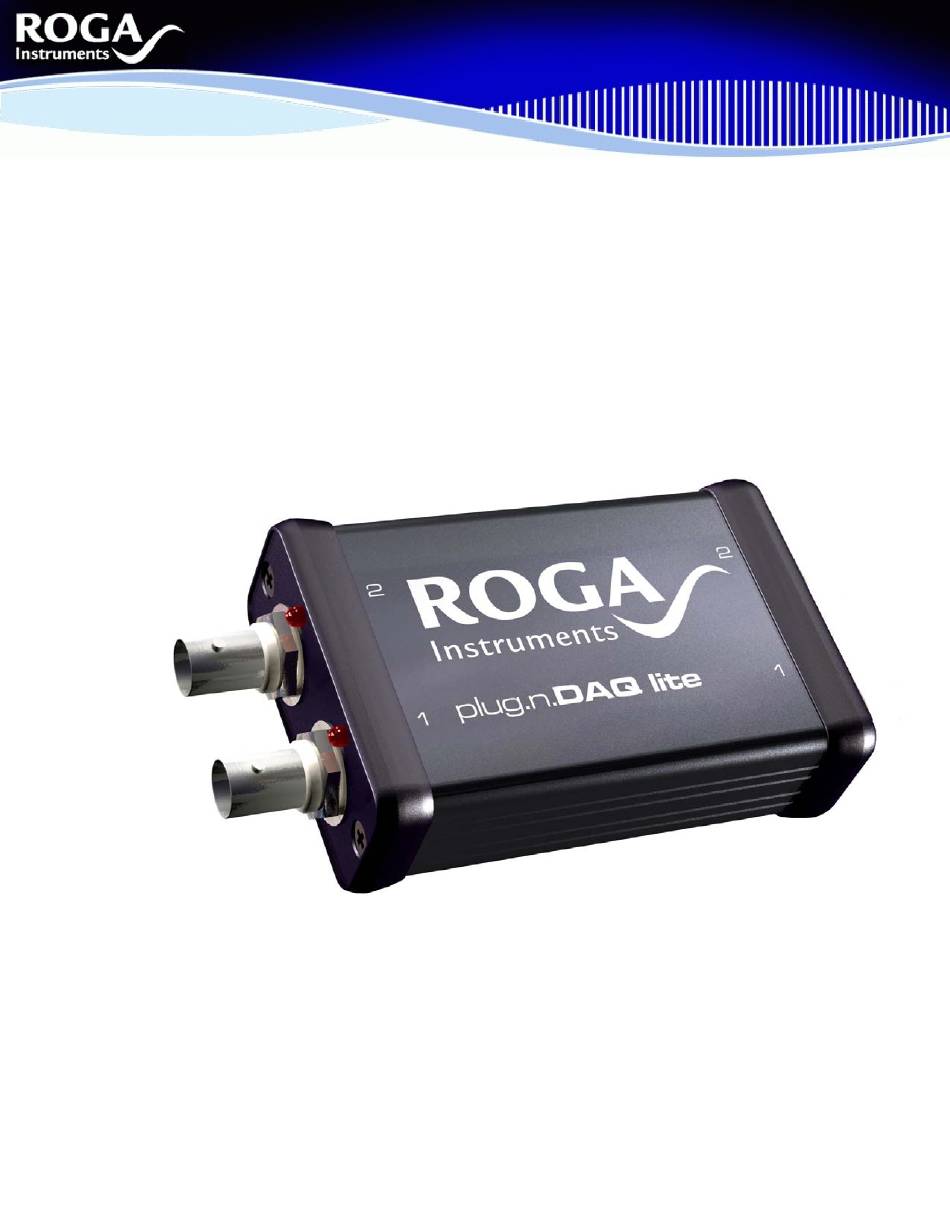

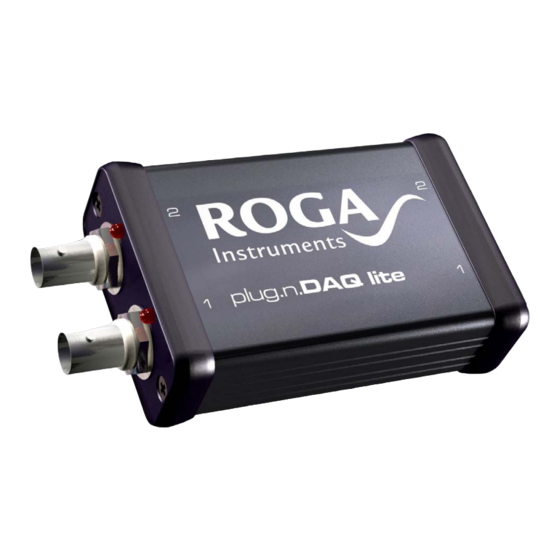

- Page 1 Plug.n.DAQ Lite IEPE Sound Card Analyzer & Recorder Plug.n.DAQ Lite Rev. 1.1 - 12.2011 1 & 2 channel IEPE sound card version...
- Page 2 2.1 Connecting hardware 2.1.1 PC connection: Use the supplied USB-cable to connect the Plug.n.DAQ Lite to an available USB port on your PC. 2.1.2 Analog Input Connect your signal or sensor to the analog inputs (in 1 and in 2) using the optional BNC cable Plug.n.DAQ Lite...
- Page 3 3.3 Setup & Sensor supply As first make sure that the Plug.n.DAQ Lite is enabled for two channel mode in the sound card properties: Plug.n.DAQ Lite Rev. 1.1 - 12.2011...
- Page 4 This equipment does not require scheduled or preventive maintenance. If you handle it with care, it will be a reliable tool. Should your Plug.n.DAQ Lite require cleaning, use a damp cloth or mild cleaning fluid. Take care not to get any fluid in or around the connectors.
- Page 5 Plug.n.DAQ Lite IEPE Sound Card Analyzer & Recorder 6. Specifications (typical, fs=48kHz, f=1kHz,-3dBFS unless otherwise noted) Analog Inputs Impedance : 1 Mega ohm, single ended BNC IEPE/ICP* sensor supply : 24V/4mA Input ranges : +/- 5V (other ranges RFQ) Mono Version : “left ch.
- Page 6 Plug.n.DAQ Lite IEPE Sound Card Analyzer & Recorder Getting started with DEWESoft FFT Analyser For Windows Vista users: Before you setup the DEWESoft program under Windows vista, please make sure that the at the control panel; user account the “User Account is turned off”.
- Page 7 Plug.n.DAQ Lite IEPE Sound Card Analyzer & Recorder At the CD ROM media you will find the DEWESoft6.xx_Fullinstaller.exe Please double click to this file, and select “DEWESoft for Demo mode” than click next. Plug.n.DAQ Lite Rev. 1.1 - 12.2011 1 & 2 channel IEPE sound card version...
- Page 8 In the next step it is necessary to define the DAQ device in the analyser software by using “System” and “Hardware Setup” Uncheck all “Dewetron Modules” and select the Audio card at the Analog device pop up window. In case of connected Plug.n.DAQ Lite at the PC, you can select the Plug.n.DAQ Lite. Plug.n.DAQ Lite Rev. 1.1 - 12.2011...
- Page 9 Plug.n.DAQ Lite IEPE Sound Card Analyzer & Recorder The “Registration status DEMO” does not have any restrictions for further measurements and is timely unlimited. In the next step please click to the “Measure” icon; here you can set the sampling rate, and change the engineering units >...
- Page 10 Plug.n.DAQ Lite IEPE Sound Card Analyzer & Recorder Plug.n.DAQ Lite Rev. 1.1 - 12.2011 1 & 2 channel IEPE sound card version...
- Page 11 Plug.n.DAQ Lite IEPE Sound Card Analyzer & Recorder By using the “Overview” button it is possible to design many analysis windows. Plug.n.DAQ Lite Rev. 1.1 - 12.2011 1 & 2 channel IEPE sound card version...
- Page 12 Plug.n.DAQ Lite IEPE Sound Card Analyzer & Recorder If you have any further questions, please refer to the online help DEWESoft manual, or contact: ROGA-Instruments Sales Office for Measurement Solutions Steinkopfweg 7; D-55425 Waldalgesheim Germany Phone: +49 (0) 6721 - 9844 - 54 Fax: +49 (0) 6721 - 9844 - 74 E-Mail: info@roga-instruments.com...
