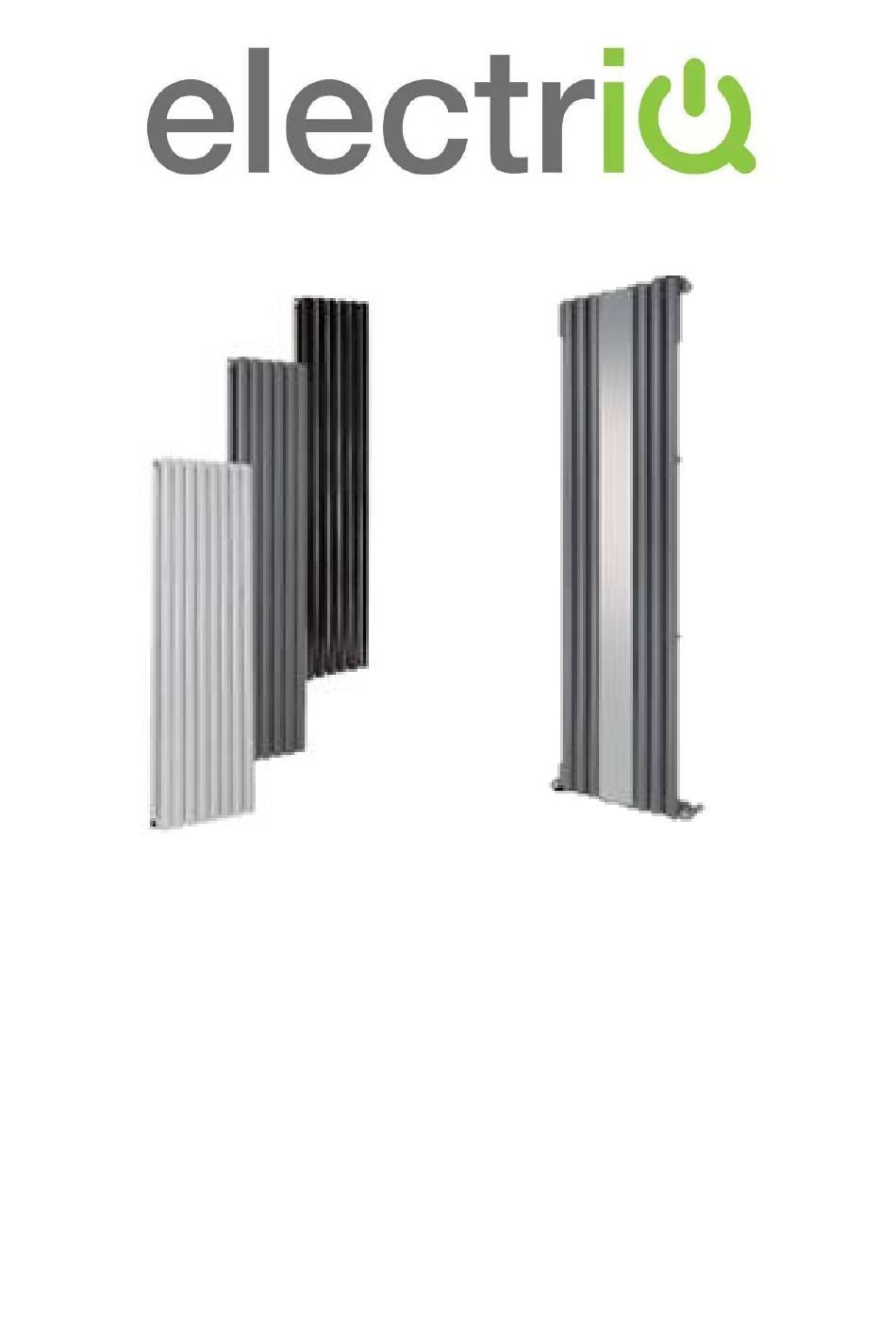

- Page 1 USER MANUAL ELECTRIC DESIGNER RADIATOR WITH SMART APP HS10-600-0.6DGW VD6-1600-1.2LGW VS6-1600-1LGW HS10-600-0.6WW VD6-1600-1.2WW VS6-1600-1WW HS10-600-0.6LGW VD4-1600-1.2WW VS6-1600-1DGW HS17-600-1.2DGW VD4-1600-1.2LGW VS4-1600-1WW HS17-600-1.2WW VD6-1600-1.2DGW VS4-1600-1DGW HS17-600-1.2LGW VD4-1600-1.2DGW VSM6-1800-1.2LGW HC18-400-1.2WW VSM6-1800-1.2DGW HC26-400-1.2WW VSM6-1800-1.2WW VS4-1600-1LGW Thank you for choosing electriQ Please read this user manual before using this heater and keep it safe for future reference.
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS PARTS SUPPLIED INSTALLING WITHIN A BATHROOM INSTALLATION OF HEATING ELEMENT WALL MOUNTING OPERATION SETTING THE TIME PROGRAMMING THE TIMER CONNECTING YOUR APPLIANCE TO WI-FI REGISTER THE APP CREATING ROOMS QUICK CONNECTION AP MODE CONNECTION USING THE APP HOME SCREEN DEVICE SCREEN SMART SCENES... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS IMPORTANT: Carefully read the instructions before operating the unit. • This appliance is for indoor use only. • Rating: This unit must be only connected to a 220-240 V / 50 Hz earthed outlet. • Installation must be in accordance with the regulations of the country where the unit is used. •... -
Page 4: Parts Supplied
• Do not use the appliance for anything other than its intended use. It is designed for domestic indoor use only. • There may be a trace of odour during the first few minutes of initial use, or after a period of storage. -
Page 5: Installing Within A Bathroom
INSTALLING WITHIN A BATHROOM If the appliance is to be fitted within a bathroom, a good understanding of the zoning within bathrooms is required to ensure the unit is mounted in a safe position. The appliance is rated as IPX4 and should be installed outside of Zones 0 -2. We would advise when the unit is fitted within a bathroom, the plug is removed from the unit, and a suitable fused spur is installed in accordance with BS 7671. -
Page 6: Installation Of Heating Element
INSTALLATION OF HEATING ELEMENT IMPORTANT: Before drilling, ensure that no wires or pipelines are behind the wall to prevent damage. IMPORTANT: This heater is heavy. Two people are recommended for installation. First ensure that you have all the correct parts needed for installation of the heating element: •... - Page 7 Thread Page 7 of 26...
-
Page 8: Wall Mounting
WALL MOUNTING NOTE: Depending on your wall type alternative fixings may be required to secure the heater to your wall. Measure the distance between the two columns that you will be hanging your heater from on the top of the heater and the two ends on the bottom of the rail. Step Then measure the distance vertically between the top and bottom holes. -
Page 9: Operation
OPERATION Display: Displays the Power: Press once to turn the unit current time, temperature and function. Press again to turn the unit off. Increase: Use the increase button to increase the value of Press and hold for 10 seconds to the selected function. -
Page 10: Setting The Time
SETTING THE TIME When the unit is powered on, press the function button until the Timer image is displayed on screen. Then, press and hold the function button to set the time. Use the increase and decrease buttons to adjust the hour value between 0-23 hours. After you have set the hours, press the function button once to set the minutes. - Page 11 CONNECTING THE APPLIANCE TO WIFI DOWNLOAD THE APP TO YOUR PHONE Download the” TUYA SMART” app, from your chosen app store, using the QR codes below, or by searching for the app in your chosen store. ANDROID MODES AVAILABLE FOR SETUP It is recommended to use Bluetooth connection to connect your unit to Wi-Fi.
-
Page 12: Register The App
REGISTER THE APP 1. Press on the register button Read the Privacy policy and 3. Enter your email address or at the bottom of the screen. press the Agree Button. phone number and press continue to register. 4. A verification code will be 5. -
Page 13: Creating Rooms
SETTING UP YOUR HOME WITHIN THE APP TUYA is designed so it can work with a large number of compatible smart devices within your home. It can also be set up to work with multiple devices within different houses as such during the setup process, the app requires that different areas are created and named to allow easy management of all your devices. - Page 14 CONNECTING USING THE BLUETOOTH CONNECTION METHOD Before initiating the connection, make sure your mobile phone has Bluetooth enabled and that the unit is plugged in. Also ensure your phone is connected to the WiFi network. (We advise turning mobile data off during setup) 1.
- Page 15 CONNECTING USING AP MODE (ALTERNATIVE METHOD) Before initiating the connection, make sure the unit is in standby mode, with AP mode activated. If not follow the instructions for changing the WiFi connection mode. Also ensure your phone is connected to the WiFi network. (We advise turning mobile data off during setup) 1.
- Page 16 CONTROLLING YOUR APPLIANCE THROUGH THE APP THE HOME SCREEN Each device has its own entry on the home screen to allow the user to either quickly turn the unit on or off, or to enter the device screen to make other changes. Voice Control: Press to Add Device: Add a device give verbal instructions for...
-
Page 17: Home Screen
DEVICE SCREEN The device screen is the main control screen for the heater, providing access to the controls to amend the functions and settings. Device Profile: Use to Device Name Back: Returns to the change the name of the Home Screen heater Increase Desired Desired... -
Page 18: Smart Scenes
SMART SCENES Smart Scenes is a powerful tool providing the option to customize the operation of the air heater based both on conditions within the room and outside influences. This gives the user the option of specifying much more intelligent actions. These are split into two categories Scene and Automation. SCENE Scene allows for a one touch button to be added to the Home Screen. -
Page 19: Automation
AUTOMATION Automation allows an automatic action to be set up for the device. This can be triggered by the Time, and a range of other influences, depending what other TUYA enabled devices you have on the network. 1. Press on the Scene tab at 2. -
Page 20: Connection Troubleshooting
PROFILE TAB The profile tab gives you the option to edit both your detail, and use the added features of the unit. HOME MANAGEMENT Home Management proves options for managing your TUYA account, giving options such as adding a home, adding and removing rooms, and sharing devices with family. -
Page 21: Maintenance
MAINTENANCE CLEANING AND STORAGE ATTENTION: Please shut off the unit and unplug from the mains before cleaning or performing any maintenance. Cleaning the surface Clean the heater with a duster or a soft wet cloth. Do not use chemical solvents (such as benzene, alcohol or gasoline) as they may cause irreversible damage. -
Page 22: Technical Data
TECHNICAL DATA MODEL Voltage Frequency Max power IP Rating HS10-600-0.6DGW HS10-600-0.6WW HS10-600-0.6LGW 220-240V 50Hz 600W IPX4 VSTR9-650-0.6WW VSTR9-650-0.6DGW VSTR9-650-0.6BSW VS6-1600-1LGW VS6-1600-1WW VS6-1600-1DGW 220-240V VS4-1600-1DGW 50Hz 1000W IPX4 VSTR12-1200-1DGW VS4-1600-1LGW VS4-1600-1WW VSM6-1800-1.2DGW VD4-1600-1.2DGW VD4-1600-1.2WW VD4-1600-1.2LGW VD6-1600-1.2DGW VD6-1600-1.2WW VD6-1600-1.2LGW 220-240V HC26-400-1.2WW 50Hz... -
Page 23: Support
electriQ UK SUPPORT www.electriQ.co.uk/support Please, for your own convenience, make these simple checks before calling the service line. If the unit still fails to operate call: 0330 390 3061 or complete the online form 1. Is the unit plugged into the mains? 2. -
Page 24: Product Fiche
PRODUCT FICHE HS10-600-0.6DGW HS10-600-0.6WW HS10-600-0.6LGW VSTR9-650-0.6WW VSTR9-650-0.6DGW VSTR9-650-0.6BSW Item Symbol Value Unit Item Unit Heat Output Type of heat input, for electric storage local space heaters only (select one) Nominal heat manual heat charge control, with output integrated thermostat Minimal heat... - Page 25 VS6-1600-1LGW VS6-1600-1WW VS6-1600-1DGW VS4-1600-1DGW VSTR12-1200-1DGW VS4-1600-1LGW VS4-1600-1WW Item Symbol Value Unit Item Unit Heat Output Type of heat input, for electric storage local space heaters only (select one) Nominal heat manual heat charge control, with integrated output thermostat Minimal heat manual heat charge control with room and/or output outdoor temperature feedback...
- Page 26 VSM6-1800-1.2DGW HC26-400-1.2WW HC18-400-1.2WW HS17-600-1.2DGW HS17-600-1.2LGW HS17-600-1.2WW VSTR32-1800-1.2WW VSM6-1800-1.2WW VSM6-1800-1.2LGW VD4-1600-1.2DGW VD4-1600-1.2WW VD4-1600-1.2LGW VD6-1600- 1.2DGW VD6-1600-1.2WW VD6-1600-1.2LGW Item Symbol Value Unit Item Unit Heat Output Type of heat input, for electric storage local space heaters only (select one) Nominal heat manual heat charge control, with integrated output thermostat Minimal heat...
