- Page 1 INSTALLATION SERIE CDV-L1 // CDV-1F MANUAL EDITION USER MANUAL REMOTE CONTROLLER Models: CDV-L1 CDV-1F...
- Page 2 Preface For correct installation and operation, please read all instructions carefully. Before reading the instructions, please be aware of the following items: (1) For the safe operation of this unit, please read and follow the instructions carefully. (2) During operation, total capacity of indoor units should not exceed the total capacity of outdoor units.
-
Page 3: Table Of Contents
1.3 Introduction of operation function ···································· 2 1.4 Introduction of special functions ······································ 6 1.5 Replacing batteries in remote controller and notes ·············· 7 2 Remote Controller CDV-L1 ··············································· 8 2.1 Preparation before operation ···········································9 2.2 Introduction of operation function ····································· 9 2.3 Introduction of special functions ······································14... -

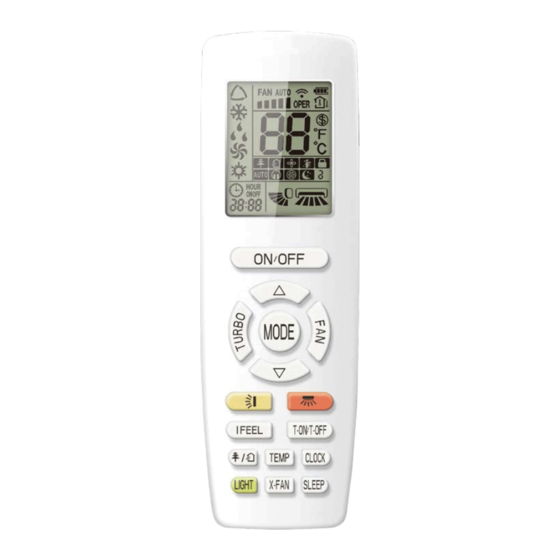

Page 4: Remote Controller Cdv-F1
User’s Manual of Remote Controller 1 Remote Controller CDV-F1 1.1 Button name and function introduction... -
Page 5: Preparation Before Operation
User’s Manual of Remote Controller Button name Function ON/OFF Turn on or turn off the unit TURBO Set turbo function MODE Set operation mode Set up&down swing status I FEEL Set I FEEL function Switch temperature displaying type on the unit’s display TEMP Set health function and air function LIGHT... - Page 6 User’s Manual of Remote Controller (2). Setting temperature In unit on status, press button to increase setting temperature and press button to decrease setting temperature. The range of temperature is from 16℃ to 30℃. Note: Under auto mode, manual adjustment of temperature is not needed. Adjusting fan speed (3).
- Page 7 User’s Manual of Remote Controller Setting turbo function (5). Under cool or heat mode, press TURBO button to set turbo function. When is displayed, turbo function is on. When is not displayed, turbo function is off. When turbo function is on, the unit operates in super high speed to achieve quick cooling or heating.
- Page 8 User’s Manual of Remote Controller killing the bacteria in the room. Setting air function (10). Press button until is displayed, then air function is turned on. Press button until is disappeared, then air function is turned off. When the indoor unit is connected with fresh air valve, air function setting can control the connection of fresh air valve, which can control the fresh air volume and improve the air quality inside the room.
-
Page 9: Introduction Of Special Functions
User’s Manual of Remote Controller ④ . Press TOFF button again to cancel timer and OFF is not displayed. Setting timer on Pressing TON button, “ON” is blinking and time displaying zone displays the ① . timer time of last setting. ②... -
Page 10: Replacing Batteries In Remote Controller And Notes
User’s Manual of Remote Controller In winter, absence function can keep the indoor ambient temperature above 0℃ to avoid freezing. Note: Absence function is only available in heating mode and it will be exited when switching mode or setting sleep function. 1.5 Replacing batteries in remote controller and notes Lift the cover along the direction of arrow (as shown in Fig 1①). -
Page 11: Remote Controller Cdv-L1
User’s Manual of Remote Controller 2 Remote Controller CDV-L1 Button name and function introduction Button name Function ON/OFF Turn on or turn off the unit Set fan speed ▲/▼ Set temperature and time MODE Set operation mode Set quiet function Set health function and air function Set left&right swing status... -
Page 12: Preparation Before Operation
User’s Manual of Remote Controller Set up&down swing status X-FAN Set X-FAN function TIMER ON Set timer on function TIMER OFF Set timer off function SAVE Set energy-saving function SLEEP Set sleep function LIGHT Set light function CLOCK Set clock of the system I FEEL Set I FEEL function Switch temperature displaying type on the unit’s display... - Page 13 User’s Manual of Remote Controller simultaneously, and then will blink for three times. Setting temperature (2). In unit on status, press ▲ button to increase set temperature and press ▼ button to decrease setting temperature. Note: Under auto mode and when absence function is on, temperature adjustment is invalid.
- Page 14 User’s Manual of Remote Controller In unit off status, press ▲ button and button to switch between simple swing mode and fixed-angle swing mode. on the remote controller will be blinking for 2 seconds during switching. Setting quiet function (5). In unit on status, press button to adjust quiet status in following sequence: : auto quiet function is on;...
- Page 15 User’s Manual of Remote Controller When the indoor unit is connected with fresh air valve, air function setting can control the connection of fresh air valve, which can control the fresh air volume and improve the air quality inside the room. Setting X-FAN function (8).
- Page 16 User’s Manual of Remote Controller zone displays the limiting value set in last time. Press ▲ or ▼ button to adjust the energy-saving limiting value to preset value. Pressing SAVE button again, energy-saving function is turned on. displayed while is not displayed. When energy-saving function is turned on, set temperature can only be adjusted within the energy-saving limiting value.
-
Page 17: Introduction Of Special Functions
User’s Manual of Remote Controller In unit on status, receiver light board or wired controller is defaulted to display set temperature. Press TEMP button to view indoor or outdoor ambient temperature. When is displayed, it means the displayed temperature is indoor ambient temperature. -
Page 18: Basic Operation Instructions
User’s Manual of Remote Controller Adjust set temperature to 30℃; Within 5 seconds, press ▼ button and then press ▲ button repeatedly for three times; After finishing setting, “UC” is displayed on receiver light board for 5 seconds and “MASTER” icon is displayed on wired controller. Switching temperature scale (5). - Page 19 User’s Manual of Remote Controller batteries. ③ . The operation of remote controller should be performed within its receiving range. ④ . The remote controller should be placed 1m away from the TV set or stereo sound sets. ⑤ . If the remote controller does not operate normally, please take the batteries out and reinsert them after 30 seconds.
