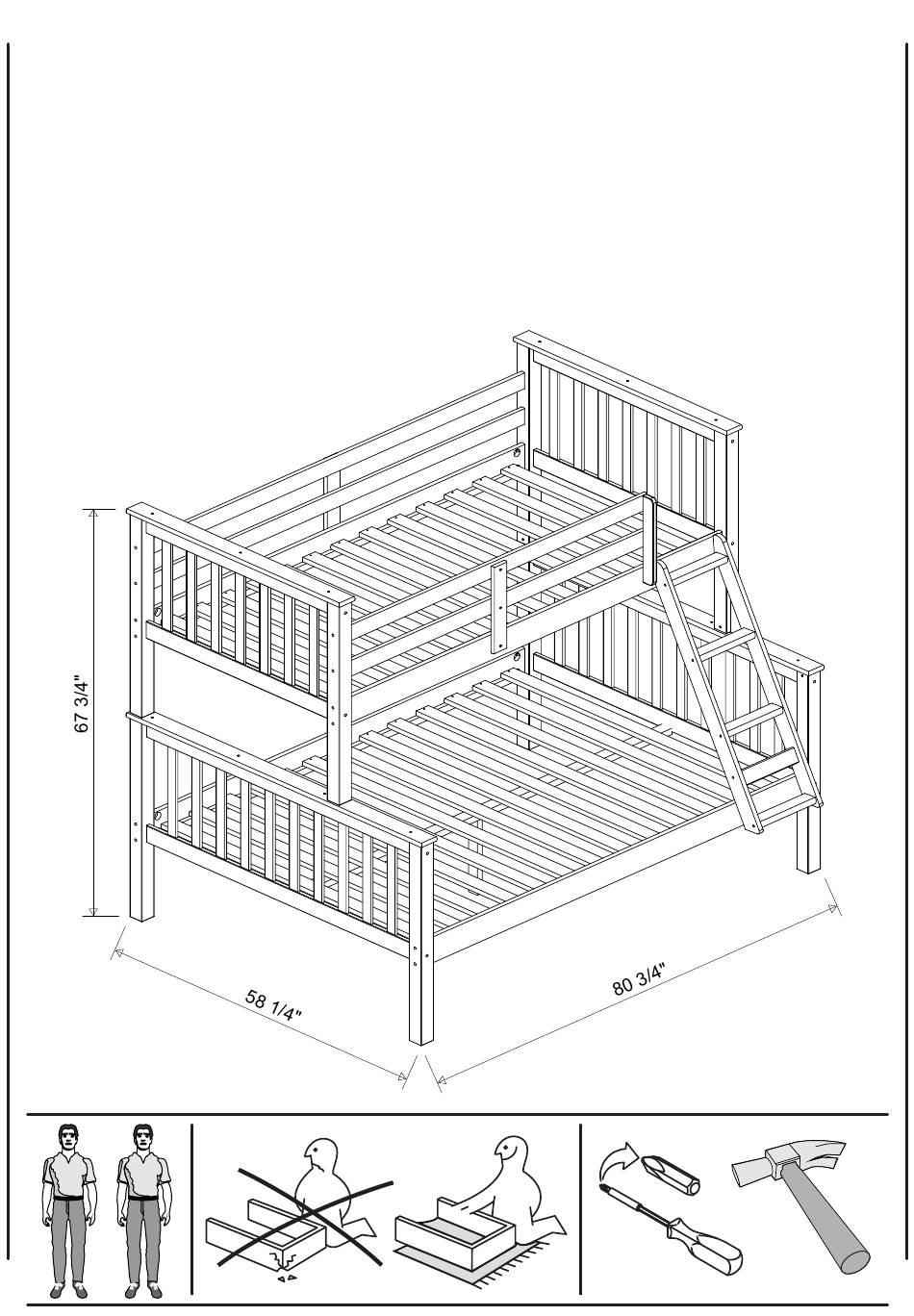

- Page 1 ASSEMBLY INSTRUCTIONS MISSION TWIN OVER FULL BUNK BED SKU 4141 - White SKU 4142 - Mahogany SKU 4145 - Gray SKU 4146 - Java July/2022...
- Page 2 READ THESE INSTRUCTIONS CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE THIS BED Safety Warnings and General Notes: • Follow the information on the warning appearing on the upper bunk bed structure and on the carton. Do not remove warning label from the bed. •...
- Page 3 PRE-ASSEMBLY PREPARATION • Please check the contents before assembling. A full checklist of parts is provided below. • If any parts are missing or damaged, please contact us at info@palaceimportsinc.com • Assemble on a flat, smooth surface on top of a blanket. •...
- Page 4 SCREWS ARE SHOWN IN ACTUAL SIZE 02 + 1 4,0x50 18 + 1 3,5x16 88 + 4 3,5x30 7,0x100 16 + 1 1/4" 7,0x50 1/4"x100 28 + 1 10x40 12x90 spacer block - Small Parts - WARNING: Not For Children Under 3 Years. CHOKING HAZARD...
- Page 5 11 5x 06 2x 07 2x 05 3x A2 A2 A2 - 4,0x50mm - 2x C3 - 10x40mm - 24x 02) 2x B1+G8 B1+G8 G8+B1 G8+B1 D11 - 2x A5 - 3,5x16 mm - 8x B1 - 7,0x100mm - 08x G8 - 4,0mm - 1x...
- Page 6 B12+G8 B12+G8 G8+B12 G8+B12 G8+B12 G8+B12 B5 - 1/4" - 8x B12 - 1/4"x100mm - 8x C8 - 12x90mm - 4x G8 - 4,0mm - 1x A5 - 3,5x16 mm - 4x A10 - 3,5x30mm - 08x...
- Page 7 A10 - 3,5x30mm - 26x G4 - 2x spacer block B1+G8 B1+G8 B1+G8 G8+B1 B1+G8 G8+B1 G8+B1 LABELS G8+B1 B1 - 7,0x100mm - 08x G8 - 4,0mm - 1x...
- Page 8 B1+G8 B12+G8 B12+G8 G8+B1 G8+B1 G8+B12 G8+B12 G8+B12 G8+B12 B5 - 1/4" - 8x B12 - 1/4"x100mm - 8x B1 - 7,0x100mm - 04x C3 - 10x40mm - 4x G8 - 4,0mm - 1x G4 - 2x A10 - 3,5x30mm - 32x spacer block...
- Page 9 G8+B8 G8+B8 G8+B8 G8+B1 G8+B1 B8 - 7,0x50mm - 3x G8 - 4,0mm - 1x B1 - 7,0x100mm - 02x A10 - 3,5x30mm - 12x...
- Page 10 B8+G8 B8+G8 B8+G8 B8+G8 B8+G8 G8+B8 G8+B8 G8+B8 G8+B8 G8+B8 B8 - 7,0x50mm - 10x G8 - 4,0mm - 1x D17 - 2x A10 - 3,5x30mm - 8x D18 - 2x...
- Page 11 A5 - 3,5x16 mm - 6x A10 - 3,5x30mm - 2x...
