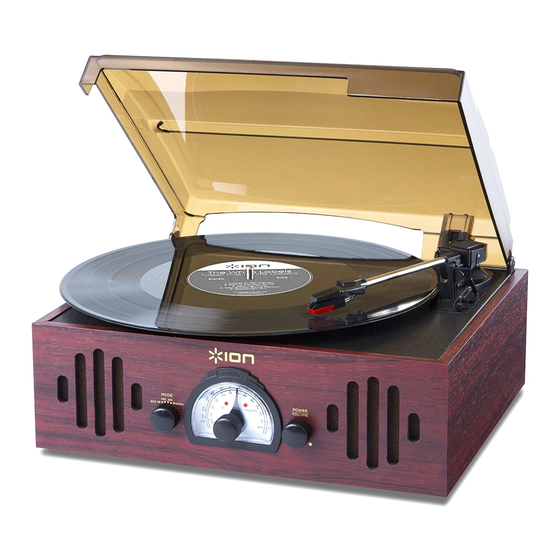

ION Trio LP Service Manual
  1. Manuals
  2. Brands
  3. ION Manuals
  4. Speakers
  5. Trio LP
  6. Service manual

ION Trio LP Service Manual

Hide thumbs Also See for Trio LP:

Advertisement

Quick Links

Download this manual
ION Audio
Service Manual
This document contains sensitive proprietary
information.
All recipients must have a current non-disclosure
agreement on file with ION Audio.
Do not make illegal copies of this document.
The information in this document contains privileged and confidential information. It is intended
only for the use of those authorized by ION Audio. If you are not the authorized, intended
recipient, you are hereby notified that any review, dissemination, distribution or duplication of
this document is strictly prohibited. If you are not authorized, please contact ION Audio and
destroy all copies of this document. You may contact ION Audio at support@ionaudio.com.
© Copyright ION Audio
Confidential
Trio LP
[iT75]
v1.0
2016.11.23
ATTENTION!
ION Audio Service Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Trio LP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ION Trio LP

Summary of Contents for ION Trio LP

  • Page 1 The information in this document contains privileged and confidential information. It is intended only for the use of those authorized by ION Audio. If you are not the authorized, intended recipient, you are hereby notified that any review, dissemination, distribution or duplication of this document is strictly prohibited.
  • Page 2 As the owner of the copyright to the Manual, ION Audio does not give you the right to copy the Manual, and you agree not to copy the Manual without the written authorization of ION Audio.
  • Page 3 REPAIR BY ANY PERSON OR ENTITY OTHER THAN AN AUTHORIZED ION AUDIO SERVICE CENTER WILL VOID THE ION AUDIO WARRANTY. PROVISION OF THIS MANUAL DOES NOT AUTHORIZE THE RECIPIENT TO...

  • Page 4: Safety Instructions

    The product is exposed to water or excessive moisture, c. The AC power supply plug or cord is damaged, d. The product shows an inappropriate change in performance or does not operate normally, or e. The enclosure of the product has been damaged. Confidential ION Audio Service Manual...

  • Page 5: Bill Of Materials (Bom)

    Bill of Materials (BOM) STOCK: 3010000335 INVENTORY NAME: Wooden Turntable Spec/Model: A161117022 VERSION: 10 DATE: 2016-11-21 TT14128,ION, PVC-A012 EU Level Part # Name Spec Unit Remark 2050100335 wooden turntable TT14128,ION,PVC-A012 1.00 TT14128 MAIN-V2.0 single sided 2010100685 Main PCB 1.00 baord, half finish TT14128-MAIN-V2.0...
  • Page 6 R10 R11 R24 R22 R25 R26 R27 R31 28 +++ 1010220007 SMD Resistor SMT0603,100K,±5% 15.00 R440 R441 R442 R443 R445 R906 R908 29 +++ 1010220025 SMD Resistor SMT0603,220K,±5% 1.00 R907 30 +++ 1010220017 SMD Resistor SMT0603,1M,±5% 3.00 R28 R33 R446 31 +++ 1010303033 MLCC...
  • Page 7 plug in electrolytic PLUG IN 5×11MM,47uF/16V,+80%- C14 C19 C83 C87 64 +++ 1010306034 5.00 capacitor C444 plug in electrolytic PLUG IN C10 C16 C51 C52 65 +++ 1010306028 8.00 capacitor 5×11MM,100uF/16V,+80%-20% C53 C69 C70 C71 plug in electrolytic PLUG IN 66 +++ 1010306045 1.00 C21...
  • Page 8 TT14128 radio PCBA, signle board, 93 ++ 2010100574 LED2 board 1.00 half finihs JW-210BPN1 LED2 6.2×7.8×1.6MM 94 +++ 1010110053 PCB board 1.00 94V0 single board From main 95 +++ 1010403016 insertion LED plug in 2×3×4MM white and yellow. PCS 1.00 PCBACN12 To LED2 UL1007 28# 2P1H P=2.0MM 96 +++...
  • Page 9 126 +++ 2020100049 middle panel JW-20 ABS black color 1.00 127 +++ 2020500078 platter Ø198.5 ABS black 1.00 switch protective 128 +++ 2020500483 JW-20 ABS black 1.00 film 129 +++ 2020500405 1.5 inch platter JW-20 ABS black 1.00 130 +++ 2020500406 tonearm lift level JW-20 ABS black...
  • Page 10 switch protective 157 +++ 1020100228 screw 3×8BA 2.00 film/PCB 158 +++ 1020100302 wires 2.6×8BA 1.00 switch protective film 159 +++ 1020100026 screw 2.3×5PA 2.00 tonearm REV 160 +++ 1020100301 wires 3×16PA YA 8 1.00 switch spring fix the switch pad on 161 +++ 1020100036 screw...
  • Page 11 TT14128 AM:530-1620khz FM:87- 183 ++ 1051800160 Dial scale 1.00 108MHz 88×62MM black in white 26# 4P1H P=2.5MM 184 ++ 1011702606 wires 1.00 SPEAKER L=100×2/220×2MM 185 ++ 2020500349 Volume Knob JW-210BP ABS 2.00 black 186 ++ 2020500353 dial rear panel JW-210BP ABS 1.00 functionl knob 187 ++...
  • Page 12 2060100335 PACKAGE ,TT14128,ION, PVC-A012 1.00 OUTER Ø198×INNER Ø7×1.1MM 216 ++ 1051700001 Slipmat 1.00 Black , with 3mm glue ION 210×140MM cooper cover 217 ++ 1050600249 Safety manual 1.00 128g, inner page 80g, 24p V15.0 ION,TT14128,350G +A3++ 218 ++ 1050300248 Giftbox 1.00...
  • Page 13 ANT2 AM ANT VDD3V3 收音电路 ERP2电路 FMANT1 FM ANT Q901 10uF AO3401 D301 KT0932 24pF AMINN RFVDD R906 100K AMINP AVDD U902 HT7533 RFINP STALP 32.768KHz R448 C901 RFGNDE XTALN 24pF R905 DVSS AVSS 10uF TU_L U901 Z4D1 C902 DVDD LOUT RFGND 47UF...
  • Page 14 PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn...
  • Page 15 PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn...
  • Page 16 iT75 Packing Diagram PE Bag Date Label Picture 1: Put the rating Rating Label Bottom View of the Giftbox CARB Label label,CARB label,SN Label SN label & date label on the back. 220-240V~ 50/60Hz 8W then put the IT75 in a PE Back bag separately.

This manual is also suitable for:

It75
