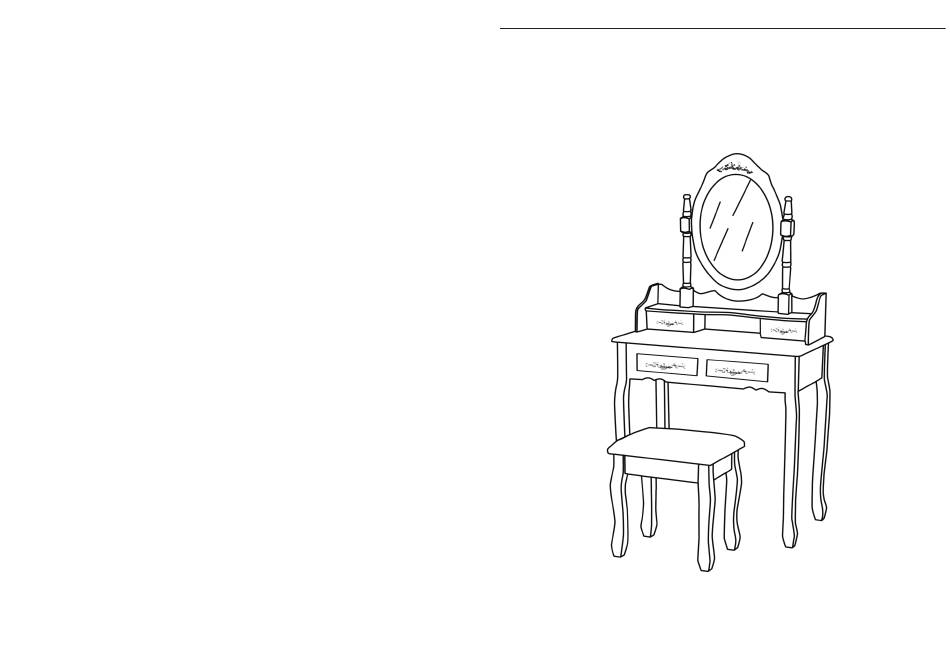

- Page 1 User Manual...
- Page 2 16PCS 2PCS 18PCS PRODUCT ASSEMBLY Technical Specifications Brand JAXPETY Check the package contents before getting started ! Size 750X400X1430mm STEP 1 330LBS weight capacity USE SCREWS(A)TO ATTACH THE TABLE BODY(11)TO THE TABLE LEGS(7).
- Page 3 PRODUCT ASSEMBLY PRODUCT ASSEMBLY STEP 2 STEP 4 USE SCREWS C TO CONNECT THE TABLE BODY(11)AND THE THIRD USE SCREWS(C)TO CONNECT BOARD(3)BOARD(4)AND BOARD(10)TOGETHER. STEP OF THE ASSEMBLED PARTS. C ×2 C×3 C×3 C ×2 C ×2 STEP 3 STEP 5 USE SCREWS B TO CONNECT MIRROR FIXTURE(2)TO MIRROR(1).
- Page 4 PRODUCT ASSEMBLY PRODUCT ASSEMBLY STEP 8 STEP 6 PLEASE THE SMALL DRAWER IN THE POSITION SHOWN AND ATTACH IT TO THE ASSEMBLED PART IN STEP 5 WITH THE SCREW(C). C ×2 STEP 7 USE SCREWS(A)TO CONNECT STOOL LEGS AND STOOL. Do not screw all the screws when installing the table legs and stool legs.
