- Page 1 Instruction Manual 7002943 Version 2...
-
Page 2: Table Of Contents
CONTENTS IMPORTANT SUPPLEMENTARY SAFETY INFORMATION GENERAL DESCRIPTION BEFORE USE SAFETY Warning Operator Safety Electrical Installation Environmental Conditions Operator Maintenance INSTALLATION Set-up Power Mechanical OPERATION SAFETY, REPAIR AND TECHNICAL SUPPORT TECHNICAL SPECIFICATION DECLARATION OF CONFORMITY... -
Page 3: Important Supplementary Safety Information
IMPORTANT SUPPLEMENTARY SAFETY INFORMATION Introduction The FSB-200-TC Temperature Controller is designed as an alternative to the energy control provided in the laboratory fluidised baths. It is supplied with a Chromal Alumel Thermocouple which fits into the sheath built into the fluidised bath. Symbols Defined WARNING EARTH... -
Page 4: General Description

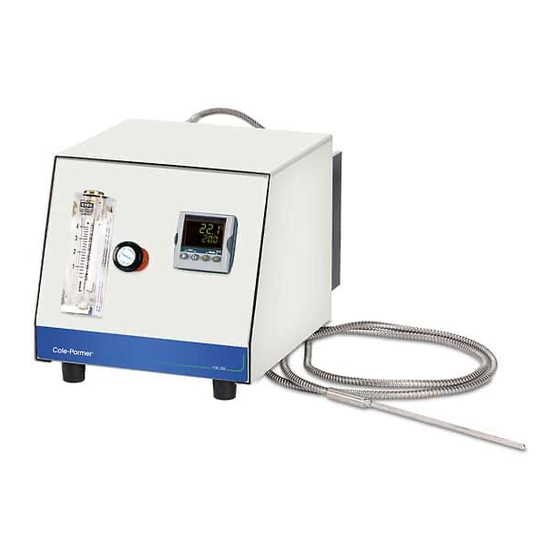

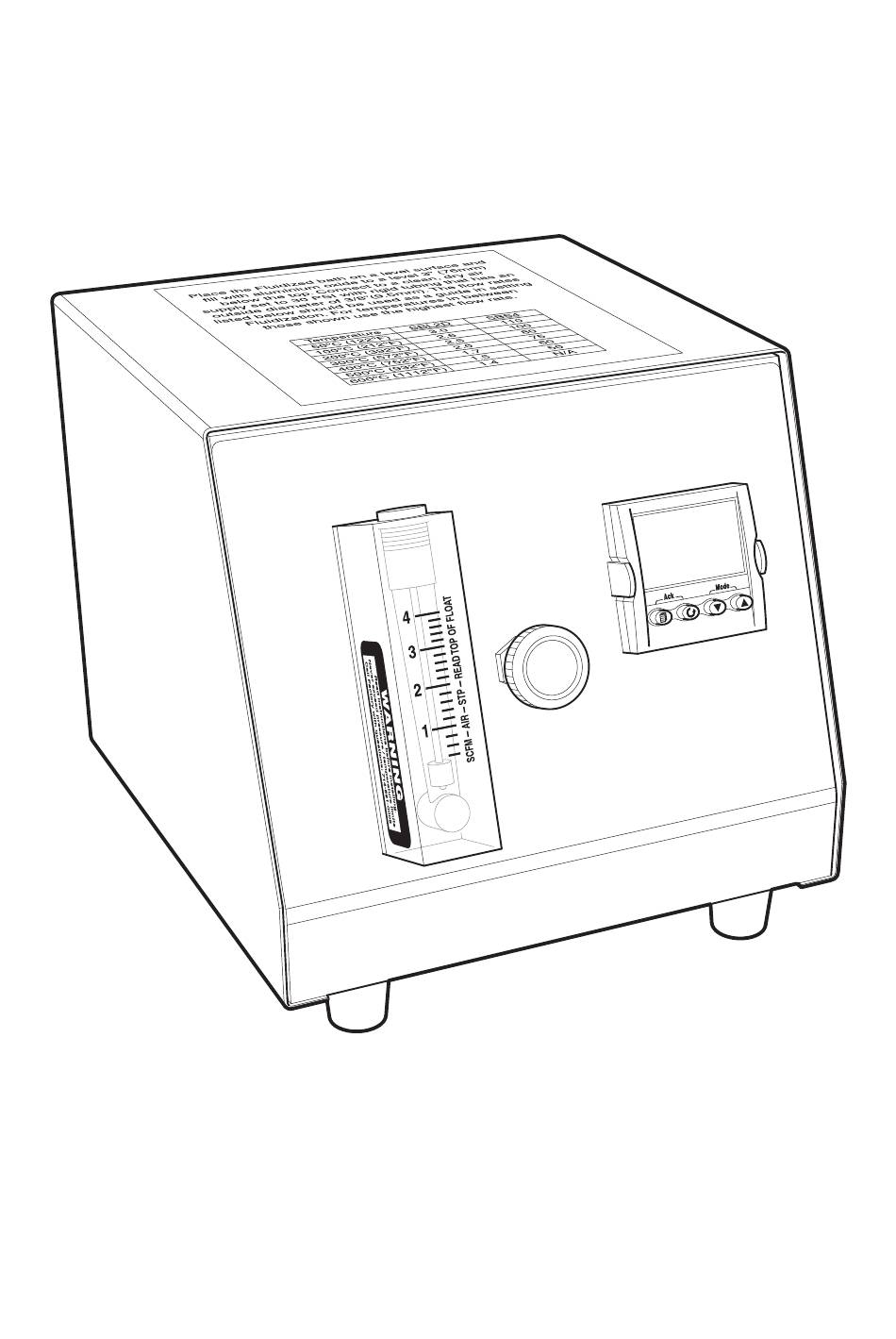

GENERAL DESCRIPTION The FSB-200-TC consists of a temperature controller mounted in a case with solid state relay switching and is capable of handling up to 20 amps. Connections to the fluidised bath and to the thermocouple are conveniently made with sockets on the back of the instrument. In use, the FSB-200-TC bypasses completely the energy regulator on the fluidised bath and cycles all the heating elements on and off at the same time. -
Page 5: Safety
SAFETY Please read all the information in this Instruction Manual before using the unit. WARNING HIGH TEMPERATURES ARE DANGEROUS: they can cause serious burns to operators and ignite combustible material. Antylia Scientific Ltd have taken great care in the design of these units to protect operators from hazards, but operators should pay attention to the following points: •... -
Page 6: Environmental Conditions
ENVIRONMENTAL CONDITIONS This equipment is designed to operate under the following conditions: • Indoor use • Use in a well-ventilated area • Ambient temperature range +5°C to +40°C • Altitude to 2000 m (6500 ft.) • Relative humidity 80% • Mains supply fluctuations not exceeding 10% •... -
Page 7: Installation
INSTALLATION SET-UP POWER single oil. 3 psi capa MECHANICAL on a It is to e o large across plate an inner container The connections to the twist lock plug are as follows: 230 V 120 V Plug Letter LIVE BLACK NEUTRAL WHITE GROUND... -
Page 8: Operation
OPERATION 1. Use the UP and DOWN arrows to enter a setpoint temperature. The bath will begin to heat immediately. The top display is the measured thermocouple temperature and bottom is the set point. 2. To change the display from °C to °F and vice versa, press the 2nd button from the left until the lower display shows "UNITS". -
Page 9: Safety, Repair And Technical Support
SAFETY, REPAIR AND TECHNICAL SUPPORT NOTE THAT THIS EQUIPMENT SHOULD ONLY BE DISMANTLED BY PROPERLY TRAINED PERSONNEL. REMOVING THE CASE EXPOSES POTENTIALLY LETHAL MAINS VOLTAGE. THERE ARE NO OPERATOR MAINTAINABLE PARTS WITHIN THE EQUIPMENT. In the unlikely event that you experience any problems with your fluidised bath which cannot easily be remedied, it may be necessary for your equipment to be sent back to our service department for repair. -
Page 10: Technical Specification
TECHNICAL SPECIFICATION Temperature range 0 to 620ºC (32 to 1148ºF) Temperature stability ±0.2 at 100°C (SBL2D) ±0.4 at 100°C (SBS4) Method of control 3 Term PID Display resolution 1º digital Temperature sensor Type K Air pressure 30 psi (207 kPa) Electrical supply 100 V - 230 V, 50/60Hz, single-phase Power... -
Page 11: Declaration Of Conformity
This product meets the applicable CE Directives that interference will not occur in practise. Where and UKCA Legislation for radio frequency there is a possibility that injury, damage or loss might interference and may be expected not to occur if equipment malfunctions due to radio interfere with, or be affected by, other equipment with similar frequency interference, or for general advise before qualifications. - Page 12 Ordering Information Order No. Series Model Legacy SKU 01184-50 FSB-200 FSB-200-TC-115 F937P 01184-55 FSB-200 FSB-200-TC F937D Warranty Registration India T: +44 (0) 1480 272279 T: +9122 61394444 E: uk.sales@antylia.com E: info@coleparmer.in W: coleparmer.co.uk W: coleparmer.in Germany China T: +49 (0) 9377 92030 T: +1 847 549 7600 E: de.sales@antylia.com E: sales@antylia.com...
