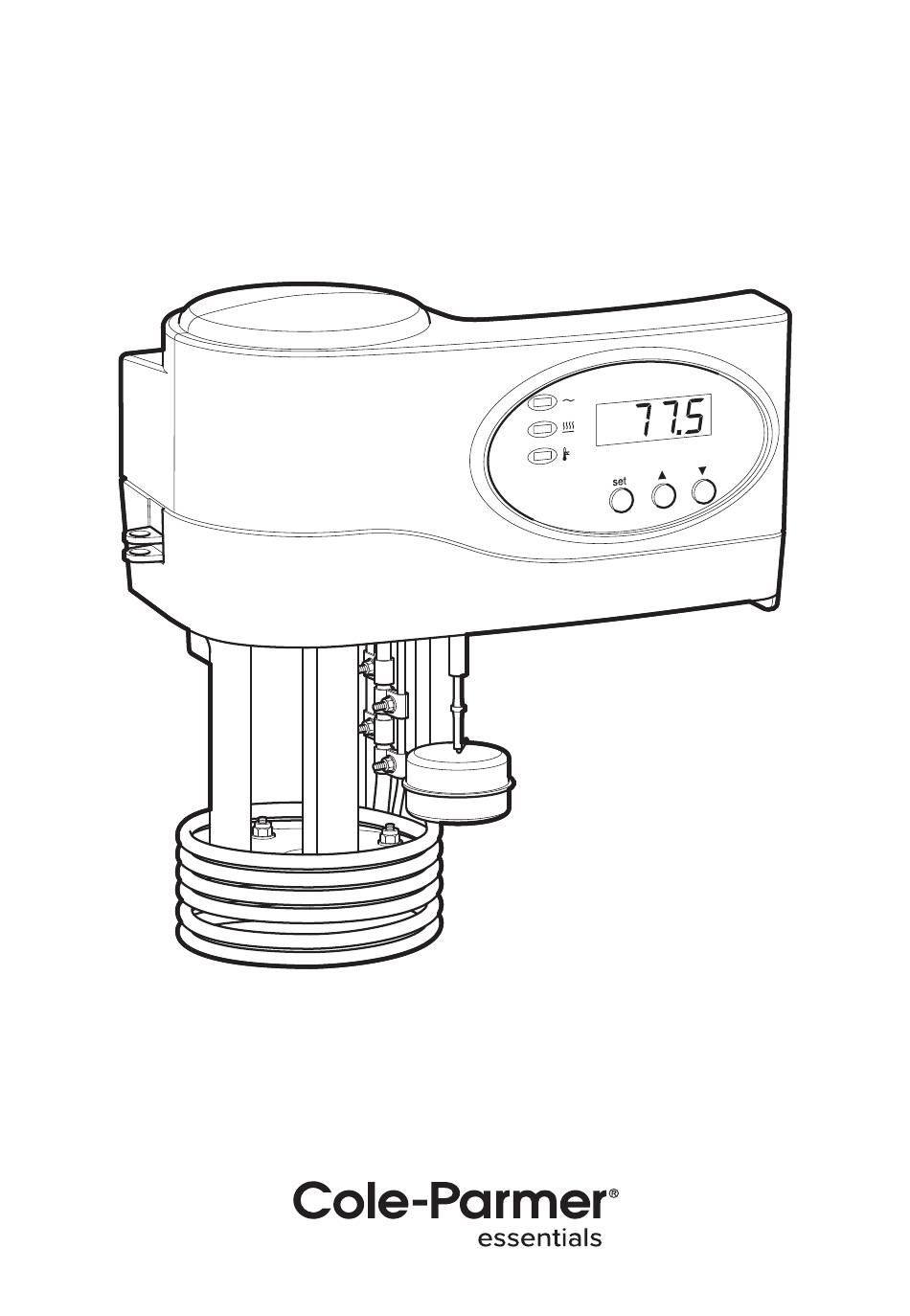

- Page 1 Cole-Parmer ® IC-300 Series Thermoregulator Instruction Manual TECH0001 Version 1.2...
-
Page 2: Table Of Contents
Contents Introduction General Description Safety and installation Introduction Introduction Einleitung Introducción Introduzione Before Use Operation When Switching On The Thermoregulator The Front Panel Controls After Use Setting the Over-temperature Cut-Out RS232 Serial Interface Calibration of the Thermoregulator Service and repair Warranty Technical Specification Bath Dimensions... -
Page 3: Introduction
Introduction Thank you for purchasing this Cole-Parmer product. To get the best performance from the equipment, and for your own safety, please read these instructions carefully before use. Before discarding the packaging check that all parts are present and correct. When unpacking the unit, check that the following have been removed from the packing: Thermoregulator ❖... -
Page 4: Safety And Installation
For all models, bath temperature is monitored and controlled by a PRT in conjunction with a 3 term controller. Protection in all the units is provided by means of an adjustable over-temperature cut-out. The pump motor and the transformer are also fitted with thermal fuses. Cole-Parmer Baths Cole-Parmer manufacture a range of unheated baths from 8 to 48 litre capacity which can be fitted with any of the thermoregulators. - Page 5 Installation Note that the unit must be earthed to ensure proper electrical safety. 1. All Cole-Parmer units are supplied with a power cable. This may be integral or plug-in. 2. Before connecting the mains supply, check the voltage against the rating plate. The rating plate is on the rear of the unit.
- Page 6 Operator maintenance NOTE: THAT THIS EQUIPMENT SHOULD ONLY BE DISMANTLED BY PROPERLY TRAINED PERSONNEL. REMOVING THE SIDE, FRONT OR REAR PANELS EXPOSES POTENTIALLY LETHAL MAINS VOLTAGES. THERE ARE NO OPERATOR MAINTAINABLE PARTS WITHIN THE EQUIPMENT. In the unlikely event that you experience any problems with your unit which cannot easily be remedied, you should contact your supplier and return the unit if necessary.
-
Page 7: Introduction
Introduction Veuillez lire attentivement toutes les instructions de ce document avant d’utiliser l’appareil. Consignes de sécurité Cole-Parmer a apporté un soin tout particulier à la conception de ces appareils de façon à assurer une protection maximale des opérateurs, mais il est recommandé aux utilisateurs de porter une attention spéciale aux points suiv- ants : DANGER DE TEMPERATURES ELEVEES : les opérateurs peuvent subir de graves brûlures et les matériaux ❖... - Page 8 Connexions 220V-240 V 110V-120 V Phase marron noir Neutre bleu blanc Terre vert/jaune vert Le fusible à l’intérieur de l’appareil est destiné à assurer la protection de l’appareil et de l’opérateur. Remarque : les appareils dont la plaque indique 230 V peuvent fonctionner sur 220 V, et ceux dont la plaque indique 120 V peuvent fonctionner sur 110 V.
- Page 9 Entretien Utilisateur IMPORTANT : CET APPAREIL NE PEUT ETRE DEMONTE QUE PAR DU PERSONNEL QUALIFIE.LORSQUE LES PANNEAUX AVANT, ARRIERE ET LATERAUX SONT DEMONTES, L’OPERATEUR EST EXPOSE A DES TENSIONS QUI PEUVENT ETRE MORTELLES. CET APPAREIL NE CONTIENT AUCUN ELEMENT QUI DEMANDE UN ENTRETIEN DE LA PART DE L’UTILISATEUR.
-
Page 10: Einleitung
Einleitung Bitte lesen Sie diese Bedienungsanleitung komplett bevor Sie dieses Gerät benutzen. Sicherheitshinweise Cole-Parmer hat bei der Konstruktion dieses Gerätes sehr darauf geachtet, daß der Bediener vor Gefahren geschützt ist. Dennoch sollten Sie auf die folgenden Punkte achten: HOHE TEMPERATUREN SIND GEFÄHRLICH: sie können dem Bediener ernsthafte Verletzungen zufügen und ❖... - Page 11 Geräte, die für 230 Volt ausgelegt sind, können auch bei 220 Volt arbeiten, Geräte für 120 Volt auch bei 110 Volt. In beiden Fällen verringert sich die Aufheizrate um ca. 8%. Das Typenschild befindet sich hinten am Gerät. 3. Stecken Sie das Stromkabel in die vorgesehene Buchse hinten am Gerät. 4.
- Page 12 Reinigen Bevor Sie Ihr Gerät reinigen, sollten Sie zuerst den Netzstecker ziehen das Gerät unter 50°C abkühlen lassen. ❖ Ein feuchtes Tuch mit Seifenlösung reinigt Ihr Gerät am besten. Achten Sie darauf, daß kein Wasser in das ❖ Gerät gelangt. Verwenden Sie keine Scheuermittel. Übertemperaturabschalter Der Übertemperaturschutz ist ein empfindliches mechanisches Teil.
-
Page 13: Introducción
Introducción Le rogamos lea cuidadosamente la información contenida en este folleto antes de manipular el aparato. Consejos de seguridad Cole-Parmer ha puesto gran cuidado en el diseño de estos aparatos para proteger al usuario de cualquier peligro; aún así se deberá prestar atención a los siguientes puntos: LAS TEMPERATURAS ELEVADAS SON PELIGROSAS: pueden causarle graves quemaduras y provocarfuego ❖... - Page 14 3. Conecte el cable a la toma de tensión en la parte posterior del equipo. 4. Sitúe el aparato en un lugar apropiado tal como una superficie de trabajo plana, o si fuera necesario incluso en una campana con extractor de humos, asegurándose de que las entradas de aire en la parte inferior no queden obstruidas.
- Page 15 duda, póngase en contacto con su proveedor. Limpieza Antes de limpiar su aparato, desconéctelo SIEMPRE de la fuente de alimentación y permita que se enfríe ❖ por debajo de los 50°C. Este aparato se puede limpiar pasándole un paño húmedo enjabonado. Hágalo con cuidado parae evitar ❖...
-
Page 16: Introduzione
Introduzione Prima di utilizzare l’apparecchio, leggere tutte le informazioni contenute in questo manuale. Avviso di sicurezza La Cole-Parmer ha posto particolare cura nel progettare questo strumento, al fine di proteggere gli operatori da eventuali pericoli, ma gli utilizzatori devono prestare attenzione ai seguenti punti: LE ALTE TEMPERATURE SONO PERICOLOSE: possono causare ustioni gravi all’utilizzatore e possono causare ❖... - Page 17 Il fusibile all’interno dell’apparecchio protegge l’apparecchiatura e l’utilizzatore. Tenere presente che gli apparecchi riportanti sulla targhetta 230 V funzionano a 220V. Gli apparecchi riportanti 120V funzionano a 110V. Comunque, in entrambi i casi la velocità di riscaldamento diminuirà approssimativamente dell’8%. 3.
- Page 18 Pulizia Prima di pulire il vostro apparecchio, disconnettere sempre la presa di alimentazione e lasciare raffreddare ❖ sotto i 50°C. Questo apparecchio può essere pulito passando un panno inumidito con sapone. Si deve prestare ❖ attenzione onde prevenire l’ingresso dell’acqua all’interno dell’apparecchio. Non utilizzare per la pulizia sostanze abrasive.
-
Page 19: Before Use
Before Use IC-300-10D And IC-300-20D Only 1. There are two modes of operation for the pump; circulation internal to the bath; circulation external to the bath. For internal circulation the blanking caps on the top of the outlet and return pipes should be securely in place. - Page 20 Begin by securing the bridge piece to the bath. Use the two M4 countersunk stainless screws and screw into the holes in the corners of the bath. Use M4 countersunk screws 6. Locate the thermoregulator above the bridge piece. Toggle the heating element carefully through the clearance hole.
- Page 21 7. Use the thumb screw (4) to secure the cover plate to the bridge. Bungs (5 and 6) are provided to seal off the holes in the bridge piece. It is necessary to fit the bungs to reduce heat losses and prevent steam or other vapours getting to the thermoregulator.
- Page 22 11. If a thermometer is to be used, it may be fitted in the end of the top cover of the thermoregulator between the two lugs, using the O-ring supplied with the unit. If a bridge piece is fitted, it is necessary to remove the bung (5) to insert the thermometer through the plate into the bath.
- Page 23 16. Symbols on the switch have the following meanings: : mains switch On : mains switch Off IC-300-10D And IC-300-20D Only 17. If the pump has been set correctly for external circulation, suitable hoses should be fitted to the outlet and return pipes.
-
Page 24: Operation
Operation Ensure that either the outlet and return pipes have their caps on or an external system is properly set up. Switch the unit on by pressing the power switch. The switch and the POWER indicator on the front will light up. Fuses Power Switch Blanking Cap... -
Page 25: The Front Panel Controls
The Front Panel Controls The front panel controls consist of three buttons for controlling the display, a four digit LED display and three indicators. The SET temperature button The SET temperature button displays the set temperature when pressed. The UP ARROW button When the SET temperature button is held down and the UP ARROW button is pressed, the set temperature is in- creased. - Page 26 Power indicator The top indicator shows that there is power to the unit. Heater indicator The middle indicator shows when the heater is heating. When the temperature is being set and the new set temperature is higher than the temperature already in the unit, the heater indicator will light as the unit tries to follow the set temperature.
-
Page 27: After Use
Low liquid level The float switch will trip if the liquid gets below a safe level; the display will change to “LLL”. The heater will be switched off. Fill the bath to above the minimum level and the display will return to the ‘present’ temperature; the unit will again work. -
Page 28: Setting The Over-Temperature Cut-Out
Setting The Over-Temperature Cut-Out An adjustable over-temperature cut-out switch is fitted. When the cut-out operates, the heater will stop working and the ‘over-temperature cut-out indicator’ will illuminate. On the IC-300-20D and IC-300-20H an audible alarm will sound. The pump will continue working on all units. Over-temperature cut-out switch 52°C... -
Page 29: Rs232 Serial Interface
RS232 Serial Interface The IC-300-20D and IC-300-20H may send data logging information to a compatible computer by connecting the unit and the PC via an RS232 cable and installing the TechneWorks PC Software (available to download free of charge from http://www.Cole-Parmer.com/Software.asp). The RS232 cable must be fitted to both the unit and the PC before either unit is powered up, otherwise data integrity cannot be guaranteed. -
Page 30: Calibration Of The Thermoregulator
Calibration Of The Thermoregulator Remember that if you change the calibration from that set at the factory you may change the calibration at all temperatures. You may get different calibration with different baths and/or liquids. In order to ensure that the calibration you are setting is correct, you will need to use an independent calibrated probe or thermometer. -
Page 31: Technical Specification
Technical Specification IC-300-10D IC-300-20D IC-300-20H Operating temperature range -40 to 120°C -40 to 200°C -40 to 250°C Working temperature range Ambient +5 to 120°C Ambient +5 to 200°C Ambient +5 to 250°C Temperature selection Digital Digital Digital Temperature display Digital LED Digital LED Digital LED Temperature stability... -
Page 32: Bath Dimensions
Bath Dimensions Unheated Bath Dimensions (For order codes see Accessories on page 36) Nominal Dimensions WBU-200-8L WBU-200-12L WBU-200-18L WBU-200-26L WBU-200-48L Bath 265 mm 354 mm 530 mm 530 mm 594 mm Overall length 325 mm 325 mm 325 mm 325 mm 365 mm Overall width 172 mm... -
Page 33: Liquid Calibration Bath Dimensions
Liquid Calibration Bath Dimensions (For order codes see Accessories on page 36) Nominal Dimensions WBU-250-5L WBU-250-7L WBU-250-12L Bath 351 mm 351 mm 351 mm Overall Length 260 mm 260 mm 260 mm Overall Width 183 mm 233 mm 358 mm Overall Height 140 mm 140 mm... -
Page 34: Refrigerated Bath Dimensions
Refrigerated Bath Dimensions (For order codes see Accessories on page 36) Nominal Dimensions RC-300-7L RC-300-12L RC-300-22L Bath 430 mm 430 mm 430 mm Overall length 250 mm 370 mm 395 mm Overall width 566 mm 610 mm 565 mm Overall height Internal 192 mm 208 mm... -
Page 35: Replacement Parts
Replacement Parts The following parts may be purchased if replacements or alternatives are required: Part number Description 6007349 O ring (thermometer) 6103913 Cap seal 6103475 6103804 Pipe connection seal 6103771 Pipe connection nozzle 6103460 Bottom outlet nozzle I/FCLAMP Clamp for IC-300-10D I/FCLAMP2 Clamp for IC-300-20D and IC-300-20H 6104266... -
Page 36: Accessories
Accessories The following accessories are available for use with the Cole-Parmer baths and thermoregulators. Unheated baths Ideal for use for general applications up to 200°C. Supplied with a bridge plate on which to mount the thermoregulator. Product Code Order Code Description WBU-200-8L 16104-53... - Page 37 Liquid Calibration Baths Insulated baths ideal for calibration of thermal sensors. Can be used up to 250°C. Product Code Order Codes Description WBU-250-5L 16112-03 Insulated liquid calibration bath with cooling coil, 5 litre capacity WBU-250-7L 16105-04 Insulated liquid calibration bath with cooling coil, 7 litre capacity WBU-250-12L 16104-50 Insulated liquid calibration bath with cooling coil, 12 litre capacity...
- Page 38 NOTES...
-
Page 39: Declaration Of Conformity
This product meets the applicable CE Directives that interference will not occur in practise. Where and UKCA Legislation for radio frequency there is a possibility that injury, damage or loss might interference and may be expected not to occur if equipment malfunctions due to radio interfere with, or be affected by, other equipment with similar frequency interference, or for general advise before qualifications. - Page 40 Ordering Information Order No. Series Model Legacy SKU 01262-07 IC-300 IC-300-10DDC FTE10DDC 01262-05 IC-300 IC-300-10DPC FTE10DPC 01262-15 IC-300 IC-300-20DDC FTU20DDC 01262-13 IC-300 IC-300-20DPC FTU20DPC 16112-55 IC-300 IC-300-20HDC FTU20HDC 16101-87 IC-300 IC-300-20HPC FTU20HPC India Warranty Registration T: +44 (0) 1480 272279 T: +9122 61394444 E: uk.sales@antylia.com E: info@coleparmer.in...
