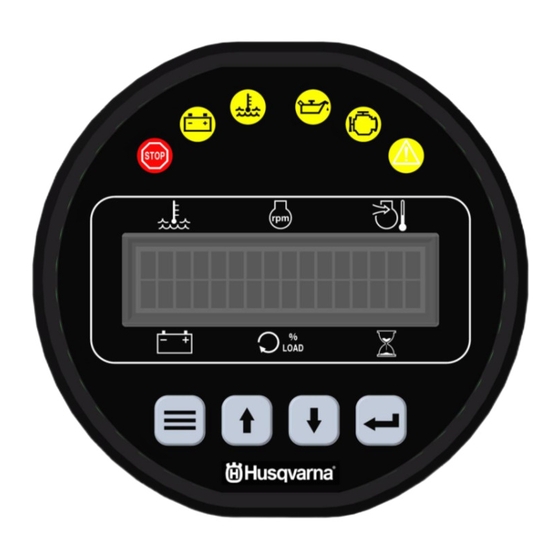

Product Manual
Part Number: MVP-132-002
Husqvarna
Revision: 2.1
______________________________________________________________________________________________________________________________________
Copyright Controls, Inc.
P.O. Box 368 • Sharon Center, OH 44274
Phone 330.239.4345 • Fax 330.239.2845 • www.controlsinc.com
Advertisement
Table of Contents
Related Manuals for Controls MVP-132-002
Summary of Contents for Controls MVP-132-002

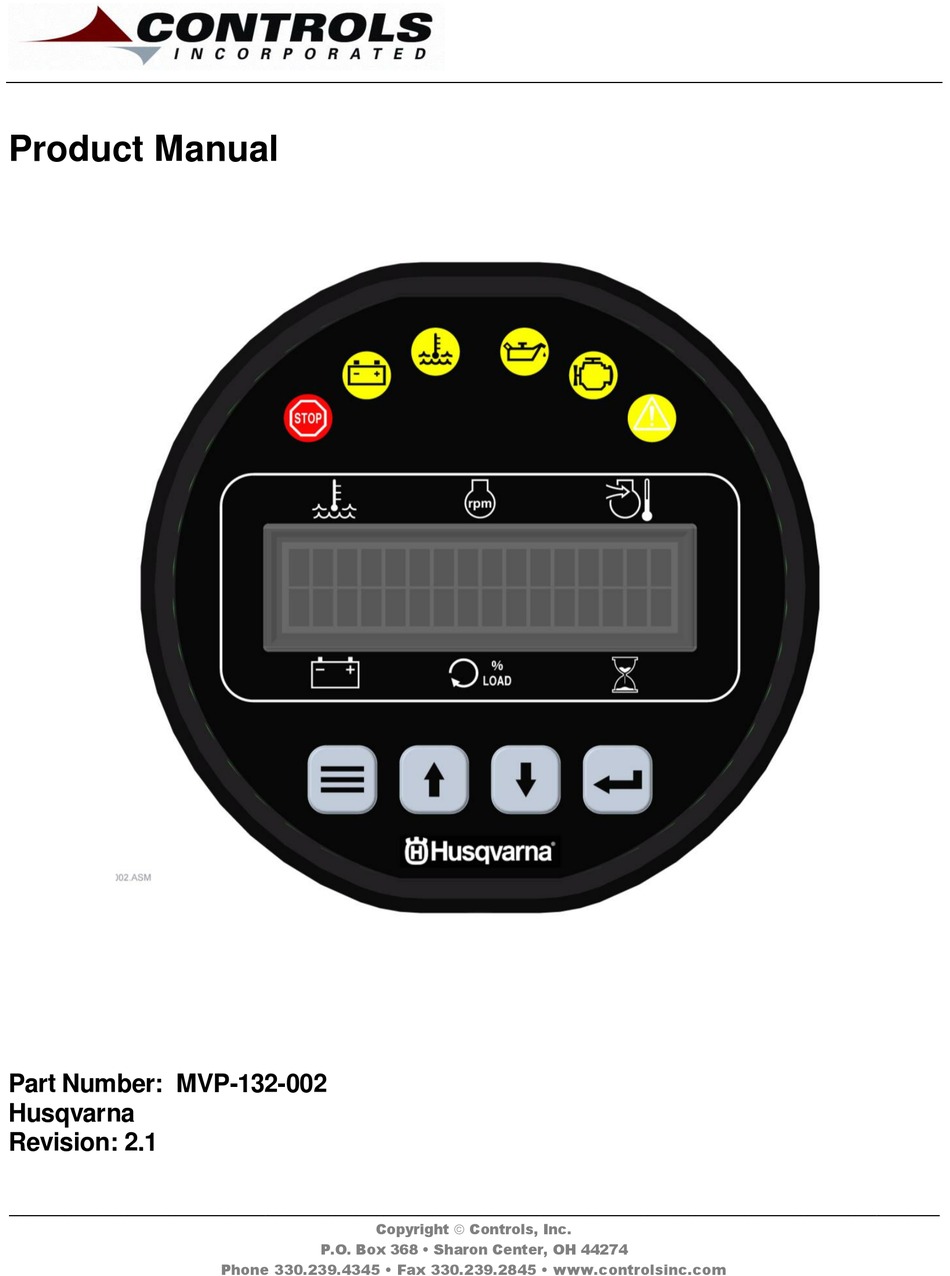

- Page 1 Product Manual Part Number: MVP-132-002 Husqvarna Revision: 2.1 ______________________________________________________________________________________________________________________________________ Copyright Controls, Inc. P.O. Box 368 • Sharon Center, OH 44274 Phone 330.239.4345 • Fax 330.239.2845 • www.controlsinc.com...
-
Page 2: Table Of Contents
CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S TABLE OF CONTENTS MVP-132-002 CONFIGURATION ………………………………………...………………………………………………………………………. INSTALLATION INFORMATION ……...………………………………...…………………………………………………………………..CONNECTOR INFORMATION ……...………………………………...……………………………………..…………………………………. ENGINE ALARMS, CODES AND MESSAGES ……………………………………………………….……………………………...…….. -
Page 3: Mvp-132-002 Configuration
S Y S T E M S & S O L U T I O N S MVP-132-002 CONFIGURATION SERVICE MESSAGES The display has a service timer. This timer is set to an interval of 50 hours at which time a message will be displayed indicating Service Needed –... -
Page 4: Installation Information
CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S INSTALLATION INFORMATION - 3 -... -
Page 5: Connector Information
CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S CONNECTOR INFORMATION BATTERY B+ NOT USED CAN HIGH CAN LOW BATT CHARGE GROUND Part# 3FK-108... -
Page 6: Engine Alarms, Codes And Messages
CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S ENGINE ALARMS, CODES AND MESSAGES Engine ECU Alarm/De-Rate/Shut Downs It is important to understand panel operation with respect to engine safety protections, alarms, and fault codes. -
Page 7: Active And Stored Engine Ecu Codes
CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S Indicator Lamps Low Oil Engine Pressure Temperature Battery Check Lamp Lamp Charging Engine Lamp... -
Page 8: Indicator Lamp Description
CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S Indicator Lamp Description - 7 -... - Page 9 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S - 8 -...
-
Page 10: Engine Parameters
CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S ENGINE PARAMETERS CAN Bus Communication This module communicates to the engine ECU via the J1939 CAN Bus network. This is a two wire connection to the engine ECU. -
Page 11: Menu System
CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S MENU SYSTEM To Enter Menu System Hold MENU button and press ENTER button. Menu Navigation Press MENU button to scroll main menu options. - Page 12 Engine Serial # View Module Information Control Unit Part# View Control Unit Software Version View Control Unit CI Station Profile Engine Type Number of Starts Total Operating Hours Controls, Inc. Copyright www.controlsinc.com Controller Setup Quick Setup Configuration Module Configuration Menus Display Configuration...
- Page 13 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S To access the controller setup menus, a password is required. Configuration Menus Quick Setup...
