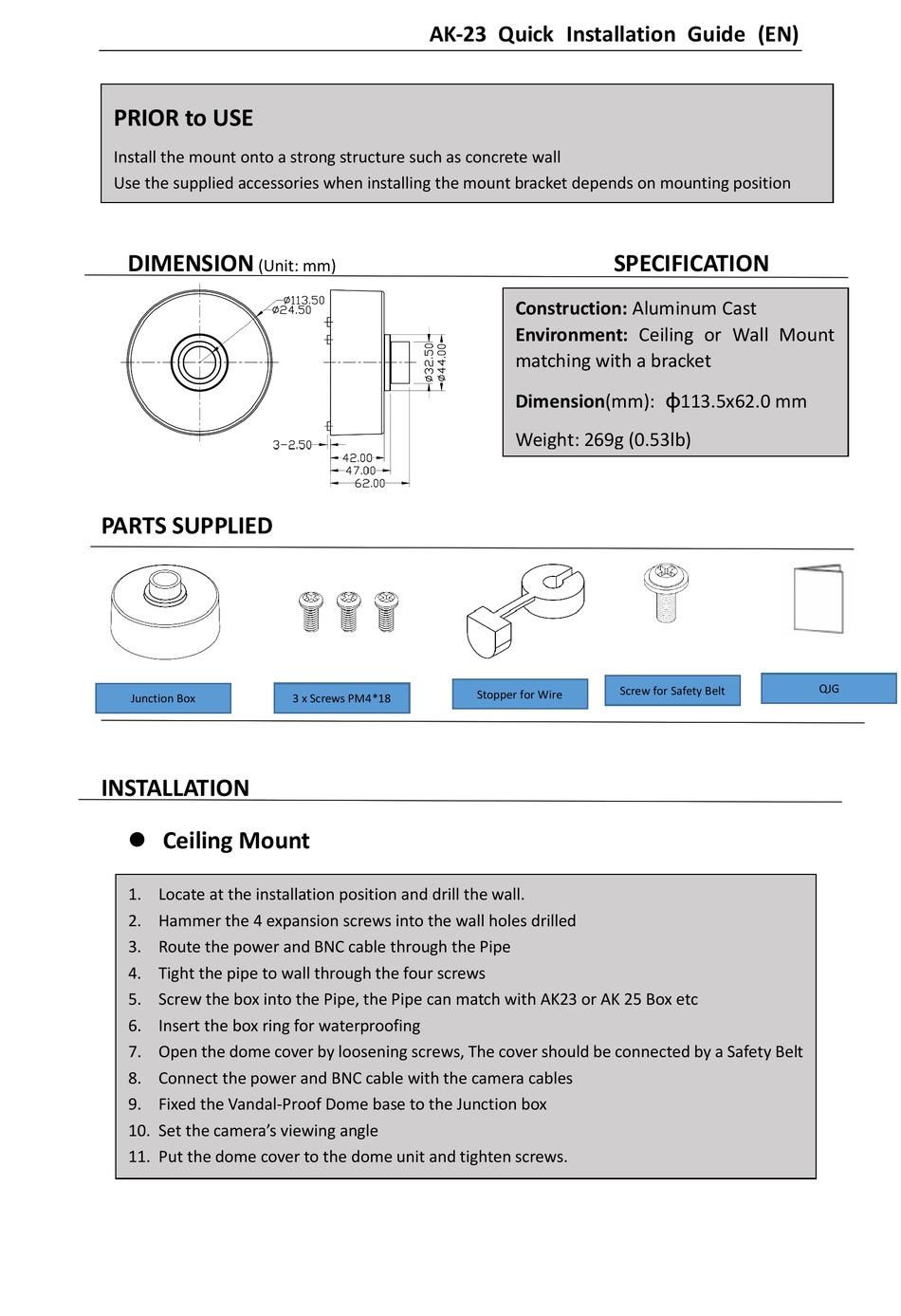

Eneo AK-23 Quick Installation Manual

Download this manual

PRIOR to USE

Install the mount onto a strong structure such as concrete wall

Use the supplied accessories when installing the mount bracket depends on mounting position

DIMENSION

(Unit: mm)

PARTS SUPPLIED

Junction Box

INSTALLATION

 Ceiling Mount

1. Locate at the installation position and drill the wall.

2. Hammer the 4 expansion screws into the wall holes drilled

3. Route the power and BNC cable through the Pipe

4. Tight the pipe to wall through the four screws

5. Screw the box into the Pipe, the Pipe can match with AK23 or AK 25 Box etc

6. Insert the box ring for waterproofing

7. Open the dome cover by loosening screws, The cover should be connected by a Safety Belt

8. Connect the power and BNC cable with the camera cables

9. Fixed the Vandal-Proof Dome base to the Junction box

10. Set the camera's viewing angle

11. Put the dome cover to the dome unit and tighten screws.

AK-23 Quick Installation Guide (EN)

3 x Screws PM4*18

SPECIFICATION

Construction: Aluminum Cast

Environment: Ceiling or Wall Mount

matching with a bracket

Dimension(mm): ф113.5x62.0 mm

Weight: 269g (0.53lb)

Screw for Safety Belt

Stopper for Wire

QJG

Need help?

Do you have a question about the AK-23 and is the answer not in the manual?

Page 1 AK-23 Quick Installation Guide (EN) PRIOR to USE Install the mount onto a strong structure such as concrete wall Use the supplied accessories when installing the mount bracket depends on mounting position DIMENSION SPECIFICATION (Unit: mm) Construction: Aluminum Cast Environment: Ceiling or Wall Mount matching with a bracket Dimension(mm): ф113.5x62.0 mm...
Page 2 AK-23 Quick Installation Guide (EN) Wall Mount  Allow the Junction Box match with the Bracket (DOME-WB6) for the Wall Mount. Detailed operation steps are similar with the Ceiling Mount. Please refer to.
Page 3 AK-23 Quick Installation Guide (EN) Pillar Mount  Allow the Junction Box match with the Bracket (DOME-WB6) +Pillar Bracket (PM-21) to mount the camera on one Pole. 1. Fix the Pillar Bracket on one Pole through two Hoops to control tightness 2.
Page 4 AK-23 Quick Installation Guide (EN)
