Pole Mount Adaptor
PRIOR to USE
Install the mount onto a strong structure such as a concrete or steel beam, etc.
Use the supplied accessories when installing the mount to a structure, make sure
that all the screw parts are metallic.
Follow the mounting instructions based on the assigned marks to the camera
or mounting accessory in the Reference Section below.
PARTS SUPPLIED

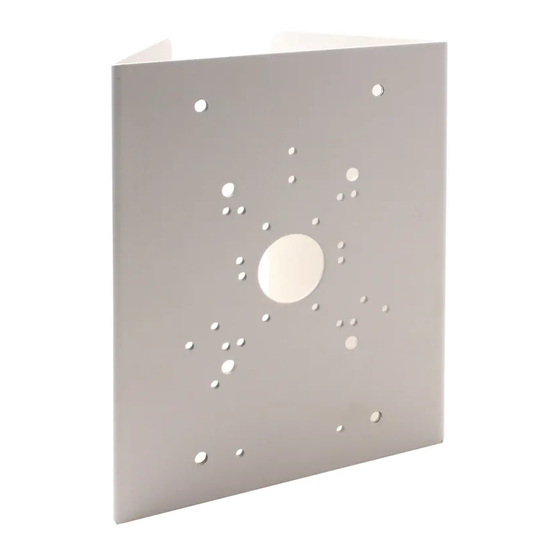

Mount Adaptor
Instruction Guide
DIMENSION
(unit: mm)
49.1
154
Straps
L-Wrench
2.5mm, 3mm
10
Mounting Screws
M4x20
Wrench Bolt M4x20_FM
Washers
SPECIFICATION
Construction:
Steel
Finish:
Light-gray Spray
Environment:
Indoor/Outdoor for a pole like
structure
Weight:
1.2kg (2.6 lb)
(
100~200mm)
Ø
Please Turn Over
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Eneo PM-42A
Summary of Contents for Eneo PM-42A
- Page 1 Pole Mount Adaptor PRIOR to USE Install the mount onto a strong structure such as a concrete or steel beam, etc. Use the supplied accessories when installing the mount to a structure, make sure that all the screw parts are metallic. Follow the mounting instructions based on the assigned marks to the camera or mounting accessory in the Reference Section below.
- Page 2 (*) Using the supplied screws with the camera packing you wish to mount. REFERENCE of MOUNTING HOLES Refer to the camera instruction manual for their mounting process. Technical changes reserved eneo® is a registered trademark of VIDEOR E. Hartig GmbH, © Copyright by VIDEOR E. Hartig GmbH VIDEOR E. Hartig GmbH Carl-Zeiss-Straße 8,...
