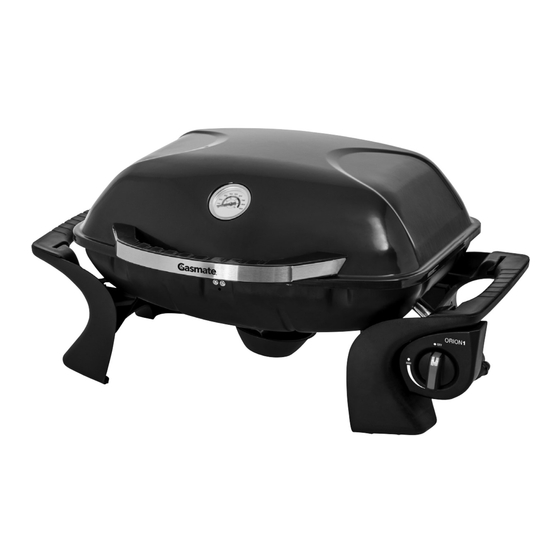

PORTABLE BBQ
Model No. GM152-042
Perfect for camping or alfresco cooking
12.6MJ/hr U-shaped stainless steel burner provides
even heat distribution
Hard-wearing porcelain enamel body and hood
Heavy-duty cast iron hot plate and grill
Piezo ignition for effortless lighting
Important: Retain these instructions for future use.
Gasmate® is a registered trademark of: Sitro Group Australia Pty Ltd www.gasmate.com.au
Integrated temperature gauge for heat control
Easy access removable fat cup
Stand available as an optional extra (sold separately)
Supplied with hose and regulator so it's ready to use
Aber Living, Hamilton, N.Z. www.gasmate.co.nz
4926-06/18
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sitro Group ORION1
Summary of Contents for Sitro Group ORION1
- Page 1 Supplied with hose and regulator so it’s ready to use Heavy-duty cast iron hot plate and grill Piezo ignition for effortless lighting Important: Retain these instructions for future use. Gasmate® is a registered trademark of: Sitro Group Australia Pty Ltd www.gasmate.com.au Aber Living, Hamilton, N.Z. www.gasmate.co.nz 4926-06/18...
-
Page 2: Read Me First
READ ME FIRST GAS LEAK TESTING It is important that you leak test the BBQ before first use and every time the gas cylinder is refilled and reconnected to the BBQ. To Complete Leak Test • Make sure all the control knobs are OFF. •... -
Page 3: General Information
GENERAL INFORMATION Hose & Regulator Safety The regulator and hose assembly supplied with the IMPORTANT barbecue are suitable for L.P.G. only. Read these instructions carefully prior to use. A gas regulator adjusted to have an outlet pressure of Familiarise yourself with the appliance before 2.75kPa is supplied for connection to the LPG cylinder. -
Page 4: For Your Safety
GENERAL INFORMATION FOR YOUR SAFETY • Never lean over cooking surface when lighting. • Never alter or modify the regulator or gas supply Failure to comply with these instructions could assembly. result in a fire or explosion which could cause serious bodily injury, death or property damage. - Page 5 Location of your Barbecue DO NOT use your barbecue in garages, porches, sheds, breezeways, or other enclosed areas. Your barbecue is to be used OUTDOORS. The barbecue is not intended to be installed in or on recreational vehicles and/or boats and should not be placed under any surface that will burn.
-
Page 6: Exploded Diagram
EXPLODED DIAGRAM PARTS LIST 1 : 1PC 2 : 1PC 3 : 1PC 4: 1PC 5 : 1PC 6 : 1PC 7 : 1PC HARDWARE A : 2PCS B : 2PCS ASSEMBLY INSTRUCTIONS Remove any transit protection material. Remove all contents from the carton packaging. - Page 7 ASSEMBLY INSTRUCTIONS STEP 1 STEP 3 Attach the hood handle as shown. Attach temperature gauge to hood. STEP 2 STEP 4 Locate hood over barbecue body and secure as shown. From the rear, attach fat cup under base of barbecue as shown.
-
Page 8: Lighting Procedure
GENERAL INFORMATION CONNECTING & DISCONNECTING If the gas regulator safety feature activates, the barbecue TO GAS SOURCE will operate with reduced output as gas flow is restricted. These steps should be taken first to reset the gas Familiarise yourself with the general information and regulator safety device: safety guidelines located at the front of this manual. -
Page 9: Operation
OPERATION BURNER OPERATION & IGNITION SYSTEM CHECK Problem Possible Reason Solution Control knob is closed Turn knob to high when lighting Burner will not ignite Piezo igniter is faulty Use a long barbecue match inserted through the hole on under side of barbecue Burner has gone out Check that the gas bottle is not empty and re- ignite the burner... -
Page 10: Care And Maintenance
CARE & MAINTENANCE Cleaning the Cooking Surface As with all appliances, proper care and maintenance will keep them in top operating condition and prolong After cooking, turn burner control to ‘OFF’ and let their life. Your new gas barbecue is no exception. By barbecue cool before attempting to clean the grill plate following these cleaning procedures on a timely basis, or grate. -
Page 11: Safe Appliance Locations
SAFE APPLIANCE LOCATIONS This appliance shall only be used in an above ground open-air situation with natural ventilation, without stagnant areas, where gas leakage and products of combustion are rapidly dispersed by wind and natural convection. Any enclosure in which the appliance is used shall comply with the following: An enclosure with walls on all sides, but at least one permanent opening at ground level and no overhead cover.
