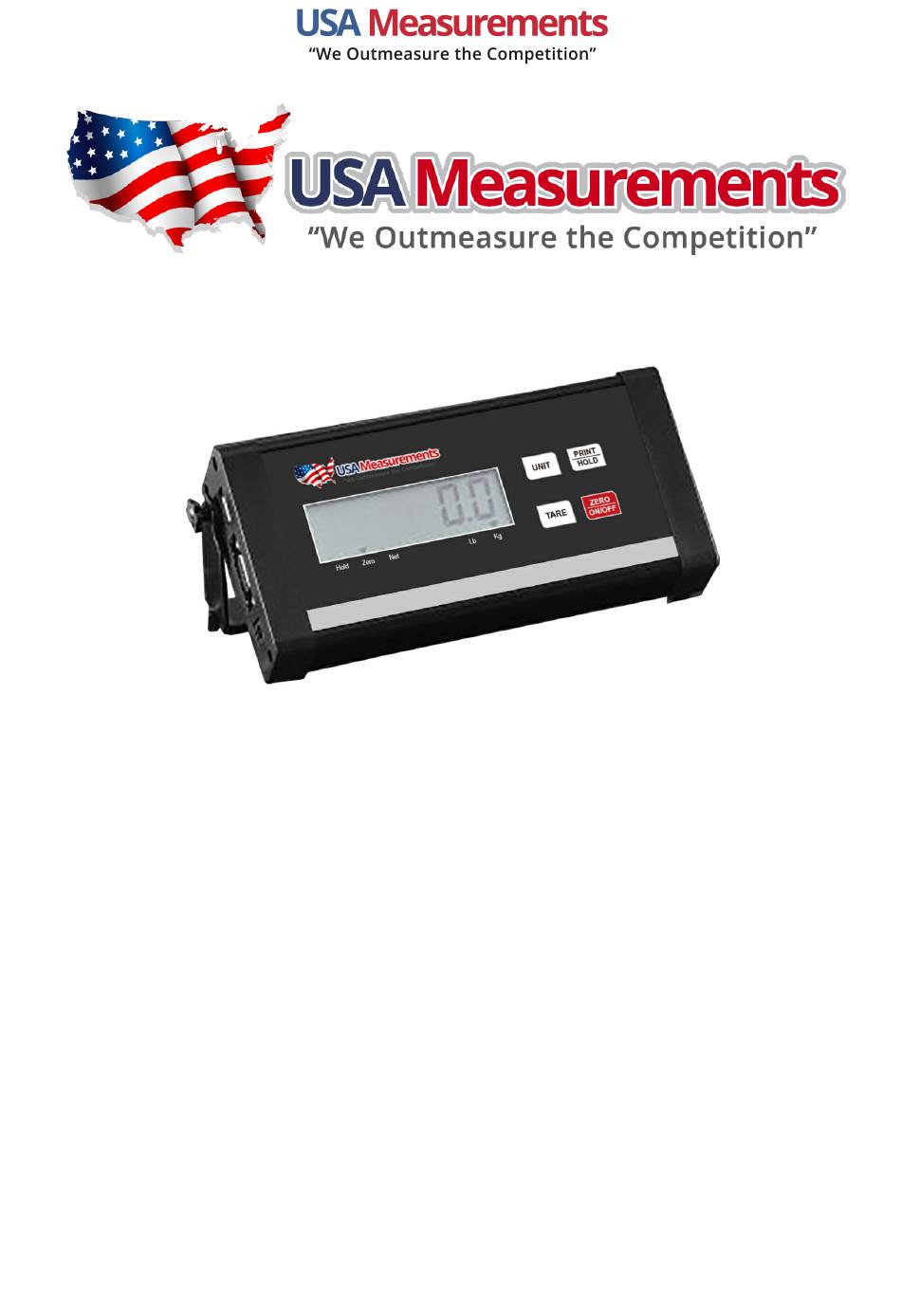

- Page 1 US-5011 Indicator User/Technical Manual Content subject to change without notice Version 1.0...
- Page 2 Issue AA US-5011...
-

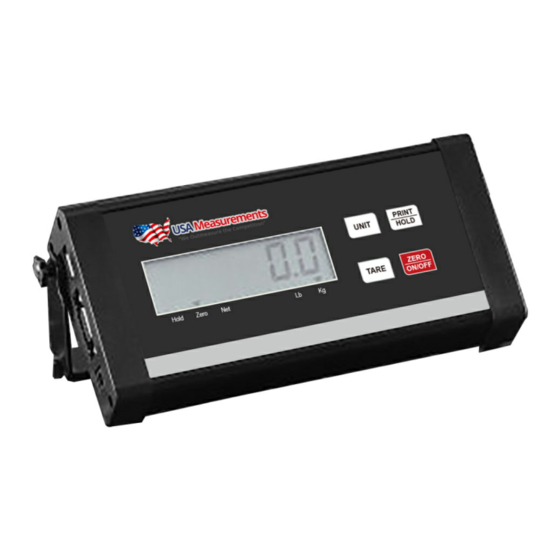

Page 3: Indicator Display
1. Indicator Display § Zero- Scale is zeroed and gross weight is 0, tare is 0. § Net - Display reading is net weight; tare is not 0. § Lb, Kg - Unit of measure. § Hold - Scale is in dynamic weighing mode. - Hold flashes - actual fluctuating weight is displayed. -
Page 4: Overview Of Controls And Functions
2. OVERVIEW OF CONTROLS AND FUNCTIONS Indicator Display Character Definitions US-5011... -
Page 5: Normal Weighing Mode
3. Put the material or object to be weighed in the container. The net weight will be displayed. 4. To exit tare mode, remove all weight from the scale. The display will show a negative weight. Press the TARE key to return the display to zero. US-5011... - Page 6 TARE key to confirm; the displayed data will flash. If the indicator receives reasonable data, it will calculate and store all parameters into EEPROM. Then it will auto-reset, and be directed to weighing mode. If an error occurred in calibration, the scale will display “ ” and then it necessary to repeat the procedure from step2. CAL.Er US-5011...
-
Page 7: Configuration Parameters Setup
3 - calibration zero –point ±4%FS; 4 - calibration zero –point ±5%FS; 0 - 9 5 - calibration zero –point ±10%FS; 6 - calibration zero –point ±20%FS; 7 - calibration zero –point ±50%FS; 8 - calibration zero –point ±100%FS; 9 - no limitation; US-5011... - Page 8 1=BMI function is enabled 0= Do not recover parameters (Cxx & Uxx) to default set 1= Recover all parameters to default setting CONFIG settings should only be performed by individuals with the required technical knowledge. Table1: use Kg as calibration unit: US-5011...
- Page 9 10 kg 20 lb 0.0005 lb 0.0002 kg 0.0005 lb 0.005 lb 0.002 kg 0.005 lb 0.05 lb 0.02 kg 0.05 lb 0.5 lb 0.2 kg 0.5 lb 5 lb 2 kg 5 lb 50 lb 20 kg 50 lb US-5011...
- Page 10 1=hold larger weight reading; 0 - 50 2-50=when weight is more than 10d and the variety is within ±2d～ ±50d, hold stable weight; When weight is below 10d and then over 10d and becomes stable, the new stable weight will be held. US-5011...
- Page 11 (5). U5=4: Continuously output of the current gross weight, tare weight, net weight data, weight unit and current status data, it does not receive any data. The output format is same as U5=2. (6). U5=5: When the scale is stable, it will output the current displayed reading ,weight unit, and current status US-5011...
- Page 12 W1-W8 : Weight data <dp> : Decimal point U1U2 : Measure units, “kg”, “lb”, or “lb oz” d) Commands and responses (1). Command: W<CR> (57h 0dh) Response: ① over capacity: <LF>^^^^^^^^^^u1u2<CR><LF>H1H2H3<CR><ETX> ② under capacity: <LF>_________u1u2<CR><LF> H1H2H3<CR><ETX> ③ zero-point error: <LF>----------u1u2<CR><LF> H1H2H3<CR><ETX> US-5011...
- Page 13 Response: <LF>OK H1H2H3<CR><ETX> --- if zero calibration is sufficient <LF> H1H2H3<CR><ETX> ---- if zero calibration resulted in an error (3). Command: H<CR> (48h 0dh) --- weight calibration Response: <LF>OK H1H2H3<CR><ETX> --- if weight calibration is sufficient <LF> H1H2H3<CR><ETX> --- if weight calibration resulted in an error US-5011...
-
Page 14: Symbol Definitions
-User parameters are incorrect EEP.E2 -Calibration point CAL-P -Error in calibration CAL.Er -The setting full capacity will be displayed CAP.-- -No. x configuration parameter is set to y -No. x user parameter is set to y -Battery voltage is below 4.2V Lo.bAt US-5011... -
Page 15: Troubleshooting
1. Remove the object 1. An object is stuck between the load cell Weighing is not 2. Perform calibration and scale base accurate 3. Place the load on the center of the 2. Load cell received a heavy impact weighing platform US-5011...
