ION Block Party Service Manual

ION Block Party Service Manual

Hide thumbs Also See for Block Party:

Advertisement

Quick Links

ION Audio

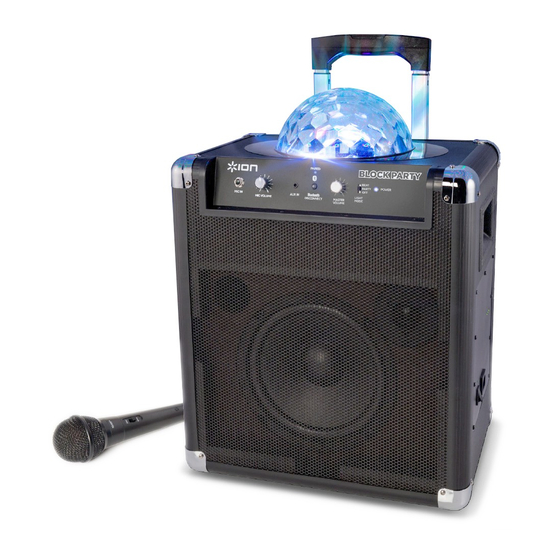

Block Party
[iPA22P]
Service Manual, UL
v1.0
2013.11.25
ATTENTION!
THIS DOCUMENT CONTAINS SENSITIVE
PROPRIETARY INFORMATION.
ALL RECIPIENTS MUST HAVE A CURRENT
NON-DISCLOSURE AGREEMENT ON FILE
WITH ION AUDIO.
DO NOT MAKE ILLEGAL
COPIES OF THIS DOCUMENT
The information in this document contains privileged and confidential information. It is intended
only for the use of those authorized by ION Audio. If you are not the authorized, intended
recipient, you are hereby notified that any review, dissemination, distribution or duplication of this
document is strictly prohibited. If you are not authorized, please contact ION Audio and destroy
all copies of this document. You may contact ION Audio at support@ionaudio.com.
Copyright ION Audio
Confidential
ION Audio Service Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Block Party and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ION Block Party

  • Page 1 The information in this document contains privileged and confidential information. It is intended only for the use of those authorized by ION Audio. If you are not the authorized, intended recipient, you are hereby notified that any review, dissemination, distribution or duplication of this document is strictly prohibited.
  • Page 2 As the owner of the copyright to the Manual, ION Audio does not give you the right to copy the Manual, and you agree not to copy the Manual without the written authorization of ION Audio.
  • Page 3 REPAIR BY ANY PERSON OR ENTITY OTHER THAN AN AUTHORIZED ION AUDIO SERVICE CENTER WILL VOID THE ION AUDIO WARRANTY. PROVISION OF THIS MANUAL DOES NOT AUTHORIZE THE RECIPIENT TO...
  • Page 4 The product is exposed to water or excessive moisture, c. The AC power supply plug or cord is damaged, d. The product shows an inappropriate change in performance or does not operate normally, or e. The enclosure of the product has been damaged. Confidential ION Audio Service Manual...
  • Page 5 iPA22P BOM v1.0 _ UL Part number Part name Description Unit Q'ty T/P DR001558 IPA22P IPA22P ASSY 12030031 rocker switch AN-S331,RF-1003,BBG8E2L1T, no silkscreen 0.2625 13110005 Power supply 100-240VAC,SR-AD456W,16VDC,4.1A 16040829 cable AN-W4389,2P,22#,UL1007,160mm 0.0963 16040830 cable AN-W4390,2P,18#,UL1007,160mm 0.1663 16040831 cable AN-W4391,2P,22#,UL1617,180mm 0.1698 20010106 rear panel DN-PC1048,ABS80% pure,UL94V2,,70°,ROHS,V1.0...
  • Page 6 18040122 AN-L0122,DIP,SBR-03W4C-3B7W,Φ3*5mm, blue 0.133 20260067 LED sleeve LED3B-10-B, 0.0085 heat-shrinkable T 30010004 Φ2*10*0.20mm,UL,black 0.0006 bush 40030051 6.35 socket AN-J0350,SJ6305-5P 0.182 40040017 3.5 socket AN-J0418,PJK-0358,silver plating 0.1418 40370001 male jack AN-JP401,XH2.5-2P,2532-02 0.0126 40370002 male jack AN-JP401,XH2.5-3P,HT-2.5-03P-01A,180 0.0086 CR010543 IPA22P PRE SMT IPA22P PRE SMT ASSY 1.3316 11170001 SMT resistor...
  • Page 7 SMT ceramic 50050069 104,VDC25,±10%,X7R,0603, 0.003 capacitor SMT ceramic 50050075 104,VDC50,±10%,X7R,0805, 0.0184 capacitor SMT ceramic 50050116 221,VDC50,±5%,NPO,0805, 0.0095 capacitor SMT ceramic 50050138 331,VDC50,±5%,NPO,0805, 0.021 capacitor SMT ceramic 50050344 10UF,VDC10,±10%,X5R,0805, 0.0469 capacitor SMT ceramic 50050351 1.1PF,VDC50,±0.25%,NPO,0402, 0.0019 capacitor ESD interference 60190108 0603ESDA-TR1 0.0788 suppressor IPA BLUETOOTH...
  • Page 8 16040774 cable AN-W4334,2P,18#,UL1007,80mm 0.0613 16060099 grounding cable AN-W697,18#,UL1015,100mm 0.0613 electrolytic 17010098 1uF/50V,±20%,-40/+85℃,Φ5*11mm,P=2mm,black 0.0064 capacitor electrolytic 17010103 10uF/25V,±20%,-40/+85℃,Φ5*11mm,P=2mm,black 0.0065 capacitor electrolytic 17010119 0.0287 100uF/25V,±20%,-40/+85℃,Φ5*11mm,P=2mm,black capacitor electrolytic 17010217 220uF/25V,±20%,-40/+85℃,Φ6.3*11mm,P=2.5mm,black PCS 0.0144 capacitor electrolytic 17010256 470uF/25V,±20%,-40/+85℃,Φ8*14mm,P=3.5mm,black 0.0529 capacitor electrolytic 17010502 2200uF/25V,±20%,-40/+105℃,Φ13*21mm,P=5mm, black PCS 0.0938 capacitor electrolytic...
  • Page 9 11170778 SMT resistor 1/10W,100Ω,±1%,0603, 0.0017 11170838 SMT resistor 1/10W,49.9KΩ,±1%,0603, 0.0006 11170849 SMT resistor 1/10W,16.9KΩ,±1%,0603, 0.0006 11171123 SMT resistor 1/10W,137KΩ,±1%,0603 0.0006 11171178 SMT resistor 1/10W,180KΩ,±1%,0603 0.0006 11171179 SMT resistor 1/10W,243KΩ,±1%,0603 0.0006 11171180 SMT resistor 1/10W,357KΩ,±1%,0603 0.0006 14010077 NPN audion MMBT3904LT1,SOT23,ONSEMI 0.0205 14010169 NPN audion MMBTA13,SOT23...
  • Page 10 electrolytic 17010523 1000uF/25V,±20%,-40/+85℃,Φ8*20mm,P=3.5mm,black PCS 0.0455 capacitor magnetic core 24060116 DG-DR6*8DG-45UH,47uH,1A 0.126 inductor 40360300 AN-FP364P1022-1*04SGF11,A=2.8,L=8.8,H=2.0,P=2.0 0.0154 40370001 male jack AN-JP401,XH2.5-2P,2532-02, (180 degree,P=2.5mm) 0.0063 40370002 male jack AN-JP401,XH2.5-3P,HT-2.5-03P-01A,180 0.0173 40370004 male jack AN-JP401,HT-2.5-05P-01A 0.0155 40370149 male jack AN-JP418,2021-02,(P=2mm,180 degree) 0.0053 40370197 male jack AN-JP426,2600PS-04,(180 degree, P=2.54mm) 0.0158 40370321...
  • Page 11 DN-PC6009,rail 1,ABS,UL94HB,black,ROHS, textured,V1.1 PCS 0.2975 20660011 rail DN-PC6010,rail 2,ABS,UL94HB,black,ROHS, textured,V1.1 PCS 0.1313 21010410 cabinet MDF,T=9.0mm,PVC film,black painting,CARB,V1.0 9.3625 22010705 manual ION, safety manual,V14.7 0.0788 22050006 desiccant 50g, silicone,DMT,SGS 0.0735 22150001 serve card ION serial,V1.1 0.0665 23010020 PE bag PE,120*280*0.06mm 0.0082...
  • Page 12 0.0018 90220078 label ALESIS,30*30mm, PANTONE 361C printing 0.0033 90240006 label 38*10mm 0.0026 90250035 CARB label ION/ALESIS, white text,pantone802C,25.4*25.4mm 0.0018 16050210 shielded cable AN-W5207,3P,24#,UL2547,550mm, grey 0.2363 16070013 power cable AN-W915,3C,18#,SVT,1830mm, black, for UL 0.9223 22010779 manual IPA22P, english manual,V1.0 0.0788...
  • Page 15 J4-A 75.0K R13 510 TO PRE J3 R19 510 STM8S103F3P6 R20 510 82pF RED_LED AMP_ON/OFF GREEN_LED J5-A SWIM BLUE_LED NRST 2.2uf OSCIN/PA1 NRST TO AMP J5-B OSCOUT/PA2 VCAP +VDD_ON/OFF LP2985AIM5-5.0 J2-B MCP6001 ULN2003ADR J8-A TO AMP J2-A J1-A J1-B L5 121 10uf LIMIT SW TO MOTOR...
