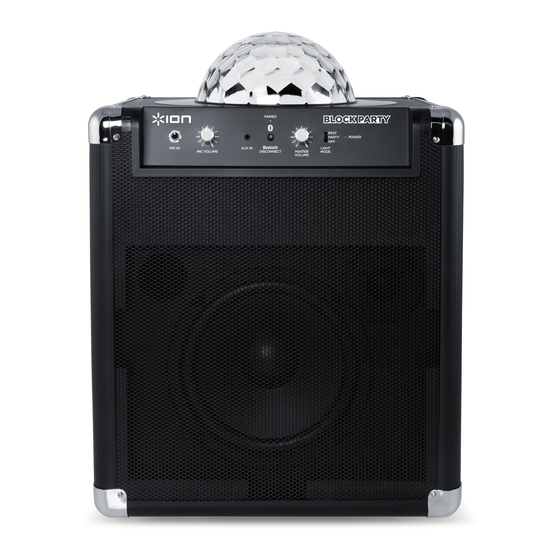

ION Block Party iPA22P Service Manual

Hide thumbs Also See for Block Party iPA22P:

Advertisement

Quick Links

Download this manual
ION Audio
Block Party
[iPA22P]
Service Manual, EU
v1.0
2013.11.21
ATTENTION!
THIS DOCUMENT CONTAINS SENSITIVE
PROPRIETARY INFORMATION.
ALL RECIPIENTS MUST HAVE A CURRENT
NON-DISCLOSURE AGREEMENT ON FILE
WITH ION AUDIO.
DO NOT MAKE ILLEGAL
COPIES OF THIS DOCUMENT
The information in this document contains privileged and confidential information. It is intended
only for the use of those authorized by ION Audio. If you are not the authorized, intended
recipient, you are hereby notified that any review, dissemination, distribution or duplication of this
document is strictly prohibited. If you are not authorized, please contact ION Audio and destroy
all copies of this document. You may contact ION Audio at support@ionaudio.com.
Copyright ION Audio
Confidential
ION Audio Service Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Block Party iPA22P and is the answer not in the manual?

Questions and answers

Related Manuals for ION Block Party iPA22P

Summary of Contents for ION Block Party iPA22P

  • Page 1 The information in this document contains privileged and confidential information. It is intended only for the use of those authorized by ION Audio. If you are not the authorized, intended recipient, you are hereby notified that any review, dissemination, distribution or duplication of this document is strictly prohibited.
  • Page 2 As the owner of the copyright to the Manual, ION Audio does not give you the right to copy the Manual, and you agree not to copy the Manual without the written authorization of ION Audio.
  • Page 3 REPAIR BY ANY PERSON OR ENTITY OTHER THAN AN AUTHORIZED ION AUDIO SERVICE CENTER WILL VOID THE ION AUDIO WARRANTY. PROVISION OF THIS MANUAL DOES NOT AUTHORIZE THE RECIPIENT TO...
  • Page 4 The product is exposed to water or excessive moisture, c. The AC power supply plug or cord is damaged, d. The product shows an inappropriate change in performance or does not operate normally, or e. The enclosure of the product has been damaged. Confidential ION Audio Service Manual...
  • Page 5 Part Name Description Unit Q'ty T/P DR001558 IPA22P IPA22P ASSY 12030031 rocker switch AN-S331,RF-1003,BBG8E2L1T, no silkscreen 0.2625 13110005 Power supply 100-240VAC,SR-AD456W,16VDC,4.1A 16040829 cable AN-W4389,2P,22#,UL1007,160mm 0.0963 16040830 cable AN-W4390,2P,18#,UL1007,160mm 0.1663 16040831 cable AN-W4391,2P,22#,UL1617,180mm 0.1698 20010106 rear panel DN-PC1048,ABS80% pure,UL94V2,,70°,ROHS,V1.0 0.8575 20020108 top panel DN-PC2073,ABS(UL94HB)black,ROHS,V1.1 1.5873...
  • Page 6 11170075 SMT resistor 1/8W,18KΩ,±5%,0805 0.0016 11170080 SMT resistor 1/8W,30KΩ,±5%,0805 0.0008 11170092 SMT resistor 1/8W,100KΩ,±5%,0805 0.0016 11170124 SMT resistor 1/4W,22Ω,±5%,1206 0.0014 11170239 SMT resistor 1/8W,4.53KΩ,±1%,0805 0.0021 11170242 SMT resistor 1/8W,4.99KΩ,±1%,0805 0.0021 11170266 SMT resistor 1/8W,10KΩ,±1%,0805 0.0011 11170288 SMT resistor 1/8W,20KΩ,±1%,0805 0.0032 11170355 SMT resistor 1/10W,15Ω,±5%,0603...
  • Page 7 50050343 SMT ceramic capacitor homni comfidence 0.0473 50050347 SMT ceramic capacitor homni comfidence 0.0105 50050350 SMT ceramic capacitor homni comfidence 0.0011 50050365 SMT ceramic capacitor homni comfidence 0.0056 50050386 SMT ceramic capacitor homni comfidence 0.0013 optional parts: IPA22 GR000389 IPA22 PRE board SMT PRE SMT 14040279 NJM062M,SOP8,JRC,...
  • Page 8 11170510 SMT resistor 1/10W,3.74KΩ,±1%,0603 0.0006 11170517 SMT resistor 1/10W,4.7KΩ,±1%,0603 0.0006 11170536 SMT resistor 1/10W,10KΩ,±1%,0603 0.0073 11170543 SMT resistor 1/10W,15KΩ,±1%,0603 0.0022 11170576 SMT resistor 1/10W,100KΩ,±1%,0603 0.0034 11170580 SMT resistor 1/10W,150KΩ,±1%,0603 0.0011 11170592 SMT resistor 1/4W,10Ω,±5%,1206 0.0028 11170778 SMT resistor 1/10W,100Ω,±1%,0603, 0.0017 11170838 SMT resistor 1/10W,49.9KΩ,±1%,0603,...
  • Page 9 40370004 male jack AN-JP401,HT-2.5-05P-01A 0.0155 40370149 male jack AN-JP418,2021-02,(P=2mm,180 degree) 0.0053 40370197 male jack AN-JP426,2600PS-04,(180 degree, P=2.54mm) 0.0158 40370321 male jack 2600PS-06,180 degree,P=2.54mm, 0.021 CR010397 IPA22 CONTROL SMT IPA22 CONTROL SMT ASSY 2.2126 11170378 SMT resistor 1/10W,510Ω,±5%,0603 0.0013 11170385 SMT resistor 1/10W,1KΩ,±5%,0603 0.0004 11170394...
  • Page 10 DN-PC6009,rail 1,ABS,UL94HB,black,ROHS, textured,V1.1 PCS 0.2975 20660011 rail DN-PC6010,rail 2,ABS,UL94HB,black,ROHS, textured,V1.1 PCS 0.1313 21010410 cabinet MDF,T=9.0mm,PVC film,black painting,CARB,V1.0 9.3625 22010705 manual ION, safety manual,V14.7 0.0788 22050006 desiccant 50g, silicone,DMT,SGS 0.0735 22150001 serve card ION serial,V1.1 0.0665 23010020 PE bag PE,120*280*0.06mm 0.0082...
  • Page 11 0.0018 90220078 label ALESIS,30*30mm, PANTONE 361C printing 0.0033 90240006 label 38*10mm 0.0026 90250035 CARB label ION/ALESIS, white text,pantone802C,25.4*25.4mm 0.0018 RoHS optional GR000482 parts:IPA22P packaging IPA22P packaging ASSY parts 16050209 shielded cable AN-W5206,4P,24#,UL2547,550mm, grey 0.294 16070140 power cable AN-W1038,3G,0.75mm2,H05VV-F,1830mm, black...
  • Page 14 J4-A 75.0K R13 510 TO PRE J3 R19 510 STM8S103F3P6 R20 510 82pF RED_LED AMP_ON/OFF GREEN_LED SWIM BLUE_LED J5-A NRST 2.2uf OSCIN/PA1 NRST TO AMP J5-B OSCOUT/PA2 VCAP +VDD_ON/OFF LP2985AIM5-5.0 AMP_ON/OFF J2-B MCP6001 ULN2003ADR J8-A TO AMP J2-A J1-A J1-B L5 121 10uf LIMIT SW...
